Authorization includes primarily two processes:
Permitting only certain users to access, process, or alter data
Applying varying limitations on user access or actions. The limitations placed on (or removed from) users can apply to objects, such as schemas, tables, or rows; or to resources, such as time (CPU, connect, or idle times).
This chapter introduces the basic concepts and mechanisms for placing or removing such limitations on users, individually or in groups, in the following sections:
Topic Category | Links to Topics |
---|---|
How Privileges Are Acquired and Used | Introduction to Privileges, including system, schema, object, table, procedure, and other privileges |
How Roles Are Acquired, Used, and Restricted | Introduction to Roles |
How and Why Resource Limits Are Applied to Users | User Resource Limits |
How Profiles Are Determined and Used | Profiles |
See Also:
Chapter 11, "Administering User Privileges, Roles, and Profiles", discusses how to configure and administer privileges, roles, and profiles for users, including DBAs and application programmers.A privilege is a right to execute a particular type of SQL statement or to access another user's object. Some examples of privileges include the right to:
Connect to the database (create a session)
Create a table
Select rows from another user's table
Execute another user's stored procedure
You grant privileges to users so these users can accomplish tasks required for their jobs. You should grant a privilege only to a user who requires that privilege to accomplish the necessary work. Excessive granting of unnecessary privileges can compromise security. A user can receive a privilege in two different ways:
You can grant privileges to users explicitly. For example, you can explicitly grant to user SCOTT
the privilege to insert records into the employees
table.

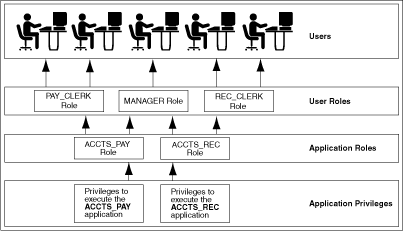

You can also grant privileges to a role (a named group of privileges), and then grant the role to one or more users. For example, you can grant the privileges to select, insert, update, and delete records from the employees
table to the role named clerk
, which in turn you can grant to users scott
and brian
.
Because roles allow for easier and better management of privileges, you should normally grant privileges to roles and not to specific users.
See Also:
Chapter 11, "Administering User Privileges, Roles, and Profiles"
Oracle Database Administrator's Guide for discussions of managing and using system and schema object privileges
Oracle Database SQL Reference for the complete list of system privileges and their descriptions
There are six major categories of privileges, some with significant subcategories:
A system privilege is the right to perform a particular action, or to perform an action on any schema objects of a particular type. For example, the privileges to create tablespaces and to delete the rows of any table in a database are system privileges. There are over 100 distinct system privileges to manage as described in the following subsections:
You can grant or revoke system privileges to users and roles. If you grant system privileges to roles, then you can use the roles to manage system privileges. For example, roles permit privileges to be made selectively available.
Note:
In general, you grant system privileges only to administrative personnel and application developers. End users normally do not require and should not have the associated capabilities.Use either of the following to grant or revoke system privileges to users and roles:
The Oracle Enterprise Manager 10g Database Control
The GRANT
and REVOKE
SQL statements
See Also:
For more information about Database Control, see Oracle Database 2 Day DBA.
For information about modifying users with Database Control, see the topic "Creating, Editing, and Deleting Users" in the Enterprise Manager online help.
A schema object privilege is the permission to perform a particular action on a specific schema object.
Different object privileges are available for different types of schema objects. The privilege to delete rows from the departments
table is an example of an object privilege.
Some schema objects, such as clusters, indexes, triggers, and database links, do not have associated object privileges. Their use is controlled with system privileges. For example, to alter a cluster, a user must own the cluster or have the ALTER
ANY
CLUSTER
system privilege.
The following subsections discuss granting and revoking such privileges:
Object privileges that apply to specific schema objects are discussed in the following sections:
Sequences (see Managing Sequences in Oracle Database Administrator's Guide
Functions and Packages (Managing Object Dependencies in Oracle Database Administrator's Guide)
Schema object privileges can be granted to and revoked from users and roles. If you grant object privileges to roles, then you can make the privileges selectively available.
Object privileges for users and roles can be granted or revoked using the following:
The SQL statements GRANT
and REVOKE
The Oracle Enterprise Manager 10g Database Control
See Also:
For more information about Database Control, see Oracle Database 2 Day DBA.
For information about modifying privileges with Database Control, see the Enterprise Manager online help.
A user automatically has all object privileges for schema objects contained in his or her schema. A user can grant any object privilege on any schema object he or she owns to any other user or role. A user with the GRANT
ANY
OBJECT
PRIVILEGE
can grant or revoke any specified object privilege to another user with or without the GRANT
OPTION
of the GRANT
statement. Otherwise, the grantee can use the privilege, but cannot grant it to other users.
For example, assume user SCOTT
owns a table named t2
:
SQL>GRANT GRANT ANY OBJECT PRIVILEGE TO u1; SQL> CONNECT u1/u1 Connected. SQL> GRANT SELECT ON scott.t2 TO u2; SQL> SELECT GRANTEE, OWNER, GRANTOR, PRIVILEGE, GRANTABLE FROM DBA_TAB_PRIVS WHERE TABLE_NAME = 'employees'; GRANTEE OWNER ------------------------------ ------------------------------ GRANTOR PRIVILEGE GRA ------------------------------ ---------------------------------------- --- U2 SCOTT SCOTT SELECT NO
See Also:
Oracle Database SQL ReferenceA schema object and its synonym are equivalent with respect to privileges. That is, the object privileges granted for a table, view, sequence, procedure, function, or package apply whether referencing the base object by name or by using a synonym.
For example, assume there is a table jward.emp
with a synonym named jward.employee
, and the user jward
issues the following statement:
GRANT SELECT ON emp TO swilliams;
The user swilliams
can query jward.emp
by referencing the table by name or by using the synonym jward.employee
:
SELECT * FROM jward.emp; SELECT * FROM jward.employee;
If you grant object privileges on a table, view, sequence, procedure, function, or package to a synonym for the object, then the effect is the same as if no synonym were used. For example, if jward
wanted to grant the SELECT
privilege for the emp
table to swilliams
, then jward
could issue either of the following statements:
GRANT SELECT ON emp TO swilliams; GRANT SELECT ON employee TO swilliams;
If a synonym is dropped, then all grants for the underlying schema object remain in effect, even if the privileges were granted by specifying the dropped synonym.
Schema object privileges for tables enable table security at the Data Manipulation Language (DML) or Data Definition Language (DDL) level of operation, as discussed in the following subsections:
You can grant privileges to use the DELETE
, INSERT
, SELECT
, and UPDATE
DML operations on a table or view. Grant these privileges only to users and roles that need to query or manipulate data in a table.
You can restrict INSERT
and UPDATE
privileges for a table to specific columns of the table. With selective INSERT
, a privileged user can insert a row with values for the selected columns. All other columns receive NULL
or the default value of the column. With selective UPDATE
, a user can update only specific column values of a row. Selective INSERT
and UPDATE
privileges are used to restrict user access to sensitive data.
For example, if you do not want data entry users to alter the salary
column of the employees
table, then selective INSERT
or UPDATE
privileges can be granted that exclude the salary
column. Alternatively, a view that excludes the salary
column could satisfy this need for additional security.
See Also:
Oracle Database SQL Reference for more information about DML operationsThe ALTER
, INDEX
, and REFERENCES
privileges allow DDL operations to be performed on a table. Because these privileges allow other users to alter or create dependencies on a table, you should grant privileges conservatively.
A user attempting to perform a DDL operation on a table may need additional system or object privileges. For example, to create a trigger on a table, the user requires both the ALTER
TABLE
object privilege for the table and the CREATE
TRIGGER
system privilege.
As with the INSERT
and UPDATE
privileges, the REFERENCES
privilege can be granted on specific columns of a table. The REFERENCES
privilege enables the grantee to use the table on which the grant is made as a parent key to any foreign keys that the grantee wishes to create in his or her own tables. This action is controlled with a special privilege because the presence of foreign keys restricts the data manipulation and table alterations that can be done to the parent key. A column-specific REFERENCES
privilege restricts the grantee to using the named columns (which, of course, must include at least one primary or unique key of the parent table).
See Also:
Data Integrity in Oracle Database Concepts for more information about primary keys, unique keys, and integrity constraintsA view is a presentation of data selected from one or more tables (possibly including other views). A view shows the structure of the underlying tables as well as the selected data, and can be thought of as the result of a stored query. The view contains no actual data but rather derives what it shows from the tables and views on which it is based. A view can be queried, and the data it represents can be changed. Data in a view can be updated or deleted, and new data inserted. These operations directly alter the tables on which the view is based and are subject to the integrity constraints and triggers of the base tables.
DML object privileges for tables can be applied similarly to views. Schema object privileges for a view allow various DML operations, which as noted affect the base tables from which the view is derived. These privileges are discussed in the following subsections:
To create a view, you must meet the following requirements:
You must have been granted one of the following system privileges, either explicitly or through a role:
The CREATE
VIEW
system privilege (to create a view in your schema)
The CREATE
ANY
VIEW
system privilege (to create a view in another user's schema)
You must have been explicitly granted one of the following privileges:
The SELECT
, INSERT
, UPDATE
, or DELETE
object privileges on all base objects underlying the view
The
SELECT
ANY
TABLE
, INSERT
ANY
TABLE
, UPDATE
ANY
TABLE
, or DELETE
ANY
TABLE
system privileges
In addition, in order to grant other users access to your view, you must have received object privileges to the base objects with the GRANT
OPTION
clause or appropriate system privileges with the ADMIN
OPTION
clause. If you have not, then grantees cannot access your view.
See Also:
Oracle Database SQL ReferenceTo use a view, you require appropriate privileges only for the view itself. You do not require privileges on base objects underlying the view.
Views add two more levels of security for tables, column-level security and value-based security:
A view can provide access to selected columns of base tables. For example, you can define a view on the employees
table to show only the employee_id
, last_name
, and manager_id
columns:
CREATE VIEW employees_manager AS SELECT last_name, employee_id, manager_id FROM employees;
A view can provide value-based security for the information in a table. A WHERE
clause in the definition of a view displays only selected rows of base tables. Consider the following two examples:
CREATE VIEW lowsal AS SELECT * FROM employees WHERE salary < 10000;
The LOWSAL
view allows access to all rows of the employees
table that have a salary value less than 10000. Notice that all columns of the employees
table are accessible in the LOWSAL
view.
CREATE VIEW own_salary AS SELECT last_name, salary FROM employees WHERE last_name = USER;
In the own_salary
view, only the rows with an last_name
that matches the current user of the view are accessible. The own_salary
view uses the user
pseudocolumn, whose values always refer to the current user. This view combines both column-level security and value-based security.
EXECUTE
is the only schema object privilege for procedures, including standalone procedures and functions as well as packages. Grant this privilege only to users who need to execute a procedure or to compile another procedure that calls a desired procedure. To create and manage secure and effective use of procedure privileges, you need to understand the following subsections:
A user with the EXECUTE
object privilege for a specific procedure can execute the procedure or compile a program unit that references the procedure. No run-time privilege check is made when the procedure is called. A user with the EXECUTE
ANY
PROCEDURE
system privilege can execute any procedure in the database. Privileges to execute procedures can be granted to a user through roles.
The owner of a procedure, called the definer, must have all the necessary object privileges for referenced objects. If the owner grants to another user the right to use that procedure, then the owner object privileges for the objects referenced by the procedure apply to that user's exercise of the procedure. These are termed "definer's rights."
The user of a procedure who is not its owner is called the "invoker." Additional privileges on referenced objects are required for invoker's rights procedures, but not for definer's rights procedures.
See Also:
"PL/SQL Blocks and Roles"Definer's Rights
A user of a definer's rights procedure requires only the privilege to execute the procedure and no privileges on the underlying objects that the procedure accesses, because a definer's rights procedure operates under the security domain of the user who owns the procedure, regardless of who is executing it. The owner of the procedure must have all the necessary object privileges for referenced objects. Fewer privileges have to be granted to users of a definer's rights procedure, resulting in tighter control of database access.
You can use definer's rights procedures to control access to private database objects and add a level of database security. By writing a definer's rights procedure and granting only EXECUTE
privilege to a user, the user can be forced to access the referenced objects only through the procedure.
At run-time, the privileges of the owner of a definer's rights stored procedure are always checked before the procedure is executed. If a necessary privilege on a referenced object has been revoked from the owner of a definer's rights procedure, then the procedure cannot be executed by the owner or any other user.
Note:
Trigger execution follows the same patterns as definer's rights procedures. The user executes a SQL statement, which that user is privileged to execute. As a result of the SQL statement, a trigger is fired. The statements within the triggered action temporarily execute under the security domain of the user that owns the trigger.See Also:
"Triggers" in Oracle Database ConceptsInvoker's Rights
An invoker's rights procedure executes with all of the invoker's privileges. Roles are enabled unless the invoker's rights procedure was called directly or indirectly by a definer's rights procedure. A user of an invoker's rights procedure needs privileges (either directly or through a role) on objects that the procedure accesses through external references that are resolved in the invoker's schema.
The invoker needs privileges at run-time to access program references embedded in DML statements or dynamic SQL statements, because they are effectively recompiled at run-time.
For all other external references, such as direct PL/SQL function calls, the owner's privileges are checked at compile time, and no run-time check is made. Therefore, the user of an invoker's rights procedure needs no privileges on external references outside DML or dynamic SQL statements. Alternatively, the developer of an invoker's rights procedure only needs to grant privileges on the procedure itself, not on all objects directly referenced by the invoker's rights procedure.
You can create a software bundle that consists of multiple program units, some with definer's rights and others with invoker's rights, and restrict the program entry points (controlled step-in). A user who has the privilege to execute an entry-point procedure can also execute internal program units indirectly, but cannot directly call the internal programs.
See Also:
PL/SQL Packages and Types Reference for detailed documentation of the Oracle supplied packages
To create a procedure, a user must have the CREATE
PROCEDURE
or CREATE
ANY
PROCEDURE
system privilege. To alter a procedure, that is, to manually recompile a procedure, a user must own the procedure or have the ALTER
ANY
PROCEDURE
system privilege.
The user who owns the procedure also must have privileges for schema objects referenced in the procedure body. To create a procedure, you must have been explicitly granted the necessary privileges (system or object) on all objects referenced by the procedure. You cannot have obtained the required privileges through roles. This includes the EXECUTE
privilege for any procedures that are called inside the procedure being created.
Note:
Triggers also require that privileges to referenced objects be granted explicitly to the trigger owner. Anonymous PL/SQL blocks can use any privilege, whether the privilege is granted explicitly or through a role.A user with the EXECUTE
object privilege for a package can execute any public procedure or function in the package and access or modify the value of any public package variable. Specific EXECUTE
privileges cannot be granted for individual constructs in a package. Therefore, you may find it useful to consider two alternatives for establishing security when developing procedures, functions, and packages for a database application. These alternatives are described in the following examples.
Packages and Package Objects: Example 1
This example shows four procedures created in the bodies of two packages.
CREATE PACKAGE BODY hire_fire AS PROCEDURE hire(...) IS BEGIN INSERT INTO employees . . . END hire; PROCEDURE fire(...) IS BEGIN DELETE FROM employees . . . END fire; END hire_fire; CREATE PACKAGE BODY raise_bonus AS PROCEDURE give_raise(...) IS BEGIN UPDATE employees SET salary = . . . END give_raise; PROCEDURE give_bonus(...) IS BEGIN UPDATE employees SET bonus = . . . END give_bonus; END raise_bonus;
Access to execute the procedures is given by granting the EXECUTE
privilege for the package by using the following statements:
GRANT EXECUTE ON hire_fire TO big_bosses; GRANT EXECUTE ON raise_bonus TO little_bosses;
Note:
GrantingEXECUTE
privilege granted for a package provides uniform access to all package objects.Packages and Package Objects: Example 2
This example shows four procedure definitions within the body of a single package. Two additional standalone procedures and a package are created specifically to provide access to the procedures defined in the main package.
CREATE PACKAGE BODY employee_changes AS PROCEDURE change_salary(...) IS BEGIN ... END; PROCEDURE change_bonus(...) IS BEGIN ... END; PROCEDURE insert_employee(...) IS BEGIN ... END; PROCEDURE delete_employee(...) IS BEGIN ... END; END employee_changes; CREATE PROCEDURE hire BEGIN employee_changes.insert_employee(...) END hire; CREATE PROCEDURE fire BEGIN employee_changes.delete_employee(...) END fire; PACKAGE raise_bonus IS PROCEDURE give_raise(...) AS BEGIN employee_changes.change_salary(...) END give_raise; PROCEDURE give_bonus(...) BEGIN employee_changes.change_bonus(...) END give_bonus;
Using this method, the procedures that actually do the work (the procedures in the employee_changes
package) are defined in a single package and can share declared global variables, cursors, on so on. By declaring top-level procedures, hire
and fire
, and an additional package, raise_bonus
, you can grant selective EXECUTE
privileges on procedures in the main package:
GRANT EXECUTE ON hire, fire TO big_bosses; GRANT EXECUTE ON raise_bonus TO little_bosses;
The following subsections describe the use of privileges for types, methods, and objects:
Oracle defines system privileges shown in Table 5-1 for named types (object types, VARRAY
s, and nested tables):
Table 5-1 System Privileges for Named Types
Privilege | Allows you to... |
---|---|
|
Create named types in your own schemas |
|
Create a named type in any schema |
|
Alter a named type in any schema |
|
Drop a named type in any schema |
|
Use and reference a named type in any schema |
The RESOURCE
role includes the CREATE
TYPE
system privilege. The DBA role includes all of these privileges.
The only object privilege that applies to named types is EXECUTE
. If the EXECUTE
privilege exists on a named type, then a user can use the named type to:
Define a table
Define a column in a relational table
Declare a variable or parameter of the named type
The EXECUTE
privilege permits a user to invoke the methods in the type, including the type constructor. This is similar to EXECUTE
privilege on a stored PL/SQL procedure.
Method execution is the same as any other stored PL/SQL procedure.
See Also:
"Procedure Privileges"To create a type, you must meet the following requirements:
You must have the CREATE
TYPE
system privilege to create a type in your schema or the CREATE
ANY
TYPE
system privilege to create a type in the schema of another user. These privileges can be acquired explicitly or through a role.
The owner of the type must be explicitly granted the EXECUTE
object privileges to access all other types referenced within the definition of the type, or have been granted the EXECUTE
ANY
TYPE
system privilege. The owner cannot have obtained the required privileges through roles.
If the type owner intends to grant access to the type to other users, then the owner must have received the EXECUTE
privileges to the referenced types with the GRANT
OPTION
or the EXECUTE
ANY
TYPE
system privilege with the ADMIN
OPTION
. If not, then the type owner has insufficient privileges to grant access on the type to other users.
To create a table using types, you must meet the requirements for creating a table and the following additional requirements:
The owner of the table must have been explicitly granted the EXECUTE
object privileges to access all types referenced by the table, or have been granted the EXECUTE
ANY
TYPE
system privilege. The owner cannot have obtained the required privileges through roles.
If the table owner intends to grant access to the table to other users, then the owner must have received the EXECUTE
privileges to the referenced types with the GRANT
OPTION
or the EXECUTE
ANY
TYPE
system privilege with the ADMIN
OPTION
. If not, then the table owner has insufficient privileges to grant access on the type to other users.
See Also:
"Table Privileges" for the requirements for creating a tableAssume that three users exist with the CONNECT
and RESOURCE
roles:
user1
user2
user3
User1
performs the following DDL in his schema:
CREATE TYPE type1 AS OBJECT ( attr1 NUMBER); CREATE TYPE type2 AS OBJECT ( attr2 NUMBER); GRANT EXECUTE ON type1 TO user2; GRANT EXECUTE ON type2 TO user2 WITH GRANT OPTION;
User2
performs the following DDL in his schema:
CREATE TABLE tab1 OF user1.type1; CREATE TYPE type3 AS OBJECT ( attr3 user1.type2); CREATE TABLE tab2 ( col1 user1.type2);
The following statements succeed because user2
has EXECUTE
privilege on user1.type2
with the GRANT
OPTION:
GRANT EXECUTE ON type3 TO user3; GRANT SELECT on tab2 TO user3;
However, the following grant fails because user2
does not have EXECUTE
privilege on user1.type1
with the GRANT
OPTION:
GRANT SELECT ON tab1 TO user3;
User3
can successfully perform the following statements:
CREATE TYPE type4 AS OBJECT ( attr4 user2.type3); CREATE TABLE tab3 OF type4;
Note:
Customers should discontinue using theCONNECT
and RESOURCE
roles, as they will be deprecated in future Oracle Database releases. The CONNECT
role presently retains only the CREATE SESSION
privilege.Existing column-level and table-level privileges for DML statements apply to both column objects and row objects. Oracle defines the privileges shown in Table 5-2 for object tables.
Table 5-2 Privileges for Object Tables
Privilege | Allows you to... |
---|---|
|
Access an object and its attributes from the table |
|
Modify the attributes of the objects that make up the rows in the table |
|
Create new objects in the table |
|
Delete rows |
Similar table privileges and column privileges apply to column objects. Retrieving instances does not in itself reveal type information. However, clients must access named type information in order to interpret the type instance images. When a client requests such type information, Oracle Database checks for EXECUTE
privilege on the type.
Consider the following schema:
CREATE TYPE emp_type ( eno NUMBER, ename CHAR(31), eaddr addr_t); CREATE TABLE emp OF emp_t;
In addition, consider the following two queries:
SELECT VALUE(emp) FROM emp; SELECT eno, ename FROM emp;
For either query, Oracle Database checks the SELECT
privilege of the user for the emp
table. For the first query, the user needs to obtain the emp_type
type information to interpret the data. When the query accesses the emp_type
type, Oracle checks the EXECUTE
privilege of the user.
Execution of the second query, however, does not involve named types, so Oracle does not check type privileges.
In addition, by using the schema from the previous section, user3
can perform the following queries:
SELECT tab1.col1.attr2 FROM user2.tab1 tab1; SELECT attr4.attr3.attr2 FROM tab3;
Note that in both SELECT
statements, user3
does not have explicit privileges on the underlying types, but the statement succeeds because the type and table owners have the necessary privileges with the GRANT
OPTION.
Oracle Database checks privileges on the following events and returns an error if the client does not have the privilege for the action:
Pinning an object in the object cache using its REF
value causes Oracle Database to check for the SELECT
privilege on the containing object table.
Modifying an existing object or flushing an object from the object cache causes Oracle Database to check for the UPDATE
privilege on the destination object table.
Flushing a new object causes Oracle Database to check for the INSERT
privilege on the destination object table.
Deleting an object causes Oracle Database to check for the DELETE
privilege on the destination table.
Pinning an object of a named type causes Oracle to check EXECUTE
privilege on the object.
Modifying the attributes of an object in a client third-generation language application causes Oracle Database to update the entire object. Therefore, the user needs UPDATE
privilege on the object table. Having the UPDATE
privilege on only certain columns of the object table is not sufficient, even if the application only modifies attributes corresponding to those columns. Therefore, Oracle Database does not support column-level privileges for object tables.
As with stored objects, such as procedures and tables, types being referenced by other objects are called dependencies. There are some special issues for types that tables depend on. Because a table contains data that relies on the type definition for access, any change to the type causes all stored data to become inaccessible. Changes that can cause this are when necessary privileges required by the type are revoked or the type or dependent types are dropped. If either of these actions occur, then the table becomes invalid and cannot be accessed.
A table that is invalid because of missing privileges can automatically become valid and accessible if the required privileges are granted again. A table that is invalid because a dependent type has been dropped can never be accessed again, and the only permissible action is to drop the table.
Because of the severe effects that revoking a privilege on a type or dropping a type can cause, the SQL statements REVOKE
and DROP
TYPE
, by default, implement a restrict semantics. This means that if the named type in either statement has table or type dependents, then an error is received and the statement aborts. However, if the FORCE
clause for either statement is used, then the statement always succeeds. If there are depended-upon tables, then they are invalidated.
See Also:
Oracle Database Reference for details about using theREVOKE
, DROP
TYPE
, and FORCE
clausesManaging and controlling privileges is made easier by using roles, which are named groups of related privileges that you grant as a group to users or other roles. Within a database, each role name must be unique, different from all user names and all other role names. Unlike schema objects, roles are not contained in any schema. Therefore, a user who creates a role can be dropped with no effect on the role.
Roles are designed to ease the administration of an end-user system and schema object privileges and are often maintained in Oracle Internet Directory. However, roles are not meant to be used by application developers, because the privileges to access schema objects within stored programmatic constructs need to be granted directly.
The effective management of roles is discussed in the following subsections:
Authentication Considerations in These Topical Areas | Links to Relevant Subsection |
---|---|
Why Roles Are Advantageous | Properties of Roles |
How Roles are Typically Used | Common Uses of Roles |
How Users Get Roles (or Role Restrictions | Granting and Revoking Roles |
How Roles Affect The Scope of a User's Privileges | Security Domains of Roles and Users |
How Roles Work in PL/SQL Blocks | PL/SQL Blocks and Roles |
How Roles Aid or Restrict DDL Usage | DDL Statements and Roles |
What Roles are Predefined in Oracle | Predefined Roles |
How Can Operating Systems Aid Roles | Operating System and Roles |
How Roles Work in a Remote Session | Roles in a Distributed Environment |
How Secure Application Roles Are Created and Used | Secure Application Roles |
Table 5-3 discusses the properties of roles that enable easier privilege management within a database:
Table 5-3 Properties of Roles and Their Description
Property | Description |
---|---|
Reduced privilege administration |
Rather than granting the same set of privileges explicitly to several users, you can grant the privileges for a group of related users to a role, and then only the role needs to be granted to each member of the group. |
Dynamic privilege management |
If the privileges of a group must change, then only the privileges of the role need to be modified. The security domains of all users granted the group's role automatically reflect the changes made to the role. |
Selective availability of privileges |
You can selectively enable or disable the roles granted to a user. This allows specific control of a user's privileges in any given situation. |
Application awareness |
The data dictionary records which roles exist, so you can design applications to query the dictionary and automatically enable (or disable) selective roles when a user attempts to execute the application by way of a given user name. |
Application-specific security |
You can protect role use with a password. Applications can be created specifically to enable a role when supplied the correct password. Users cannot enable the role if they do not know the password. |
Database administrators often create roles for a database application. The DBA grants a secure application role all privileges necessary to run the application. The DBA then grants the secure application role to other roles or users. An application can have several different roles, each granted a different set of privileges that allow for more or less data access while using the application.
The DBA can create a role with a password to prevent unauthorized use of the privileges granted to the role. Typically, an application is designed so that when it starts, it enables the proper role. As a result, an application user does not need to know the password for an application role.
See Also:
"DDL Statements and Roles" for information about restrictions for procedures
Oracle Database Application Developer's Guide - Fundamentals for instructions for enabling roles from an application
In general, you create a role to serve one of two purposes:
To manage the privileges for a database application (Application Roles)
To manage the privileges for a user group (User Roles)
Figure 5-1 and the sections that follow describe the two uses of roles.
You grant an application role all privileges necessary to run a given database application. Then, you grant the secure application role to other roles or to specific users. An application can have several different roles, with each role assigned a different set of privileges that allow for more or less data access while using the application.
Note:
Grants of password protection or application roles to another role will not be allowed in future Oracle Database releases.System or schema object privileges can be granted to a role, and any role can be granted to any database user or to another role (but not to itself). However, a role cannot be granted circularly, that is, a role X
cannot be granted to role Y
if role Y
has previously been granted to role X
.
To provide selective availability of privileges, Oracle Database allows applications and users to enable and disable roles. Each role granted to a user is, at any given time, either enabled or disabled. The security domain of a user includes the privileges of all roles currently enabled for the user and excludes the privileges of any roles currently disabled for the user.
A role granted to a role is called an indirectly granted role. It can be explicitly enabled or disabled for a user. However, whenever you enable a role that contains other roles, you implicitly enable all indirectly granted roles of the directly granted role.
You grant roles to (or revoke roles from) users or other roles by using either of the following methods:
Privileges are granted to and revoked from roles using the same options. Roles can also be granted to and revoked from users using the operating system that runs Oracle, or through network services.
See Also:
For more information aboutDatabase Control, see Oracle Database 2 Day DBA
Modifying users, roles, or privileges with the Database Control, see the Enterprise Manager online help
Any user with the GRANT
ANY
ROLE
system privilege can grant or revoke any role except a global role to or from other users or roles of the database. You should grant this system privilege conservatively because it is very powerful.
Any user granted a role with the ADMIN
OPTION
can grant or revoke that role to or from other users or roles of the database. This option allows administrative powers for roles on a selective basis.
See Also:
Oracle Database Administrator's Guide for information about global rolesEach role and user has its own unique security domain. The security domain of a role includes the privileges granted to the role plus those privileges granted to any roles that are granted to the role.
The security domain of a user includes privileges on all schema objects in the corresponding schema, the privileges granted to the user, and the privileges of roles granted to the user that are currently enabled. (A role can be simultaneously enabled for one user and disabled for another.) This domain also includes the privileges and roles granted to the user group PUBLIC
.
The use of roles in a PL/SQL block depends on whether it is an anonymous block or a named block (stored procedure, function, or trigger), and whether it executes with definer's rights or invoker's rights.
All roles are disabled in any named PL/SQL block (stored procedure, function, or trigger) that executes with definer's rights. Roles are not used for privilege checking and you cannot set roles within a definer's rights procedure.
The SESSION_ROLES
view shows all roles that are currently enabled. If a named PL/SQL block that executes with definer's rights queries SESSION_ROLES
, then the query does not return any rows.
See Also:
Oracle Database ReferenceNamed PL/SQL blocks that execute with invoker's rights and anonymous PL/SQL blocks are executed based on privileges granted through enabled roles. Current roles are used for privilege checking within an invoker's rights PL/SQL block, and you can use dynamic SQL to set a role in the session.
See Also:
PL/SQL User's Guide and Reference for an explanation of invoker's and definer's rights
"Dynamic SQL in PL/SQL" in Oracle Database Concepts
A user requires one or more privileges to successfully execute a DDL statement, depending on the statement. For example, to create a table, the user must have the CREATE
TABLE
or CREATE
ANY
TABLE
system privilege. To create a view of a table that belongs to another user, the creator requires the CREATE VIEW
or CREATE
ANY
VIEW
system privilege and either the SELECT
object
privilege for the table or the SELECT
ANY
TABLE
system privilege.
Oracle Database avoids the dependencies on privileges received by way of roles by restricting the use of specific privileges in certain DDL statements. The following rules outline these privilege restrictions concerning DDL statements:
All system privileges and schema object privileges that permit a user to perform a DDL operation are usable when received through a role. For example:
System Privileges: CREATE
TABLE
, CREATE
VIEW,
and CREATE
PROCEDURE
privileges
Schema Object Privileges: ALTER
and INDEX
privileges for a table
Exception: The REFERENCES
object privilege for a table cannot be used to define the foreign key of a table if the privilege is received through a role.
All system privileges and object privileges that allow a user to perform a DML operation that is required to issue a DDL statement are not usable when received through a role. For example:
A user who receives the SELECT
ANY
TABLE
system privilege or the SELECT
object
privilege for a table through a role can use neither privilege to create a view on a table that belongs to another user.
The following example further clarifies the permitted and restricted uses of privileges received through roles.
Assume that a user is:
Granted a role that has the CREATE
VIEW
system privilege
Granted a role that has the SELECT
object
privilege for the employees
table, but the user is indirectly granted the SELECT
object
privilege for the employees
table
Directly granted the SELECT
object
privilege for the departments
table
Given these directly and indirectly granted privileges:
The user can issue SELECT
statements on both the employees
and departments
tables.
Although the user has both the CREATE
VIEW
and SELECT
privilege for the employees
table through a role, the user cannot create a usable view on the employees
table, because the SELECT
object
privilege for the employees
table was granted through a role. Any views created will produce errors when accessed.
The user can create a view on the departments
table, because the user has the CREATE
VIEW
privilege through a role and the SELECT
privilege for the departments
table directly.
The following roles are defined automatically for Oracle Database:
These roles are provided for backward compatibility to earlier versions of Oracle Database and can be modified in the same manner as any other role in an Oracle database.
Note:
Each installation should create its own roles and assign only those privileges that are needed, thus retaining detailed control of the privileges in use. This process also removes any need to adjust existing roles, privileges, or procedures whenever Oracle Database changes or removes roles that Oracle Database defines. For example, theCONNECT
role now has only one privilege: CREATE SESSION
. Both CONNECT
and RESOURCE
roles will be deprecated in future Oracle versions.In some environments, you can administer database security using the operating system. The operating system can be used to manage the granting (and revoking) of database roles and to manage their password authentication. This capability is not available on all operating systems.
See Also:
Your operating system specific Oracle documentation for details on managing roles through the operating systemWhen you use roles in a distributed database environment, you must ensure that all needed roles are set as the default roles for a distributed (remote) session. These roles cannot be enabled when you connect to a remote database from within a local database session. For example, you cannot execute a remote procedure that attempts to enable a role at the remote site.
Oracle Database provides secure application roles, which are roles that can only be enabled by authorized PL/SQL packages. This mechanism restricts the enabling of such roles to the invoking application.
Security is strengthened when passwords are not embedded in application source code or stored in a table. Instead, a secure application role can be created, specifying which PL/SQL package is authorized to enable the role. Package identity is used to determine whether privileges are sufficient to enable the roles. Before enabling the role, the application can perform authentication and customized authorization, such as checking whether the user has connected through a proxy.
Note:
Because of the restriction that users cannot change the security domain inside definer's right procedures, secure application roles can only be enabled inside invoker's right procedures.Secure application roles are created by using the statement CREATE
ROLE
... IDENTIFIED
USING
. Here is an example:
CREATE ROLE admin_role IDENTIFIED USING hr.admin;
This statement indicates the following:
The role admin_role
to be created is a secure application role.
The role can only be enabled by modules defined inside the PL/SQL package hr
.admin
.
You must have the CREATE
ROLE
system privilege to execute this statement.
When such a role is assigned to a user, it becomes a default role for that user, which is automatically enabled at login without resorting to the package. A user with a default role does not have to be authenticated in any way to use the role. For example, the password for the role is not requested or required.
To restrict the role solely to the use specified by the IDENTIFIED USING
clause, you can take either of the following actions:
Immediately after granting such a role to a user, issue an ALTER USER
statement with the clause DEFAULT ROLE ALL EXCEPT
role
, substituting the application role for role
. Then role
can only be used by applications executing the authorized package.
When assigning roles, use GRANT ALL EXCEPT role
.
Roles that are enabled inside an invoker's right procedure remain in effect even after the procedure exits. Therefore, you can have a dedicated procedure that deals with enabling the role for the rest of the session to use.
You can set limits on the amount of various system resources available to each user as part of the security domain of that user. By doing so, you can prevent the uncontrolled consumption of valuable system resources such as CPU time.
This resource limit feature is very useful in large, multiuser systems, where system resources are very expensive. Excessive consumption of these resources by one or more users can detrimentally affect the other users of the database. In single-user or small-scale multiuser database systems, the system resource feature is not as important, because user consumption of system resources is less likely to have detrimental impact.
You manage user resource limits by means of Database Resource Manager. You can set password management preferences using profiles, either set individually or using a default profile for many users. Each Oracle database can have an unlimited number of profiles. Oracle allows the security administrator to enable or disable the enforcement of profile resource limits universally.
See Also:
For resource management, see Database Resource Manager
For passwords, see Password Management Policy
Setting resource limits causes a slight performance degradation when users create sessions, because Oracle loads all resource limit data for each user upon each connection to the database.
See Also:
Oracle Database Administrator's Guide for information about security administratorsResource limits and profiles are discussed in the following sections:
Oracle Database can limit the use of several types of system resources, including CPU time and logical reads. In general, you can control each of these resources at the session level, call level, or both, as discussed in the following subsections:
Each time a user connects to a database, a session is created. Each session consumes CPU time and memory on the computer that runs Oracle Database. You can set several resource limits at the session level.
If a user exceeds a session-level resource limit, then Oracle terminates (rolls back) the current statement and returns a message indicating that the session limit has been reached. At this point, all previous statements in the current transaction are intact, and the only operations the user can perform are COMMIT
, ROLLBACK
, or disconnect (in this case, the current transaction is committed). All other operations produce an error. Even after the transaction is committed or rolled back, the user can accomplish no more work during the current session.
Each time a SQL statement is executed, several steps are taken to process the statement. During this processing, several calls are made to the database as a part of the different execution phases. To prevent any one call from using the system excessively, Oracle Database lets you set several resource limits at the call level.
If a user exceeds a call-level resource limit, then Oracle Database halts the processing of the statement, rolls back the statement, and returns an error. However, all previous statements of the current transaction remain intact, and the user session remains connected.
When SQL statements and other types of calls are made to Oracle Database, a certain amount of CPU time is necessary to process the call. Average calls require a small amount of CPU time. However, a SQL statement involving a large amount of data or a runaway query can potentially consume a large amount of CPU time, reducing CPU time available for other processing.
To prevent uncontrolled use of CPU time, you can set fixed or dynamic limits on the CPU time for each call and the total amount of CPU time used for Oracle calls during a session. The limits are set and measured in CPU one-hundredth seconds (0.01 seconds) used by a call or a session.
I/O is one of the most expensive operations in a database system. SQL statements that are I/O-intensive can monopolize memory and disk use and cause other database operations to compete for these resources.
To prevent single sources of excessive I/O, Oracle Database lets you limit the logical data block reads for each call and for each session. Logical data block reads include data block reads from both memory and disk. The limits are set and measured in number of block reads performed by a call or during a session.
Oracle Database also provides for limiting several other resources at the session level:
You can limit the number of concurrent sessions for each user. Each user can create only up to a predefined number of concurrent sessions.
You can limit the idle time for a session. If the time between calls in a session reaches the idle time limit, then the current transaction is rolled back, the session is aborted, and the resources of the session are returned to the system. The next call receives an error that indicates that the user is no longer connected to the instance. This limit is set as a number of elapsed minutes.
You can limit the elapsed connect time for each session. If the duration of a session exceeds the elapsed time limit, then the current transaction is rolled back, the session is dropped, and the resources of the session are returned to the system. This limit is set as a number of elapsed minutes.
Note:
Oracle Database does not constantly monitor the elapsed idle time or elapsed connection time. Doing so would reduce system performance. Instead, it checks every few minutes. Therefore, a session can exceed this limit slightly (for example, by five minutes) before Oracle enforces the limit and aborts the session.You can limit the amount of private System Global Area (SGA) space (used for private SQL areas) for a session. This limit is only important in systems that use the shared server configuration. Otherwise, private SQL areas are located in the Program Global Area (PGA). This limit is set as a number of bytes of memory in the SGA of an instance. Use the characters K or M to specify kilobytes or megabytes.
See Also:
For instructions on enabling or disabling resource limits:In general, the word profile refers to a collection of attributes that apply to a user, enabling a single point of reference for any of multiple users that share those exact attributes. User profiles in Oracle Internet Directory contain a wide range of attributes pertinent to directory usage and authentication for each user. Similarly, profiles in Oracle Label Security contain attributes useful in label security user administration and operations management. Profile attributes can include restrictions on system resources, but for that purpose Database Resource Manager is preferred.
See Also:
For resources, see discussion of the Database Resource Manager in the Oracle Database Administrator's Guide
For viewing resource information, see Viewing Information About Database Users and Profiles
For password policies, see Password Management Policy in Chapter 7, "Security Policies"
Before creating profiles and setting the resource limits associated with them, you should determine appropriate values for each resource limit. You can base these values on the type of operations a typical user performs. For example, if one class of user does not normally perform a high number of logical data block reads, then set the LOGICAL_READS_PER_SESSION
and LOGICAL_READS_PER_CALL
limits conservatively.
Usually, the best way to determine the appropriate resource limit values for a given user profile is to gather historical information about each type of resource usage. For example, the database or security administrator can use the AUDIT
SESSION
clause to gather information about the limits CONNECT_TIME
, LOGICAL_READS_PER_SESSION
, and LOGICAL_READS_PER_CALL
.
You can gather statistics for other limits using the Monitor feature of Oracle Enterprise Manager (or SQL*Plus), specifically the Statistics monitor.
See Also:
For more information about the Database Control, see Oracle Database 2 Day DBA
For information about the Monitor feature, see the Enterprise Manager online help
