8 Association

About Association

Association is a data mining function that discovers the probability of the co-occurrence of items in a collection. The relationships between co-occurring items are expressed as association rules.

Oracle Data Mining does not support the scoring operation for association modeling. The results of an association model are the rules that identify patterns of association within the data. Association rules can be ranked by support (How often do these items occur together in the data?) and confidence (How likely are these items to occur together in the data?).

Association rules are often used to analyze sales transactions. For example, it might be noted that customers who buy cereal at the grocery store often buy milk at the same time. In fact, association analysis might find that 85% of the checkout sessions that include cereal also include milk. This relationship could be formulated as the following rule.

Cereal implies milk with 85% confidence

This application of association modeling is called market-basket analysis. It is valuable for direct marketing, sales promotions, and for discovering business trends. Market-basket analysis can also be used effectively for store layout, catalog design, and cross-sell.

Association modeling has important applications in other domains as well. For example, in e-commerce applications, association rules may be used for Web page personalization. An association model might find that a user who visits pages A and B is 70% likely to also visit page C in the same session. Based on this rule, a dynamic link could be created for users who are likely to be interested in page C. The association rule could be expressed as follows.

A and B imply C with 70% confidence

Transactions

Unlike other data mining functions, association is transaction-based. In transaction processing, a case consists of a transaction such as a market basket or Web session. The collection of items in the transaction is an attribute of the transaction. Other attributes might be the date, time, location, or user ID associated with the transaction.

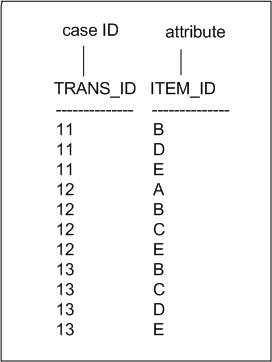

The collection of items in the transaction is a multi-record attribute. Transactional data is said to be in multi-record case format. An example is shown in Figure 8-1.

Figure 8-1 Transactional Data

Description of "Figure 8-1 Transactional Data"

Association models can be built using either transactional or nontransactional (single-record case) data. For all other types of models, Oracle Data Mining requires nontransactional data. To build any model other than an association model on transactional data, the data must first be transformed to single-record case format.

See Also:

Figure 4-3, "Sample Build Data for Regression" and Figure 7-2, "Build Data for Clustering" for examples of single-record case format

"Sparse Data"

Oracle Data Mining Application Developer's Guide for information about transforming transactional data to single-record case

Items and Collections

In transactional data, a collection of items is associated with each case. The collection could theoretically include all possible members of the collection. For example, all products could theoretically be purchased in a single market-basket transaction. However, in actuality, only a tiny subset of all possible items are present in a given transaction; the items in the market-basket represent only a small fraction of the items available for sale in the store.

Sparse Data

When an item is not present in a collection, it may have a null value or it may simply be missing. Many of the items may be missing or null, since many of the items that could be in the collection are probably not present in any individual transaction.

Missing rows in a collection indicate sparsity. This means that a high proportion of the nested rows are not populated. The Oracle Data Mining association algorithm is optimized for processing sparse data.

See Also:

Oracle Data Mining Application Developer's Guide for information about Oracle Data Mining and sparse data

A Sample Association Problem

This example shows association rules mined from sales transactions in the SH schema. Sales is a fact table linked to products, customers, and other dimension tables through foreign keys. Oracle Data Miner automatically converts the transactional data to single-record case.

The items in each transaction are products; each transaction is uniquely identified by a customer ID. Figure 8-2 shows the dialog in Oracle Data Miner for selecting transactional data.

Figure 8-2 Select Transactional Data

Description of "Figure 8-2 Select Transactional Data"

Figure 8-3 shows the dialog for selecting the unique transaction identifier.

Figure 8-3 Select Transaction Identifier

Description of "Figure 8-3 Select Transaction Identifier"

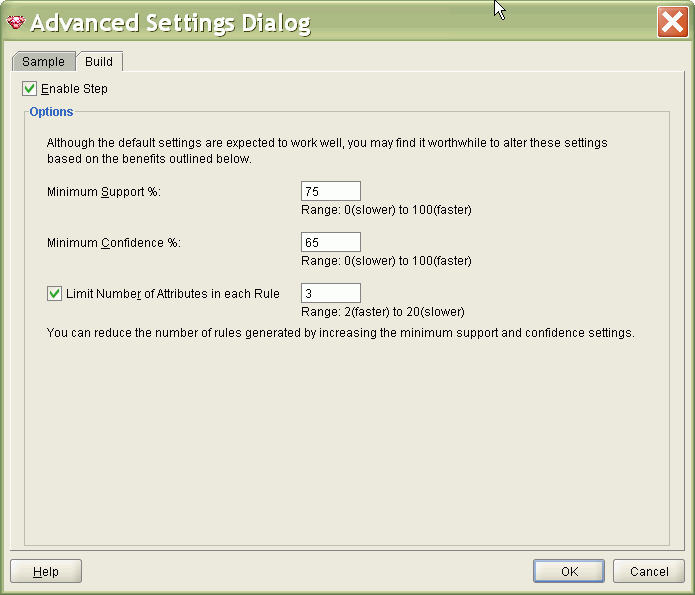

A model with default settings built on this data generates many rules. One way to limit the number of rules is to raise the support and confidence. Figure 8-4 shows Confidence raised to 65% and Support raised to 75% in the Advanced Settings dialog.

Figure 8-4 Advanced Settings for Association Rules

Description of "Figure 8-4 Advanced Settings for Association Rules"

Figure 8-5 shows the rules that are returned when you increase the confidence and support.

Figure 8-5 Sample Association Rules

Description of "Figure 8-5 Sample Association Rules"

You can filter the rules in a number of different ways. The dialog in Figure 8-6 specifies that only rules with "Mouse Pad" in the antecedent, and "Keyboard Wrist Rest" in the consequent should be returned.

Figure 8-6 Filter Rules

Description of "Figure 8-6 Filter Rules"

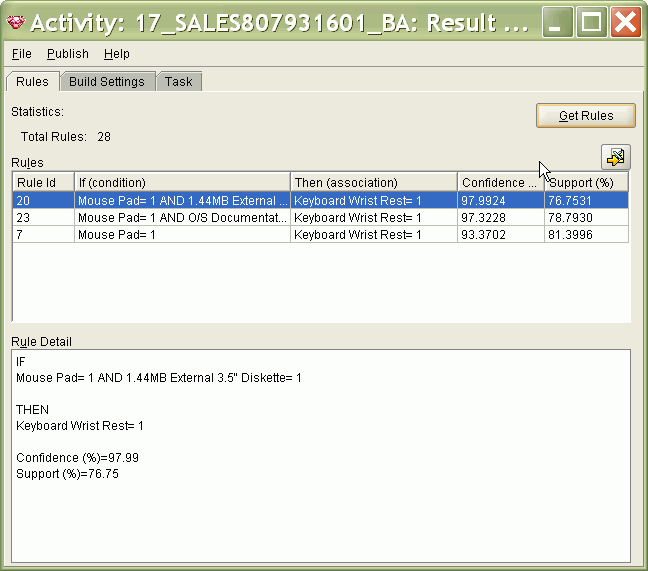

Figure 8-7 shows the three rules that result from the filtering criteria specified in Figure 8-6. The first rule states that a customer who purchases a mouse pad and a 1.44 MB External 3.5 Diskette is likely to also buy a keyboard wrist rest at same time. The confidence for this rule is 99%. The support is 77%.

Figure 8-7 Display rules with mouse pad in antecedent

Description of "Figure 8-7 Display rules with mouse pad in antecedent"

Algorithm for Association Rules

Oracle Data Mining uses the Apriori algorithm to calculate association rules for items in frequent itemsets.
