27 Activities in Process Flows

Using Activities in Process Flows

Use this section as a reference for all the process flow activities. This section categorizes activities into the following types:

• Activities That Represent Objects

• Utility Activities

• Control Activities

• OS Activities

For detailed descriptions of each activity, see the alphabetical listing in the remainder of this section.

Activities That Represent Objects

Table 27-1 lists the activities that represent objects that you previously created in Oracle Warehouse Builder. You can specify one or more incoming transitions. For outgoing transitions, you can use the success, warning, error, and unconditional transitions once each, and then also define an unlimited number of complex condition transitions.

Table 27-1 Activities that Represent Objects

Icon	Activity	Brief Description
	Data Auditor Monitor	Adds to the process flow an existing data auditor monitor used in data profiling
	Mapping	Adds an existing mapping to the process flow
	Subprocess	Embeds an existing process flow within the process flow
	Transform	Adds an existing transformation to the process flow
	Web Service	Adds an existing Web service to the process flow

Committing Data

When you add activities that represent design objects, the process flow evaluates each of these activities as a separate transaction. For example, when you add mapping activities, the process flow commits and rolls back each mapping independently. In this design, it is not possible to control all the mappings by one commit or roll back statement.

To collectively commit or rollback multiple mappings, consider designing the process flow with a SQL*PLUS activity associated with a script that calls each mapping. For instructions, see "Committing Mappings through the Process Flow Editor".

Utility Activities

Table 27-2 lists each utility activity and shows the associated icon.

Table 27-2 Utility Activities

Icon	Activity	Brief Description
	Assign	Assigns a value to a variable
	Enterprise Java Bean	Executes an Enterprise JavaBean from within a process flow
	Email	Sends an e-mail. For example, send an e-mail message about the status of activities in the process flow
	File Exists	Use the File Exists activity to check if a file is located on a specified drive or directory
	Java Class	Executes a Java class from within a process flow
	Manual	Halts a process flow and requires manual intervention to resume the process flow
	Notification	Sends an e-mail to a user and allows the user to select from a list of responses that dictates how the process flow proceeds
	OMBPlus	Represents an OMB*Plus script in a process flow
	Set Status	Interjects a success, warning, or error status
	Wait	Delays the progress of the process flow by a specified amount of time

Control Activities

Table 27-3 lists the activities that you use to control the process flow. The table shows the associated icon. It also lists the number of incoming and outgoing transitions allowed for each activity.

Table 27-3 Control Activities

Icon	Activity	Brief Description	Incoming Transitions	Outgoing Transitions
	AND	Specifies the completion of all incoming activities before starting another activity	Two or more allowed. The number of incoming transitions must be less than or equal to the number of outgoing transitions from the upstream FORK.	Unconditional and complex transitions are not allowed.
	End (successfully)	Designates a path as being successful	One or more allowed	Not allowed
	End (with errors)	Designates a path as ending in errors	One or more allowed	Not allowed
	End (with warnings)	Designates a path as ending with warnings	One or more allowed	Not allowed
	End Loop	Defines the end of a For Loop or While Loop	One or more allowed	One to For Loop or While Loop only
	For Loop	Use this activity with an End Loop to define constructs that repeat	One from End Loop required plus more from other activities	One Loop condition and one Exit required
	FORK	Starts two or more activities after completing an activity	One or more allowed	Two or more unconditional transitions only
	OR	Starts an activity after the completion of any of two or more specified activities	Two or more allowed	One unconditional transition only
	Route	Defines exclusive OR and if-then-else scenarios
	While Loop	Run other activities while a condition is true	One from End Loop required plus more from other activities	One Loop condition and one Exit required

OS Activities

Table 27-4 lists the Operating System (OS) activities that can be initiated by a process flow.

Table 27-4 OS Activities

Icon	Activity	Brief Description
	FTP	Starts a file transfer protocol command during a process flow. For example, use the FTP activity to move data files to the computer where a mapping runs.
	SQL*PLUS	Runs a SQL*Plus script in a process flow
	User Defined	Represents an activity that is not predefined and enables you to incorporate it into a process flow

Because it is not desirable to allow a user have complete control over OS activities, Warehouse Builder enables you to determine which OS activities can be initiated by a process flow. This is primarily achieved by constraining the user's ability to execute operating system commands either by granting or revoking direct execution or by mandating that execution be performed through a third party, as described in "Setting a Security Constraint". Further access control can be achieved by using a proxy command and parameters, which can be used to secure all executions.

This security feature is controlled by setting properties in the Runtime.properties file in the $owb_home/owb/bin/admin directory. This file contains Control Center property values that run the Control Center service. This file is set to read-only at Control Center service startup. If you make changes to the file, then you must restart the Control Center service for the changes to take effect.

Setting a Security Constraint

By default, security_constraint for each of the OS activity commands is set to DISABLED:

property.RuntimePlatform.0.NativeExecution.FTP.security_constraint = DISABLED
property.RuntimePlatform.0.NativeExecution.Shell.security_constraint = DISABLED
property.RuntimePlatform.0.NativeExecution.SQLPlus.security_constraint = DISABLED

To enable an OS activity, you must set security_constraint to NATIVE_JAVA or Scheduler.

property.RuntimePlatform.0.NativeExecution.FTP.security_constraint = NATIVE_JAVA
property.RuntimePlatform.0.NativeExecution.Shell.security_constraint = NATIVE_JAVA
property.RuntimePlatform.0.NativeExecution.SQLPlus.security_constraint = NATIVE_JAVA

NATIVE_JAVA allows direct execution by the Control Center service and SCHEDULER forces execution through DBMS_SCHEDULER.

Setting a Proxy Command and Parameters

For each activity type, USER DEFINED (Shell), FTP, and SQLPlus, there are two properties: the proxy_command property and the proxy_parameter_list property (optional).

If a proxy command is specified, then that command is run instead of the user's specified command and parameters. The user-specified command and parameters are passed as parameters to the proxy command following the proxy parameters. The proxy command then becomes the context in which the user's command is run.

The proxy_command property allows the proxy command to be specified.

To set a proxy command for the activities, set the proxy command as well as the proxy parameter list (optional) using the following command:

property.RuntimePlatform.0.NativeExecution.FTP.proxy_command
property.RuntimePlatform.0.NativeExecution.FTP.proxy_parameter_list
property.RuntimePlatform.0.NativeExecution.Shell.proxy_command
property.RuntimePlatform.0.NativeExecution.Shell.proxy_parameter_list
property.RuntimePlatform.0.NativeExecution.SQLPlus.proxy_command
property.RuntimePlatform.0.NativeExecution.SQLPlus.proxy_parameter_list

For example, to set a proxy command for Shell:

property.RuntimePlatform.0.NativeExecution.Shell.proxy_command = /bin/proxy_sh
 property.RuntimePlatform.0.NativeExecution.Shell.proxy_parameter_list = ?-v?-n?

Note:

Ideally, only the Warehouse Builder administrator must have the rights to modify the Runtime.properties file. The users should be granted read-only permission.

AND

Use the AND activity to specify the completion of two or more activities before resuming the process flow.

The AND activity can have two or more incoming transitions. To correctly design process flows with an AND activity, you must place a FORK activity upstream of the AND. Also, the number of transitions going into the AND activity must be less than or equal to the number of outgoing transitions from the upstream FORK. The FORK is the only activity that enables you to assign multiple unconditional transitions and therefore ensure the completion of multiple activities as required by the AND activity.

The AND activity enables you to aggregate the outcome of the upstream activities. If all the upstream activities return SUCCESS, then the AND activity returns SUCESSES. If any upstream activity returns an ERROR, then the AND activity returns ERROR; otherwise a WARNING is returned. Any activity that does not have an outcome is considered to have returned SUCCESS. Use the SET_STATUS activity to force an outcome. The feature is particularly useful to test if a set of mappings that are running in parallel have all successfully completed.

Figure 27-1 shows the AND and FORK activities in a process flow. In this example, AND_ACTIVITY triggers downstream activities based on the completion of MAP1 and MAP2. The process flow is valid because the FORK activity has three outgoing transitions while AND_ACTIVITY has two incoming transitions. The process flow would also be valid if the transition and activities associated with MAP3 were deleted.

Figure 27-1 AND Activity in a Process Flow

Description of "Figure 27-1 AND Activity in a Process Flow"

For outgoing conditions, the AND activity can have one, two, or three conditional transitions. This results in three possible paths terminating in success, warning, and error activities.

Assign

Use the Assign activity to assign a value to a variable. For example, use this activity to initialize a variable back to zero.

Table 27-5 describes the parameters of the Assign activity.

Data Auditor Monitor

You can design process flows that proceed based on the results of profiling data. For example, you create logic that runs a mapping only if the quality of data meets a standard as determined by the threshold parameter.

Table 27-6 describes the parameters of the Data Auditor Monitor activity.

Enterprise Java Bean

Use the Enterprise Java Bean activity type to call Enterprise JavaBeans (EJB) from within a process flow. EJBs are server-side components (managed by the J2EE container) that contain business logic. They enable you to create applications that are scalable, available to multiple clients, and support transactional processing.

Use the Enterprise Java Bean activity type to leverage functionality defined as an EJB within a process flow. For example, you have a suite of EJBs that implements complex business logic. You can directly integrate this business logic into a process flow by using the Enterprise Java Bean activity. Using Enterprise Java Bean activity provides better scalability, performance, and secure transactions.

Table 27-7 describes the parameters of the Enterprise Java Bean activity.

Example: Using an Enterprise Java Bean Activity to Leverage Existing Business Logic from EJBs

You have a suite of Enterprise JavaBeans that implement logic for an Order Processing application. You can leverage this existing functionality in a process flow. The Enterprise Java Bean activity enables you to directly integrate this functionality in your process flow.

The Order Processing application contains an EJB that produces a report of all orders made during any specified day. You want to create a process flow that produces a report of all orders made during the previous day prior to invoking ETL logic that loads this orders data into your data warehouse.

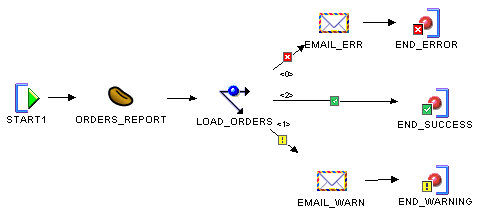

Figure 27-2 displays the process flow that provides the required functionality. The Enterprise Java Bean activity ORDERS_REPORT leverages the functionality provided as an EJB Order Processing application. LOAD_ORDERS is a mapping that loads orders data into your warehouse after running the report.

Figure 27-2 EJB Activity in a Process Flow

Description of "Figure 27-2 EJB Activity in a Process Flow"

For the ORDERS_REPORT activity, set the following parameter values:

• CLASS_NAME: ordersystem.reports

• METHOD_NAME: printReport

• PARAMETER_LIST: ReportName, PrintDevice

Create two custom parameters, ReportName and PrintDevice, in the ORDERS_REPORT activity by selecting New Process Activity Parameter at the top of the Structure Panel and set their values as specified in Table 27-8.

Table 27-8 Values for Custom Parameters

	ReportName Parameter	PrintDevice Parameter
Direction	IN	IN
Literal	True	True
Value	DailyOrders	lpt1

Ensure that the deployed location for the Enterprise Java Bean activity is set to a URI location that points to the J2EE instance containing the application that supports the specified Enterprise Java Bean. For example, the URI location has its URI field set to:

ormi://myhost.example.com:23791/ReportsApp

Email

You can send e-mail notifications after the completion of an activity in a process flow. You may find this useful, for example, for notifying administrators when activities such as mappings end in errors or warnings.

Table 27-10 lists the parameters that you set for the email activity.

For e-mail addresses, you can enter an e-mail address with or without the display name. For example, the following entries are correct:

jack.emp@example.com

Jack Emp<jack.emp@example.com>

Jack Emp[jack.emp@example.com]

Jack Emp[jack.emp@example.com],Jill Emp[jill.emp@example.com]

Jack Emp[jack.emp@example.com];Jill Emp[jill.emp@example.com]

To execute a process flow with an Email activity, you may need to access different host systems and ports. New security measures implemented in Oracle Database 11g Release 1 restrict access to hosts and ports. You must explicitly grant access to hosts and ports that the Email activity accesses by using the DBMS_NETWORK_ACL_ADMIN package.

For example, the user OWBSYS needs to send an e-mail through the mail server mail.example.com using port 25. The database administrator must perform the following steps:

1. Create an Access Control List (ACL) for the user OWBSYS by using the following command:

   EXECUTE DBMS_NETWORK_ACL_ADMIN.CREATE_ACL
           ('acl_for_owb_cc.xml','ACL for Control Center','OWBSYS','CONNECT');


   The ACL has no access control effect unless it is assigned to a network target.

2. Assign the Access Control List (ACL) to a network host, and optionally specify a TCP port range. Use the following command:

   EXECUTE DBMS_NETWORK_ACL_ADMIN.ASSIGN_ACL
           ('acl_for_owb_cc.xml','mail.example.com',25)


3. Commit the changes made by using the COMMIT command.

End

Every path in the process flow must terminate in an End activity.

When you first create a process flow, a success type End activity is included by default. Use end types to indicate the type of logic contained in a path. Because a given activity such as a mapping has three possible outcomes, the editor includes three ending types, as shown in Table 27-11. You can use these ending types to design error handling logic for the process flow.

Table 27-11 Types of End Activities

Icon	End Type	Description
	Success	Indicates that the path or paths contain logic dependent on the successful completion of an upstream activity
	Warning	Indicates that the path or paths contain logic dependent on an upstream activity completing with warnings
	Error	Indicates that the path or paths contain logic dependent on an upstream activity completing with errors

You can design a process flow to include one, two, or all three types of endings. You can use each ending type only once, Duplicate ending types are not allowed. Each End activity can have a single or multiple incoming transitions.

In Figure 27-3, END_SUCCESS has three incoming transitions, each dependent on the successful completion of upstream activities. END_ERROR has one incoming transition from an Email activity that runs when any of the upstream mapping activities completes with errors.

Figure 27-3 End Activities in a Process Flow

Description of "Figure 27-3 End Activities in a Process Flow"

By default, every process flow includes an END_SUCCESS. Although you cannot change an End activity to another type, you can add different types of End activity.

To add end activities to a process flow:

1. From the palette on the Process Flow Editor, drag and drop the desired End icon onto the canvas.

   Warehouse Builder does not allow you to select ending types already present in the process flow.

2. Click OK.

   Warehouse Builder adds the End activity or activities to the canvas.

End Loop

The editor adds an End Loop for each For Loop and While Loop that you add to the canvas.

The End Loop activity must have a single unconditional outgoing transition to its For Loop or While Loop activity. All the flows that are part of the loop must converge on the End Loop activity to ensure that no parallel flows remain for either the next loop interaction or the exit of the loop.

File Exists

Use the File Exists activity to verify the existence of a file before running the next activity. In the Activities panel, enter the name of the file.

The File Exists activity checks only once. If the file exists, then the process flow proceeds with the success transition. If the file does not exist, then the process flow proceeds with the warning transition. The File Exists activity triggers the error transition only in a catastrophic failure such as a Tcl error when using OMB*Plus.

The File Exists activity has one parameter called PATH. Specify a fully qualified file name, a directory name, or a semicolon-separated list for this parameter. The paths are normally tested in the same host that is running the Control Center service.

The security constraints of the underlying operating system may disallow access to one or more files, giving the impression that they do not exist. If all the paths exist, then the activity returns EXISTS. If none of the paths exist, then the activity returns MISSING. If some paths exist, then the activity returns SOME_EXIST.

FORK

Use the FORK activity to start multiple, concurrent activities after the completion of an activity.

You can assign multiple incoming transitions to a FORK activity. The FORK activity is the only activity that enables you to assign multiple unconditional outgoing transitions for parallel process.

For example, in Figure 27-4, the process flow carry out the activities named FTP, FDS, and EMAIL in parallel after completing MAP1.

Figure 27-4 FORK Activity Ensures Parallel Process

Description of "Figure 27-4 FORK Activity Ensures Parallel Process"

Figure 27-5 shows the same activities without the FORK activity. In this case, only one of the activities runs based on the completion state of MAP1.

Figure 27-5 Absence of FORK Activity Results in Conditional Process

Description of "Figure 27-5 Absence of FORK Activity Results in Conditional Process"

The Process Flow Editor does not limit the number of outgoing transitions or concurrent activities that you can assign from a FORK. When you are designing for concurrent execution, design the FORK based on limitations imposed by the workflow engine or server that you use to run the process flow.

The outgoing FORK activity transition cannot have complex expressions.

For Loop

Use the For Loop to repeatedly run activities that you include in the loop and then exit and resume the process flow.

When you add a For Loop activity, the editor also adds an End Loop activity and a transition to the End Loop. For outgoing transitions, define one with a loop condition and one with an exit condition. Select an outgoing transition and click Condition in the object details.

Table 27-12 describes the parameters of the For Loop activity.

FTP

Use the FTP activity to transfer files from one file location to another based on a script of FTP commands that you provide. The FTP activity is a specialization of the User Defined activity. The difference between these two is that the FTP activity should be configured with the remote file location.

For the process flow to be valid, the FTP commands must involve transferring data either from or to the server with the Control Center Service installed. To move data between two computers, neither of which hosts the Control Center Service, first transfer the data to the Control Center Service host computer and then transfer the data to the second computer.

Before you design a process flow with an FTP activity, ensure that the sources and destinations have defined locations.

The FTP activity relies on a script of FTP commands that you provide. You have a choice of either writing that script within Warehouse Builder or directing Warehouse Builder to a file containing the script. Choose one of the following methods:

• Writing a Script Within Warehouse Builder

• Calling a Script Outside of Warehouse Builder

open ${Remote.Host}
${Remote.User}
${Remote.Password}
lcd ${Working.RootPath}
cd ${Remote.RootPath}
get salesdata.txt
quit

Java Class

Use the Java Class activity type to represent a Java class or a Java Bean within a process flow. Java Beans are reusable software components that you can manipulate visually in a builder tool.

The Java Class activity enables you to leverage functionality that was defined using Java Beans or as a Java class.

Table 27-16 describes the parameters for the Java Class activity.

You do not need a special location to deploy process flows that contain a Java Class activity.

Manual

Use the Manual activity to halt a process flow.

Once the process flow halts, a user must intervene via the Control Center or Repository Browser to resume the process flow.

Consider using this activity to enable you to design a process to restart or recover ETL processes.

The Manual activity is similar to the Notification activity except that it does not require you to implement Oracle Workflow and therefore does not send an email. To achieve the same results as the Notification activity without interacting with Oracle Workflow, consider using the Email activity followed by a Manual activity.

Table 27-17 describes the parameters of the Manual activity.

Mapping

Use the Mapping activity to add an existing mapping that you defined and configured in the Mapping Editor.

You can assign multiple incoming transitions to a Mapping activity. For outgoing transitions, assign one unconditional transition or up to one of each of the unconditional transitions.

When you add a mapping to a process flow, you can view its configuration properties in the Activities panel. The Mapping activity in the Process Flow Editor inherits its properties from the mapping in the Mapping Editor. In the Process Flow Editor, you cannot change a property data type or direction.

You can, however, assign new values that affect the process flow only and do not change the settings for the mapping in the Mapping Editor. For example, if you change the operating mode from set-based to row-based in the Process Flow Editor, the process flow runs in row-based mode. The original mapping retains set-based mode as its operating mode. To change the properties for the underlying mapping, see "Configuring Mappings Reference".

If a mapping contains a Mapping Input Parameter operator, specify a value according to its data type. The Process Flow Editor expects to receive a PL/SQL expression when you add a Mapping Input Parameter operator to a mapping. If the Mapping Input Parameter is a string, then enclose the string in double quotation marks.

If you want to update a process flow with changes that you made to a mapping in the Mapping Editor, delete the Mapping activity from the process flow and add the Mapping activity again.

Table 27-18 and Table 27-19 list the different mapping parameters in PL/SQL and SQL*Loader.

Table 27-18 lists the PL/SQL mapping parameters.

Table 27-19 lists the SQL*Loader mapping parameters.

Notification

The Notification activity enables you to design a process to restart or recover ETL processes. This activity works in conjunction with Oracle Workflow. To implement notifications, you must also implement Workflow notifications in Oracle Workflow. Alternatively, you could use an Email activity followed by a Manual activity. Oracle Workflow subsystem decides how the message is sent.

To use the Notification activity, first define the parameters listed in Table 27-20. Define a conditional outgoing transition based on each response that you define. For example, if the value of response_type is yes, no and default_response is yes, define two outgoing transitions. Right-click each transition and select Condition to view a list of conditions. In this example, you create one outgoing transition with condition set to yes and another set to no.

OMBPlus

Use the OMBPlus activity to represent an OMB*Plus script in a process flow. This enables you to invoke OMB*Plus while running a process flow, to perform an OMB function or invoke an expert.

This is particularly useful when you use mappings within a process flow. You no longer need to deploy maps before you start a process flow. You can now deploy them using the OMBPlus activity as part of the process flow.

For example, you create a process flow that runs two mappings, each of which loads a target table. You can now deploy the mappings as part of the process flow.

Figure 27-6 displays a mapping that provides this functionality.

Figure 27-6 OMBPlus Activity in a Mapping

Description of "Figure 27-6 OMBPlus Activity in a Mapping"

Table 27-21 describes the parameters of the OMBPlus activity.

You can enter an OMB*Plus script to execute or point to an existing script on the file system. To enter a script, expand the activity node in the Structure panel and select Script. In the Value field of the Property Inspector, click the Ellipsis button, enter the script in the Edit Property dialog box, and click OK. To point to an existing script on a file system, go to the parameter_list parameter and enter the at sign, @, followed by the full path.

Execution Mode for a Process Flow Containing an OMBPlus Activity

The OMBPlus activity can be run in one of several modes:

• Control Center internal (NATIVE JAVA)

• Database (Scheduler)

• Disabled

The property setting "property.RuntimePlatform.0.NativeExecution.OMBPlus.security_constraint" which is set in owb/bin/admin/Runtime.properties controls this behavior.

OR

Use the OR activity to start an activity based on the completion of one or multiple number of upstream activities. You can assign multiple incoming transitions and only one unconditional outgoing transition to an OR activity.

The OR activity has similar semantics to the AND activity, except that the OR activity propagates the SUCCESS, WARNING, or ERROR outcome of the first upstream activity that is completed.

An OR activity in a process flow ensures that downstream activities are triggered only once for each run of a process flow.

Figure 27-7 displays the process flow containing an OR activity.

Figure 27-7 The OR activity in a Process Flow

Description of "Figure 27-7 The OR activity in a Process Flow"

The Process Flow Editor enables you to omit the OR activity and assign transitions from each of the three Mapping activities to Subprocess activity SUBPROC1. However, this logic would start SUBPROC1 three times within the same run of a process flow. Avoid this by using an OR activity.

Route

Use the Route activity to route the outcome of an activity to specific results based on a condition that you define. This enables you to define exclusive OR and if-the-else scenarios.

A Route activity has no operation and therefore can be used to place a bend in a transition. Like any other activity, you can add outgoing complex condition transitions to the Route activity. But because the activity has no operation, the condition may only refer to the process flow's parameters and variables.The inclusion of a Route activity can affect the outcome of an AND or OR activity. Because the Route activity has no outcome of its own, it will be considered to have completed as SUCCESS.

This activity does not have any parameters.

Set Status

Use the Set Status activity to interject a success, warning, or error status.

You can use the Set Status activity as a means of overriding the behavior of the AND activity. Recall that if any of the activities immediately preceding an AND return an error, the AND activity resolves to an error. If you want the AND to resolve to success regardless of the result of a preceding activity, then insert between that activity and the AND activity a Set Status activity.

SQL*PLUS

Use a SQL*PLUS activity to introduce a script into the process flow.

To paste or type in a script, select the activity on the canvas. In the Structure panel, expand the process flow node, then the Activities node, then the SQL*PLUS node, and select SCRIPT. The Property Inspector displays the properties of the Script parameter. In the Value field of the Property Inspector, paste or enter the script. Or, to point to an existing script on a file system, go to parameter_list and type the at sign, @, followed by the full path.

Although you can use this activity to accomplish a broad range of goals, one example is to use a SQL*PLUS activity to control how multiple mappings are committed in a process flow as described in "Committing Mappings through the Process Flow Editor".

Start

By default, each process flow includes one Start activity. You can set input parameters for the Start activity that become the input parameters for the complete process flow.

To add parameters to a Start activity:

1. In the Projects Navigator, double-click the Process Flow to open the Process Flow Editor.

2. In the Structure panel, expand the Activities node.

   If the Structure tab is not displayed, select Structure from the View menu.

3. Select the Start activity and click New Process Activity Parameter (the tiny green "Plus" button at the top) on the Structure tab.

   A new parameter is added under the Start activity.

4. Select the new parameter and, in the Property Inspector, set the properties for this parameter.

   Change the parameter name and data type as necessary. You cannot alter its direction. The direction is IN, indicating that the parameter is an input parameter only. For value, type the parameter value. You can overwrite this value at runtime.

5. You can now use the parameter as input to other activities in the process flow.

Subprocess

Use a Subprocess activity to start a previously created process flow. From one process flow, you can start any other process flow that is contained within the same or any other process flow package.

Once you add a Subprocess activity to a process flow, use it in your design in a way similar to any other activity. You can assign multiple incoming transitions. For outgoing transitions, assign either one unconditional outgoing transition or up to three outgoing conditional transitions.

The END activities within the subprocess apply to the Subprocess activity only and do not function as a termination point in the process flow.

An important difference between a Subprocess activity and other activities is that you can view the contents of a subprocess, but you cannot edit its contents in the parent process flow. To edit a subprocess, open its underlying process flow from the Projects Navigator. With the exception of renaming a process flow, the Process Flow Editor propagates changes from child process flows to its parent process flows.

To add Subprocess activity to a process flow:

1. From the palette in the Process Flow Editor, drag and drop the Subprocess activity icon onto the canvas.

   Warehouse Builder displays a dialog box to select and add a process flow as a subprocess.

2. Expand the process flow module and select a process flow from the same process flow package as the parent process flow.

   Warehouse Builder displays the process flow as a Subprocess activity on the parent process flow.

3. To view the contents of the subprocess, right-click the subprocess and select Expand Node.

   The Process Flow Editor displays the graph for the subprocess surrounded by a blue border.

Transform

When a function transform is dropped onto the canvas, the return parameter is created as a new parameter with the same name as the transform. When you add transformations from the transformation library to a process flow using the Transform activity, the Process Flow Editor displays the parameters for the transformation in the Activity panel.

You can specify one or more incoming transitions to start a Transform activity. For outgoing transitions, you can either specify one unconditional transition or one of each of the three conditional transitions.

If you specify conditional outgoing transitions, you can configure the activity to base its status on its return value. For more information about Use Return as Status, see "Configuring Process Flows Reference".

To update a process flow with changes that you made to a transformation, delete the Transform activity from the process flow and add the Transform activity again.

For transforms that are not deployed, such as the public transformations, the activity must be configured with a Deployed location value.

User Defined

The User Defined activity enables you to incorporate into a process flow an activity that is not defined within Warehouse Builder.

You can specify one or more incoming transitions to start a User Defined process activity. For outgoing transitions, you can either specify one unconditional transition or one of each of the three conditional transitions.

If you specify conditional outgoing transitions, you can configure the activity to base its status on its return value. For more information about Use Return as Status, see "Configuring Process Flows Reference".

Table 27-24 lists the parameters you set for the User Defined activity.

Table 27-25 lists the substitute variables you can enter for the FTP activity.

Wait

Use the Wait activity to interject a delay in the process flow.

Table 27-26 describes the parameters of the Wait activity.

While Loop

Use the While Loop to run one or more activities only when a condition that you define evaluates to true.

Typically, you associate a While Loop with Assign activities that enable you to define the while condition. At least one Assign activity initializes the data and at least one Assign activity increments or modifies the data again to the end of a loop iteration.

When you add a While Loop activity, the editor also adds an End Loop activity and a transition to the End Loop. Create transitions from the While Loop activity to each activity you want to include in the loop. For each outgoing transition that you add, apply either an EXIT or LOOP condition to the transition by selecting the transition and clicking on Condition in the object details.

To define the while condition that governs whether or not to run the loop, in the Structure panel, expand the process flow node, then the Activities node, then the WHILE_LOOP node, and select Condition. The Property Inspector displays the parameters for the Condition.

Table 27-27 describes the parameters of the While Loop activity.

Web Service

Use the Web Service activity to add an existing Web service to a process flow. The Web services must be defined under the Application Servers node of the Projects Navigator or the Public application Server node of the Globals Navigator.

The Web Service activity enables you use the operations defined in the Web service in your process flow. Since a Web service can contain multiple operations, when you add a Web Service activity to a process flow, you are prompted to select the operation to be used.

The parameters for a Web Service activity depend on the type of operations performed by the Web service. Thus, different operations can have different parameters. Table 27-28 describes the parameters of the runCCJob operation of the default Web service AgentWebService.

To use a Web Service activity in a process flow:

1. Open the process flow in which you want to add Web Service activity by double-clicking the process flow in the Projects Navigator.

   The process flow is displayed in the editor.

2. From the Projects Navigator, drag and drop the Web service you want to add.

   The Web Service Operation dialog box is displayed.

3. If the Web service selected in the previous step contains more than one operation, select the operation within the Web service that you want to add to the process flow and click OK.

   The Web service operation is added to the process flow.

4. Set the parameters for the Web Service activity.
