3 Indexes and Index-Organized Tables

Keys and Columns

A key is a set of columns or expressions on which you can build an index. Although the terms are often used interchangeably, indexes and keys are different. Indexes are structures stored in the database that users manage using SQL statements. Keys are strictly a logical concept.

The following statement creates an index on the customer_id column of the sample table oe.orders:

CREATE INDEX ord_customer_ix ON orders (customer_id);

In the preceding statement, the customer_id column is the index key. The index itself is named ord_customer_ix.

Composite Indexes

A composite index, also called a concatenated index, is an index on multiple columns in a table. Columns in a composite index should appear in the order that makes the most sense for the queries that will retrieve data and need not be adjacent in the table.

Composite indexes can speed retrieval of data for SELECT statements in which the WHERE clause references all or the leading portion of the columns in the composite index. Therefore, the order of the columns used in the definition is important. In general, the most commonly accessed columns go first.

For example, suppose an application frequently queries the last_name, job_id, and salary columns in the employees table. Also assume that last_name has high cardinality, which means that the number of distinct values is large compared to the number of table rows. You create an index with the following column order:

CREATE INDEX employees_ix
   ON employees (last_name, job_id, salary);

Queries that access all three columns, only the last_name column, or only the last_name and job_id columns use this index. In this example, queries that do not access the last_name column do not use the index.

Multiple indexes can exist for the same table if the permutation of columns differs for each index. You can create multiple indexes using the same columns if you specify distinctly different permutations of the columns. For example, the following SQL statements specify valid permutations:

CREATE INDEX employee_idx1 ON employees (last_name, job_id);
CREATE INDEX employee_idx2 ON employees (job_id, last_name);

Unique and Nonunique Indexes

Indexes can be unique or nonunique. Unique indexes guarantee that no two rows of a table have duplicate values in the key column or column. For example, no two employees can have the same employee ID. Thus, in a unique index, one rowid exists for each data value. The data in the leaf blocks is sorted only by key.

Nonunique indexes permit duplicates values in the indexed column or columns. For example, the first_name column of the employees table may contain multiple Mike values. For a nonunique index, the rowid is included in the key in sorted order, so nonunique indexes are sorted by the index key and rowid (ascending).

Oracle Database does not index table rows in which all key columns are null, except for bitmap indexes or when the cluster key column value is null.

Types of Indexes

Oracle Database provides several indexing schemes, which provide complementary performance functionality. The indexes can be categorized as follows:

• B-tree indexes

  These indexes are the standard index type. They are excellent for primary key and highly-selective indexes. Used as concatenated indexes, B-tree indexes can retrieve data sorted by the indexed columns. B-tree indexes have the following subtypes:

  • Index-organized tables

    An index-organized table differs from a heap-organized because the data is itself the index. See "Overview of Index-Organized Tables".

  • Reverse key indexes

    In this type of index, the bytes of the index key are reversed, for example, 103 is stored as 301. The reversal of bytes spreads out inserts into the index over many blocks. See "Reverse Key Indexes".

  • Descending indexes

    This type of index stores data on a particular column or columns in descending order. See "Ascending and Descending Indexes".

  • B-tree cluster indexes

    This type of index is used to index a table cluster key. Instead of pointing to a row, the key points to the block that contains rows related to the cluster key. See "Overview of Indexed Clusters".

• Bitmap and bitmap join indexes

  In a bitmap index, an index entry uses a bitmap to point to multiple rows. In contrast, a B-tree index entry points to a single row. A bitmap join index is a bitmap index for the join of two or more tables. See "Bitmap Indexes".

• Function-based indexes

  This type of index includes columns that are either transformed by a function, such as the UPPER function, or included in an expression. B-tree or bitmap indexes can be function-based. See "Function-Based Indexes".

• Application domain indexes

  This type of index is created by a user for data in an application-specific domain. The physical index need not use a traditional index structure and can be stored either in the Oracle database as tables or externally as a file. See "Application Domain Indexes".

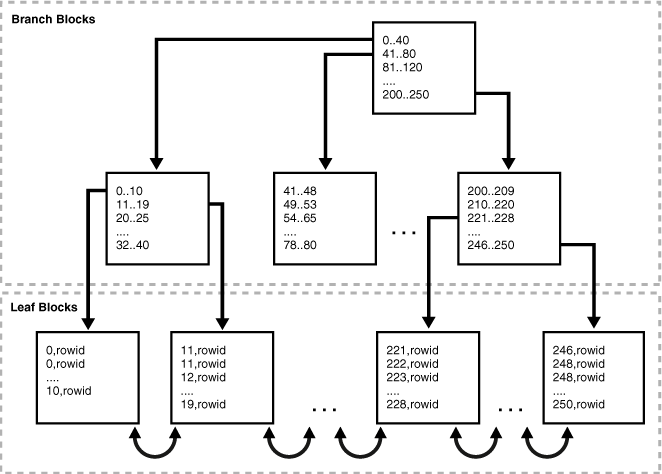

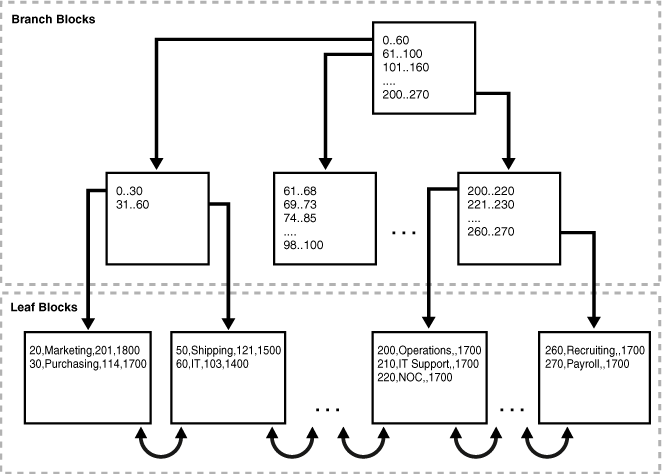

Branch Blocks and Leaf Blocks

A B-tree index has two types of blocks: branch blocks for searching and leaf blocks that store values. The upper-level branch blocks of a B-tree index contain index data that points to lower-level index blocks. In Figure 3-1, the root branch block has an entry 0-40, which points to the leftmost block in the next branch level. This branch block contains entries such as 0-10 and 11-19. Each of these entries points to a leaf block that contains key values that fall in the range.

A B-tree index is balanced because all leaf blocks automatically stay at the same depth. Thus, retrieval of any record from anywhere in the index takes approximately the same amount of time. The height of the index is the number of blocks required to go from the root block to a leaf block. The branch level is the height minus 1. In Figure 3-1, the index has a height of 3 and a branch level of 2.

Branch blocks store the minimum key prefix needed to make a branching decision between two keys. This technique enables the database to fit as much data as possible on each branch block. The branch blocks contain a pointer to the child block containing the key. The number of keys and pointers is limited by the block size.

The leaf blocks contain every indexed data value and a corresponding rowid used to locate the actual row. Each entry is sorted by (key, rowid). Within a leaf block, a key and rowid is linked to its left and right sibling entries. The leaf blocks themselves are also doubly linked. In Figure 3-1 the leftmost leaf block (0-10) is linked to the second leaf block (11-19).

Index Scans

In an index scan, the database retrieves a row by traversing the index, using the indexed column values specified by the statement. If the database scans the index for a value, then it will find this value in n I/Os where n is the height of the B-tree index. This is the basic principle behind Oracle Database indexes.

If a SQL statement accesses only indexed columns, then the database reads values directly from the index rather than from the table. If the statement accesses columns in addition to the indexed columns, then the database uses rowids to find the rows in the table. Typically, the database retrieves table data by alternately reading an index block and then a table block.

SELECT department_id, last_name, salary
FROM   employees
WHERE  salary > 5000
ORDER BY department_id, last_name;

50,Atkinson,2800,rowid
60,Austin,4800,rowid
70,Baer,10000,rowid
80,Abel,11000,rowid
80,Ande,6400,rowid
110,Austin,7200,rowid
.
.
.

SELECT last_name, salary
FROM   employees;

Baida,2900,rowid
Zlotkey,10500,rowid
Austin,7200,rowid
Baer,10000,rowid
Atkinson,2800,rowid
Austin,4800,rowid
.
.
.

Abel,rowid
Ande,rowid
Atkinson,rowid
Austin,rowid
Austin,rowid
Baer,rowid
.
.
.

SELECT *
FROM   employees
WHERE  employee_id = 5;

1,rowid
2,rowid
4,rowid
5,rowid
6,rowid
.
.
.

SELECT * FROM sh.customers WHERE cust_email = 'Abbey@company.com';

F,Wolf@company.com,rowid
F,Wolsey@company.com,rowid
F,Wood@company.com,rowid
F,Woodman@company.com,rowid
F,Yang@company.com,rowid
F,Zimmerman@company.com,rowid
M,Abbassi@company.com,rowid
M,Abbey@company.com,rowid

SELECT * FROM sh.customers WHERE cust_gender = 'F'
  AND cust_email = 'Abbey@company.com'
UNION ALL
SELECT * FROM sh.customers WHERE cust_gender = 'M'
  AND cust_email = 'Abbey@company.com';

100   Steven    King       SKING    ...
156   Janette   King       JKING    ...
115   Alexander Khoo       AKHOO    ...
.
.
.
116   Shelli    Baida      SBAIDA   ...
204   Hermann   Baer       HBAER    ...
105   David     Austin     DAUSTIN  ...
130   Mozhe     Atkinson   MATKINSO ...
166   Sundar    Ande       SANDE    ...
174   Ellen     Abel       EABEL    ...

149   Eleni     Zlotkey    EZLOTKEY  ...
200   Jennifer  Whalen     JWHALEN   ...
.
.
.
137   Renske    Ladwig     RLADWIG  ...
173   Sundita   Kumar      SKUMAR   ...
101   Neena     Kochar     NKOCHHAR ...

Abel,block1row1
Ande,block1row2
Atkinson,block1row3
Austin,block1row4
Baer,block1row5
.
.
.

100,block1row50
101,block2row1
102,block1row9
103,block2row19
104,block2row39
105,block1row4
.
.
.

SQL> SELECT INDEX_NAME, CLUSTERING_FACTOR
  2  FROM ALL_INDEXES
  3  WHERE INDEX_NAME IN ('EMP_NAME_IX','EMP_EMP_ID_PK');

INDEX_NAME           CLUSTERING_FACTOR
-------------------- -----------------
EMP_EMP_ID_PK                       19
EMP_NAME_IX                          2

Reverse Key Indexes

A reverse key index is a type of B-tree index that physically reverses the bytes of each index key while keeping the column order. For example, if the index key is 20, and if the two bytes stored for this key in hexadecimal are C1,15 in a standard B-tree index, then a reverse key index stores the bytes as 15,C1.

Reversing the key solves the problem of contention for leaf blocks in the right side of a B-tree index. This problem can be especially acute in an Oracle Real Application Clusters (Oracle RAC) database in which multiple instances repeatedly modify the same block. For example, in an orders table the primary keys for orders are sequential. One instance in the cluster adds order 20, while another adds 21, with each instance writing its key to the same leaf block on the right-hand side of the index.

In a reverse key index, the reversal of the byte order distributes inserts across all leaf keys in the index. For example, keys such as 20 and 21 that would have been adjacent in a standard key index are now stored far apart in separate blocks. Thus, I/O for insertions of sequential keys is more evenly distributed.

Because the data in the index is not sorted by column key when it is stored, the reverse key arrangement eliminates the ability to run an index range scanning query in some cases. For example, if a user issues a query for order IDs greater than 20, then the database cannot start with the block containing this ID and proceed horizontally through the leaf blocks.

Ascending and Descending Indexes

In an ascending index, Oracle Database stores data in ascending order. By default, character data is ordered by the binary values contained in each byte of the value, numeric data from smallest to largest number, and date from earliest to latest value.

For an example of an ascending index, consider the following SQL statement:

CREATE INDEX emp_deptid_ix ON hr.employees(department_id);

Oracle Database sorts the hr.employees table on the department_id column. It loads the ascending index with the department_id and corresponding rowid values in ascending order, starting with 0. When it uses the index, Oracle Database searches the sorted department_id values and uses the associated rowids to locate rows having the requested department_id value.

By specifying the DESC keyword in the CREATE INDEX statement, you can create a descending index. In this case, the index stores data on a specified column or columns in descending order. If the index in Figure 3-1 on the employees.department_id column were descending, then the leaf blocking containing 250 would be on the left side of the tree and block with 0 on the right. The default search through a descending index is from highest to lowest value.

Descending indexes are useful when a query sorts some columns ascending and others descending. For an example, assume that you create a composite index on the last_name and department_id columns as follows:

CREATE INDEX emp_name_dpt_ix ON hr.employees(last_name ASC, department_id DESC);

If a user queries hr.employees for last names in ascending order (A to Z) and department IDs in descending order (high to low), then the database can use this index to retrieve the data and avoid the extra step of sorting it.

Key Compression

Oracle Database can use key compression to compress portions of the primary key column values in a B-tree index or an index-organized table. Key compression can greatly reduce the space consumed by the index.

In general, index keys have two pieces, a grouping piece and a unique piece. Key compression breaks the index key into a prefix entry, which is the grouping piece, and a suffix entry, which is the unique or nearly unique piece. The database achieves compression by sharing the prefix entries among the suffix entries in an index block.

By default, the prefix of a unique index consists of all key columns excluding the last one, whereas the prefix of a nonunique index consists of all key columns. For example, suppose that you create a composite index on the oe.orders table as follows:

CREATE INDEX orders_mod_stat_ix ON orders ( order_mode, order_status );

Many repeated values occur in the order_mode and order_status columns. An index block may have entries as shown in Example 3-3.

online,0,AAAPvCAAFAAAAFaAAa
online,0,AAAPvCAAFAAAAFaAAg
online,0,AAAPvCAAFAAAAFaAAl
online,2,AAAPvCAAFAAAAFaAAm
online,3,AAAPvCAAFAAAAFaAAq
online,3,AAAPvCAAFAAAAFaAAt

In Example 3-3, the key prefix would consist of a concatenation of the order_mode and order_status values. If this index were created with default key compression, then duplicate key prefixes such as online,0 and online,2 would be compressed. Conceptually, the database achieves compression as shown in the following example:

online,0
AAAPvCAAFAAAAFaAAa
AAAPvCAAFAAAAFaAAg
AAAPvCAAFAAAAFaAAl
online,2
AAAPvCAAFAAAAFaAAm
online,3
AAAPvCAAFAAAAFaAAq
AAAPvCAAFAAAAFaAAt

Suffix entries form the compressed version of index rows. Each suffix entry references a prefix entry, which is stored in the same index block as the suffix entry.

Alternatively, you could specify a prefix length when creating a compressed index. For example, if you specified prefix length 1, then the prefix would be order_mode and the suffix would be order_status,rowid. For the values in Example 3-3, the index would factor out duplicate occurrences of online as follows:

online
0,AAAPvCAAFAAAAFaAAa
0,AAAPvCAAFAAAAFaAAg
0,AAAPvCAAFAAAAFaAAl
2,AAAPvCAAFAAAAFaAAm
3,AAAPvCAAFAAAAFaAAq
3,AAAPvCAAFAAAAFaAAt

The index stores a specific prefix once per leaf block at most. Only keys in the leaf blocks of a B-tree index are compressed. In the branch blocks the key suffix can be truncated, but the key is not compressed.

Bitmap Indexes on a Single Table

Example 3-4 shows a query of the sh.customers table. Some columns in this table are candidates for a bitmap index.

SQL> SELECT cust_id, cust_last_name, cust_marital_status, cust_gender
  2  FROM   sh.customers
  3  WHERE  ROWNUM < 8 ORDER BY cust_id;

   CUST_ID CUST_LAST_ CUST_MAR C
---------- ---------- -------- -
         1 Kessel              M
         2 Koch                F
         3 Emmerson            M
         4 Hardy               M
         5 Gowen               M
         6 Charles    single   F
         7 Ingram     single   F

7 rows selected.

The cust_marital_status and cust_gender columns have low cardinality, whereas cust_id and cust_last_name do not. Thus, bitmap indexes may be appropriate on cust_marital_status and cust_gender. A bitmap index is probably not useful for the other columns. Instead, a unique B-tree index on these columns would likely provide the most efficient representation and retrieval.

Table 3-2 illustrates the bitmap index for the cust_gender column output shown in Example 3-4. It consists of two separate bitmaps, one for each gender.

A mapping function converts each bit in the bitmap to a rowid of the customers table. Each bit value depends on the values of the corresponding row in the table. For example, the bitmap for the M value contains a 1 as its first bit because the gender is M in the first row of the customers table. The bitmap cust_gender='M' has a 0 for its the bits in rows 2, 6, and 7 because these rows do not contain M as their value.

An analyst investigating demographic trends of the customers may ask, "How many of our female customers are single or divorced?" This question corresponds to the following SQL query:

SELECT COUNT(*)
FROM   customers
WHERE  cust_gender = 'F'
AND    cust_marital_status IN ('single', 'divorced');

Bitmap indexes can process this query efficiently by counting the number of 1 values in the resulting bitmap, as illustrated in Table 3-3. To identify the customers who satisfy the criteria, Oracle Database can use the resulting bitmap to access the table.

Bitmap indexing efficiently merges indexes that correspond to several conditions in a WHERE clause. Rows that satisfy some, but not all, conditions are filtered out before the table itself is accessed. This technique improves response time, often dramatically.

Bitmap Join Indexes

A bitmap join index is a bitmap index for the join of two or more tables. For each value in a table column, the index stores the rowid of the corresponding row in the indexed table. In contrast, a standard bitmap index is created on a single table.

A bitmap join index is an efficient means of reducing the volume of data that must be joined by performing restrictions in advance. For an example of when a bitmap join index would be useful, assume that users often query the number of employees with a particular job type. A typical query might look as follows:

SELECT COUNT(*)
FROM   employees, jobs
WHERE  employees.job_id = jobs.job_id
AND    jobs.job_title = 'Accountant';

The preceding query would typically use an index on jobs.job_title to retrieve the rows for Accountant and then the job ID, and an index on employees.job_id to find the matching rows. To retrieve the data from the index itself rather than from a scan of the tables, you could create a bitmap join index as follows:

CREATE BITMAP INDEX employees_bm_idx
ON     employees (jobs.job_title)
FROM   employees, jobs
WHERE  employees.job_id = jobs.job_id;

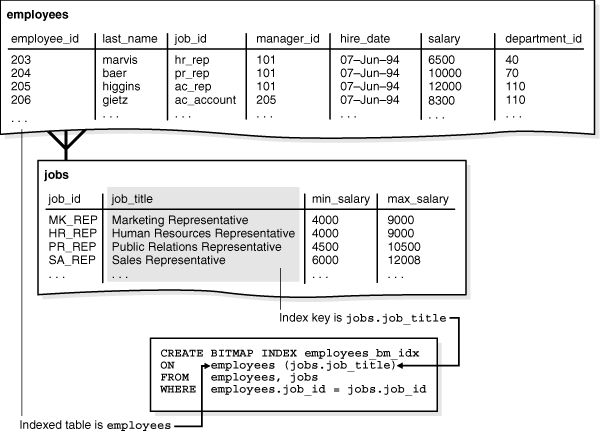

As illustrated in Figure 3-2, the index key is jobs.job_title and the indexed table is employees.

Figure 3-2 Bitmap Join Index

Description of "Figure 3-2 Bitmap Join Index"

Conceptually, employees_bm_idx is an index of the jobs.title column in the SQL query shown in Example 3-5 (sample output included). The job_title key in the index points to rows in the employees table. A query of the number of accountants can use the index to avoid accessing the employees and jobs tables because the index itself contains the requested information.

SELECT jobs.job_title AS "jobs.job_title", employees.rowid AS "employees.rowid"
FROM   employees, jobs
WHERE  employees.job_id = jobs.job_id
ORDER BY job_title;

jobs.job_title                      employees.rowid
----------------------------------- ------------------
Accountant                          AAAQNKAAFAAAABSAAL
Accountant                          AAAQNKAAFAAAABSAAN
Accountant                          AAAQNKAAFAAAABSAAM
Accountant                          AAAQNKAAFAAAABSAAJ
Accountant                          AAAQNKAAFAAAABSAAK
Accounting Manager                  AAAQNKAAFAAAABTAAH
Administration Assistant            AAAQNKAAFAAAABTAAC
Administration Vice President       AAAQNKAAFAAAABSAAC
Administration Vice President       AAAQNKAAFAAAABSAAB
.
.
.

In a data warehouse, the join condition is an equijoin (it uses the equality operator) between the primary key columns of the dimension tables and the foreign key columns in the fact table. Bitmap join indexes are sometimes much more efficient in storage than materialized join views, an alternative for materializing joins in advance.

Bitmap Storage Structure

Oracle Database uses a B-tree index structure to store bitmaps for each indexed key. For example, if jobs.job_title is the key column of a bitmap index, then the index data is stored in one B-tree. The individual bitmaps are stored in the leaf blocks.

Assume that the jobs.job_title column has unique values Shipping Clerk, Stock Clerk, and several others. A bitmap index entry for this index has the following components:

• The job title as the index key

• A low rowid and high rowid for a range of rowids

• A bitmap for specific rowids in the range

Conceptually, an index leaf block in this index could contain entries as follows:

Shipping Clerk,AAAPzRAAFAAAABSABQ,AAAPzRAAFAAAABSABZ,0010000100
Shipping Clerk,AAAPzRAAFAAAABSABa,AAAPzRAAFAAAABSABh,010010
Stock Clerk,AAAPzRAAFAAAABSAAa,AAAPzRAAFAAAABSAAc,1001001100
Stock Clerk,AAAPzRAAFAAAABSAAd,AAAPzRAAFAAAABSAAt,0101001001
Stock Clerk,AAAPzRAAFAAAABSAAu,AAAPzRAAFAAAABSABz,100001
.
.
.

The same job title appears in multiple entries because the rowid range differs.

Assume that a session updates the job ID of one employee from Shipping Clerk to Stock Clerk. In this case, the session requires exclusive access to the index key entry for the old value (Shipping Clerk) and the new value (Stock Clerk). Oracle Database locks the rows pointed to by these two entries—but not the rows pointed to by Accountant or any other key—until the UPDATE commits.

The data for a bitmap index is stored in one segment. Oracle Database stores each bitmap in one or more pieces. Each piece occupies part of a single data block.

Uses of Function-Based Indexes

Function-based indexes are efficient for evaluating statements that contain functions in their WHERE clauses. The database only uses the function-based index when the function is included in a query. When the database processes INSERT and UPDATE statements, however, it must still evaluate the function to process the statement.

For example, suppose you create the following function-based index:

CREATE INDEX emp_total_sal_idx
  ON employees (12 * salary * commission_pct, salary, commission_pct);

The database can use the preceding index when processing queries such as Example 3-6 (partial sample output included).

SELECT   employee_id, last_name, first_name,
         12*salary*commission_pct AS "ANNUAL SAL"
FROM     employees
WHERE    (12 * salary * commission_pct) < 30000
ORDER BY "ANNUAL SAL" DESC;

EMPLOYEE_ID LAST_NAME                 FIRST_NAME           ANNUAL SAL
----------- ------------------------- -------------------- ----------
        159 Smith                     Lindsey                   28800
        151 Bernstein                 David                     28500
        152 Hall                      Peter                     27000
        160 Doran                     Louise                    27000
        175 Hutton                    Alyssa                    26400
        149 Zlotkey                   Eleni                     25200
        169 Bloom                     Harrison                  24000

Function-based indexes defined on the SQL functions UPPER(column_name) or LOWER(column_name) facilitate case-insensitive searches. For example, suppose that the first_name column in employees contains mixed-case characters. You create the following function-based index on the hr.employees table:

CREATE INDEX emp_fname_uppercase_idx
ON employees ( UPPER(first_name) );

The emp_fname_uppercase_idx index can facilitate queries such as the following:

SELECT *
FROM   employees
WHERE  UPPER(first_name) = 'AUDREY';

A function-based index is also useful for indexing only specific rows in a table. For example, the cust_valid column in the sh.customers table has either I or A as a value. To index only the A rows, you could write a function that returns a null value for any rows other than the A rows. You could create the index as follows:

CREATE INDEX cust_valid_idx
ON customers ( CASE cust_valid WHEN 'A' THEN 'A' END );

Optimization with Function-Based Indexes

The optimizer can use an index range scan on a function-based index for queries with expressions in WHERE clause. The range scan access path is especially beneficial when the predicate (WHERE clause) has low selectivity. In Example 3-6 the optimizer can use an index range scan if an index is built on the expression 12*salary*commission_pct.

A virtual column is useful for speeding access to data derived from expressions. For example, you could define virtual column annual_sal as 12*salary*commission_pct and create a function-based index on annual_sal.

The optimizer performs expression matching by parsing the expression in a SQL statement and then comparing the expression trees of the statement and the function-based index. This comparison is case-insensitive and ignores blank spaces.

Logical Rowids and Physical Guesses

Secondary indexes use the logical rowids to locate table rows. A logical rowid includes a physical guess, which is the physical rowid of the index entry when it was first made. Oracle Database can use physical guesses to probe directly into the leaf block of the index-organized table, bypassing the primary key search. When the physical location of a row changes, the logical rowid remains valid even if it contains a physical guess that is stale.

For a heap-organized table, access by a secondary index involves a scan of the secondary index and an additional I/O to fetch the data block containing the row. For index-organized tables, access by a secondary index varies, depending on the use and accuracy of physical guesses:

• Without physical guesses, access involves two index scans: a scan of the secondary index followed by a scan of the primary key index.

• With physical guesses, access depends on their accuracy:

  • With accurate physical guesses, access involves a secondary index scan and an additional I/O to fetch the data block containing the row.

  • With inaccurate physical guesses, access involves a secondary index scan and an I/O to fetch the wrong data block (as indicated by the guess), followed by an index unique scan of the index organized table by primary key value.

Bitmap Indexes on Index-Organized Tables

A secondary index on an index-organized table can be a bitmap index. As explained in "Bitmap Indexes", a bitmap index stores a bitmap for each index key.

When bitmap indexes exist on an index-organized table, all the bitmap indexes use a heap-organized mapping table. The mapping table stores the logical rowids of the index-organized table. Each mapping table row stores one logical rowid for the corresponding index-organized table row.

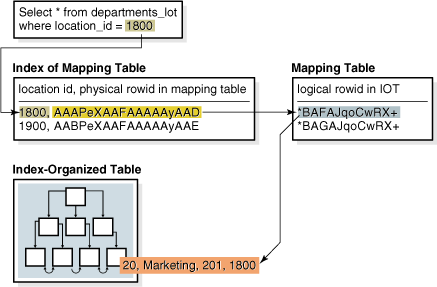

The database accesses a bitmap index using a search key. If the database finds the key, then the bitmap entry is converted to a physical rowid. With heap-organized tables, the database uses the physical rowid to access the base table. With index-organized tables, the database uses the physical rowid to access the mapping table, which in turn yields a logical rowid that the database uses to access the index-organized table. Figure 3-4 illustrates index access for a query of the departments_iot table.

Figure 3-4 Bitmap Index on Index-Organized Table

Description of "Figure 3-4 Bitmap Index on Index-Organized Table"
