17 XML Schema Storage and Query: Basic

XML Schema for Schemas

The W3C Schema working group publishes an XML schema, often referred to as the "Schema for Schemas". This XML schema provides the definition, or vocabulary, of the XML Schema language. All valid XML schemas can be considered to be members of the class defined by this XML schema. An XML schema is thus an XML document that conforms to the class defined by the XML schema published at http://www.w3.org/2001/XMLSchema.

XML Schema Features

The XML Schema language defines 47 scalar data types. This provides for strong typing of elements and attributes. The W3C XML Schema Recommendation also supports object-oriented techniques such as inheritance and extension, hence you can design XML schema with complex objects from base data types defined by the XML Schema language. The vocabulary includes constructs for defining and ordering, default values, mandatory content, nesting, repeated sets, and redefines. Oracle XML DB supports all the constructs, except for redefines.

XML Instance Documents

Documents conforming to a given XML schema can be considered as members or instances of the class defined by that XML schema. Consequently the term instance document is often used to describe an XML document that conforms to a given XML schema. The most common use of an XML schema is to validate that a given instance document conforms to the rules defined by the XML schema.

XML Namespaces and XML Schemas

An XML schema can optionally specify a targetNamespace attribute, whose value is a URL. If this attribute is omitted then the XML schema has no target namespace. The target namespace is the namespace for everything defined in the XML schema. It is common to use the URL where the XML schema can be accessed as the targetNamespace value.

An XML instance document must specify the namespace of the root element of the document (same as the target namespace of the XML schema that the instance conforms to) and the location (URL) of the XML schema that defines this root element. This information is specified by attribute xsi:schemaLocation. When the XML schema has no target namespace, use attribute xsi:noNamespaceSchemaLocation to specify the schema URL.

Overview of Editing XML Schemas

XML schemas can be authored and edited using any of the following:

• A simple text editor, such as emacs or vi

• An XML schema-aware editor, such as the XML editor included with Oracle JDeveloper

• An explicit XML schema-authoring tool, such as XMLSpy from Altova Corporation

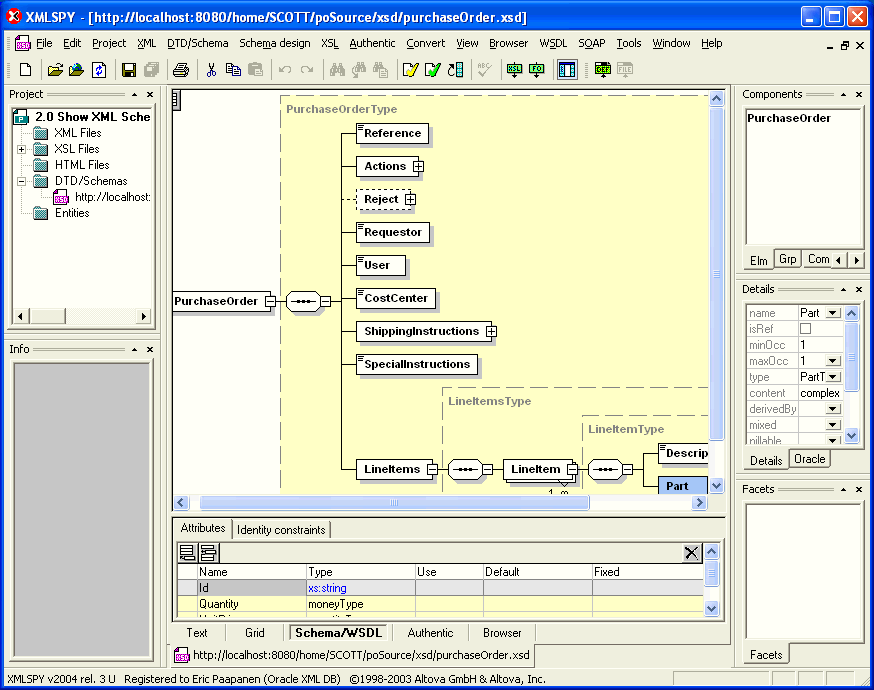

Figure 17-1 shows a purchase-order XML schema being edited using XMLSpy. XMLSpy is a graphical XML tool from Altova Corporation that you can use to create and edit XML schemas and other XML documents. See http://www.altova.com for details.^Foot 1

Figure 17-1 XMLSpy Graphical Representation of a Purchase-Order XML Schema

Description of "Figure 17-1 XMLSpy Graphical Representation of a Purchase-Order XML Schema"

Why Use XML Schema with Oracle XML DB?

These are some of the reasons to use XML Schema with Oracle XML DB:

• The most common use of XML Schema is as a mechanism for validating that XML instance documents conform to a given XML schema, that is, verify that your XML data conforms to its intended definition. This definition includes data types, numbers of allowed item occurrences, and allowed lengths of items.

• An XML schema can also be used as a constraint when creating XMLType tables or columns. For example, the table or column can be constrained to store only XML documents that compliant with one of the global elements defined by the XML schema.

• Oracle XML DB also uses XML Schema as a mechanism for defining how the contents of an XMLType instance should be stored inside the database. Both binary XML and object-relational storage models for XMLType support the use of XML Schema. When XMLType data is stored object-relationally, XML Schema is used to efficiently map XML Schema data types to SQL data types and object-relational tables and columns.

• XML schema information can also improve the efficiency of document insertion when you storing XML Schema-based documents in Oracle XML DB using protocols FTP and HTTP(S).

• When XML instances must be handled without any prior information about them, XML schemas can be useful in predicting optimum storage, fidelity, and access.

Overview of Annotating an XML Schema to Control Naming, Mapping, and Storage

The W3C XML Schema Recommendation defines an annotation mechanism that lets vendor-specific information be added to an XML schema. Oracle XML DB uses this mechanism to control the mapping between the XML schema and various database features.

You can use XML schema annotations with Oracle XML DB to do the following:

• Specify which database tables are used to store the XML data.

• Override the default mapping between XML Schema data types and SQL data types, for object-relational storage.

• Name the database objects and attributes that are created to store XML data (for object-relational storage).

Example A-2 shows an annotated purchase-order XML schema. It defines the following two XML namespaces:

• http://www.w3c.org/2001/XMLSchema. This is reserved by W3C for the Schema for Schemas.

• http://xmlns.oracle.com/xdb. This is reserved by Oracle for the Oracle XML DB schema annotations.

Before annotating an XML schema you must declare the Oracle XML DB namespace. The Oracle XML DB namespace is http://xmlns.oracle.com/xdb. Example A-2 makes use of the namespace prefix xdb to abbreviate the Oracle XML DB namespace.

Example A-2 uses several XML schema annotations, including the following:

• defaultTable annotation in the PurchaseOrder element. This specifies that XML documents, compliant with this XML schema are stored in a database table called purchaseorder.

• SQLType annotation.

  The first occurrence of annotation SQLType specifies that the name of the SQL data type generated from complexType element PurchaseOrderType is purchaseorder_t.

  The second occurrence of annotation SQLType specifies that the name of the SQL data type generated from complexType element LineItemType is lineitem_t.

• SQLCollType annotation. This specifies that the name of the SQL varray type that manages the collection of LineItem elements is lineitem_v.

• SQLName annotation. This provides an explicit name for each SQL object attribute of purchaseorder_t.

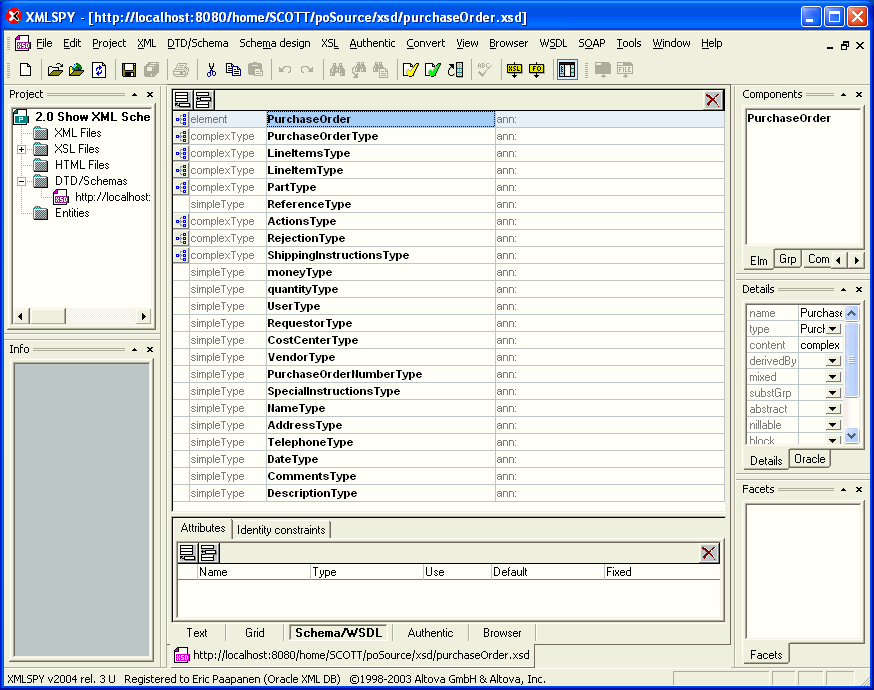

Figure 17-2 shows the XMLSpy Oracle tab, which facilitates adding Oracle XML DB annotations to an XML schema while working in the graphical editor.

Figure 17-2 XMLSpy Support for Oracle XML DB Schema Annotations

Description of "Figure 17-2 XMLSpy Support for Oracle XML DB Schema Annotations"

DOM Fidelity

Document Object Model (DOM) fidelity is the concept of retaining the structure of a retrieved XML document, compared to the original XML document, for DOM traversals. You can use DOM fidelity to ensure the accuracy and integrity of XML documents stored in Oracle XML DB.

DOM fidelity means that all information in an XML document is preserved, except whitespace that is insignificant. With DOM fidelity, XML data retrieved from the database has the same information as before it was inserted into the database, with the single exception of insignificant whitespace. The term "DOM fidelity" is used because this kind of fidelity is particularly important for DOM traversals.

With binary XML storage of XML data, all of the significant information is encoded in the binary XML format, ensuring DOM fidelity.

XMLType Methods Related to XML Schema

Table 17-1 lists some of the XMLType methods that are useful for working with XML schemas.

isSchemaBased()

getSchemaURL()

schemaValidate()
isSchemaValid()
isSchemaValidated()
setSchemaValidated()

XML Schema Registration Actions

As part of registering an XML schema, Oracle XML DB also performs several actions that facilitate storing, accessing, and manipulating XML instances that conform to the XML schema. These include:

• Mapping XML Schema data types to Oracle XML DB storage. When XML schema-based data is stored, its storage data types are derived from the XML Schema data types using a default mapping and, optionally, using mapping information that you specify using XML schema annotations. For binary XML storage, XML Schema types are mapped to binary XML encoding types. For object-relational storage, XML schema registration creates the appropriate SQL object types for the object-relational storage of conforming documents.

• Creating default tables. XML schema registration generates default XMLType tables for all global elements. You can use XML-schema annotations to control the names of the tables, and to provide column-level and table-level storage clauses and constraints for use during table creation.

  See Also:

  • "XML Schema Data Types Are Mapped to Oracle XML DB Storage"

  • "Default Tables Created during XML Schema Registration"

  • "Oracle XML Schema Annotations"

After XML schema registration, documents that reference the XML schema using the XML Schema instance mechanism can be processed automatically by Oracle XML DB. For XML data that is stored object-relationally, XMLType tables and columns can be created that are constrained to the global elements defined by the XML schema.

Registering an XML Schema with Oracle XML DB

You use PL/SQL procedure DBMS_XMLSCHEMA.registerSchema to register an XML schema. The main parameters to this procedure are as follows:

• SCHEMAURL – the XML schema URL. This is a unique identifier for the XML schema within Oracle XML DB. It is conventionally in the form of a URL, but this is not a requirement. The XML schema URL is used with Oracle XML DB to identify instance documents, by making the schema location hint identical to the XML schema URL. Oracle XML DB never tries to access a Web server identified by the specified URL.

  Note:

  You cannot register an XML schema using the same SCHEMAURL as any system-defined XML schema.

• SCHEMADOC – The XML schema source document. This is a VARCHAR, CLOB, BLOB, BFILE, XMLType, or URIType value.

• CSID – The character-set ID of the source-document encoding, when schemaDoc is a BFILE or BLOB value.

• OPTIONS – Options that specify how the XML schema should be registered. The most important option is REGISTER_BINARYXML, which indicates that the XML schema is used for binary XML storage. Another option is REGISTER_NT_AS_IOT, which forces OCTs to be stored as index-organized tables (IOTs).

Example 17-1 registers the annotated XML schema of Example A-2.

BEGIN
  DBMS_XMLSCHEMA.registerSchema(
    SCHEMAURL => 'http://localhost:8080/source/schemas/poSource/xsd/purchaseOrder.xsd',
    SCHEMADOC => XDBURIType('/source/schemas/poSource/xsd/purchaseOrder.xsd').getCLOB(),
    LOCAL     => TRUE,
    GENTYPES  => TRUE,
    GENTABLES => TRUE);
END;
/

In Example A-2, the unique identifier for the XML schema is:

http://localhost:8080/source/schemas/poSource/xsd/purchaseOrder.xsd

The XML schema document was previously loaded into Oracle XML DB Repository at this path: /source/schemas/poSource/xsd/purchaseOrder.xsd.

During XML schema registration, option SCHEMADOC specifies that PL/SQL constructor XDBURIType is to access the content of the XML schema document, based on its location in the repository. Other options passed to procedure registerSchema specify that the schema in Example A-2 is to be registered as a local XML schema (option LOCAL), and that SQL objects, and that tables are to be generated during the registration process (option GENTABLES).

PL/SQL procedure DBMS_XMLSCHEMA.registerSchema performs the following operations:

• Parses and validates the XML schema.

• Creates a set of entries in Oracle Data Dictionary that describe the XML schema.

• Creates a set of SQL object definitions, based on complexType elements defined in the XML schema.

• Creates an XMLType table for each global element defined by the XML schema.

By default, when an XML schema is registered, Oracle XML DB automatically generates all of the SQL object types and XMLType tables required to manage the instance documents. An XML schema can be registered as global or local.

SQL Types and Tables Created During XML Schema Registration

Example 17-2 shows the object types created during an XML schema registration such as that of Example 17-1.

DESCRIBE purchaseorder_t
 purchaseorder_t is NOT FINAL
 Name                                      Null?    Type
 ----------------------------------------- -------- ----------------------------
 SYS_XDBPD$                                         XDB.XDB$RAW_LIST_T
 REFERENCE                                          VARCHAR2(30 CHAR)
 ACTIONS                                            ACTIONS_T
 REJECTION                                          REJECTION_T
 REQUESTOR                                          VARCHAR2(128 CHAR)
 USERID                                             VARCHAR2(10 CHAR)
 COST_CENTER                                        VARCHAR2(4 CHAR)
 SHIPPING_INSTRUCTIONS                              SHIPPING_INSTRUCTIONS_T
 SPECIAL_INSTRUCTIONS                               VARCHAR2(2048 CHAR)
 LINEITEMS                                          LINEITEMS_T

DESCRIBE lineitems_t
 lineitems_t is NOT FINAL
 Name                                      Null?    Type
 ----------------------------------------- -------- ----------------------------
 SYS_XDBPD$                                         XDB.XDB$RAW_LIST_T
 LINEITEM                                           LINEITEM_V

DESCRIBE lineitem_v
 lineitem_v VARRAY(2147483647) OF LINEITEM_T
 LINEITEM_T is NOT FINAL
 Name                                      Null?    Type
 ----------------------------------------- -------- ----------------------------
 SYS_XDBPD$                                         XDB.XDB$RAW_LIST_T
 ITEMNUMBER                                         NUMBER(38)
 DESCRIPTION                                        VARCHAR2(256 CHAR)
 PART                                               PART_T

This example shows that SQL type definitions were created when the XML schema was registered with Oracle XML DB. These SQL type definitions include:

• purchaseorder_t. This type is used to persist the SQL objects generated from a PurchaseOrder element. When an XML document containing a PurchaseOrder element is stored in Oracle XML DB the document is broken up, and the contents of the document are stored as an instance of purchaseorder_t.

• lineitems_t, lineitem_v, and lineitem_t. These types manage the collection of LineItem elements that may be present in a PurchaseOrder document. Type lineitems_t consists of a single attribute lineitem, defined as an instance of type lineitem_v. Type lineitem_v is defined as a varray of linteitem_t objects. There is one instance of the lineitem_t object for each LineItem element in the document.

Guidelines for Working with Global Elements

By default, when an XML schema is registered with the database, Oracle XML DB generates a default table for each global element defined by the XML schema.

You can use attribute xdb:defaultTable to specify the name of the default table for a given global element. Each xdb:defaultTable attribute value you provide must be unique among all schemas registered by a given database user. If you do not supply a nonempty default table name for some element, then a unique name is provided automatically.

In practice, however, you do not want to create a default table for most global elements. Elements that never serve as the root element for an XML instance document do not need default tables — such tables are never used. Creating default tables for all global elements can lead to significant overhead in processor time and space used, especially if an XML schema contains a large number of global element definitions.

As a general rule, then, you want to prevent the creation of a default table for any global element (or any local element stored out of line) that you are sure will not be used as a root element in any document. You can do this in one of the following ways:

• Add the annotation xdb:defaultTable = "" (empty string) to the definition of each global element that will not appear as the root element of an XML instance document. Using this approach, you allow automatic default-table creation, in general, and you prohibit it explicitly where needed, using xdb:defaultTable = "".

• Set parameter GENTABLES to FALSE when registering the XML schema, and then manually create the default table for each global element that can legally appear as the root element of an instance document. Using this approach, you inhibit automatic default-table creation, and you create only the tables that are needed, by hand.

Database Objects That Depend on Registered XML Schemas

The following database objects are dependent on registered XML schemas:

• Tables or views that have an XMLType column that conforms to an element in an XML schema.

• Other XML schemas that include or import a given XML schema as part of their definition.

• Cursors that reference an XML schema. This includes references within functions of package DBMS_XMLGEN. Such cursors are purely transient objects.

Local and Global XML Schemas

XML schemas can be registered as local or global:

• A local xml schema is, by default, visible only to its owner.

• A global xml schema is, by default, visible and usable by all database users.

When you register an XML schema, PL/SQL package DBMS_XMLSCHEMA adds a corresponding resource to Oracle XML DB Repository. The XML schema URL determines the path name of the XML schema resource in the repository (and it is associated with parameter SCHEMAURL of PL/SQL procedure DBMS_XMLSCHEMA.registerSchema).

BEGIN
  DBMS_XMLSCHEMA.registerSchema(
    SCHEMAURL => 'http://xmlns.oracle.com/xdb/documentation/purchaseOrder.xsd',
    SCHEMADOC => bfilename('XMLDIR','purchaseOrder.xsd'),
    LOCAL     => TRUE,
    GENTYPES  => TRUE,
    GENTABLES => FALSE,
    CSID      => nls_charset_id('AL32UTF8'));
END;
/

/sys/schemas/QUINE/xmlns.oracle.com/xdb/documentation/purchaseOrder.xsd

GRANT XDBADMIN TO QUINE;

Grant succeeded.

CONNECT quine
Enter password: password

Connected.

BEGIN
  DBMS_XMLSCHEMA.registerSchema(
    SCHEMAURL => 'http://xmlns.oracle.com/xdb/documentation/purchaseOrder.xsd',
    SCHEMADOC => bfilename('XMLDIR','purchaseOrder.xsd'),
    LOCAL     => FALSE,
    GENTYPES  => TRUE,
    GENTABLES => FALSE,
    CSID      => nls_charset_id('AL32UTF8'));
END;
/

/sys/schemas/PUBLIC/xmlns.oracle.com/xdb/documentation/purchaseOrder.xsd

Fully Qualified XML Schema URLs

By default, XML schema URLs are referenced within the scope of the current database user. XML schema URLs are first resolved as the names of local XML schemas owned by the current user.

• If there are no such XML schemas, then they are resolved as names of global XML schemas.

• If there are no global XML schemas either, then Oracle XML DB raises an error.

To permit explicit reference to particular XML schemas, Oracle XML DB supports the notion of fully qualified XML schema URLs. The name of the database user owning the XML schema is specified as part of the XML schema URL. Fully qualified XML schema URLs belong to the Oracle XML DB namespace:

http://xmlns.oracle.com/xdb/schemas/<database-user>/<schemaURL-minus-protocol>

For example, suppose there is a registered global XML schema with the URL http://www.example.com/po.xsd, and user QUINE has a local registered XML schema with the same URL. Another user can reference the schema owned by QUINE as follows using this fully qualified XML Schema URL:

http://xmlns.oracle.com/xdb/schemas/QUINE/www.example.com/po.xsd

The fully qualified URL for the global XML schema is:

http://xmlns.oracle.com/xdb/schemas/PUBLIC/www.example.com/po.xsd

Deleting an XML Schema

You can delete a registered XML schema by using procedure DBMS_XMLSCHEMA.deleteSchema. This does the following, by default:

1. Checks that the current user has the appropriate privileges to delete the resource corresponding to the XML schema within Oracle XML DB Repository. You can control which users can delete which XML schemas, by setting the appropriate ACLs on the XML schema resources.

2. Checks whether there are any tables dependent on the XML schema that is to be deleted. If so, raises an error and cancels the deletion. This check is not performed if option delete_invalidate or delete_cascade_force is used. In that case, no error is raised.

3. Removes the XML schema document from the Oracle XML DB Repository (folder /sys/schemas).

4. Removes the XML schema document from DBA_XML_SCHEMAS, unless it was registered for use with binary XML instances and neither delete_invalidate nor delete_cascade_force is used.

5. Drops the default table, if either delete_cascade or delete_cascade_force is used. Raises an error if delete_cascade is specified and there are instances in other tables that are also dependent on the XML schema.

The following values are available for option DELETE_OPTION of procedure DBMS_XMLSCHEMA.deleteSchema:

• DELETE_RESTRICT – Raise an error and cancel deletion if dependencies are detected. This is the default behavior.

• DELETE_INVALIDATE – Do not raise an error if dependencies are detected. Instead, mark each of the dependencies as being invalid.

• DELETE_CASCADE – Drop all types and default tables that were generated during XML schema registration. Raise an error if there are instances that depend upon the XML schema that are stored in tables other than the default table. However, do not raise an error for any such instances that are stored in XMLType columns that were created using ANY_SCHEMA. If the XML schema was registered for use with binary XML, do not remove it from DBA_XML_SCHEMAS.

• DELETE_CASCADE_FORCE – Drop all types and default tables that were generated during XML schema registration. Do not raise an error if there are instances that depend upon the XML schema that are stored in tables other than the default table. Instead, mark each of the dependencies as being invalid. Remove the XML schema from DBA_XML_SCHEMAS.

Example 17-5 illustrates the use of DELETE_CASCADE_FORCE.

BEGIN
  DBMS_XMLSCHEMA.deleteSchema(
    SCHEMAURL => 'http://xmlns.oracle.com/xdb/documentation/purchaseOrder.xsd',
    DELETE_OPTION => DBMS_XMLSCHEMA.DELETE_CASCADE_FORCE);
END;
/

If an XML schema was registered for use with binary XML, it is not removed from DBA_XML_SCHEMAS when you delete it using option DELETE_RESTRICT (the default value) or DELETE_CASCADE. As a consequence, although you can no longer use the XML schema to encode new XML instance documents, any existing documents in Oracle XML DB that reference the XML schema can still be decoded using it.

This remains the case until you remove the XML schema from DBA_XML_SCHEMAS using DBMS_XMLSCHEMA.purgeSchema. Oracle recommends that, in general, you use delete_restrict or delete_cascade. Instead of using DELETE_CASCADE_FORCE, call DBMS_XMLSCHEMA.purgeSchema when you are sure you no longer need the XML schema.

Procedure purgeSchema removes the XML schema completely from Oracle XML DB. In particular, it removes it from DBA_XML_SCHEMAS. Before you use DBMS_XMLSCHEMA.purgeSchema, be sure that you have transformed all existing XML documents that reference the XML schema to be purged, so they reference a different XML schema or no XML schema. Otherwise, it will be impossible to decode them after the purge.

Listing All Registered XML Schemas

Example 17-6 shows how to use PL/SQL procedure DBMS_XMLSCHEMA.registerSchema to obtain a list of all XML schemas registered with Oracle XML DB. You can also examine views USER_XML_SCHEMAS, ALL_XML_SCHEMAS, USER_XML_TABLES, and ALL_XML_TABLES.

DESCRIBE DBA_XML_SCHEMAS

Name         Null? Type
------------ ----- -----------------------
OWNER              VARCHAR2(30)
SCHEMA_URL         VARCHAR2(700)
LOCAL              VARCHAR2(3)
SCHEMA             XMLTYPE(XMLSchema "http://xmlns.oracle.com/xdb/XDBSchema.xsd"
                           Element "schema")
INT_OBJNAME        VARCHAR2(4000)
QUAL_SCHEMA_URL    VARCHAR2(767)
HIER_TYPE          VARCHAR2(11)
BINARY             VARCHAR2(3)
SCHEMA_ID          RAW(16)
HIDDEN             VARCHAR2(3)

SELECT OWNER, LOCAL, SCHEMA_URL FROM DBA_XML_SCHEMAS;

OWNER   LOC   SCHEMA_URL
-----   ---   ----------------------
XDB     NO    http://xmlns.oracle.com/xdb/XDBSchema.xsd
XDB     NO    http://xmlns.oracle.com/xdb/XDBResource.xsd
XDB     NO    http://xmlns.oracle.com/xdb/acl.xsd
XDB     NO    http://xmlns.oracle.com/xdb/dav.xsd
XDB     NO    http://xmlns.oracle.com/xdb/XDBStandard.xsd
XDB     NO    http://www.w3.org/2001/xml.xsd
XDB     NO    http://xmlns.oracle.com/xdb/stats.xsd
XDB     NO    http://xmlns.oracle.com/xdb/xdbconfig.xsd
SCOTT   YES   http://xmlns.oracle.com/xdb/documentation/purchaseOrder.xsd

13 rows selected.

DESCRIBE DBA_XML_TABLES

Name         Null? Type
------------ ----- -----------------------
OWNER              VARCHAR2(30)
TABLE_NAME         VARCHAR2(30)
XMLSCHEMA          VARCHAR2(700)
SCHEMA_OWNER       VARCHAR2(30)
ELEMENT_NAME       VARCHAR2(2000)
STORAGE_TYPE       VARCHAR2(17)
ANYSCHEMA          VARCHAR2(3)
NONSCHEMA          VARCHAR2(3)

SELECT TABLE_NAME FROM DBA_XML_TABLES
  WHERE XMLSCHEMA = 'http://xmlns.oracle.com/xdb/documentation/purchaseOrder.xsd';

TABLE_NAME
---------------------
PurchaseOrder1669_TAB

1 row selected.

Specification of XMLType Storage Options for XML Schema-Based Data

You can specify storage options to use when you manually create a table that stores XML instance documents that reference an XML schema. To specify a particular XMLType storage model, use a STORE AS clause in the CREATE TABLE statement. Otherwise, the storage model specified during registration of the XML schema is used. If no storage model was specified during registration, then object-relational storage is used.

This section describes what you need to know about specifying storage options for XML schema-based data. You can also specify storage options for tables that are created automatically, by using XML schema annotations.

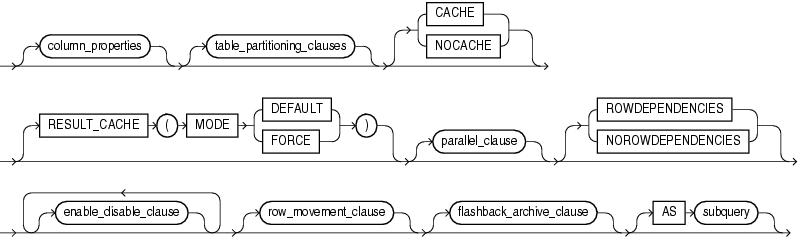

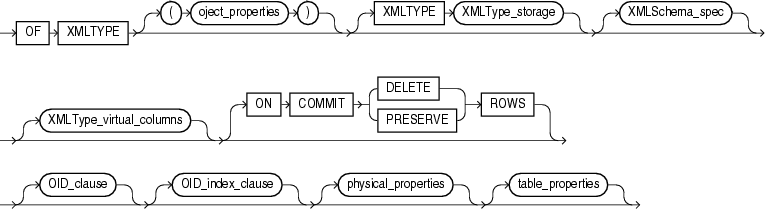

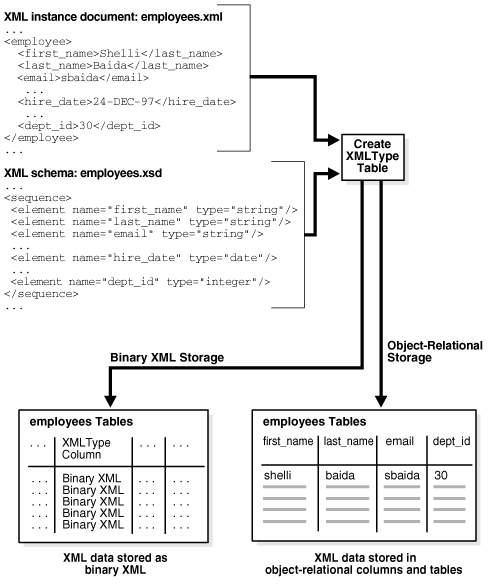

STORE AS BINARY XML

STORE AS BINARY XML
 XMLSCHEMA ...

STORE AS BINARY XML
 XMLSCHEMA ...
 ALLOW NONSCHEMA

STORE AS BINARY XML
 ALLOW ANYSCHEMA

STORE AS BINARY XML
 ALLOW ANYSCHEMA
 ALLOW NONSCHEMA

CREATE TABLE purchaseorder_as_table OF XMLType
   ELEMENT
   "http://xmlns.oracle.com/xdb/documentation/purchaseOrder.xsd#PurchaseOrder";

CREATE TABLE purchaseorder_as_table
  OF XMLType (UNIQUE ("XMLDATA"."Reference"),
              FOREIGN KEY ("XMLDATA"."User") REFERENCES hr.employees (email))
ELEMENT
  "http://xmlns.oracle.com/xdb/documentation/purchaseOrder.xsd#PurchaseOrder"
  VARRAY "XMLDATA"."LineItems"."LineItem" STORE AS LOB lineitem_lob
  LOB ("XMLDATA"."Notes")
    STORE AS (TABLESPACE USERS ENABLE STORAGE IN ROW
              STORAGE(INITIAL 4K NEXT 32K))
    COMPRESS FOR OLTP;

CREATE TABLE purchaseorder_as_column (
  id NUMBER,
  xml_document XMLType,
  UNIQUE (xml_document."XMLDATA"."Reference"),
  FOREIGN KEY (xml_document."XMLDATA"."User") REFERENCES hr.employees (email))
  XMLTYPE COLUMN xml_document
  XMLSCHEMA "http://xmlns.oracle.com/xdb/documentation/purchaseOrder.xsd"
  ELEMENT "PurchaseOrder"
  VARRAY xml_document."XMLDATA"."LineItems"."LineItem" STORE AS LOB lineitem_lob
  LOB (xml_document."XMLDATA"."Notes")
    STORE AS (TABLESPACE USERS ENABLE STORAGE IN ROW
              STORAGE(INITIAL 4K NEXT 32K))
    COMPRESS FOR OLTP;

CREATE TABLE purchaseorder_as_table OF XMLType (UNIQUE ("XMLDATA"."Reference"),
  FOREIGN KEY ("XMLDATA"."User") REFERENCES hr.employees (email))
  ELEMENT
    "http://xmlns.oracle.com/xdb/documentation/purchaseOrder.xsd#PurchaseOrder"
  STORE ALL VARRAYS AS LOBS;

Attributes noNamespaceSchemaLocation and schemaLocation

If the target XML schema does not declare a target namespace, the noNamespaceSchemaLocation attribute is used to identify the XML schema. The value of the attribute is the schema location hint. This is the unique identifier passed to PL/SQL procedure DBMS_XMLSCHEMA.registerSchema when the XML schema is registered with the database.

For XML schema purchaseOrder.xsd, the correct definition of the root element of the instance document would read as follows:

<PurchaseOrder
  xmlns:xsi=http://www.w3.org/2001/XMLSchema-instance
  xsi:noNamespaceSchemaLocation=
    "http://localhost:8080/source/schemas/poSource/xsd/purchaseOrder.xsd">

If the target XML schema declares a target namespace, then the schemaLocation attribute is used to identify the XML schema. The value of this attribute is a pair of values separated by a space:

• the value of the target namespace declared in the XML schema

• the schema location hint, the unique identifier passed to procedure DBMS_XMLSCHEMA.registerSchema when the schema is registered with the database

For example, assume that the PurchaseOrder XML schema includes a target namespace declaration. The root element of the schema would look like this:

<xs:schema targetNamespace="http://demo.oracle.com/xdb/purchaseOrder"
           xmlns:xs="http://www.w3.org/2001/XMLSchema"
           xmlns:xdb="http://xmlns.oracle.com/xdb"
           version="1.0">
   <xs:element name="PurchaseOrder" type="PurchaseOrderType"
               xdb:defaultTable="PURCHASEORDER"/>

In this case, the correct form of the root element of the instance document would read as follows:

<PurchaseOrder
    xnlns="http://demo.oracle.com/xdb/purchaseOrder"
    xmlns:xsi=http://www.w3.org/2001/XMLSchema-instance
    xsi:schemaLocation=
      "http://demo.oracle.com/xdb/purchaseOrder
       http://mdrake-lap:8080/source/schemas/poSource/xsd/purchaseOrder.xsd">

XML Schema and Multiple Namespaces

When an XML schema includes elements defined in multiple namespaces, an entry must occur in the schemaLocation attribute for each of the XML schemas. Each entry consists of the namespace declaration and the schema location hint. The entries are separated from each other by one or more whitespace characters. If the primary XML schema does not declare a target namespace, then the instance document also needs to include a noNamespaceSchemaLocation attribute that provides the schema location hint for the primary XML schema.
