Viewing a Completed Workload Capture

This section describes how to manage a completed workload capture using Enterprise Manager.

To view a completed workload capture:

  1. From the Enterprise menu of the Enterprise Manager Cloud Control console, select Quality Management, then Database Replay.

    If the Database Login page appears, log in as a user with administrator privileges.

    The Database Replay page appears.

  2. From the Capture Workloads tab of the Database Replay page, click the name of a capture that has a Status of Completed.

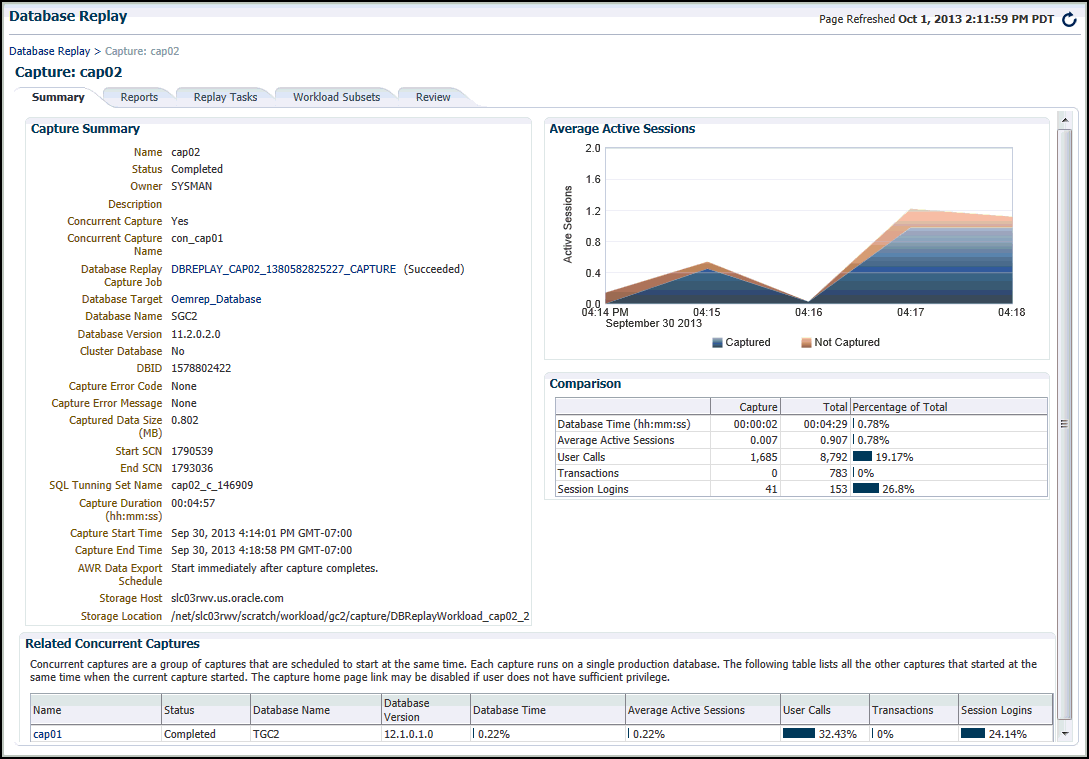

    The contents of the Summary tab of the Database Replay page appears as for a capture in progress, except the Average Active Sessions chart shows aggregated data for the capture time period, rather than dynamic data recorded during the capture.

    Description of the illustration dbr_capture_view.gif follows
    Description of the illustration dbr_capture_view.gif

    The Average Active Sessions chart provides a graphic display of the captured session activity compared to the uncaptured session activity (such as background activities or filtered sessions). This chart appears only when Active Session History (ASH) data is available for the capture period.

    Under Comparison, various statistics for the workload capture are displayed:

    • Capture column

      Displays the statistics for the captured session activity.

    • Total column

      Displays the statistics for the total session activity.

    • Percentage of Total column

      Displays the percentage of total session activity that has been captured in the workload.

  3. To return to the Database Replay page, click the Database Replay breadcrumb.

Tip:

See Analyzing Captured and Replayed Workloads for information about accessing workload capture reports.
