9 Creating Your Own DBFS Store
This chapter describes how to create your own DBFS Store.
This chapter contains these topics:
Overview of DBFS Store Creation and Use
In order to customize a DBFS store, you must implement the DBFS Content SPI (DBMS_DBFS_CONTENT_SPI). This is the basis for existing stores such as the DBFS SecureFiles Store and the DFFS Hierarchical Store, as well as any user-defined DBFS stores that you create.

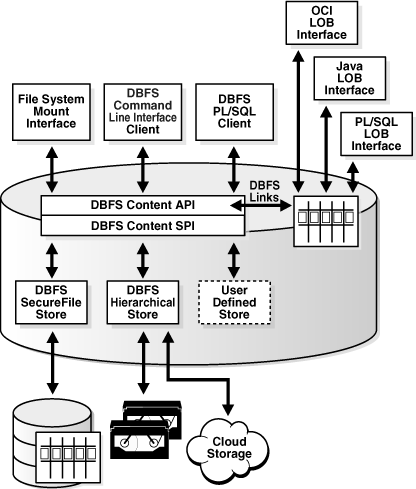

Client-side applications, such the PL/SQL interface, invoke functions and procedures in the DBFS Content API. The DBFS Content API then invokes corresponding subprograms in the DBFS Content SPI to create stores and perform other related functions. See Chapter 8, "DBFS Content API".
Once you create your DBFS store, you run it much the same way that you would a SecureFiles Store, as described in Chapter 6, "DBFS SecureFiles Store".
DBFS Content Store Provider Interface (DBFS Content SPI)
The DBFS Content SPI (Store Provider Interface) is a specification only and has no package body. The package body must be implemented in order to respond to calls from the DBFS Content API. In other words, DBFS Content SPI is a collection of required program specifications which you must implement using the method signatures and semantics indicated. You may add additional functions and procedures to suit your needs. Your implementation may implement other methods and expose other interfaces, but the DBFS Content API will not use these interfaces.
The DBFS Content SPI references various elements such as constants, types, and exceptions defined by the DBFS Content API (package DBMS_DBFS_CONTENT).
The main distinction in the method-naming conventions is that all path name references are always store-qualified, that is, the notion of mount points and full absolute path names have been normalized and converted to store-qualified path names by the DBFS Content API before it invokes any of the Provider SPI methods.
Because the DBFS Content API and Provider SPI is a one-to-many pluggable architecture, the DBFS Content API uses dynamic SQL to invoke methods in the Provider SPI; this may lead to run time errors if your Provider SPI implementation does not follow the Provider SPI specification in this document.
There are no explicit initial or final methods to indicate when the DBFS Content API plugs and unplugs a particular Provider SPI. Provider SPIs must be able to auto-initialize themselves at any SPI entry point.
See Also:
-
Oracle Database PL/SQL Packages and Types Reference for syntax of the
DBMS_DBFS_CONTENT_SPIpackage -
See the file
$ORACLE_HOME/rdbms/admin/dbmscapi.sqlfor more information
Creating a Custom Provider
This section describes an example store provider for DBFS that exposes a relational table containing a BLOB column as a flat, non-hierarchical filesystem, that is, a collection of named files.
The rest of this section assumes that you have installed the Oracle Database 12c and are familiar with DBFS concepts, and have installed and used dbfs_client and FUSE to mount and access filesystems backed by the standard SFS store provider.
The TaBleFileSystem Store Provider ("tbfs") does not aim to be feature-rich or even complete---it does however provide a sufficient demonstration of what it takes for users of DBFS to write their own custom providers that expose their table(s) through dbfs_client to traditional filesystem programs.
The TBFS can be used as a skeleton for such custom providers, or can be used as a learning tool for users to become familiar with the DBFS and its SPI.
This section contains:
Mechanics
This section contains these topics:
Installation and Setup
The TBFS consists of the following SQL files:
tbfs.sql top-level driver script
tbl.sql script to create a test user, tablespace, the table backing the filesystem, and so on.
spec.sql the SPI specification of the tbfs
body.sql the SPI implementation of the tbfs
capi.sql DBFS register/mount script
To install the TBFS, just run tbfs.sql as SYSDBA, in the directory that contains all of the above files. tbfs.sql will load the other SQL files in the proper sequence.
Ignoring any name conflicts, all of the SQL files should load without any compilation errors. All SQL files should also load without any run time errors, depending on the value of the "plsql_warnings" init.ora parameter, you may see various innocuous warnings.
If there are any name conflicts (tablespace name TBFS, datafile name"tbfs.f", user name TBFS, package name TBFS), the appropriate references in the various SQL files must be changed consistently.
TBFS Use
Once the TBFS has been installed, dbfs_client connected as user TBFS will see a simple, non-hierarchical, filesystem backed by an RDBMS table (TBFS.TBFST).
Files can be added or removed from this filesystem through SQL (that is, through DML on the underlying table), through Unix utilities (mediated by dbfs_client), or through PL/SQL (using the DBFS APIs).
Changes to the filesystem made through any of the access methods will be visible, in a transactionally consistent manner (that is, at commit/rollback boundaries) to all of the other access methods.
TBFS Internals
The TBFS is necessarily simple since its primary purpose is to serve as a teaching and learning example. However, the implementation shows the path towards a robust, production-quality custom SPI that can plug into the DBFS, and expose existing relational data as Unix filesystems.
The TBFS makes various simplifications in order to remain concise (however, these should not be taken as inviolable limitations of DBFS or the SPI):
-
The TBFS SPI package handles only a single table with a hard-coded name (TBFS.TBFST). It is possible to use dynamic SQL and additional configuration information to have a single SPI package support multiple tables, each as a separate filesystem (or even to unify data in multiple tables into a single filesystem).
-
The TBFS does not support filesystem hierarchies; it imposes a flat namespace: a collection of files, identified by a simple item name, under a virtual "/" root directory. Implementing directory hierarchies is significantly more complex because it requires the store provider to manage parent/child relationships in a consistent manner.
Moreover, existing relational data (the kind of data that TBFS is attempting to expose as a filesystem) does not typically have inter-row relationships that form a natural directory/file hierarchy.
-
Because the TBFS supports only a flat namespace, most methods in the SPI are unimplemented, and the method bodies raise a
dbms_dbfs_content.unsupported_operationexception. This exception is also a good starting point for you to write your own custom SPI. You can start with a simple SPI skeleton cloned from theDBMS_DBFS_CONTENT_SPIpackage, default all method bodies to ones that raise this exception, and subsequently fill in more realistic implementations incrementally. -
The table underlying the TBFS is close to being the simplest possible structure (a key/name column and a LOB column). This means that various properties used or expected by DBFS and
dbfs_clientmust be generated dynamically (the TBFS implementation shows how this is done for thestd:guidproperty).Other properties (such as Unix-style timestamps) are not implemented at all. This still allows a surprisingly functional filesystem to be implemented, but when you write your own custom SPIs, you can easily incorporate support for additional DBFS properties by expanding the structure of their underlying table(s) to include additional columns as needed, or by using existing columns in their existing tables to provide the values for these DBFS properties.
-
The TBFS does not implement a rename/move method; adding support for this (a suitable
UPDATEstatement in therenamePathmethod) is left as an exercise for the user. -
The TBFS example uses the string "tbfs" in multiple places (tablespace, datafile, user, package, and even filesystem name). All these uses of "tbfs" belong in different namespaces—identifying which namespace corresponds to a specific occurrence of the string. "tbfs" in these examples is also a good learning exercise to make sure that the DBFS concepts are clear in your mind.
TBFS.SQL
The TBFS.SQL script is the top level driver script.
set echo on; @tbl @spec @body @capi quit;
TBL.SQL
The TBL.SQL script creates a test user, a tablespace, the table that backs the filesystem and so on.
connect / as sysdba
create tablespace tbfs datafile 'tbfs.f' size 100m
reuse autoextend on
extent management local
segment space management auto;
create user tbfs identified by tbfs;
alter user tbfs default tablespace tbfs;
grant connect, resource, dbfs_role to tbfs;
connect tbfs/tbfs;
drop table tbfst;
purge recyclebin;
create table tbfst(
key varchar2(256)
primary key
check (instr(key, '/') = 0),
data blob)
tablespace tbfs
lob(data)
store as securefile
(tablespace tbfs);
grant select on tbfst to dbfs_role;
grant insert on tbfst to dbfs_role;
grant delete on tbfst to dbfs_role;
grant update on tbfst to dbfs_role;
spec.sql
The spec.sql script provide the SPI specification of the tbfs.
connect / as sysdba;
create or replace package tbfs
authid current_user
as
/*
* Lookup store features (see dbms_dbfs_content.feature_XXX). Lookup
* store id.
*
* A store ID identifies a provider-specific store, across
* registrations and mounts, but independent of changes to the store
* contents.
*
* I.e. changes to the store table(s) should be reflected in the
* store ID, but re-initialization of the same store table(s) should
* preserve the store ID.
*
* Providers should also return a "version" (either specific to a
* provider package, or to an individual store) based on a standard
* <a.b.c> naming convention (for <major>, <minor>, and <patch>
* components).
*
*/
function getFeatures(
store_name in varchar2)
return integer;
function getStoreId(
store_name in varchar2)
return number;
function getVersion(
store_name in varchar2)
return varchar2;
/*
* Lookup pathnames by (store_name, std_guid) or (store_mount,
* std_guid) tuples.
*
* If the underlying "std_guid" is found in the underlying store,
* this function returns the store-qualified pathname.
*
* If the "std_guid" is unknown, a "null" value is returned. Clients
* are expected to handle this as appropriate.
*
*/
function getPathByStoreId(
store_name in varchar2,
guid in integer)
return varchar2;
/*
* DBFS SPI: space usage.
*
* Clients can query filesystem space usage statistics via the
* "spaceUsage()" method. Providers are expected to support this
* method for their stores (and to make a best effort determination
* of space usage---esp. if the store consists of multiple
* tables/indexes/lobs, etc.).
*
* "blksize" is the natural tablespace blocksize that holds the
* store---if multiple tablespaces with different blocksizes are
* used, any valid blocksize is acceptable.
*
* "tbytes" is the total size of the store in bytes, and "fbytes" is
* the free/unused size of the store in bytes. These values are
* computed over all segments that comprise the store.
*
* "nfile", "ndir", "nlink", and "nref" count the number of
* currently available files, directories, links, and references in
* the store.
*
* Since database objects are dynamically growable, it is not easy
* to estimate the division between "free" space and "used" space.
*
*/
procedure spaceUsage(
store_name in varchar2,
blksize out integer,
tbytes out integer,
fbytes out integer,
nfile out integer,
ndir out integer,
nlink out integer,
nref out integer);
/*
* DBFS SPI: notes on pathnames.
*
* All pathnames used in the SPI are store-qualified, i.e. a 2-tuple
* of the form (store_name, pathname) (where the pathname is rooted
* within the store namespace).
*
*
* Stores/providers that support contentID-based access (see
* "feature_content_id") also support a form of addressing that is
* not based on pathnames. Items are identified by an explicit store
* name, a "null" pathname, and possibly a contentID specified as a
* parameter or via the "opt_content_id" property.
*
* Not all operations are supported with contentID-based access, and
* applications should depend only on the simplest create/delete
* functionality being available.
*
*/
/*
* DBFS SPI: creation operations
*
* The SPI must allow the DBFS API to create directory, file, link,
* and reference elements (subject to store feature support).
*
*
* All of the creation methods require a valid pathname (see the
* special exemption for contentID-based access below), and can
* optionally specify properties to be associated with the pathname
* as it is created. It is also possible for clients to fetch-back
* item properties after the creation completes (so that
* automatically generated properties (e.g. "std_creation_time") are
* immediately available to clients (the exact set of properties
* fetched back is controlled by the various "prop_xxx" bitmasks in
* "prop_flags").
*
*
* Links and references require an additional pathname to associate
* with the primary pathname.
*
* File pathnames can optionally specify a BLOB value to use to
* initially populate the underlying file content (the provided BLOB
* may be any valid lob: temporary or permanent). On creation, the
* underlying lob is returned to the client (if "prop_data" is
* specified in "prop_flags").
*
* Non-directory pathnames require that their parent directory be
* created first. Directory pathnames themselves can be recursively
* created (i.e. the pathname hierarchy leading up to a directory
* can be created in one call).
*
*
* Attempts to create paths that already exist is an error; the one
* exception is pathnames that are "soft-deleted" (see below for
* delete operations)---in these cases, the soft-deleted item is
* implicitly purged, and the new item creation is attempted.
*
*
* Stores/providers that support contentID-based access accept an
* explicit store name and a "null" path to create a new element.
* The contentID generated for this element is available via the
* "opt_content_id" property (contentID-based creation automatically
* implies "prop_opt" in "prop_flags").
*
* The newly created element may also have an internally generated
* pathname (if "feature_lazy_path" is not supported) and this path
* is available via the "std_canonical_path" property.
*
* Only file elements are candidates for contentID-based access.
*
*/
procedure createFile(
store_name in varchar2,
path in varchar2,
properties in out nocopy dbms_dbfs_content_properties_t,
content in out nocopy blob,
prop_flags in integer,
ctx in dbms_dbfs_content_context_t);
procedure createLink(
store_name in varchar2,
srcPath in varchar2,
dstPath in varchar2,
properties in out nocopy dbms_dbfs_content_properties_t,
prop_flags in integer,
ctx in dbms_dbfs_content_context_t);
procedure createReference(
store_name in varchar2,
srcPath in varchar2,
dstPath in varchar2,
properties in out nocopy dbms_dbfs_content_properties_t,
prop_flags in integer,
ctx in dbms_dbfs_content_context_t);
procedure createDirectory(
store_name in varchar2,
path in varchar2,
properties in out nocopy dbms_dbfs_content_properties_t,
prop_flags in integer,
recurse in integer,
ctx in dbms_dbfs_content_context_t);
/*
* DBFS SPI: deletion operations
*
* The SPI must allow the DBFS API to delete directory, file, link,
* and reference elements (subject to store feature support).
*
*
* By default, the deletions are "permanent" (get rid of the
* successfully deleted items on transaction commit), but stores may
* also support "soft-delete" features. If requested by the client,
* soft-deleted items are retained by the store (but not typically
* visible in normal listings or searches).
*
* Soft-deleted items can be "restore"d, or explicitly purged.
*
*
* Directory pathnames can be recursively deleted (i.e. the pathname
* hierarchy below a directory can be deleted in one call).
* Non-recursive deletions can be performed only on empty
* directories. Recursive soft-deletions apply the soft-delete to
* all of the items being deleted.
*
*
* Individual pathnames (or all soft-deleted pathnames under a
* directory) can be restored or purged via the restore and purge
* methods.
*
*
* Providers that support filtering can use the provider "filter" to
* identify subsets of items to delete---this makes most sense for
* bulk operations (deleteDirectory, restoreAll, purgeAll), but all
* of the deletion-related operations accept a "filter" argument.
*
*
* Stores/providers that support contentID-based access can also
* allow file items to be deleted by specifying their contentID.
*
*/
procedure deleteFile(
store_name in varchar2,
path in varchar2,
filter in varchar2,
soft_delete in integer,
ctx in dbms_dbfs_content_context_t);
procedure deleteContent(
store_name in varchar2,
contentID in raw,
filter in varchar2,
soft_delete in integer,
ctx in dbms_dbfs_content_context_t);
procedure deleteDirectory(
store_name in varchar2,
path in varchar2,
filter in varchar2,
soft_delete in integer,
recurse in integer,
ctx in dbms_dbfs_content_context_t);
procedure restorePath(
store_name in varchar2,
path in varchar2,
filter in varchar2,
ctx in dbms_dbfs_content_context_t);
procedure purgePath(
store_name in varchar2,
path in varchar2,
filter in varchar2,
ctx in dbms_dbfs_content_context_t);
procedure restoreAll(
store_name in varchar2,
path in varchar2,
filter in varchar2,
ctx in dbms_dbfs_content_context_t);
procedure purgeAll(
store_name in varchar2,
path in varchar2,
filter in varchar2,
ctx in dbms_dbfs_content_context_t);
/*
* DBFS SPI: path get/put operations.
*
* Existing path items can be accessed (for query or for update) and
* modified via simple get/put methods.
*
* All pathnames allow their metadata (i.e. properties) to be
* read/modified. On completion of the call, the client can request
* (via "prop_flags") specific properties to be fetched as well.
*
* File pathnames allow their data (i.e. content) to be
* read/modified. On completion of the call, the client can request
* (via the "prop_data" bitmaks in "prop_flags") a new BLOB locator
* that can be used to continue data access.
*
* Files can also be read/written without using BLOB locators, by
* explicitly specifying logical offsets/buffer-amounts and a
* suitably sized buffer.
*
*
* Update accesses must specify the "forUpdate" flag. Access to link
* pathnames can be implicitly and internally deferenced by stores
* (subject to feature support) if the "deref" flag is
* specified---however, this is dangerous since symbolic links are
* not always resolvable.
*
*
* The read methods (i.e. "getPath" where "forUpdate" is "false"
* also accepts a valid "asof" timestamp parameter that can be used
* by stores to implement "as of" style flashback queries. Mutating
* versions of the "getPath" and the "putPath" methods do not
* support as-of modes of operation.
*
*
* "getPathNowait" implies a "forUpdate", and, if implemented (see
* "feature_nowait"), allows providers to return an exception
* (ORA-54) rather than wait for row locks.
*
*/
procedure getPath(
store_name in varchar2,
path in varchar2,
properties in out nocopy dbms_dbfs_content_properties_t,
content out nocopy blob,
item_type out integer,
prop_flags in integer,
forUpdate in integer,
deref in integer,
ctx in dbms_dbfs_content_context_t);
procedure getPathNowait(
store_name in varchar2,
path in varchar2,
properties in out nocopy dbms_dbfs_content_properties_t,
content out nocopy blob,
item_type out integer,
prop_flags in integer,
deref in integer,
ctx in dbms_dbfs_content_context_t);
procedure getPath(
store_name in varchar2,
path in varchar2,
properties in out nocopy dbms_dbfs_content_properties_t,
amount in out number,
offset in number,
buffer out nocopy raw,
prop_flags in integer,
ctx in dbms_dbfs_content_context_t);
procedure getPath(
store_name in varchar2,
path in varchar2,
properties in out nocopy dbms_dbfs_content_properties_t,
amount in out number,
offset in number,
buffers out nocopy dbms_dbfs_content_raw_t,
prop_flags in integer,
ctx in dbms_dbfs_content_context_t);
procedure putPath(
store_name in varchar2,
path in varchar2,
properties in out nocopy dbms_dbfs_content_properties_t,
content in out nocopy blob,
item_type out integer,
prop_flags in integer,
ctx in dbms_dbfs_content_context_t);
procedure putPath(
store_name in varchar2,
path in varchar2,
properties in out nocopy dbms_dbfs_content_properties_t,
amount in number,
offset in number,
buffer in raw,
prop_flags in integer,
ctx in dbms_dbfs_content_context_t);
procedure putPath(
store_name in varchar2,
path in varchar2,
properties in out nocopy dbms_dbfs_content_properties_t,
written out number,
offset in number,
buffers in dbms_dbfs_content_raw_t,
prop_flags in integer,
ctx in dbms_dbfs_content_context_t);
/*
* DBFS SPI: rename/move operations.
*
* Pathnames can be renamed or moved, possibly across directory
* hierarchies and mount-points, but within the same store.
*
*
* Non-directory pathnames previously accessible via "oldPath" are
* renamed as a single item subsequently accessible via "newPath";
* assuming that "newPath" does not already exist.
*
* If "newPath" exists and is not a directory, the rename implicitly
* deletes the existing item before renaming "oldPath". If "newPath"
* exists and is a directory, "oldPath" is moved into the target
* directory.
*
*
* Directory pathnames previously accessible via "oldPath" are
* renamed by moving the directory and all of its children to
* "newPath" (if it does not already exist) or as children of
* "newPath" (if it exists and is a directory).
*
*
* Stores/providers that support contentID-based access and lazy
* pathname binding also support the "setPath" method that
* associates an existing "contentID" with a new "path".
*
*/
procedure renamePath(
store_name in varchar2,
oldPath in varchar2,
newPath in varchar2,
properties in out nocopy dbms_dbfs_content_properties_t,
ctx in dbms_dbfs_content_context_t);
procedure setPath(
store_name in varchar2,
contentID in raw,
path in varchar2,
properties in out nocopy dbms_dbfs_content_properties_t,
ctx in dbms_dbfs_content_context_t);
/*
* DBFS SPI: directory navigation and search.
*
* The DBFS API can list or search the contents of directory
* pathnames, optionally recursing into sub-directories, optionally
* seeing soft-deleted items, optionally using flashback "as of" a
* provided timestamp, and optionally filtering items in/out within
* the store based on list/search predicates.
*
*/
function list(
store_name in varchar2,
path in varchar2,
filter in varchar2,
recurse in integer,
ctx in dbms_dbfs_content_context_t)
return dbms_dbfs_content_list_items_t
pipelined;
function search(
store_name in varchar2,
path in varchar2,
filter in varchar2,
recurse in integer,
ctx in dbms_dbfs_content_context_t)
return dbms_dbfs_content_list_items_t
pipelined;
/*
* DBFS SPI: locking operations.
*
* Clients of the DBFS API can apply user-level locks to any valid
* pathname (subject to store feature support), associate the lock
* with user-data, and subsequently unlock these pathnames.
*
* The status of locked items is available via various optional
* properties (see "opt_lock*" above).
*
*
* It is the responsibility of the store (assuming it supports
* user-defined lock checking) to ensure that lock/unlock operations
* are performed in a consistent manner.
*
*/
procedure lockPath(
store_name in varchar2,
path in varchar2,
lock_type in integer,
lock_data in varchar2,
ctx in dbms_dbfs_content_context_t);
procedure unlockPath(
store_name in varchar2,
path in varchar2,
ctx in dbms_dbfs_content_context_t);
/*
* DBFS SPI: access checks.
*
* Check if a given pathname (store_name, path, pathtype) can be
* manipulated by "operation (see the various
* "dbms_dbfs_content.op_xxx" opcodes) by "principal".
*
* This is a convenience function for the DBFS API; a store that
* supports access control still internally performs these checks to
* guarantee security.
*
*/
function checkAccess(
store_name in varchar2,
path in varchar2,
pathtype in integer,
operation in varchar2,
principal in varchar2)
return integer;
end;
/
show errors;
create or replace public synonym tbfs
for sys.tbfs;
grant execute on tbfs
to dbfs_role;
body.sql
The body.sql script provides the SPI implementation of the tbfs.
connect / as sysdba;
create or replace package body tbfs
as
/*
* Lookup store features (see dbms_dbfs_content.feature_XXX). Lookup
* store id.
*
* A store ID identifies a provider-specific store, across
* registrations and mounts, but independent of changes to the store
* contents.
*
* I.e. changes to the store table(s) should be reflected in the
* store ID, but re-initialization of the same store table(s) should
* preserve the store ID.
*
* Providers should also return a "version" (either specific to a
* provider package, or to an individual store) based on a standard
* <a.b.c> naming convention (for <major>, <minor>, and <patch>
* components).
*
*/
function getFeatures(
store_name in varchar2)
return integer
is
begin
return dbms_dbfs_content.feature_locator;
end;
function getStoreId(
store_name in varchar2)
return number
is
begin
return 1;
end;
function getVersion(
store_name in varchar2)
return varchar2
is
begin
return '1.0.0';
end;
/*
* Lookup pathnames by (store_name, std_guid) or (store_mount,
* std_guid) tuples.
*
* If the underlying "std_guid" is found in the underlying store,
* this function returns the store-qualified pathname.
*
* If the "std_guid" is unknown, a "null" value is returned. Clients
* are expected to handle this as appropriate.
*
*/
function getPathByStoreId(
store_name in varchar2,
guid in integer)
return varchar2
is
begin
raise dbms_dbfs_content.unsupported_operation;
end;
/*
* DBFS SPI: space usage.
*
* Clients can query filesystem space usage statistics via the
* "spaceUsage()" method. Providers are expected to support this
* method for their stores (and to make a best effort determination
* of space usage---esp. if the store consists of multiple
* tables/indexes/lobs, etc.).
*
* "blksize" is the natural tablespace blocksize that holds the
* store---if multiple tablespaces with different blocksizes are
* used, any valid blocksize is acceptable.
*
* "tbytes" is the total size of the store in bytes, and "fbytes" is
* the free/unused size of the store in bytes. These values are
* computed over all segments that comprise the store.
*
* "nfile", "ndir", "nlink", and "nref" count the number of
* currently available files, directories, links, and references in
* the store.
*
* Since database objects are dynamically growable, it is not easy
* to estimate the division between "free" space and "used" space.
*
*/
procedure spaceUsage(
store_name in varchar2,
blksize out integer,
tbytes out integer,
fbytes out integer,
nfile out integer,
ndir out integer,
nlink out integer,
nref out integer)
is
nblks number;
begin
select count(*) into nfile
from tbfs.tbfst;
ndir := 0;
nlink := 0;
nref := 0;
select sum(bytes) into tbytes
from user_segments;
select sum(blocks) into nblks
from user_segments;
blksize := tbytes/nblks;
fbytes := 0; /* change as needed */
end;
/*
* DBFS SPI: notes on pathnames.
*
* All pathnames used in the SPI are store-qualified, i.e. a 2-tuple
* of the form (store_name, pathname) (where the pathname is rooted
* within the store namespace).
*
*
* Stores/providers that support contentID-based access (see
* "feature_content_id") also support a form of addressing that is
* not based on pathnames. Items are identified by an explicit store
* name, a "null" pathname, and possibly a contentID specified as a
* parameter or via the "opt_content_id" property.
*
* Not all operations are supported with contentID-based access, and
* applications should depend only on the simplest create/delete
* functionality being available.
*
*/
/*
* DBFS SPI: creation operations
*
* The SPI must allow the DBFS API to create directory, file, link,
* and reference elements (subject to store feature support).
*
*
* All of the creation methods require a valid pathname (see the
* special exemption for contentID-based access below), and can
* optionally specify properties to be associated with the pathname
* as it is created. It is also possible for clients to fetch-back
* item properties after the creation completes (so that
* automatically generated properties (e.g. "std_creation_time") are
* immediately available to clients (the exact set of properties
* fetched back is controlled by the various "prop_xxx" bitmasks in
* "prop_flags").
*
*
* Links and references require an additional pathname to associate
* with the primary pathname.
*
* File pathnames can optionally specify a BLOB value to use to
* initially populate the underlying file content (the provided BLOB
* may be any valid lob: temporary or permanent). On creation, the
* underlying lob is returned to the client (if "prop_data" is
* specified in "prop_flags").
*
* Non-directory pathnames require that their parent directory be
* created first. Directory pathnames themselves can be recursively
* created (i.e. the pathname hierarchy leading up to a directory
* can be created in one call).
*
*
* Attempts to create paths that already exist is an error; the one
* exception is pathnames that are "soft-deleted" (see below for
* delete operations)---in these cases, the soft-deleted item is
* implicitly purged, and the new item creation is attempted.
*
*
* Stores/providers that support contentID-based access accept an
* explicit store name and a "null" path to create a new element.
* The contentID generated for this element is available via the
* "opt_content_id" property (contentID-based creation automatically
* implies "prop_opt" in "prop_flags").
*
* The newly created element may also have an internally generated
* pathname (if "feature_lazy_path" is not supported) and this path
* is available via the "std_canonical_path" property.
*
* Only file elements are candidates for contentID-based access.
*
*/
procedure createFile(
store_name in varchar2,
path in varchar2,
properties in out nocopy dbms_dbfs_content_properties_t,
content in out nocopy blob,
prop_flags in integer,
ctx in dbms_dbfs_content_context_t)
is
guid number;
begin
if (path = '/') then
raise dbms_dbfs_content.invalid_path;
end if;
if content is null then
content := empty_blob();
end if;
begin
insert into tbfs.tbfst values (substr(path,2), content)
returning data into content;
exception
when dup_val_on_index then
raise dbms_dbfs_content.path_exists;
end;
select ora_hash(path) into guid from dual;
properties := dbms_dbfs_content_properties_t(
dbms_dbfs_content_property_t(
'std:length',
to_char(dbms_lob.getlength(content)),
dbms_types.TYPECODE_NUMBER),
dbms_dbfs_content_property_t(
'std:guid',
to_char(guid),
dbms_types.TYPECODE_NUMBER));
end;
procedure createLink(
store_name in varchar2,
srcPath in varchar2,
dstPath in varchar2,
properties in out nocopy dbms_dbfs_content_properties_t,
prop_flags in integer,
ctx in dbms_dbfs_content_context_t)
is
begin
raise dbms_dbfs_content.unsupported_operation;
end;
procedure createReference(
store_name in varchar2,
srcPath in varchar2,
dstPath in varchar2,
properties in out nocopy dbms_dbfs_content_properties_t,
prop_flags in integer,
ctx in dbms_dbfs_content_context_t)
is
begin
raise dbms_dbfs_content.unsupported_operation;
end;
procedure createDirectory(
store_name in varchar2,
path in varchar2,
properties in out nocopy dbms_dbfs_content_properties_t,
prop_flags in integer,
recurse in integer,
ctx in dbms_dbfs_content_context_t)
is
begin
raise dbms_dbfs_content.unsupported_operation;
end;
/*
* DBFS SPI: deletion operations
*
* The SPI must allow the DBFS API to delete directory, file, link,
* and reference elements (subject to store feature support).
*
*
* By default, the deletions are "permanent" (get rid of the
* successfully deleted items on transaction commit), but stores may
* also support "soft-delete" features. If requested by the client,
* soft-deleted items are retained by the store (but not typically
* visible in normal listings or searches).
*
* Soft-deleted items can be "restore"d, or explicitly purged.
*
*
* Directory pathnames can be recursively deleted (i.e. the pathname
* hierarchy below a directory can be deleted in one call).
* Non-recursive deletions can be performed only on empty
* directories. Recursive soft-deletions apply the soft-delete to
* all of the items being deleted.
*
*
* Individual pathnames (or all soft-deleted pathnames under a
* directory) can be restored or purged via the restore and purge
* methods.
*
*
* Providers that support filtering can use the provider "filter" to
* identify subsets of items to delete---this makes most sense for
* bulk operations (deleteDirectory, restoreAll, purgeAll), but all
* of the deletion-related operations accept a "filter" argument.
*
*
* Stores/providers that support contentID-based access can also
* allow file items to be deleted by specifying their contentID.
*
*/
procedure deleteFile(
store_name in varchar2,
path in varchar2,
filter in varchar2,
soft_delete in integer,
ctx in dbms_dbfs_content_context_t)
is
begin
if (path = '/') then
raise dbms_dbfs_content.invalid_path;
end if;
if ((soft_delete <> 0) or
(filter is not null)) then
raise dbms_dbfs_content.unsupported_operation;
end if;
delete from tbfs.tbfst t
where ('/' || t.key) = path;
if sql%rowcount <> 1 then
raise dbms_dbfs_content.invalid_path;
end if;
end;
procedure deleteContent(
store_name in varchar2,
contentID in raw,
filter in varchar2,
soft_delete in integer,
ctx in dbms_dbfs_content_context_t)
is
begin
raise dbms_dbfs_content.unsupported_operation;
end;
procedure deleteDirectory(
store_name in varchar2,
path in varchar2,
filter in varchar2,
soft_delete in integer,
recurse in integer,
ctx in dbms_dbfs_content_context_t)
is
begin
raise dbms_dbfs_content.unsupported_operation;
end;
procedure restorePath(
store_name in varchar2,
path in varchar2,
filter in varchar2,
ctx in dbms_dbfs_content_context_t)
is
begin
raise dbms_dbfs_content.unsupported_operation;
end;
procedure purgePath(
store_name in varchar2,
path in varchar2,
filter in varchar2,
ctx in dbms_dbfs_content_context_t)
is
begin
raise dbms_dbfs_content.unsupported_operation;
end;
procedure restoreAll(
store_name in varchar2,
path in varchar2,
filter in varchar2,
ctx in dbms_dbfs_content_context_t)
is
begin
raise dbms_dbfs_content.unsupported_operation;
end;
procedure purgeAll(
store_name in varchar2,
path in varchar2,
filter in varchar2,
ctx in dbms_dbfs_content_context_t)
is
begin
raise dbms_dbfs_content.unsupported_operation;
end;
/*
* DBFS SPI: path get/put operations.
*
* Existing path items can be accessed (for query or for update) and
* modified via simple get/put methods.
*
* All pathnames allow their metadata (i.e. properties) to be
* read/modified. On completion of the call, the client can request
* (via "prop_flags") specific properties to be fetched as well.
*
* File pathnames allow their data (i.e. content) to be
* read/modified. On completion of the call, the client can request
* (via the "prop_data" bitmaks in "prop_flags") a new BLOB locator
* that can be used to continue data access.
*
* Files can also be read/written without using BLOB locators, by
* explicitly specifying logical offsets/buffer-amounts and a
* suitably sized buffer.
*
*
* Update accesses must specify the "forUpdate" flag. Access to link
* pathnames can be implicitly and internally deferenced by stores
* (subject to feature support) if the "deref" flag is
* specified---however, this is dangerous since symbolic links are
* not always resolvable.
*
*
* The read methods (i.e. "getPath" where "forUpdate" is "false"
* also accepts a valid "asof" timestamp parameter that can be used
* by stores to implement "as of" style flashback queries. Mutating
* versions of the "getPath" and the "putPath" methods do not
* support as-of modes of operation.
*
*
* "getPathNowait" implies a "forUpdate", and, if implemented (see
* "feature_nowait"), allows providers to return an exception
* (ORA-54) rather than wait for row locks.
*
*/
procedure getPath(
store_name in varchar2,
path in varchar2,
properties in out nocopy dbms_dbfs_content_properties_t,
content out nocopy blob,
item_type out integer,
prop_flags in integer,
forUpdate in integer,
deref in integer,
ctx in dbms_dbfs_content_context_t)
is
guid number;
begin
if (deref <> 0) then
raise dbms_dbfs_content.unsupported_operation;
end if;
select ora_hash(path) into guid from dual;
if (path = '/') then
if (forUpdate <> 0) then
raise dbms_dbfs_content.unsupported_operation;
end if;
content := null;
item_type := dbms_dbfs_content.type_directory;
properties := dbms_dbfs_content_properties_t(
dbms_dbfs_content_property_t(
'std:guid',
to_char(guid),
dbms_types.TYPECODE_NUMBER));
return;
end if;
begin
if (forUpdate <> 0) then
select t.data into content from tbfs.tbfst t
where ('/' || t.key) = path
for update;
else
select t.data into content from tbfs.tbfst t
where ('/' || t.key) = path;
end if;
exception
when no_data_found then
raise dbms_dbfs_content.invalid_path;
end;
item_type := dbms_dbfs_content.type_file;
properties := dbms_dbfs_content_properties_t(
dbms_dbfs_content_property_t(
'std:length',
to_char(dbms_lob.getlength(content)),
dbms_types.TYPECODE_NUMBER),
dbms_dbfs_content_property_t(
'std:guid',
to_char(guid),
dbms_types.TYPECODE_NUMBER));
end;
procedure getPathNowait(
store_name in varchar2,
path in varchar2,
properties in out nocopy dbms_dbfs_content_properties_t,
content out nocopy blob,
item_type out integer,
prop_flags in integer,
deref in integer,
ctx in dbms_dbfs_content_context_t)
is
begin
raise dbms_dbfs_content.unsupported_operation;
end;
procedure getPath(
store_name in varchar2,
path in varchar2,
properties in out nocopy dbms_dbfs_content_properties_t,
amount in out number,
offset in number,
buffer out nocopy raw,
prop_flags in integer,
ctx in dbms_dbfs_content_context_t)
is
content blob;
guid number;
begin
if (path = '/') then
raise dbms_dbfs_content.unsupported_operation;
end if;
begin
select t.data into content from tbfs.tbfst t
where ('/' || t.key) = path;
exception
when no_data_found then
raise dbms_dbfs_content.invalid_path;
end;
select ora_hash(path) into guid from dual;
dbms_lob.read(content, amount, offset, buffer);
properties := dbms_dbfs_content_properties_t(
dbms_dbfs_content_property_t(
'std:length',
to_char(dbms_lob.getlength(content)),
dbms_types.TYPECODE_NUMBER),
dbms_dbfs_content_property_t(
'std:guid',
to_char(guid),
dbms_types.TYPECODE_NUMBER));
end;
procedure getPath(
store_name in varchar2,
path in varchar2,
properties in out nocopy dbms_dbfs_content_properties_t,
amount in out number,
offset in number,
buffers out nocopy dbms_dbfs_content_raw_t,
prop_flags in integer,
ctx in dbms_dbfs_content_context_t)
is
begin
raise dbms_dbfs_content.unsupported_operation;
end;
procedure putPath(
store_name in varchar2,
path in varchar2,
properties in out nocopy dbms_dbfs_content_properties_t,
content in out nocopy blob,
item_type out integer,
prop_flags in integer,
ctx in dbms_dbfs_content_context_t)
is
guid number;
begin
if (path = '/') then
raise dbms_dbfs_content.unsupported_operation;
end if;
if content is null then
content := empty_blob();
end if;
update tbfs.tbfst t
set t.data = content
where ('/' || t.key) = path
returning t.data into content;
if sql%rowcount <> 1 then
raise dbms_dbfs_content.invalid_path;
end if;
select ora_hash(path) into guid from dual;
item_type := dbms_dbfs_content.type_file;
properties := dbms_dbfs_content_properties_t(
dbms_dbfs_content_property_t(
'std:length',
to_char(dbms_lob.getlength(content)),
dbms_types.TYPECODE_NUMBER),
dbms_dbfs_content_property_t(
'std:guid',
to_char(guid),
dbms_types.TYPECODE_NUMBER));
end;
procedure putPath(
store_name in varchar2,
path in varchar2,
properties in out nocopy dbms_dbfs_content_properties_t,
amount in number,
offset in number,
buffer in raw,
prop_flags in integer,
ctx in dbms_dbfs_content_context_t)
is
content blob;
guid number;
begin
if (path = '/') then
raise dbms_dbfs_content.unsupported_operation;
end if;
begin
select t.data into content from tbfs.tbfst t
where ('/' || t.key) = path
for update;
exception
when no_data_found then
raise dbms_dbfs_content.invalid_path;
end;
select ora_hash(path) into guid from dual;
dbms_lob.write(content, amount, offset, buffer);
properties := dbms_dbfs_content_properties_t(
dbms_dbfs_content_property_t(
'std:length',
to_char(dbms_lob.getlength(content)),
dbms_types.TYPECODE_NUMBER),
dbms_dbfs_content_property_t(
'std:guid',
to_char(guid),
dbms_types.TYPECODE_NUMBER));
end;
procedure putPath(
store_name in varchar2,
path in varchar2,
properties in out nocopy dbms_dbfs_content_properties_t,
written out number,
offset in number,
buffers in dbms_dbfs_content_raw_t,
prop_flags in integer,
ctx in dbms_dbfs_content_context_t)
is
begin
raise dbms_dbfs_content.unsupported_operation;
end;
/*
* DBFS SPI: rename/move operations.
*
* Pathnames can be renamed or moved, possibly across directory
* hierarchies and mount-points, but within the same store.
*
*
* Non-directory pathnames previously accessible via "oldPath" are
* renamed as a single item subsequently accessible via "newPath";
* assuming that "newPath" does not already exist.
*
* If "newPath" exists and is not a directory, the rename implicitly
* deletes the existing item before renaming "oldPath". If "newPath"
* exists and is a directory, "oldPath" is moved into the target
* directory.
*
*
* Directory pathnames previously accessible via "oldPath" are
* renamed by moving the directory and all of its children to
* "newPath" (if it does not already exist) or as children of
* "newPath" (if it exists and is a directory).
*
*
* Stores/providers that support contentID-based access and lazy
* pathname binding also support the "setPath" method that
* associates an existing "contentID" with a new "path".
*
*/
procedure renamePath(
store_name in varchar2,
oldPath in varchar2,
newPath in varchar2,
properties in out nocopy dbms_dbfs_content_properties_t,
ctx in dbms_dbfs_content_context_t)
is
begin
raise dbms_dbfs_content.unsupported_operation;
end;
procedure setPath(
store_name in varchar2,
contentID in raw,
path in varchar2,
properties in out nocopy dbms_dbfs_content_properties_t,
ctx in dbms_dbfs_content_context_t)
is
begin
raise dbms_dbfs_content.unsupported_operation;
end;
/*
* DBFS SPI: directory navigation and search.
*
* The DBFS API can list or search the contents of directory
* pathnames, optionally recursing into sub-directories, optionally
* seeing soft-deleted items, optionally using flashback "as of" a
* provided timestamp, and optionally filtering items in/out within
* the store based on list/search predicates.
*
*/
function list(
store_name in varchar2,
path in varchar2,
filter in varchar2,
recurse in integer,
ctx in dbms_dbfs_content_context_t)
return dbms_dbfs_content_list_items_t
pipelined
is
begin
for rws in (select * from tbfs.tbfst)
loop
pipe row(dbms_dbfs_content_list_item_t(
'/' || rws.key, rws.key, dbms_dbfs_content.type_file));
end loop;
end;
function search(
store_name in varchar2,
path in varchar2,
filter in varchar2,
recurse in integer,
ctx in dbms_dbfs_content_context_t)
return dbms_dbfs_content_list_items_t
pipelined
is
begin
raise dbms_dbfs_content.unsupported_operation;
end;
/*
* DBFS SPI: locking operations.
*
* Clients of the DBFS API can apply user-level locks to any valid
* pathname (subject to store feature support), associate the lock
* with user-data, and subsequently unlock these pathnames.
*
* The status of locked items is available via various optional
* properties (see "opt_lock*" above).
*
*
* It is the responsibility of the store (assuming it supports
* user-defined lock checking) to ensure that lock/unlock operations
* are performed in a consistent manner.
*
*/
procedure lockPath(
store_name in varchar2,
path in varchar2,
lock_type in integer,
lock_data in varchar2,
ctx in dbms_dbfs_content_context_t)
is
begin
raise dbms_dbfs_content.unsupported_operation;
end;
procedure unlockPath(
store_name in varchar2,
path in varchar2,
ctx in dbms_dbfs_content_context_t)
is
begin
raise dbms_dbfs_content.unsupported_operation;
end;
/*
* DBFS SPI: access checks.
*
* Check if a given pathname (store_name, path, pathtype) can be
* manipulated by "operation (see the various
* "dbms_dbfs_content.op_xxx" opcodes) by "principal".
*
* This is a convenience function for the DBFS API; a store that
* supports access control still internally performs these checks to
* guarantee security.
*
*/
function checkAccess(
store_name in varchar2,
path in varchar2,
pathtype in integer,
operation in varchar2,
principal in varchar2)
return integer
is
begin
return 1;
end;
end;
/
show errors;
