27 Managing Resources with Oracle Database Resource Manager

What Solutions Does the Resource Manager Provide for Workload Management?

When database resource allocation decisions are left to the operating system, you may encounter the following problems with workload management:

• Excessive overhead

  Excessive overhead results from operating system context switching between Oracle Database server processes when the number of server processes is high.

• Inefficient scheduling

  The operating system deschedules database servers while they hold latches, which is inefficient.

• Inappropriate allocation of resources

  The operating system distributes resources equally among all active processes and cannot prioritize one task over another.

• Inability to manage database-specific resources, such as parallel execution servers and active sessions

The Resource Manager helps to overcome these problems by allowing the database more control over how hardware resources are allocated. In an environment with multiple concurrent user sessions that run jobs with differing priorities, all sessions should not be treated equally. The Resource Manager enables you to classify sessions into groups based on session attributes, and to then allocate resources to those groups in a way that optimizes hardware utilization for your application environment.

With the Resource Manager, you can:

• Guarantee certain sessions a minimum amount of CPU regardless of the load on the system and the number of users.

• Distribute available CPU by allocating percentages of CPU time to different users and applications. In a data warehouse, a higher percentage can be given to ROLAP (relational online analytical processing) applications than to batch jobs.

• Limit the degree of parallelism of any operation performed by members of a group of users.

• Manage the order of parallel statements in the parallel statement queue. Parallel statements from a critical application can be enqueued ahead of parallel statements from a low priority group of users.

• Limit the number of parallel execution servers that a group of users can use. This ensures that all the available parallel execution servers are not allocated to only one group of users.

• Create an active session pool. An active session pool consists of a specified maximum number of user sessions allowed to be concurrently active within a group of users. Additional sessions beyond the maximum are queued for execution, but you can specify a timeout period, after which queued jobs will terminate. The active session pool limits the total number of sessions actively competing for resources, thereby enabling active sessions to make faster progress.

• Monitor resources

  When Resource Manager is enabled, Resource Manager automatically records statistics about resource usage, and you can examine these statistics using real-time SQL monitoring and the Resource Manager dynamic performance views (the V$RSRC_* views). See "Monitoring Oracle Database Resource Manager" for information about using real-time SQL monitoring and the Resource Manager dynamic performance views.

• Manage runaway sessions or calls in the following ways:

  • By detecting when a session or call consumes more than a specified amount of CPU, physical I/O, logical I/O, or elapsed time, and then automatically either terminating the session or call, or switching to a consumer group with a lower resource allocation or a limit on the percentage of CPU that the group can use

    A logical I/O, also known as a buffer I/O, refers to reads and writes of buffers in the buffer cache. When a requested buffer is not found in memory, the database performs a physical I/O to copy the buffer from either disk or the flash cache into memory, and then a logical I/O to read the cached buffer.

  • By recording detailed information about SQL statements that consume more than a specified amount of CPU, physical I/O, logical I/O, or elapsed time with real-time SQL monitoring

  • By using the Automatic Workload Repository (AWR) to analyze a persistent record of SQL statements that consume more than a specified amount of CPU, physical I/O, logical I/O, or elapsed time

  • By logging information about a runaway session without taking any other action related to the session

• Prevent the execution of operations that the optimizer estimates will run for a longer time than a specified limit.

• Limit the amount of time that a session can be idle. This can be further defined to mean only sessions that are blocking other sessions.

• Allow a database to use different resource plans, based on changing workload requirements. You can dynamically change the resource plan, for example, from a daytime resource plan to a nighttime resource plan, without having to shut down and restart the instance. You can also schedule a resource plan change with Oracle Scheduler. See Chapter 28, "Oracle Scheduler Concepts" for more information.

Elements of the Resource Manager

The elements of the Resource Manager are described in the following table.

You use the DBMS_RESOURCE_MANAGER PL/SQL package to create and maintain these elements. The elements are stored in tables in the data dictionary. You can view information about them with data dictionary views.

Example: A Simple Resource Plan

Figure 27-1 shows a simple resource plan for an organization that runs online transaction processing (OLTP) applications and reporting applications simultaneously during the daytime. The currently active plan, DAYTIME, allocates CPU resources among three resource consumer groups. Specifically, OLTP is allotted 75% of the CPU time, REPORTS is allotted 15%, and OTHER_GROUPS receives the remaining 10%. Any group can use more resources than it is guaranteed if there is no resource contention. For example, OLTP is guaranteed 75% of the CPU, but if there is no resource contention, it can use up to 100% of the CPU.

Figure 27-1 A Simple Resource Plan

Description of "Figure 27-1 A Simple Resource Plan"

Oracle Database provides a procedure (CREATE_SIMPLE_PLAN) that enables you to quickly create a simple resource plan. This procedure is discussed in "Creating a Simple Resource Plan".

Note:

The currently active resource plan does not enforce allocations until CPU usage is at 100%. If the CPU usage is below 100%, the database is not CPU-bound and hence there is no need to enforce allocations to ensure that all sessions get their designated resource allocation.

In addition, when allocations are enforced, unused allocation by any consumer group can be used by other consumer groups. In the previous example, if the OLTP group does not use all of its allocation, the Resource Manager permits the REPORTS group or OTHER_GROUPS group to use the unused allocation.

Example: A Resource Plan with Subplans

In this example, the Great Bread Company allocates the CPU resource as shown in Figure 27-2. The figure illustrates a top plan (GREAT_BREAD) and all of its descendents. For simplicity, the requirement to include the OTHER_GROUPS consumer group is ignored, and resource plan directives are not shown, even though they are part of the plan. Rather, the CPU percentages that the directives allocate are shown along the connecting lines between plans, subplans, and consumer groups.

Figure 27-2 A Resource Plan With Subplans

Description of "Figure 27-2 A Resource Plan With Subplans"

The GREAT_BREAD plan allocates resources as follows:

• 20% of CPU resources to the consumer group MARKET

• 60% of CPU resources to subplan SALES_TEAM, which in turn divides its share equally between the WHOLESALE and RETAIL consumer groups

• 20% of CPU resources to subplan DEVELOP_TEAM, which in turn divides its resources equally between the BREAD and MUFFIN consumer groups

It is possible for a subplan or consumer group to have multiple parents. An example would be if the MARKET group were included in the SALES_TEAM subplan. However, a plan cannot contain any loops. For example, the SALES_TEAM subplan cannot have a directive that references the GREAT_BREAD plan.

See Also:

"Putting It All Together: Oracle Database Resource Manager Examples" for an example of a more complex resource plan.

About Resource Manager Administration Privileges

You must have the system privilege ADMINISTER_RESOURCE_MANAGER to administer the Resource Manager. This privilege (with the ADMIN option) is granted to database administrators through the DBA role.

Being an administrator for the Resource Manager enables you to execute all of the procedures in the DBMS_RESOURCE_MANAGER PL/SQL package.

You may, as an administrator with the ADMIN option, choose to grant the administrative privilege to other users or roles. To do so, use the DBMS_RESOURCE_MANAGER_PRIVS PL/SQL package. The relevant package procedures are listed in the following table.

The following PL/SQL block grants the administrative privilege to user HR, but does not grant HR the ADMIN option. Therefore, HR can execute all of the procedures in the DBMS_RESOURCE_MANAGER package, but HR cannot use the GRANT_SYSTEM_PRIVILEGE procedure to grant the administrative privilege to others.

BEGIN
  DBMS_RESOURCE_MANAGER_PRIVS.GRANT_SYSTEM_PRIVILEGE(
   GRANTEE_NAME   => 'HR',
   PRIVILEGE_NAME => 'ADMINISTER_RESOURCE_MANAGER',
   ADMIN_OPTION   => FALSE);
END;
/

You can revoke this privilege using the REVOKE_SYSTEM_PRVILEGE procedure.

Overview of Assigning Sessions to Resource Consumer Groups

Before you enable the Resource Manager, you must specify how user sessions are assigned to resource consumer groups. You do this by creating mapping rules that enable the Resource Manager to automatically assign each session to a consumer group upon session startup, based upon session attributes. After a session is assigned to its initial consumer group and is running, you can call a procedure to manually switch the session to a different consumer group. You would typically do this if the session is using excessive resources and must be moved to a consumer group that is more limited in its resource allocation. You can also grant the switch privilege to users and to applications so that they can switch their sessions from one consumer group to another.

The database can also automatically switch a session from one consumer group to another (typically lower priority) consumer group when there are changes in session attributes or when a session exceeds designated resource consumption limits.

Assigning an Initial Resource Consumer Group

The initial consumer group of a session is determined by the mapping rules that you configure. For information on how to configure mapping rules, see "Specifying Session-to–Consumer Group Mapping Rules".

Specifying Session-to–Consumer Group Mapping Rules

This section provides background information about session-to–consumer group mapping rules, and describes how to create and prioritize them. The following topics are covered:

• About Session-to–Consumer Group Mapping Rules

• Creating Consumer Group Mapping Rules

• Modifying and Deleting Consumer Group Mapping Rules

• Creating Mapping Rule Priorities

BEGIN
  DBMS_RESOURCE_MANAGER.SET_CONSUMER_GROUP_MAPPING
     (DBMS_RESOURCE_MANAGER.ORACLE_USER, 'SCOTT', 'DEV_GROUP');
END;
/

BEGIN
  DBMS_RESOURCE_MANAGER.SET_CONSUMER_GROUP_MAPPING_PRI(
    EXPLICIT => 1,
    SERVICE_MODULE_ACTION => 2,
    SERVICE_MODULE => 3,
    MODULE_NAME_ACTION => 4,
    MODULE_NAME => 5,
    SERVICE_NAME => 6,
    ORACLE_USER => 7,
    CLIENT_PROGRAM => 8,
    CLIENT_OS_USER => 9,
    CLIENT_MACHINE => 10,
    CLIENT_ID => 11);
END;
/

BEGIN
  DBMS_RESOURCE_MANAGER.SET_CONSUMER_GROUP_MAPPING
     (DBMS_RESOURCE_MANAGER.MODULE_NAME, 'EOD_REPORTS', 'LOW_PRIORITY');
END;
/

Switching Resource Consumer Groups

This section describes ways to switch the resource consumer group of a session.

This section contains the following topics:

• Manually Switching Resource Consumer Groups

• Enabling Users or Applications to Manually Switch Consumer Groups

BEGIN
  DBMS_RESOURCE_MANAGER.SWITCH_CONSUMER_GROUP_FOR_SESS ('17', '12345',
   'HIGH_PRIORITY');
END;
/

BEGIN
  DBMS_RESOURCE_MANAGER.SWITCH_CONSUMER_GROUP_FOR_USER ('HR',
    'LOW_GROUP');
END;
/

SET serveroutput on
DECLARE
    old_group varchar2(30);
BEGIN
  DBMS_SESSION.SWITCH_CURRENT_CONSUMER_GROUP('BATCH_GROUP', old_group, FALSE);
  DBMS_OUTPUT.PUT_LINE('OLD GROUP = ' || old_group);
END;
/

OLD GROUP = OLTP_GROUP

Specifying Automatic Consumer Group Switching

You can configure the Resource Manager to automatically switch a session to another consumer group when a certain condition is met. Automatic switching can occur when:

• A session attribute changes, causing a new mapping rule to take effect.

• A session exceeds the CPU, physical I/O, or logical I/O resource consumption limits set by its consumer group, or it exceeds the elapsed time limit set by its consumer group.

The following sections provide details:

• Specifying Automatic Switching with Mapping Rules

• Specifying Automatic Switching by Setting Resource Limits

BEGIN
  DBMS_RESOURCE_MANAGER.CREATE_PLAN_DIRECTIVE (
   PLAN             => 'DAYTIME',
   GROUP_OR_SUBPLAN => 'OLTP',
   COMMENT          => 'OLTP group',
   MGMT_P1          => 75,
   SWITCH_GROUP     => 'LOW_GROUP',
   SWITCH_TIME      => 5);
END;
/

BEGIN
  DBMS_RESOURCE_MANAGER.CREATE_PLAN_DIRECTIVE (
   PLAN                => 'DAYTIME',
   GROUP_OR_SUBPLAN    => 'OLTP',
   COMMENT             => 'OLTP group',
   MGMT_P1             => 75,
   SWITCH_GROUP        => 'LOW_GROUP',
   SWITCH_IO_REQS      => 10000,
   SWITCH_IO_MEGABYTES => 2500,
   SWITCH_FOR_CALL     => TRUE);
END;
/

BEGIN
  DBMS_RESOURCE_MANAGER.CREATE_PLAN_DIRECTIVE (
   PLAN             => 'DAYTIME',
   GROUP_OR_SUBPLAN => 'REPORTING',
   COMMENT          => 'Reporting group',
   MGMT_P1          => 75,
   SWITCH_GROUP     => 'KILL_SESSION',
   SWITCH_TIME      => 60);
END;
/

BEGIN
  DBMS_RESOURCE_MANAGER.CREATE_PLAN_DIRECTIVE (
   PLAN                => 'DAYTIME',
   GROUP_OR_SUBPLAN    => 'OLTP',
   COMMENT             => 'OLTP group',
   MGMT_P1             => 75,
   SWITCH_GROUP        => 'LOW_GROUP',
   SWITCH_IO_LOGICAL   => 100,
   SWITCH_FOR_CALL     => TRUE);
END;
/

BEGIN
  DBMS_RESOURCE_MANAGER.CREATE_PLAN_DIRECTIVE (
   PLAN                => 'DAYTIME',
   GROUP_OR_SUBPLAN    => 'OLTP',
   COMMENT             => 'OLTP group',
   MGMT_P1             => 75,
   SWITCH_GROUP        => 'LOW_GROUP',
   SWITCH_FOR_CALL     => TRUE,
   SWITCH_ELAPSED_TIME => 300);
END;
/

Granting and Revoking the Switch Privilege

Using the DBMS_RESOURCE_MANAGER_PRIVS PL/SQL package, you can grant or revoke the switch privilege to a user, role, or PUBLIC. The switch privilege enables a user or application to switch a session to a specified resource consumer group. The package also enables you to revoke the switch privilege. The relevant package procedures are listed in the following table.

OTHER_GROUPS has switch privileges granted to PUBLIC. Therefore, all users are automatically granted the switch privilege for this consumer group.

The following switches do not require explicit switch privilege:

• There is a consumer group mapping specified by the SET_CONSUMER_GROUP_MAPPING procedure in the DBMS_RESOURCE_MANAGER package, and a session is switching to a different consumer group due to the mapping. See "Creating Consumer Group Mapping Rules".

• There is an automatic consumer group switch when a switch condition is met based on the setting of the switch_group parameter of a resource plan directive.

Explicit switch privilege is required for a user to switch a session to a consumer group in all other cases.

BEGIN
  DBMS_RESOURCE_MANAGER_PRIVS.GRANT_SWITCH_CONSUMER_GROUP (
   GRANTEE_NAME   => 'SCOTT',
   CONSUMER_GROUP => 'OLTP',
   GRANT_OPTION   =>  TRUE);
END;
/

BEGIN
  DBMS_RESOURCE_MANAGER_PRIVS.REVOKE_SWITCH_CONSUMER_GROUP (
   REVOKEE_NAME   => 'SCOTT',
   CONSUMER_GROUP => 'OLTP');
END;
/

CPU

To manage CPU resources, Resource Manager allocates resources among consumer groups and redistributes CPU resources that were allocated but were not used. You can also set a limit on the amount of CPU resources that can be allocated to a particular consumer group.

Resource Manager provides the following resource plan directive attributes to control CPU resource allocation:

• Management Attributes

• Utilization Limit

Exadata I/O

Management attributes enable you to specify CPU resource allocation for Exadata I/O.

Parallel Execution Servers

Resource Manager can manage usage of the available parallel execution servers for a database.

This section contains the following topics:

• Degree of Parallelism Limit

• Parallel Server Limit

• Parallel Queue Timeout

ORA-07454: queue timeout, n second(s), exceeded

Runaway Queries

Runaway sessions and calls can adversely impact overall performance if they are not managed properly. Resource Manager can take action when a session or call consumes more than a specified amount of CPU, physical I/O, logical I/O, or elapsed time. Resource Manager can either switch the session or call to a consumer group that is allocated a small amount of CPU or terminate the session or call.

This section contains the following topics:

• Automatic Consumer Group Switching

• Canceling SQL and Terminating Sessions

• Execution Time Limit

Active Session Pool with Queuing

You can control the maximum number of concurrently active sessions allowed within a consumer group. This maximum defines the active session pool. An active session is a session that is actively processing a transaction or SQL statement. Specifically, an active session is either in a transaction, holding a user enqueue, or has an open cursor and has not been idle for over 5 seconds. An active session is considered active even if it is blocked, for example waiting for an I/O request to complete. When the active session pool is full, a session that is trying to process a call is placed into a queue. When an active session completes, the first session in the queue can then be removed from the queue and scheduled for execution. You can also specify a period after which a session in the execution queue times out, causing the call to terminate with an error.

Active session limits should not be used for OLTP workloads. In addition, active session limits should not be used to implement connection pooling or parallel statement queuing.

To manage parallel statements, you must use parallel statement queuing with the PARALLEL_SERVER_LIMIT attribute and management attributes (MGMT_P1, MGMT_P2, and so on).

Undo Pool

You can specify an undo pool for each consumer group. An undo pool controls the total amount of undo for uncommitted transactions that can be generated by a consumer group. When the total undo generated by a consumer group exceeds its undo limit, the current DML statement generating the undo is terminated. No other members of the consumer group can perform further data manipulation until undo space is freed from the pool.

Idle Time Limit

You can specify an amount of time that a session can be idle, after which it is terminated. You can also specify a more stringent idle time limit that applies to sessions that are idle and blocking other sessions.

About the Pending Area

The pending area is a staging area where you can create a new resource plan, update an existing plan, or delete a plan without affecting currently running applications. When you create a pending area, the database initializes it and then copies existing plans into the pending area so that they can be updated.

After you make changes in the pending area, you validate the pending area and then submit it. Upon submission, all pending changes are applied to the data dictionary, and the pending area is cleared and deactivated.

If you attempt to create, update, or delete a plan (or create, update, or delete consumer groups or resource plan directives) without first creating the pending area, you receive an error message.

Submitting the pending area does not activate any new plan that you create; it just stores new or updated plan information in the data dictionary. However, if you modify a plan that is currently active, the plan is reactivated with the new plan definition. See "Enabling Oracle Database Resource Manager and Switching Plans" for information about activating a resource plan.

When you create a pending area, no other users can create one until you submit or clear the pending area or log out.

Creating a Pending Area

You create a pending area with the CREATE_PENDING_AREA procedure.

Example: Creating a pending area:

The following PL/SQL block creates and initializes a pending area:

BEGIN
  DBMS_RESOURCE_MANAGER.CREATE_PENDING_AREA();
END;
/

Creating Resource Consumer Groups

You create a resource consumer group using the CREATE_CONSUMER_GROUP procedure. You can specify the following parameters:

Example: Creating a Resource Consumer Group

The following PL/SQL block creates a consumer group called OLTP with the default (ROUND-ROBIN) method of allocating resources to sessions in the group:

BEGIN
  DBMS_RESOURCE_MANAGER.CREATE_CONSUMER_GROUP (
   CONSUMER_GROUP => 'OLTP',
   COMMENT        => 'OLTP applications');
END;
/

Map Sessions to Consumer Groups

You can map sessions to consumer groups using the SET_CONSUMER_GROUP_MAPPING procedure. You can specify the following parameters:

Example: Mapping a Session to a Consumer Group

The following PL/SQL block maps the oe user to the OLTP consumer group:

BEGIN
  DBMS_RESOURCE_MANAGER.SET_CONSUMER_GROUP_MAPPING(
    ATTRIBUTE      => DBMS_RESOURCE_MANAGER.ORACLE_USER,
    VALUE          => 'OE',
    CONSUMER_GROUP => 'OLTP');
END;
/

Creating a Resource Plan

You create a resource plan with the CREATE_PLAN procedure. You can specify the parameters shown in the following table. The first two parameters are required. The remainder are optional.

Example: Creating a Resource Plan

The following PL/SQL block creates a resource plan named DAYTIME:

BEGIN
  DBMS_RESOURCE_MANAGER.CREATE_PLAN(
   PLAN    => 'DAYTIME',
   COMMENT => 'More resources for OLTP applications');
END;
/

Creating Resource Plan Directives

You use the CREATE_PLAN_DIRECTIVE procedure to create resource plan directives. Each directive belongs to a plan or subplan and allocates resources to either a consumer group or subplan.

You can specify the following parameters:

Example 1

The following PL/SQL block creates a resource plan directive for plan DAYTIME. (It assumes that the DAYTIME plan and OLTP consumer group are already created in the pending area.)

BEGIN
  DBMS_RESOURCE_MANAGER.CREATE_PLAN_DIRECTIVE (
   PLAN             => 'DAYTIME',
   GROUP_OR_SUBPLAN => 'OLTP',
   COMMENT          => 'OLTP group',
   MGMT_P1          => 75);
END;
/

This directive assigns 75% of CPU resources to the OLTP consumer group at level 1.

To complete the plan shown in Figure 27-1, you would create the REPORTING consumer group, and then execute the following PL/SQL block:

BEGIN
  DBMS_RESOURCE_MANAGER.CREATE_PLAN_DIRECTIVE (
   PLAN                     => 'DAYTIME',
   GROUP_OR_SUBPLAN         => 'REPORTING',
   COMMENT                  => 'Reporting group',
   MGMT_P1                  => 15,
   PARALLEL_DEGREE_LIMIT_P1 => 8,
   ACTIVE_SESS_POOL_P1      => 4);

  DBMS_RESOURCE_MANAGER.CREATE_PLAN_DIRECTIVE (
   PLAN                     => 'DAYTIME',
   GROUP_OR_SUBPLAN         => 'OTHER_GROUPS',
   COMMENT                  => 'This one is required',
   MGMT_P1                  => 10);
END;
/

In this plan, consumer group REPORTING has a maximum degree of parallelism of 8 for any operation, while none of the other consumer groups are limited in their degree of parallelism. In addition, the REPORTING group has a maximum of 4 concurrently active sessions.

Example 2

This example uses the RATIO method to allocate CPU, which uses ratios instead of percentages. Suppose your application suite offers three service levels to clients: Gold, Silver, and Bronze. You create three consumer groups named GOLD_CG, SILVER_CG, and BRONZE_CG, and you create the following resource plan:

BEGIN
  DBMS_RESOURCE_MANAGER.CREATE_PLAN
   (PLAN             => 'SERVICE_LEVEL_PLAN',
    MGMT_MTH         => 'RATIO',
    COMMENT          => 'Plan that supports three service levels');

  DBMS_RESOURCE_MANAGER.CREATE_PLAN_DIRECTIVE
   (PLAN             => 'SERVICE_LEVEL_PLAN',
    GROUP_OR_SUBPLAN => 'GOLD_CG',
    COMMENT          => 'Gold service level customers',
    MGMT_P1          => 10);
  DBMS_RESOURCE_MANAGER.CREATE_PLAN_DIRECTIVE
   (PLAN             => 'SERVICE_LEVEL_PLAN',
    GROUP_OR_SUBPLAN => 'SILVER_CG',
    COMMENT          => 'Silver service level customers',
    MGMT_P1          => 5);
  DBMS_RESOURCE_MANAGER.CREATE_PLAN_DIRECTIVE
   (PLAN             => 'SERVICE_LEVEL_PLAN',
    GROUP_OR_SUBPLAN => 'BRONZE_CG',
    COMMENT          => 'Bronze service level customers',
    MGMT_P1          => 2);
  DBMS_RESOURCE_MANAGER.CREATE_PLAN_DIRECTIVE
    (PLAN            => 'SERVICE_LEVEL_PLAN',
    GROUP_OR_SUBPLAN => 'OTHER_GROUPS',
    COMMENT          => 'Lowest priority sessions',
    MGMT_P1          => 1);
END;
/

The ratio of CPU allocation is 10:5:2:1 for the GOLD_CG, SILVER_CG, BRONZE_CG, and OTHER_GROUPS consumer groups, respectively.

If sessions exist only in the GOLD_CG and SILVER_CG consumer groups, then the ratio of CPU allocation is 10:5 between the two groups.

Validating the Pending Area

At any time when you are making changes in the pending area, you can call VALIDATE_PENDING_AREA to ensure that the pending area is valid so far.

The following rules must be adhered to, and are checked by the validate procedure:

• No plan can contain any loops. A loop occurs when a subplan contains a directive that references a plan that is above the subplan in the plan hierarchy. For example, a subplan cannot reference the top plan.

• All plans and resource consumer groups referred to by plan directives must exist.

• All plans must have plan directives that point to either plans or resource consumer groups.

• All percentages in any given level must not add up to greater than 100.

• A plan that is currently being used as a top plan by an active instance cannot be deleted.

• The following parameters can appear only in plan directives that refer to resource consumer groups, not other resource plans:

  • PARALLEL_DEGREE_LIMIT_P1

  • ACTIVE_SESS_POOL_P1

  • QUEUEING_P1

  • SWITCH_GROUP

  • SWITCH_TIME

  • SWITCH_ESTIMATE

  • SWITCH_IO_REQS

  • SWITCH_IO_MEGABYTES

  • MAX_EST_EXEC_TIME

  • UNDO_POOL

  • MAX_IDLE_TIME

  • MAX_IDLE_BLOCKER_TIME

  • SWITCH_FOR_CALL

  • UTILIZATION_LIMIT

• There can be no more than 28 resource consumer groups in any active plan. Also, at most, a plan can have 28 children.

• Plans and resource consumer groups cannot have the same name.

• There must be a plan directive for OTHER_GROUPS somewhere in any active plan. This ensures that a session that is not part of any of the consumer groups included in the currently active plan is allocated resources (as specified by the directive for OTHER_GROUPS).

VALIDATE_PENDING_AREA raises an error if any of the preceding rules are violated. You can then make changes to fix any problems and call the procedure again.

It is possible to create "orphan" consumer groups that have no plan directives referring to them. This allows the creation of consumer groups that will not currently be used, but might be part of some plan to be implemented in the future.

Example: Validating the Pending Area:

The following PL/SQL block validates the pending area.

BEGIN
  DBMS_RESOURCE_MANAGER.VALIDATE_PENDING_AREA();
END;
/

Submitting the Pending Area

After you have validated your changes, call the SUBMIT_PENDING_AREA procedure to make your changes active.

The submit procedure also performs validation, so you do not necessarily need to make separate calls to the validate procedure. However, if you are making major changes to plans, debugging problems is often easier if you incrementally validate your changes. No changes are submitted (made active) until validation is successful on all of the changes in the pending area.

The SUBMIT_PENDING_AREA procedure clears (deactivates) the pending area after successfully validating and committing the changes.

Example: Submitting the Pending Area:

The following PL/SQL block submits the pending area:

BEGIN
  DBMS_RESOURCE_MANAGER.SUBMIT_PENDING_AREA();
END;
/

Clearing the Pending Area

There is also a procedure for clearing the pending area at any time. This PL/SQL block causes all of your changes to be cleared from the pending area and deactivates the pending area:

BEGIN
  DBMS_RESOURCE_MANAGER.CLEAR_PENDING_AREA();
END;
/

After calling CLEAR_PENDING_AREA, you must call the CREATE_PENDING_AREA procedure before you can again attempt to make changes.

Multilevel Plan Example

The following PL/SQL block creates a multilevel plan as illustrated in Figure 27-3. Default resource allocation method settings are used for all plans and resource consumer groups.

BEGIN
DBMS_RESOURCE_MANAGER.CREATE_PENDING_AREA();
DBMS_RESOURCE_MANAGER.CREATE_PLAN(PLAN => 'bugdb_plan',
   COMMENT => 'Resource plan/method for bug users sessions');
DBMS_RESOURCE_MANAGER.CREATE_PLAN(PLAN => 'maildb_plan',
   COMMENT => 'Resource plan/method for mail users sessions');
DBMS_RESOURCE_MANAGER.CREATE_PLAN(PLAN => 'mydb_plan',
   COMMENT => 'Resource plan/method for bug and mail users sessions');
DBMS_RESOURCE_MANAGER.CREATE_CONSUMER_GROUP(CONSUMER_GROUP => 'Online_group',
   COMMENT => 'Resource consumer group/method for online bug users sessions');
DBMS_RESOURCE_MANAGER.CREATE_CONSUMER_GROUP(CONSUMER_GROUP => 'Batch_group',
   COMMENT => 'Resource consumer group/method for batch job bug users sessions');
DBMS_RESOURCE_MANAGER.CREATE_CONSUMER_GROUP(CONSUMER_GROUP => 'Bug_Maint_group',
   COMMENT => 'Resource consumer group/method for users sessions for bug db maint');
DBMS_RESOURCE_MANAGER.CREATE_CONSUMER_GROUP(CONSUMER_GROUP => 'Users_group',
   COMMENT => 'Resource consumer group/method for mail users sessions');
DBMS_RESOURCE_MANAGER.CREATE_CONSUMER_GROUP(CONSUMER_GROUP => 'Postman_group',
   COMMENT => 'Resource consumer group/method for mail postman');
DBMS_RESOURCE_MANAGER.CREATE_CONSUMER_GROUP(CONSUMER_GROUP => 'Mail_Maint_group',
   COMMENT => 'Resource consumer group/method for users sessions for mail db maint');
DBMS_RESOURCE_MANAGER.CREATE_PLAN_DIRECTIVE(PLAN => 'bugdb_plan',
   GROUP_OR_SUBPLAN => 'Online_group',
   COMMENT => 'online bug users sessions at level 1', MGMT_P1 => 80, MGMT_P2=> 0);
DBMS_RESOURCE_MANAGER.CREATE_PLAN_DIRECTIVE(PLAN => 'bugdb_plan',
   GROUP_OR_SUBPLAN => 'Batch_group',
   COMMENT => 'batch bug users sessions at level 1', MGMT_P1 => 20, MGMT_P2 => 0,
   PARALLEL_DEGREE_LIMIT_P1 => 8);
DBMS_RESOURCE_MANAGER.CREATE_PLAN_DIRECTIVE(PLAN => 'bugdb_plan',
   GROUP_OR_SUBPLAN => 'Bug_Maint_group',
   COMMENT => 'bug maintenance users sessions at level 2', MGMT_P1 => 0, MGMT_P2 => 100);
DBMS_RESOURCE_MANAGER.CREATE_PLAN_DIRECTIVE(PLAN => 'bugdb_plan',
   GROUP_OR_SUBPLAN => 'OTHER_GROUPS',
   COMMENT => 'all other users sessions at level 3', MGMT_P1 => 0, MGMT_P2 => 0,
   MGMT_P3 => 100);
DBMS_RESOURCE_MANAGER.CREATE_PLAN_DIRECTIVE(PLAN => 'maildb_plan',
   GROUP_OR_SUBPLAN => 'Postman_group',
   COMMENT => 'mail postman at level 1', MGMT_P1 => 40, MGMT_P2 => 0);
DBMS_RESOURCE_MANAGER.CREATE_PLAN_DIRECTIVE(PLAN => 'maildb_plan',
   GROUP_OR_SUBPLAN => 'Users_group',
   COMMENT => 'mail users sessions at level 2', MGMT_P1 => 0, MGMT_P2 => 80);
DBMS_RESOURCE_MANAGER.CREATE_PLAN_DIRECTIVE(PLAN => 'maildb_plan',
   GROUP_OR_SUBPLAN => 'Mail_Maint_group',
   COMMENT => 'mail maintenance users sessions at level 2', MGMT_P1 => 0, MGMT_P2 => 20);
DBMS_RESOURCE_MANAGER.CREATE_PLAN_DIRECTIVE(PLAN => 'maildb_plan',
   GROUP_OR_SUBPLAN => 'OTHER_GROUPS',
   COMMENT => 'all other users sessions at level 3', MGMT_P1 => 0, MGMT_P2 => 0,
   MGMT_P3 => 100);
DBMS_RESOURCE_MANAGER.CREATE_PLAN_DIRECTIVE(PLAN => 'mydb_plan',
   GROUP_OR_SUBPLAN => 'maildb_plan',
   COMMENT=> 'all mail users sessions at level 1', MGMT_P1 => 30);
DBMS_RESOURCE_MANAGER.CREATE_PLAN_DIRECTIVE(PLAN => 'mydb_plan',
   GROUP_OR_SUBPLAN => 'bugdb_plan',
   COMMENT => 'all bug users sessions at level 1', MGMT_P1 => 70);
DBMS_RESOURCE_MANAGER.VALIDATE_PENDING_AREA();
DBMS_RESOURCE_MANAGER.SUBMIT_PENDING_AREA();
END;
/

The preceding call to VALIDATE_PENDING_AREA is optional because the validation is implicitly performed in SUBMIT_PENDING_AREA.

Figure 27-3 Multilevel Plan Schema

Description of "Figure 27-3 Multilevel Plan Schema"

In this plan schema, CPU resources are allocated as follows:

• Under mydb_plan, 30% of CPU is allocated to the maildb_plan subplan, and 70% is allocated to the bugdb_plan subplan. Both subplans are at level 1. Because mydb_plan itself has no levels below level 1, any resource allocations that are unused by either subplan at level 1 can be used by its sibling subplan. Thus, if maildb_plan uses only 20% of CPU, then 80% of CPU is available to bugdb_plan.

• maildb_plan and bugdb_plan define allocations at levels 1, 2, and 3. The levels in these subplans are independent of levels in their parent plan, mydb_plan. That is, all plans and subplans in a plan schema have their own level 1, level 2, level 3, and so on.

• Of the 30% of CPU allocated to maildb_plan, 40% of that amount (effectively 12% of total CPU) is allocated to Postman_group at level 1. Because Postman_group has no siblings at level 1, there is an implied 60% remaining at level 1. This 60% is then shared by Users_group and Mail_Maint_group at level 2, at 80% and 20%, respectively. In addition to this 60%, Users_group and Mail_Maint_group can also use any of the 40% not used by Postman_group at level 1.

• CPU resources not used by either Users_group or Mail_Maint_group at level 2 are allocated to OTHER_GROUPS, because in multilevel plans, unused resources are reallocated to consumer groups or subplans at the next lower level, not to siblings at the same level. Thus, if Users_group uses only 70% instead of 80%, the remaining 10% cannot be used by Mail_Maint_group. That 10% is available only to OTHER_GROUPS at level 3.

• The 70% of CPU allocated to the bugdb_plan subplan is allocated to its consumer groups in a similar fashion. If either Online_group or Batch_group does not use its full allocation, the remainder may be used by Bug_Maint_group. If Bug_Maint_group does not use all of that allocation, the remainder goes to OTHER_GROUPS.

Examples of Using the Utilization Limit Attribute

You can use the UTILIZATION_LIMIT directive attribute to limit the CPU utilization for applications. One of the most common scenarios in which this attribute can be used is for database consolidation.

During database consolidation, you may need to be able to do the following:

• Manage the performance impact that one application can have on another.

  One method of managing this performance impact is to create a consumer group for each application and allocate resources to each consumer group.

• Limit the utilization of each application.

  Typically, in addition to allocating a specific percentage of the CPU resources to each consumer group, you may need to limit the maximum CPU utilization for each group. This limit prevents a consumer group from using all of the CPU resources when all the other consumer groups are idle.

  In some cases, you may want all application users to experience consistent performance regardless of the workload from other applications. This can be achieved by specifying a utilization limit for each consumer group in a resource plan.

The following examples demonstrate how to use the UTILIZATION_LIMIT resource plan directive attribute to:

• Restrict total database CPU utilization

• Quarantine runaway queries

• Limit CPU usage for applications

• Limit CPU utilization during maintenance windows

Example 1 - Restricting Overall Database CPU Utilization

In this example, regardless of database load, system workload from Oracle Database never exceeds 90% of CPU, leaving 10% of CPU for other applications sharing the server.

BEGIN
  DBMS_RESOURCE_MANAGER.CREATE_PENDING_AREA();

  DBMS_RESOURCE_MANAGER.CREATE_PLAN(
    PLAN    => 'MAXCAP_PLAN',
    COMMENT => 'Limit overall database CPU');

  DBMS_RESOURCE_MANAGER.CREATE_PLAN_DIRECTIVE(
    PLAN              => 'MAXCAP_PLAN',
    GROUP_OR_SUBPLAN  => 'OTHER_GROUPS',
    COMMENT           => 'This group is mandatory',
    UTILIZATION_LIMIT => 90);

  DBMS_RESOURCE_MANAGER.VALIDATE_PENDING_AREA();
  DBMS_RESOURCE_MANAGER.SUBMIT_PENDING_AREA();
END;
/

Because there is no plan directive other than the one for OTHER_GROUPS, all sessions are mapped to OTHER_GROUPS.

Example 2 - Quarantining Runaway Queries

In this example, runaway queries are switched to a consumer group with a utilization limit of 20%, limiting the amount of resources that they can consume until you can intervene. A runaway query is characterized here as one that takes more than 10 minutes of CPU time. Assume that session mapping rules start all sessions in START_GROUP.

BEGIN
  DBMS_RESOURCE_MANAGER.CREATE_PENDING_AREA();

  DBMS_RESOURCE_MANAGER.CREATE_CONSUMER_GROUP (
     CONSUMER_GROUP => 'START_GROUP',
     COMMENT        => 'Sessions start here');

  DBMS_RESOURCE_MANAGER.CREATE_CONSUMER_GROUP (
     CONSUMER_GROUP => 'QUARANTINE_GROUP',
     COMMENT        => 'Sessions switched here to quarantine them');

  DBMS_RESOURCE_MANAGER.CREATE_PLAN(
    PLAN    => 'Quarantine_plan',
    COMMENT => 'Quarantine runaway queries');

  DBMS_RESOURCE_MANAGER.CREATE_PLAN_DIRECTIVE(
    PLAN                  => 'Quarantine_plan',
    GROUP_OR_SUBPLAN      => 'START_GROUP',
    COMMENT               => 'Max CPU 10 minutes before switch',
    MGMT_P1               => 75,
    switch_group          => 'QUARANTINE_GROUP',
    switch_time           => 600);

  DBMS_RESOURCE_MANAGER.CREATE_PLAN_DIRECTIVE(
    PLAN                  => 'Quarantine_plan',
    GROUP_OR_SUBPLAN      => 'OTHER_GROUPS',
    COMMENT               => 'Mandatory',
    MGMT_P1               => 25);

  DBMS_RESOURCE_MANAGER.CREATE_PLAN_DIRECTIVE(
    PLAN                  => 'Quarantine_plan',
    GROUP_OR_SUBPLAN      => 'QUARANTINE_GROUP',
    COMMENT               => 'Limited CPU',
    MGMT_P2               => 100,
    UTILIZATION_LIMIT     => 20);

  DBMS_RESOURCE_MANAGER.VALIDATE_PENDING_AREA();
  DBMS_RESOURCE_MANAGER.SUBMIT_PENDING_AREA();
END;
/

Example 3 - LImiting CPU for Applications

In this example, assume that mapping rules map application sessions into one of four application groups. Each application group is allocated a utilization limit of 30%. This limits CPU utilization of any one application to 30%. The sum of the UTILIZATION_LIMIT values exceeds 100%, which is permissible and acceptable in a situation where all applications are not active simultaneously.

BEGIN
  DBMS_RESOURCE_MANAGER.CREATE_PENDING_AREA();

  DBMS_RESOURCE_MANAGER.CREATE_CONSUMER_GROUP(
     CONSUMER_GROUP => 'APP1_GROUP',
     COMMENT        => 'Apps group 1');
  DBMS_RESOURCE_MANAGER.CREATE_CONSUMER_GROUP (
     CONSUMER_GROUP => 'APP2_GROUP',
     COMMENT        => 'Apps group 2');
  DBMS_RESOURCE_MANAGER.CREATE_CONSUMER_GROUP (
     CONSUMER_GROUP => 'APP3_GROUP',
     COMMENT        => 'Apps group 3');
  DBMS_RESOURCE_MANAGER.CREATE_CONSUMER_GROUP (
     CONSUMER_GROUP => 'APP4_GROUP',
     COMMENT        => 'Apps group 4');

  DBMS_RESOURCE_MANAGER.CREATE_PLAN(
    PLAN    => 'apps_plan',
    COMMENT => 'Application consolidation');

  DBMS_RESOURCE_MANAGER.CREATE_PLAN_DIRECTIVE (
    PLAN                  => 'apps_plan',
    GROUP_OR_SUBPLAN      => 'APP1_GROUP',
    COMMENT               => 'Apps group 1',
    UTILIZATION_LIMIT     => 30);
  DBMS_RESOURCE_MANAGER.CREATE_PLAN_DIRECTIVE (
    PLAN                  => 'apps_plan',
    GROUP_OR_SUBPLAN      => 'APP2_GROUP',
    COMMENT               => 'Apps group 2',
    UTILIZATION_LIMIT     => 30);
  DBMS_RESOURCE_MANAGER.CREATE_PLAN_DIRECTIVE (
    PLAN                  => 'apps_plan',
    GROUP_OR_SUBPLAN      => 'APP3_GROUP',
    COMMENT               => 'Apps group 3',
    UTILIZATION_LIMIT     => 30);
  DBMS_RESOURCE_MANAGER.CREATE_PLAN_DIRECTIVE (
    PLAN                  => 'apps_plan',
    GROUP_OR_SUBPLAN      => 'APP4_GROUP',
    COMMENT               => 'Apps group 4',
    UTILIZATION_LIMIT     => 30);
  DBMS_RESOURCE_MANAGER.CREATE_PLAN_DIRECTIVE (
    PLAN                  => 'apps_plan',
    GROUP_OR_SUBPLAN      => 'OTHER_GROUPS',
    COMMENT               => 'Mandatory',
    UTILIZATION_LIMIT     => 20);

  DBMS_RESOURCE_MANAGER.VALIDATE_PENDING_AREA();
  DBMS_RESOURCE_MANAGER.SUBMIT_PENDING_AREA();
END;
/

If all four application groups can fully use the CPU allocated to them (30% in this case), then the minimum CPU that is allocated to each application group is computed as a ratio of the application group's limit to the total of the limits of all application groups. In this example, all four application groups are allocated a utilization limit of 30%. Therefore, when all four groups fully use their limits, the CPU allocation to each group is 30/(30+30+30+30) = 25%.

Example 4 - Specifying a Utilization Limit for Consumer Groups and Subplans

The following example describes how the utilization limit is computed for scenarios, such as the one in Figure 27-4, where you set UTILIZATION_LIMIT for a subplan and for consumer groups within the subplan. For simplicity, the requirement to include the OTHER_GROUPS consumer group is ignored, and resource plan directives are not shown, even though they are part of the plan.

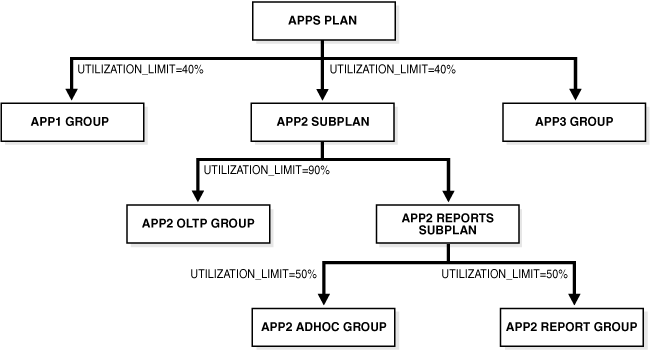

Figure 27-4 Resource Plan with Maximum Utilization for Subplan and Consumer Groups

Description of "Figure 27-4 Resource Plan with Maximum Utilization for Subplan and Consumer Groups"

The following PL/SQL block creates the plan described in Figure 27-4.

BEGIN
  DBMS_RESOURCE_MANAGER.CREATE_PENDING_AREA();
    DBMS_RESOURCE_MANAGER.CREATE_CONSUMER_GROUP (
     CONSUMER_GROUP => 'APP1_GROUP',
     COMMENT        => 'Group for application #1');
  DBMS_RESOURCE_MANAGER.CREATE_CONSUMER_GROUP (
     CONSUMER_GROUP => 'APP2_OLTP_GROUP',
     COMMENT        => 'Group for OLTP activity in application #2');
  DBMS_RESOURCE_MANAGER.CREATE_CONSUMER_GROUP (
     CONSUMER_GROUP => 'APP2_ADHOC_GROUP',
     COMMENT        => 'Group for ad-hoc queries in application #2');
  DBMS_RESOURCE_MANAGER.CREATE_CONSUMER_GROUP (
     CONSUMER_GROUP => 'APP2_REPORT_GROUP',
     COMMENT        => 'Group for reports in application #2');
   DBMS_RESOURCE_MANAGER.CREATE_PLAN(
    PLAN    => 'APPS_PLAN',
    COMMENT => 'Plan for managing 3 applications');
  DBMS_RESOURCE_MANAGER.CREATE_PLAN(
    PLAN    => 'APP2_SUBPLAN',
    COMMENT => 'Subplan for managing application #2',
    SUB_PLAN => TRUE);
  DBMS_RESOURCE_MANAGER.CREATE_PLAN(
    PLAN    => 'APP2_REPORTS_SUBPLAN',
    COMMENT => 'Subplan for managing reports in application #2',
    SUB_PLAN => TRUE);

  DBMS_RESOURCE_MANAGER.CREATE_PLAN_DIRECTIVE (
    PLAN                  => 'APPS_PLAN',
    GROUP_OR_SUBPLAN      => 'APP1_GROUP',
    COMMENT               => 'Limit CPU for application #1 to 40%',
    UTILIZATION_LIMIT     => 40);
  DBMS_RESOURCE_MANAGER.CREATE_PLAN_DIRECTIVE (
    PLAN                  => 'APPS_PLAN',
    GROUP_OR_SUBPLAN      => 'APP2_SUBPLAN',
    COMMENT               => 'Limit CPU for application #2 to 40%',
    UTILIZATION_LIMIT     => 40);
  DBMS_RESOURCE_MANAGER.CREATE_PLAN_DIRECTIVE (
    PLAN                  => 'APP2_SUBPLAN',
    GROUP_OR_SUBPLAN      => 'APP2_OLTP_GROUP',
    COMMENT               => 'Limit CPU for OLTP to 90% of application #2',
    UTILIZATION_LIMIT     => 90);
  DBMS_RESOURCE_MANAGER.CREATE_PLAN_DIRECTIVE (
    PLAN                  => 'APP2_SUBPLAN',
    GROUP_OR_SUBPLAN      => 'APP2_REPORTS_SUBPLAN',
    COMMENT               => 'Subplan for ad-hoc and normal reports for application #2');
  DBMS_RESOURCE_MANAGER.CREATE_PLAN_DIRECTIVE (
    PLAN                  => 'APP2_REPORTS_SUBPLAN',
    GROUP_OR_SUBPLAN      => 'APP2_ADHOC_GROUP',
    COMMENT               => 'Limit CPU for ad-hoc queries to 50% of application #2 reports',
    UTILIZATION_LIMIT     => 50);
  DBMS_RESOURCE_MANAGER.CREATE_PLAN_DIRECTIVE (
    PLAN                  => 'APP2_REPORTS_SUBPLAN',
    GROUP_OR_SUBPLAN      => 'APP2_REPORT_GROUP',
    COMMENT               => 'Limit CPU for reports to 50% of application #2 reports',
    UTILIZATION_LIMIT     => 50);
  DBMS_RESOURCE_MANAGER.CREATE_PLAN_DIRECTIVE (
    PLAN                  => 'APPS_PLAN',
    GROUP_OR_SUBPLAN      => 'OTHER_GROUPS',
    COMMENT               => 'No directives for default users');
   DBMS_RESOURCE_MANAGER.VALIDATE_PENDING_AREA();
  DBMS_RESOURCE_MANAGER.SUBMIT_PENDING_AREA();
END;
/

In this example, the maximum CPU utilization for the consumer group APP1_GROUP and subplan APP2_SUBPLAN is set to 40%. The limit for the consumer groups APP2_ADHOC_GROUP and APP2_REPORT_GROUP is set to 50%.

Because there is no limit specified for the subplan APP2_REPORTS_SUBPLAN, it inherits the limit of its parent subplan APP2_SUBPLAN, which is 40%. The absolute limit for the consumer group APP2_REPORT_GROUP is computed as 50% of its parent subplan, which is 50% of 40%, or 20%.

Similarly, because the consumer group APP2_ADHOC_GROUP is contained in the subplan APP2_REPORTS_SUBPLAN, its limit is computed as a percentage of its parent subplan. The utilization limit for the consumer group APP2_ADHOC_GROUP is 50% of 40%, or 20%.

The maximum CPU utilization for the consumer group APP2_OLTP_GROUP is set to 90%. The parent subplan of APP2_OLTP_GROUP, APP2_SUBPLAN, has a limit of 40%. Therefore, the absolute limit for the group APP2_OLTP_GROUP is 90% of 40%, or 36%.

Example of Using Several Resource Allocation Methods

The example presented here could represent a plan for a database supporting a packaged ERP (Enterprise Resource Planning) or CRM (Customer Relationship Management) application. The work in such an environment can be highly varied. There may be a mix of short transactions and quick queries, in combination with longer running batch jobs that include large parallel queries. The goal is to give good response time to OLTP (Online Transaction Processing), while allowing batch jobs to run in parallel.

The plan is summarized in the following table.

The following statements create the preceding plan, which is named erp_plan:

BEGIN
DBMS_RESOURCE_MANAGER.CREATE_PENDING_AREA();
DBMS_RESOURCE_MANAGER.CREATE_PLAN(PLAN => 'erp_plan',
  COMMENT => 'Resource plan/method for ERP Database');
DBMS_RESOURCE_MANAGER.CREATE_CONSUMER_GROUP(CONSUMER_GROUP => 'oltp',
  COMMENT => 'Resource consumer group/method for OLTP jobs');
DBMS_RESOURCE_MANAGER.CREATE_CONSUMER_GROUP(CONSUMER_GROUP => 'batch',
  COMMENT => 'Resource consumer group/method for BATCH jobs');
DBMS_RESOURCE_MANAGER.CREATE_PLAN_DIRECTIVE(PLAN => 'erp_plan',
  GROUP_OR_SUBPLAN => 'oltp', COMMENT => 'OLTP sessions', MGMT_P1 => 60,
  SWITCH_GROUP => 'batch', SWITCH_TIME => 3, UNDO_POOL => 200,
  SWITCH_FOR_CALL => TRUE);
DBMS_RESOURCE_MANAGER.CREATE_PLAN_DIRECTIVE(PLAN => 'erp_plan',
  GROUP_OR_SUBPLAN => 'batch', COMMENT => 'BATCH sessions', MGMT_P1 => 30,
  PARALLEL_SERVER_LIMIT => 8, PARALLEL_QUEUE_TIMEOUT => 600,
  MAX_EST_EXEC_TIME => 3600);
DBMS_RESOURCE_MANAGER.CREATE_PLAN_DIRECTIVE(PLAN => 'erp_plan',
  GROUP_OR_SUBPLAN => 'OTHER_GROUPS', COMMENT => 'mandatory', MGMT_P1 => 10);
DBMS_RESOURCE_MANAGER.VALIDATE_PENDING_AREA();
DBMS_RESOURCE_MANAGER.SUBMIT_PENDING_AREA();
END;
/

Example of Managing Parallel Statements Using Directive Attributes

A typical data warehousing environment consists of different types of users with varying resource requirements. Users with common processing needs are grouped into a consumer group. The consumer group URGENT_GROUP consists of users who run reports that provide important information to top management. This group generates a large number of parallel queries. Users from the consumer group ETL_GROUP import data from source systems and perform extract, transform, and load (ETL) operations. The group OTHER_GROUPS contains users who execute ad-hoc queries. You must manage the requirements of these diverse groups of users while optimizing performance.

You can use the following directive attributes to manage and optimize the execution of parallel statements:

• MGMT_Pn

• PARALLEL_SERVER_LIMIT

• PARALLEL_STMT_CRITICAL

• PARALLEL_QUEUE_TIMEOUT

• PARALLEL_DEGREE_LIMIT_P1

Table 27-3 describes the resource allocations of the plan DW_PLAN, which can be used to manage the needs of the data warehouse users. This plan contains the consumer groups URGENT_GROUP, ETL_GROUP, and OTHER_GROUPS. This example demonstrates the use of directive attributes in ensuring that one application or consumer group does not use all the available parallel execution servers.

In this example, the parameter PARALLEL_SERVERS_TARGET initialization parameter is set to 64, which means that the number of parallel execution servers available is 64. The total number of parallel execution servers that can be used for parallel statement execution before URGENT_GROUP sessions with PARALLEL_DEGREE_POLICY set to AUTO are added to the parallel statement queue is equal to 64. Because the PARALLEL_SERVER_LIMIT attribute of ETL_GROUP and OTHER_GROUPS is 50%, the maximum number of parallel execution servers that can be used by these groups is 50% of 64, or 32 parallel execution servers each.

Note that parallel statements from a consumer group will only be queued if the PARALLEL_DEGREE_POLICY parameter is set to AUTO and the total number of active servers for the consumer group is higher than PARALLEL_SERVERS_TARGET. If PARALLEL_DEGREE_POLICY is set to MANUAL or LIMITED, then the statements are run provided there are enough parallel execution servers available. The parallel execution servers used by such a statement will count toward the total number of parallel execution servers used by the consumer group. However, the parallel statement will not be added to the parallel statement queue.

Because URGENT_GROUP has 100% of the allocation at level 1, its parallel statements will always be dequeued ahead of the other consumer groups from the parallel statement queue. Although URGENT_GROUP has no PARALLEL_SERVER_LIMIT directive attribute, a statement issued by a session in this group might still be queued if there are not enough available parallel execution servers to run it.

When you create the resource plan directive for the URGENT_GROUP, you can set the PARALLEL_STMT_CRITICAL parameter to BYPASS_QUEUE. With this setting, parallel statements from the consumer group bypass the parallel statements queue and are executed immediately. However, the number of parallel execution servers might exceed the setting of the PARALLEL_SERVERS_TARGET initialization parameter, and the degree of parallelism might be lower if the limit set by the PARALLEL_MAX_SERVERS initialization parameter is reached.

The degree of parallelism, represented by PARALLEL_DEGREE_LIMIT_P1, is set to 12 for URGENT_GROUP. Therefore, each parallel statement from URGENT_GROUP can use a maximum of 12 parallel execution servers. Similarly, each parallel statement from the ETL_GROUP can use a maximum of 8 parallel execution servers and each parallel statement from the OTHER_GROUPS can use 2 parallel execution servers.

Suppose, at a given time, the only parallel statements are from the ETL_GROUP, and they are using 26 out of the 32 parallel execution servers available to this group. Sessions from this consumer group have PARALLEL_DEGREE_POLICY set to AUTO. If another parallel statement with the PARALLEL_DEGREE_LIMIT_P1 attribute set to 8 is launched from ETL_GROUP, then this query cannot be run immediately because the available parallel execution servers in the ETL_GROUP is 32-26=6 parallel execution servers. The new parallel statement is queued until the number of parallel execution servers it requires is available in ETL_GROUP.

While the parallel statements in ETL_GROUP are being executed, suppose a parallel statement is launched from OTHER_GROUPS. This group still has 32 parallel execution servers available and so the parallel statement is executed.

The PARALLEL_QUEUE_TIMEOUT attribute for OTHER_GROUPS is set to 360. Therefore, any parallel statement from this group can remain in the parallel execution server queue for 360 seconds only. After this time, the parallel statement is removed from the queue and the error ORA-07454 is returned.

An Oracle-Supplied Mixed Workload Plan

Oracle Database includes a predefined resource plan, MIXED_WORKLOAD_PLAN, that prioritizes interactive operations over batch operations, and includes the required subplans and consumer groups recommended by Oracle. MIXED_WORKLOAD_PLAN is defined as follows:

In this plan, because INTERACTIVE_GROUP is intended for short transactions, any call that consumes more than 60 seconds of CPU time is automatically switched to BATCH_GROUP, which is intended for longer batch operations.

You can use this predefined plan if it is appropriate for your environment. (You can modify the plan, or delete it if you do not intend to use it.) Note that there is nothing special about the names BATCH_GROUP and INTERACTIVE_GROUP. The names reflect only the intended purposes of the groups, and it is up to you to map application sessions to these groups and adjust CPU resource allocation percentages accordingly so that you achieve proper resource management for your interactive and batch applications. For example, to ensure that your interactive applications run under the INTERACTIVE_GROUP consumer group, you must map your interactive applications' user sessions to this consumer group based on user name, service name, program name, module name, or action, as described in "Specifying Session-to–Consumer Group Mapping Rules". You must map your batch applications to the BATCH_GROUP in the same way. Finally, you must enable this plan as described in "Enabling Oracle Database Resource Manager and Switching Plans".

See Table 27-4 and Table 27-5 for explanations of the other resource consumer groups and subplans in this plan.

About Instance Caging

You might decide to run multiple Oracle database instances on a single multi-CPU server. A typical reason to do so would be server consolidation—using available hardware resources more efficiently. When running multiple instances on a single server, the instances compete for CPU. One resource-intensive database instance could significantly degrade the performance of the other instances. For example, on a 16-CPU system with four database instances, the operating system might be running one database instance on the majority of the CPUs during a period of heavy load for that instance. This could degrade performance in the other three instances. CPU allocation decisions such as this are made solely by the operating system; the user generally has no control over them.

A simple way to limit CPU consumption for each database instance is to use instance caging. Instance caging is a method that uses an initialization parameter to limit the number of CPUs that an instance can use simultaneously. In the previous example, if you use instance caging to limit the number of CPUs to four for each of the four instances, there is less likelihood that one instance can interfere with the others. When constrained to four CPUs, an instance might become CPU-bound. This is when the Resource Manager begins to do its work to allocate CPU among the various database sessions according to the resource plan that you set for the instance. Thus, instance caging and the Resource Manager together provide a simple, effective way to manage multiple instances on a single server.

There are two typical approaches to instance caging for a server:

• Over-subscribing—You would use this approach for non-critical databases such as development and test systems, or low-load non-critical production systems. In this approach, the sum of the CPU limits for each instance exceeds the actual number of CPUs on the system. For example, on a 4-CPU system with four database instances, you might limit each instance to three CPUs. When a server is over-subscribed in this way, the instances can impact each other's performance. However, instance caging limits the impact and helps provide somewhat predictable performance. However, if one of the instances has a period of high load, the CPUs are available to handle it. This is a reasonable approach for non-critical systems, because one or more of the instances may frequently be idle or at a very low load.

• Partitioning—This approach is for critical production systems, where you want to prevent instances from interfering with each other. You allocate CPUs such that the sum of all allocations is equal to the number of CPUs on the server. For example, on a 16-server system, you might allocate 8 CPUs to the first instance, 4 CPUs to the second, and 2 each to the remaining two instances. By dedicating CPU resources to each database instance, the load on one instance cannot affect another's, and each instance performs predictably.

Using Instance Caging with Utilization Limit

If you enable instance caging and set a utilization limit in your resource plan, then the absolute limit is computed as a percentage of the allocated CPU resources.

For example, if you enable instance caging and set the CPU_COUNT to 4, and a consumer group has a utilization limit of 50%, then the consumer group can use a maximum of 50% of 4 CPUs, which is 2 CPUs.

Enabling Instance Caging

To enable instance caging, do the following for each instance on the server:

1. Enable the Resource Manager by assigning a resource plan, and ensure that the resource plan has CPU directives, using the MGMT_P1 through MGMT_P8 parameters.

   See "Enabling Oracle Database Resource Manager and Switching Plans" for instructions.

2. Set the cpu_count initialization parameter.

   This is a dynamic parameter, and can be set with the following statement:

   ALTER SYSTEM SET CPU_COUNT = 4;


Updating a Consumer Group

You use the UPDATE_CONSUMER_GROUP procedure to update consumer group information. The pending area must be created first, and then submitted after the consumer group is updated. If you do not specify the arguments for the UPDATE_CONSUMER_GROUP procedure, then they remain unchanged in the data dictionary.

Deleting a Consumer Group

The DELETE_CONSUMER_GROUP procedure deletes the specified consumer group. The pending area must be created first, and then submitted after the consumer group is deleted. Upon deletion of a consumer group, all users having the deleted group as their initial consumer group are assigned the OTHER_GROUPS as their initial consumer group. All currently running sessions belonging to a deleted consumer group are assigned to a new consumer group, based on the consumer group mapping rules. If no consumer group is found for a session through mapping, the session is switched to the OTHER_GROUPS.

You cannot delete a consumer group if it is referenced by a resource plan directive.

Updating a Plan

You use the UPDATE_PLAN procedure to update plan information. The pending area must be created first, and then submitted after the plan is updated. If you do not specify the arguments for the UPDATE_PLAN procedure, they remain unchanged in the data dictionary. The following PL/SQL block updates the COMMENT parameter.

BEGIN
  DBMS_RESOURCE_MANAGER.UPDATE_PLAN(
   PLAN => 'DAYTIME',
   NEW_COMMENT => '50% more resources for OLTP applications');
END;
/

Deleting a Plan

The DELETE_PLAN procedure deletes the specified plan as well as all the plan directives associated with it. The pending area must be created first, and then submitted after the plan is deleted.

The following PL/SQL block deletes the great_bread plan and its directives.

BEGIN
  DBMS_RESOURCE_MANAGER.DELETE_PLAN(PLAN => 'great_bread');
END;
/

The resource consumer groups referenced by the deleted directives are not deleted, but they are no longer associated with the great_bread plan.

The DELETE_PLAN_CASCADE procedure deletes the specified plan as well as all its descendants: plan directives and those subplans and resource consumer groups that are not marked by the database as mandatory. If DELETE_PLAN_CASCADE encounters an error, then it rolls back, leaving the plan unchanged.

You cannot delete the currently active plan.

Updating a Resource Plan Directive

Use the UPDATE_PLAN_DIRECTIVE procedure to update plan directives. The pending area must be created first, and then submitted after the resource plan directive is updated. If you do not specify an argument for the UPDATE_PLAN_DIRECTIVE procedure, then its corresponding parameter in the directive remains unchanged.

The following example adds a comment to a directive:

BEGIN
  DBMS_RESOURCE_MANAGER.CLEAR_PENDING_AREA();
  DBMS_RESOURCE_MANAGER.CREATE_PENDING_AREA();
  DBMS_RESOURCE_MANAGER.UPDATE_PLAN_DIRECTIVE(
         PLAN             => 'SIMPLE_PLAN1',
         GROUP_OR_SUBPLAN => 'MYGROUP1',
         NEW_COMMENT      => 'Higher priority'
        );
  DBMS_RESOURCE_MANAGER.SUBMIT_PENDING_AREA();
END;
/

To clear (nullify) a comment, pass a null string (''). To clear (zero or nullify) any numeric directive parameter, set its new value to -1:

BEGIN
  DBMS_RESOURCE_MANAGER.CLEAR_PENDING_AREA();
  DBMS_RESOURCE_MANAGER.CREATE_PENDING_AREA();
  DBMS_RESOURCE_MANAGER.UPDATE_PLAN_DIRECTIVE(
         PLAN                  => 'SIMPLE_PLAN1',
         GROUP_OR_SUBPLAN      => 'MYGROUP1',
         NEW_MAX_EST_EXEC_TIME => -1
        );
  DBMS_RESOURCE_MANAGER.SUBMIT_PENDING_AREA();
END;
/

Deleting a Resource Plan Directive

To delete a resource plan directive, use the DELETE_PLAN_DIRECTIVE procedure. The pending area must be created first, and then submitted after the resource plan directive is deleted.

Viewing Consumer Groups Granted to Users or Roles

The DBA_RSRC_CONSUMER_GROUP_PRIVS view displays the consumer groups granted to users or roles. Specifically, it displays the groups to which a user or role is allowed to belong or be switched. For example, in the view shown below, user SCOTT always starts in the SALES consumer group, can switch to the MARKETING group through a specific grant, and can switch to the DEFAULT_CONSUMER_GROUP (OTHER_GROUPS) and LOW_GROUP groups because they are granted to PUBLIC. SCOTT also can grant the SALES group but not the MARKETING group to other users.

SELECT * FROM dba_rsrc_consumer_group_privs;

GRANTEE            GRANTED_GROUP                  GRANT_OPTION INITIAL_GROUP
------------------ ------------------------------ ------------ -------------
PUBLIC             DEFAULT_CONSUMER_GROUP         YES          YES
PUBLIC             LOW_GROUP                      NO           NO
SCOTT              MARKETING                      NO           NO
SCOTT              SALES                          YES          YES
SYSTEM             SYS_GROUP                      NO           YES

SCOTT was granted the ability to switch to these groups using the DBMS_RESOURCE_MANAGER_PRIVS package.

Viewing Plan Information

This example uses the DBA_RSRC_PLANS view to display all of the resource plans defined in the database. All plans have a NULL status, meaning that they are not in the pending area.

SELECT plan,status,comments FROM dba_rsrc_plans;

PLAN                        STATUS   COMMENTS
--------------------------- -------- ----------------------------------------
DSS_PLAN                             Example plan for DSS workloads that prio...
ETL_CRITICAL_PLAN                    Example plan for DSS workloads that prio...
MIXED_WORKLOAD_PLAN                  Example plan for a mixed workload that p...
DEFAULT_MAINTENANCE_PLAN             Default plan for maintenance windows tha...
DEFAULT_PLAN                         Default, basic, pre-defined plan that pr...
INTERNAL_QUIESCE                     Plan for quiescing the database.  This p...
INTERNAL_PLAN                        Internally-used plan for disabling the r...
.
.
.

Viewing Current Consumer Groups for Sessions

You can use the V$SESSION view to display the consumer groups that are currently assigned to sessions.

SELECT sid,serial#,username,resource_consumer_group FROM v$session;

SID    SERIAL#  USERNAME                  RESOURCE_CONSUMER_GROUP
-----  -------  ------------------------  --------------------------------
   11       136 SYS                       SYS_GROUP
   13     16570 SCOTT                     SALES
   ...

Viewing the Currently Active Plans

This example sets mydb_plan, as created by the example shown earlier in "Multilevel Plan Example", as the top level plan. It then queries the V$RSRC_PLAN view to display the currently active plans. The view displays the current top level plan and all of its descendent subplans.

ALTER SYSTEM SET RESOURCE_MANAGER_PLAN = mydb_plan;

System altered.

SELECT name, is_top_plan FROM v$rsrc_plan;

NAME             IS_TOP_PLAN
----------------------------
MYDB_PLAN        TRUE
MAILDB_PLAN      FALSE
BUGDB_PLAN       FALSE

Guidelines for Using Operating-System Resource Control

If you choose to use operating-system resource control with Oracle Database, then you must use it judiciously, according to the following guidelines:

• If you have multiple instances on a node, and you want to distribute resources among them, then each instance should be assigned to a dedicated operating-system resource manager group or managed entity. To run multiple instances in the managed entity, use instance caging to manage how the CPU resources within the managed entity should be distributed among the instances. When Oracle Database Resource Manager is managing CPU resources, it expects a fixed amount of CPU resources for the instance. Without instance caging, it expects the available CPU resources to be equal to the number of CPUs in the managed entity. With instance caging, it expects the available CPU resources to be equal to the value of the CPU_COUNT initialization parameter. If there are less CPU resources than expected, then the Oracle Database Resource Manager is not as effective at enforcing the resource allocations in the resource plan. See "Managing Multiple Database Instances on a Single Server" for information about instance caging.

• The dedicated entity running all the instance's processes must run at one priority (or resource consumption) level.

• The CPU resources assigned to the dedicated entity cannot be changed more frequently than once every few minutes.

  If the operating-system resource manager is rapidly changing the CPU resources allocated to an Oracle instance, then the Oracle Database Resource Manager might not manage CPU resources effectively. In particular, if the CPU resources allocated to the Oracle instance changes more frequently than every couple of minutes, then these changes might not be observed by Oracle because it only checks for such changes every couple of minutes. In these cases, Oracle Database Resource Manager can over-schedule processes if it concludes that more CPU resources are available than there actually are, and it can under-schedule processes if it concludes that less CPU resources are available than there actually are. If it over-schedules processes, then the UTILIZATION_LIMIT directives might be exceeded, and the CPU directives might not be accurately enforced. If it under-schedules processes, then the Oracle instance might not fully use the server's resources.

• Process priority management must not be enabled.

• Management of individual database processes at different priority levels (for example, using the nice command on UNIX platforms) is not supported. Severe consequences, including instance crashes, can result. Similar undesirable results are possible if operating-system resource control is permitted to manage the memory to which an Oracle Database instance is pinned.

Predefined Resource Plans and Consumer Groups

Table 27-4 lists the resource plans and Table 27-5 lists the resource consumer groups that are predefined in each Oracle database. You can verify these by querying the views DBA_RSRC_PLANS and DBA_RSRC_CONSUMER_GROUPS.

The following query displays the CPU allocations in the example plan DSS_PLAN:

SELECT group_or_subplan, mgmt_p1, mgmt_p2, mgmt_p3, mgmt_p4
   FROM dba_rsrc_plan_directives WHERE plan = 'DSS_PLAN';

GROUP_OR_SUBPLAN                  MGMT_P1    MGMT_P2    MGMT_P3    MGMT_P4
------------------------------ ---------- ---------- ---------- ----------
SYS_GROUP                              75          0          0          0
DSS_CRITICAL_GROUP                     18          0          0          0
DSS_GROUP                               3          0          0          0
ETL_GROUP                               1          0          0          0
BATCH_GROUP                             1          0          0          0
ORA$AUTOTASK                            1          0          0          0
OTHER_GROUPS                            1          0          0          0

Predefined Consumer Group Mapping Rules

Table 27-6 summarizes the consumer group mapping rules that are predefined in Oracle Database. You can verify these rules by querying the view DBA_RSRC_GROUP_MAPPINGS. You can use the DBMS_RESOURCE_MANAGER.SET_CONSUMER_GROUP_MAPPING procedure to modify or delete any of these mapping rules.

Resource Manager Data Dictionary Views

Table 27-7 lists views that are associated with the Resource Manager.
