1 Introduction to Oracle Data Masking and Subsetting

Application Data Modeling (ADM) simplifies the effort of sensitive data discovery through automated discovery procedures and sensitive column types from Oracle database tables. The automated discovery procedures not only discover columns holding sensitive information, but also identify the referential or parent-child relationships between these columns defined in the database.

A sensitive column type creates forensics of sensitive data elements such as national insurance numbers using combination of data patterns in column names, column data, and column comments. Automated discovery procedures leverage sensitive column types to sample data in the database table columns while scanning the database for sensitive information.

Application Data Modeling provides various out-of-the-box sensitive columns types such as credit card numbers, social security numbers, phone number, etc. Custom–sensitive column types can be easily created using regular expressions. With Oracle Data Masking Pack, and the Data Discovery and Modeling capability in Oracle Enterprise Manager, enterprises can define data pattern search criteria allowing database administrators to locate these sensitive elements. For example, data pattern such as 15 or 16 digits for credit card numbers or 9 digit formatted US social security numbers.

Oracle Data Masking and Subsetting also allows you to import and export Application Data Models.

For more information, see the Application Data Modeling chapter.

Oracle Data Masking and Subsetting provides security administrators the ability to maintain a centralized definition for common masking formats. This centralized definition ensures that database administrators apply the same masking rules across the entire enterprise regardless of the database and where the sensitive data resides. Thus, organizations and enterprises can ensure that the sensitive data is masked consistently and in compliance with the established standards for data sharing.

The data masking format library contains a centralized set of data masking format for commonly used sensitive data. For example, there are mask formats for phone numbers, social security numbers, credit card numbers, and fictitious first and last names. Security administrators can define these mask formats and maintain them in the format library to be used by the DBAs across the entire enterprise.

The Data Masking format library provides:

• several built-in out-of-the-box masking formats and primitives that can be used by the Data Masking definitions

• Built-in mask primitives that can be combined to create additional formats

• User-defined SQL or PL/SQL functions for handling complex formats

The Data Masking Library also includes the following primitives:

• Fixed Numbers

• Fixed Strings

• Random Strings

• Random Digits

• Random Numbers

• Random Dates

Oracle Data Masking and Subsetting provides sophisticated masking transformations. If masking formats are considered as building blocks of a data masking definition, then masking transformations align these masking formats according to the varied business requirements. Oracle Data Masking and Subsetting provides the following data masking transformations:

• Conditional Masking: provides the ability to arrange masking formats according to different conditions. For example, consider masking a column containing unique person identifiers. Person identifiers that belong to United States of America are masked using Social Security Number format and the person identifiers that belong to United Kingdom are masked using the National Insurance Number format.

• Compound Masking (also known as grouping option): masks related columns as a group to ensure that the data being masked across the related columns retain the same relationship. For example, consider masking the address fields such as city, state, and postal codes. The values in these address fields will be consistent even after the masking operation is completed.

• Deterministic/Consistent Masking: generates consistent outputs for a given input across various databases. This transformation is helpful to maintain data integrity across multiple applications and also to preserve system integrity in a single sign-on environment. For example, consider three applications: a human capital management application, a customer relationship management application, and a sales data warehouse. These applications might have a common field such as EMPLOYEE ID that must be masked consistently. The Substitute and Encrypt masking formats provide deterministic masking transformation.

• Shuffle: allows the fields within a column to be shuffled in a random manner. This transformation is helpful in breaking the one-to-one mapping between sensitive data elements. For example, columns containing personal health records can be shuffled while masking health care information.

• Key-based reversible masking (also known as Encrypt Format): encrypts and decrypts the original data using a secure key string, while preserving the format of the input data. This transformation uses the 3DES algorithm, and is helpful when businesses need to mask and send their data to a third-party for analysis, reporting, or any other business processing purpose. After the processed data is received from the third–party, the original data can be recovered using the same key string that was used to encrypt the data.

• Format Preserving Randomization (also known as Auto Mask Format): randomizes the data, preserving the input length, position of the characters and numbers, case of the character (upper or lower), and special characters in the input.

Oracle Data Masking and Subsetting simplifies subsetting through its easy-to-define goal-based and condition-based subsetting techniques.

• Goal-based subsetting: Data is subsetted based on goals. A goal can be a relative table size. For example, extracting 1% subset of a table containing 1 million rows.

• Condition-based subsetting: Data is subsetted based on conditions. The conditions are specified using “SQL where clause”. The “SQL where clause” supports bind variables.

  A condition can be based on time. For example, discarding all user records created prior to a particular year.

  A condition can be based on region. For example, extracting information pertaining to Asia Pacific for a new application development.

Oracle Data Masking Application Templates deliver pre-identified sensitive columns, their relationships, and industry-standard best practice masking techniques out-of-the box for packaged applications such as Oracle E-Business Suite and Oracle Fusion Applications. Use the Self Update feature to get the latest masking and subsetting templates available from Oracle.

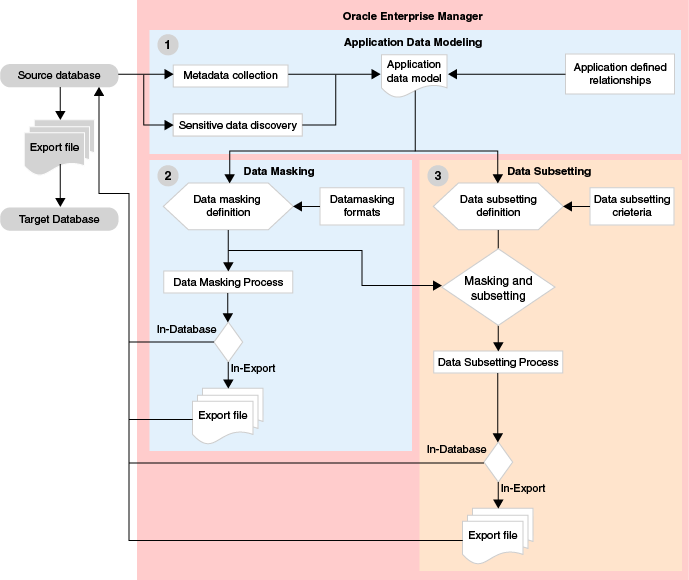

In-Database mode directly masks and subsets the data within a non-production database with minimal or no impact on production environments. Since the In-Database masking and subsetting mode permanently changes the data in a database, it is strongly recommended to use this mode for non-production environments such as staging, test, and development databases rather than using it on production databases.

In-Export mode masks and subsets the data in near real-time while extracting the data from a database. The extracted masked and subsetted data is written to data pump export files that are further imported into test, development, or QA databases. In general, In-Export mode is used for production databases.

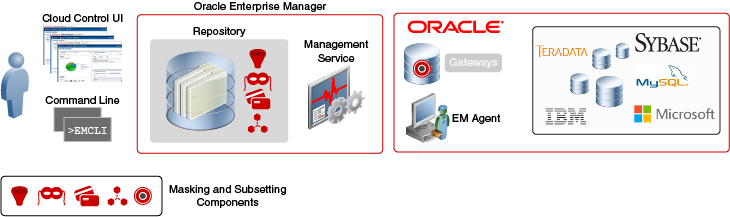

Oracle Data Masking and Subsetting also supports data masking of data from any non-Oracle database, such as IBM DB2, Microsoft SQL Server, and Sybase.

Oracle Data Masking and Subsetting uses the DB links and the gateways to read data from non-Oracle production databases, copy the data to an Oracle-based staging environment, mask in the Oracle staging environment, and then write to the non-Oracle test databases.

It uses the same masking techniques that are used in the Oracle databases for masking the data.
