Heterogeneous Connectivity Process Architecture

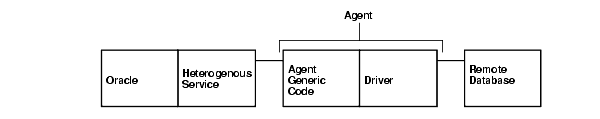

At a high level, Oracle heterogeneous connectivity process architecture is structured as shown in Figure 2-1.

The Heterogeneous Services component in Oracle Database communicates with a Heterogeneous Services agent process which, in turn, communicates with the non-Oracle system. The code can be conceptually divided into three parts:

• The Heterogeneous Services component in Oracle Database

  This module performs most of the processing related to heterogeneous connectivity.

• Agent generic code

  This is code in the agent that is generic to all Heterogeneous Services products. This code communicates with the database and provides multithreading support.

• The driver

  This module communicates with the non-Oracle system. It is used to map calls from the Heterogeneous Services to the native API of the non-Oracle system, and it is not specific to Oracle systems.
