14 Influencing the Optimizer

This chapter contains the following topics:

Techniques for Influencing the Optimizer

In general, optimizer defaults are adequate for most operations. However, in some cases you may have information unknown to the optimizer, or need to tune the optimizer for a specific type of statement or workload. In such cases, influencing the optimizer may provide better performance.

You can influence the optimizer using several techniques, including SQL profiles, SQL Plan Management, initialization parameters, and hints. Figure 14-1 shows the principal techniques for influencing the optimizer.

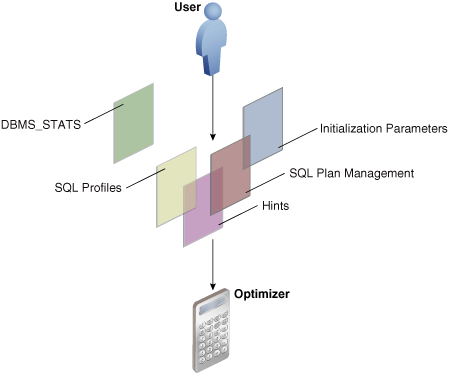

Figure 14-1 Techniques for Influencing the Optimizer

Description of "Figure 14-1 Techniques for Influencing the Optimizer"

The overlapping squares in Figure 14-1 show that SQL plan management uses both initialization parameters and hints. SQL profiles also technically include hints.

You can use the following techniques to influence the optimizer:

Initialization parameters

Parameters influence many types of optimizer behavior at the database instance and session level. The most important parameters are covered in "Influencing the Optimizer with Initialization Parameters".
Hints

A hint is a commented instruction in a SQL statement. Hints control a wide range of behavior. See "Influencing the Optimizer with Hints".
DBMS_STATS

This package updates and manages optimizer statistics. The more accurate the statistics, the better the optimizer estimates.

This chapter does not cover DBMS_STATS. See Managing Optimizer Statistics: Basic Topics.
SQL profiles

A SQL profile is a database object that contains auxiliary statistics specific to a SQL statement. Conceptually, a SQL profile is to a SQL statement what a set of object-level statistics is to a table or index. A SQL profile can correct suboptimal optimizer estimates discovered during SQL tuning.

This chapter does not cover SQL profiles. See Managing SQL Profiles .
SQL plan management and stored outlines

SQL plan management is a preventative mechanism that enables the optimizer to automatically manage execution plans, ensuring that the database uses only known or verified plans.

This chapter does not cover SQL plan management. See Managing SQL Plan Baselines .

Note:

A stored outline is a legacy technique that serve a similar purpose to SQL plan baselines. See Migrating Stored Outlines to SQL Plan Baselines to learn how to migrate stored outlines to SQL plan baselines.

In some cases, multiple techniques optimize the same behavior. For example, you can set optimizer goals using both initialization parameters and hints.

Influencing the Optimizer with Initialization Parameters

This section contains the following topics:

About Optimizer Initialization Parameters

Oracle Database includes several initialization parameters that can influence optimizer behavior. Table 14-1 lists some of the most important.

Table 14-1 Initialization Parameters That Control Optimizer Behavior

Initialization Parameter	Description
`CURSOR_SHARING`	Converts literal values in SQL statements to bind variables. Converting the values improves cursor sharing and can affect the execution plans of SQL statements. The optimizer generates the execution plan based on the presence of the bind variables and not the actual literal values. Set to `FORCE` to enable the creation of a new cursor when sharing an existing cursor, or when the cursor plan is not optimal. Set to `EXACT` to allow only statements with identical text to share the same cursor.
`DB_FILE_MULTIBLOCK_READ_COUNT`	Specifies the number of blocks that are read in a single I/O during a full table scan or index fast full scan. The optimizer uses the value of this parameter to calculate the cost of full table scans and index fast full scans. Larger values result in a lower cost for full table scans, which may result in the optimizer choosing a full table scan over an index scan. The default value of this parameter corresponds to the maximum I/O size that the database can perform efficiently. This value is platform-dependent and is 1MB for most platforms. Because the parameter is expressed in blocks, it is set to a value equal to the maximum I/O size that can be performed efficiently divided by the standard block size. If the number of sessions is extremely large, then the multiblock read count value decreases to avoid the buffer cache getting flooded with too many table scan buffers.
`OPTIMIZER_ADAPTIVE_REPORTING_ONLY`	Controls the reporting mode for automatic reoptimization and adaptive plans (see "Adaptive Plans"). By default, reporting mode is off (`false`), which means that adaptive optimizations are enabled. If set to `true`, then adaptive optimizations run in reporting-only mode. In this case, the database gathers information required for an adaptive optimization, but takes no action to change the plan. For example, an adaptive plan always choose the default plan, but the database collects information about which plan the database would use if the parameter were set to `false`. You can view the report by using `DBMS_XPLAN.DISPLAY_CURSOR`.
`OPTIMIZER_MODE`	Sets the optimizer mode at database instance startup. Possible values are `ALL_ROWS`, `FIRST_ROWS_n`, and `FIRST_ROWS`.
`OPTIMIZER_INDEX_CACHING`	Controls the cost analysis of an index probe with a nested loop. The range of values `0` to `100` indicates percentage of index blocks in the buffer cache, which modifies optimizer assumptions about index caching for nested loops and IN-list iterators. A value of `100` infers that 100% of the index blocks are likely to be found in the buffer cache, so the optimizer adjusts the cost of an index probe or nested loop accordingly. Use caution when setting this parameter because execution plans can change in favor of index caching.
`OPTIMIZER_INDEX_COST_ADJ`	Adjusts the cost of index probes. The range of values is `1` to `10000`. The default value is `100`, which means that the optimizer evaluates indexes as an access path based on the normal cost model. A value of `10` means that the cost of an index access path is one-tenth the normal cost of an index access path.
`OPTIMIZER_INMEMORY_AWARE`	This parameter enables (`TRUE`) or disables (`FALSE`) all of the in-memory optimizer features, including the cost model for in-memory, table expansion, bloom filters, and so on. Setting the parameter to `FALSE` causes the optimizer to ignore the in-memory property of tables during the optimization of SQL statements.
`OPTIMIZER_USE_INVISIBLE_INDEXES`	Enables or disables the use of invisible indexes.
`RESULT_CACHE_MODE`	Controls whether the database uses the SQL query result cache for all queries, or only for the queries that are annotated with the result cache hint. When set to `MANUAL` (the default), you must use the `RESULT_CACHE` hint to specify that a specific result is to be stored in the cache. When set to `FORCE`, the database stores all results in the cache. When setting this parameter, consider how the result cache handles PL/SQL functions. The database invalidates query results in the result cache using the same mechanism that tracks data dependencies for PL/SQL functions, but otherwise permits caching of queries that contain PL/SQL functions. Because PL/SQL function result cache invalidation does not track all kinds of dependencies (such as on sequences, `SYSDATE`, `SYS_CONTEXT`, and package variables), indiscriminate use of the query result cache on queries calling such functions can result in changes to results, that is, incorrect results. Thus, consider correctness and performance when choosing to enable the result cache, especially when setting `RESULT_CACHE_MODE` to `FORCE`.
`RESULT_CACHE_MAX_SIZE`	Changes the memory allocated to the result cache. If you set this parameter to `0`, then the result cache is disable. The value of this parameter is rounded to the largest multiple of 32 KB that is not greater than the specified value. If the rounded value is `0`, then the feature is disabled.
`RESULT_CACHE_MAX_RESULT`	Specifies the maximum amount of cache memory that any single result can use. The default value is 5%, but you can specify any percentage value between `1` and `100`.
`RESULT_CACHE_REMOTE_EXPIRATION`	Specifies the number of minutes for which a result that depends on remote database objects remains valid. The default is `0`, which implies that the database should not cache results using remote objects. Setting this parameter to a nonzero value can produce stale answers, such as if a remote database modifies a table that is referenced in a result.
`STAR_TRANSFORMATION_ENABLED`	Enables the optimizer to cost a star transformation for star queries (if `true`). The star transformation combines the bitmap indexes on the various fact table columns. See Oracle Database Data Warehousing Guide.

See Also:

Oracle Database Reference for complete information about the preceding initialization parameters
Oracle Database Performance Tuning Guide to learn how to tune the query result cache

Enabling Optimizer Features

The OPTIMIZER_FEATURES_ENABLE initialization parameter controls a set of optimizer-related features, depending on the release. The parameter accepts one of a list of valid string values corresponding to the release numbers, such as 10.2.0.1 or 11.2.0.1.

You can use this parameter to preserve the old behavior of the optimizer after a database upgrade. For example, if you upgrade Oracle Database 11g Release 1 (11.1.0.7) to Oracle Database 11g Release 2 (11.2.0.2), then the default value of the OPTIMIZER_FEATURES_ENABLE parameter changes from 11.1.0.7 to 11.2.0.2. This upgrade results in the optimizer enabling optimization features based on Oracle Database 11g Release 2 (11.2.0.2).

For backward compatibility, you may not want the execution plans to change because of new optimizer features in a new release. In such cases, you can set OPTIMIZER_FEATURES_ENABLE to an earlier version. If you upgrade to a new release, and if you want to enable the features in the new release, then you do not need to explicitly set the OPTIMIZER_FEATURES_ENABLE initialization parameter.

Caution:

Oracle does not recommend explicitly setting the OPTIMIZER_FEATURES_ENABLE initialization parameter to an earlier release. To avoid SQL performance regression that may result from execution plan changes, consider using SQL plan management instead. See Managing SQL Plan Baselines .

Assumptions

This tutorial assumes the following:

You recently upgraded the database from Oracle Database 10g Release 2 (10.2.0.5) to Oracle Database 11g Release 2 (11.2.0.2).
You want to preserve the optimizer behavior from the earlier release.

To enable query optimizer features for a specific release:

Connect SQL*Plus to the database with the appropriate privileges, and then query the current optimizer features settings.

For example, run the following SQL*Plus command:

SQL> SHOW PARAMETER optimizer_features_enable

NAME                                 TYPE        VALUE
------------------------------------ ----------- --------
optimizer_features_enable            string      11.2.0.2

Set the optimizer features setting at the instance or session level.

For example, run the following SQL statement to set the optimizer version to 10.2.0.5:
```
SQL> ALTER SYSTEM SET OPTIMIZER_FEATURES_ENABLE='10.2.0.5';
```
The preceding statement restores the optimizer functionality that existed in Oracle Database 10g Release 2 (10.2.0.5).

See Also:

Oracle Database Reference to learn about optimizer features enabled when you set OPTIMIZER_FEATURES_ENABLE to different release values

Choosing an Optimizer Goal

The optimizer goal is the prioritization of resource usage by the optimizer. Using the OPTIMIZER_MODE initialization parameter, you can set the following optimizer goals:

Best throughput (default)

When you set the OPTIMIZER_MODE value to ALL_ROWS, the database uses the least amount of resources necessary to process all rows that the statement accessed.

For batch applications such as Oracle Reports, optimize for best throughput. Usually, throughput is more important in batch applications because the user is only concerned with the time necessary for the application to complete. Response time is less important because the user does not examine the results of individual statements while the application is running.
Best response time

When you set the OPTIMIZER_MODE value to FIRST_ROWS_n, the database optimizes with a goal of best response time to return the first n rows, where n equals 1, 10, 100, or 1000.

For interactive applications in Oracle Forms or SQL*Plus, optimize for response time. Usually, response time is important because the interactive user is waiting to see the first row or rows that the statement accessed.

Assumptions

This tutorial assumes the following:

The primary application is interactive, so you want to set the optimizer goal for the database instance to minimize response time.
For the current session only, you want to run a report and optimize for throughput.

To enable query optimizer features for a specific release:

Connect SQL*Plus to the database with the appropriate privileges, and then query the current optimizer mode.

For example, run the following SQL*Plus command:

dba1@PROD> SHOW PARAMETER OPTIMIZER_MODE

NAME                                 TYPE        VALUE
------------------------------------ ----------- --------
optimizer_mode                       string      ALL_ROWS

At the instance level, optimize for response time.

For example, run the following SQL statement to configure the system to retrieve the first 10 rows as quickly as possible:
```
SQL> ALTER SYSTEM SET OPTIMIZER_MODE='FIRST_ROWS_10';
```
At the session level only, optimize for throughput before running a report.

For example, run the following SQL statement to configure only this session to optimize for throughput:
```
SQL> ALTER SESSION SET OPTIMIZER_MODE='ALL_ROWS';
```

See Also:

Oracle Database Reference to learn about the OPTIMIZER_MODE initialization parameter

Controlling Adaptive Optimization

In Oracle Database, adaptive query optimization is the process by which the optimizer adapts an execution plan based on statistics collected at run time (see "About Adaptive Query Optimization"). Adaptive optimization is enabled under the following conditions:

The OPTIMIZER_FEATURES_ENABLE initialization parameter is set to 12.1.0.1 or later.
The OPTIMIZER_ADAPTIVE_REPORTING_ONLY initialization parameter is set to false (default).

If OPTIMIZER_ADAPTIVE_REPORTING_ONLY is set to true, then adaptive optimization runs in reporting-only mode. In this case, the database gathers information required for adaptive optimization, but does not change the plans. An adaptive plan always chooses the default plan, but the database collects information about the execution as if the parameter were set to false.

Assumptions

This tutorial assumes the following:

The OPTIMIZER_FEATURES_ENABLE initialization parameter is set to 12.1.0.1 or later.
The OPTIMIZER_ADAPTIVE_REPORTING_ONLY initialization parameter is set to false (default).
You want to disable adaptive optimization for testing purposes so that the database generates only reports.

To disable adaptive optimization and view reports:

Connect SQL*Plus to the database as SYSTEM, and then query the current settings.

For example, run the following SQL*Plus command:

SHOW PARAMETER OPTIMIZER_ADAPTIVE_REPORTING_ONLY

NAME                                 TYPE        VALUE
------------------------------------ ----------- -----
optimizer_adaptive_reporting_only    boolean     FALSE

At the session level, set the OPTIMIZER_ADAPTIVE_REPORTING_ONLY initialization parameter to true.

For example, in SQL*Plus run the following SQL statement:
```
ALTER SESSION SET OPTIMIZER_ADAPTIVE_REPORTING_ONLY=true;
```
Run a query.
Run DBMS_XPLAN.DISPLAY_CURSOR to view the report.

Note:

The format argument that you pass to DBMS_XPLAN.DISPLAY_CURSOR must include the +REPORT parameter. When this parameter is set, the report shows the plan the optimizer would have picked if automatic reoptimization had been enabled.

See Also:

Oracle Database Reference to learn about the OPTIMIZER_ADAPTIVE_REPORTING_ONLY initialization parameter
Oracle Database PL/SQL Packages and Types Reference to learn about the +REPORT parameter of the DBMS_XPLAN.DISPLAY_CURSOR function

Influencing the Optimizer with Hints

Optimizer hints are special comments in a SQL statement that pass instructions to the optimizer. The optimizer uses hints to choose an execution plan for the statement unless prevented by some condition.

This section contains the following topics:

Note:

Oracle Database SQL Language Reference contains a complete reference for all SQL hints

About Optimizer Hints

Use hints to influence the optimizer mode, query transformation, access path, join order, and join methods. For example, Figure 14-2 shows how you can use a hint to tell the optimizer to use a specific index for a specific statement. Oracle Database SQL Language Reference lists the most common hints by functional category.

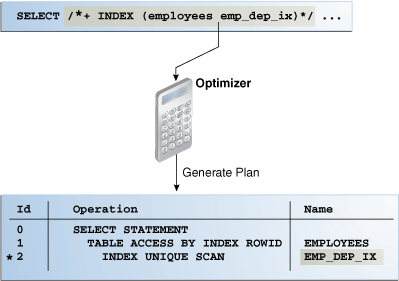

Figure 14-2 Optimizer Hint

Description of "Figure 14-2 Optimizer Hint"

The advantage of hints is that they enable you to make decisions normally made by the optimizer. In a test environment, hints are useful for testing the performance of a specific access path. For example, you may know that an index is more selective for certain queries, as in Figure 14-2. In this case, the hint may cause the optimizer to generate a better plan.

The disadvantage of hints is the extra code that you must manage, check, and control. Hints were introduced in Oracle7, when users had little recourse if the optimizer generated suboptimal plans. Because changes in the database and host environment can make hints obsolete or have negative consequences, a good practice is to test using hints, but use other techniques to manage execution plans.

Oracle provides several tools, including SQL Tuning Advisor, SQL plan management, and SQL Performance Analyzer, to address performance problems not solved by the optimizer. Oracle strongly recommends that you use these tools instead of hints because they provide fresh solutions as the data and database environment change.

Types of Hints

Hints fall into the following types:

Single-table

Single-table hints are specified on one table or view. INDEX and USE_NL are examples of single-table hints. The following statement uses a single-table hint:
```
SELECT /*+ INDEX (employees emp_department_ix)*/ employee_id, department_id
FROM   employees
WHERE  department_id > 50;
```
Multi-table

Multi-table hints are like single-table hints except that the hint can specify multiple tables or views. LEADING is an example of a multi-table hint. The following statement uses a multi-table hint:
```
SELECT /*+ LEADING(e j) */ *
FROM   employees e, departments d, job_history j
WHERE  e.department_id = d.department_id
AND    e.hire_date = j.start_date;
```
Note:

USE_NL(table1 table2) is not considered a multi-table hint because it is a shortcut for USE_NL(table1) and USE_NL(table2).

Query block

Query block hints operate on single query blocks. STAR_TRANSFORMATION and UNNEST are examples of query block hints. The following statement uses a query block hint:

SELECT /*+ STAR_TRANSFORMATION */ s.time_id, s.prod_id, s.channel_id
FROM   sales s, times t, products p, channels c
WHERE s.time_id = t.time_id AND s.prod_id = p.prod_id
AND s.channel_id = c.channel_id AND c.channel_desc = 'Tele Sales';

Statement

Statement hints apply to the entire SQL statement. ALL_ROWS is an example of a statement hint. The following statement uses a statement hint:
```
SELECT /*+ ALL_ROWS */ * FROM sales;
```

Scope of Hints

When you specify a hint, it optimizes only the statement block in which it appears, overriding any instance-level or session-level parameters. A statement block is one of the following:

A simple MERGE, SELECT, INSERT, UPDATE, or DELETE statement
A parent statement or a subquery of a complex statement
A part of a query using set operators (UNION, MINUS, INTERSECT)

Example 14-1 Query Using a Set Operator

The following query consists of two component queries and the UNION operator:

SELECT /*+ FIRST_ROWS(10) */ prod_id, time_id FROM 2010_sales
UNION ALL
SELECT /*+ ALL_ROWS */ prod_id, time_id FROM current_year_sales;

The preceding statement has two blocks, one for each component query. Hints in the first component query apply only to its optimization, not to the optimization of the second component query. For example, in the first week of 2015 you query current year and last year sales. You apply FIRST_ROWS(10) to the query of last year's (2014) sales and the ALL_ROWS hint to the query of this year's (2015) sales.

See Also:

Oracle Database SQL Language Reference for an overview of hints

Considerations for Hints

You must enclose hints within a SQL comment. The hint comment must immediately follow the first keyword of a SQL statement block. You can use either style of comment: a slash-star (/*) or pair of dashes (--). The plus-sign (+) hint delimiter must come immediately after the comment delimiter, as in the following fragment:

SELECT /*+ hint_text */ ...

The database ignores incorrectly specified hints. The database also ignores combinations of conflicting hints, even if these hints are correctly specified. If one hint is incorrectly specified, but a hint in the same comment is correctly specified, then the database considers the correct hint.

Caution:

The database does not issue error messages for hints that it ignores.

A statement block can have only one comment containing hints, but it can contain many space-separated hints. For example, a complex query may include multiple table joins. If you specify only the INDEX hint for a specified table, then the optimizer must determine the remaining access paths and corresponding join methods. The optimizer may not use the INDEX hint because the join methods and access paths prevent it. Example 14-2 uses multiple hints to specify the exact join order.

Example 14-2 Multiple Hints

SELECT   /*+ LEADING(e2 e1) USE_NL(e1) INDEX(e1 emp_emp_id_pk)
           USE_MERGE(j) FULL(j) */
         e1.first_name, e1.last_name, j.job_id, sum(e2.salary) total_sal
FROM     employees e1, employees e2, job_history j
WHERE    e1.employee_id = e2.manager_id
AND      e1.employee_id = j.employee_id
AND      e1.hire_date = j.start_date
GROUP BY e1.first_name, e1.last_name, j.job_id
ORDER BY total_sal;

See Also:

Oracle Database SQL Language Reference to learn about the syntax rules for comments and hints

Guidelines for Join Order Hints

The join order can have a significant effect on the performance of a SQL statement. In some cases, you can specify join order hints in a SQL statement so that it does not access rows that have no effect on the result.

The driving table in a join is the table to which other tables are joined. In general, the driving table contains the filter condition that eliminates the highest percentage of rows in the table.

Consider the following guidelines:

Avoid a full table scan when an index retrieves the requested rows more efficiently.
Avoid using an index that fetches many rows from the driving table when you can use a different index that fetches a small number of rows.
Choose the join order so that you join fewer rows to tables later in the join order.

The following example shows how to tune join order effectively:

SELECT *
FROM   taba a, tabb b, tabc c
WHERE  a.acol BETWEEN   100 AND   200

AND    b.bcol BETWEEN 10000 AND 20000
AND    c.ccol BETWEEN 10000 AND 20000
AND    a.key1 = b.key1
AND    a.key2 = c.key2;

Choose the driving table and the driving index (if any).

Each of the first three conditions in the previous example is a filter condition that applies to a single table. The last two conditions are join conditions.

Filter conditions dominate the choice of driving table and index. In general, the driving table contains the filter condition that eliminates the highest percentage of rows. Thus, because the range of 100 to 200 is narrow compared with the range of acol, but the ranges of 10000 and 20000 are relatively large, taba is the driving table, all else being equal.

With nested loops joins, the joins occur through the join indexes, which are the indexes on the primary or foreign keys used to connect that table to an earlier table in the join tree. Rarely do you use the indexes on the non-join conditions, except for the driving table. Thus, after taba is chosen as the driving table, use the indexes on b.key1 and c.key2 to drive into tabb and tabc, respectively.
Choose the best join order, driving to the best unused filters earliest.

You can reduce the work of the following join by first joining to the table with the best still-unused filter. Thus, if bcol BETWEEN ... is more restrictive (rejects a higher percentage of the rows) than ccol BETWEEN ..., then the last join becomes easier (with fewer rows) if tabb is joined before tabc.
You can use the ORDERED or STAR hint to force the join order.

See Also:

Oracle Database Reference to learn about OPTIMIZER_MODE
