1 Installing the Enterprise Manager Plug-in for TimesTen

Additional requirements

Additional requirements or considerations include:

• Use direct linked connections to define your target DSN. Client/Server connections are not supported for your target DSN.

• The Enterprise Manager Plug-in for TimesTen generates temporary files. Each temporary file could require between 10 KB to 30 KB of free space on the Oracle Enterprise Manager Agent file system. If the Oracle Enterprise Manager Agent file system is full, the Oracle Enterprise Manager Agent can no longer monitor the TimesTen database. For information about the system requirements for the Oracle Enterprise Manager Agent, see "CPU, RAM, and Hard Disk Space Requirements for Management Agent" in the Oracle Enterprise Manager Cloud Control Basic Installation Guide.

• The operating system user who installs the Oracle Enterprise Manager Agent must belong to the TimesTen users group of the installation being monitored. Also, ensure that the user has read access to /etc/TimesTen/instance_info. For more information about the TimesTen users group, see "Create the TimesTen users group" in the Oracle TimesTen In-Memory Database Installation Guide.

• For optimal performance, ensure that TimesTen is on a different system than the Oracle Management Service (OMS) and the Enterprise Manager Repository.

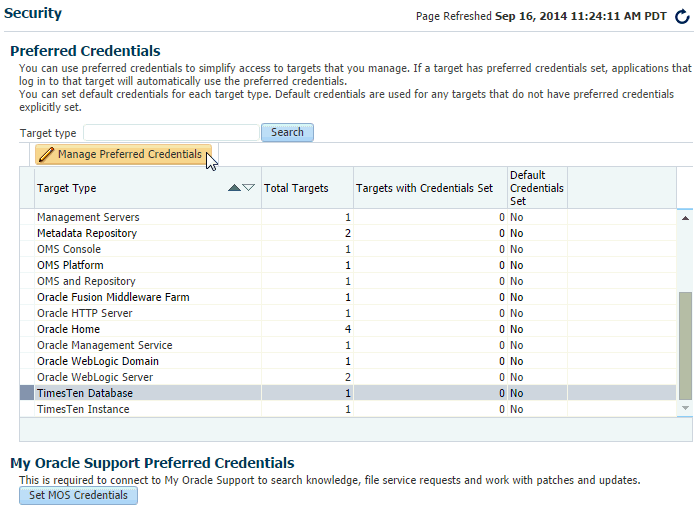

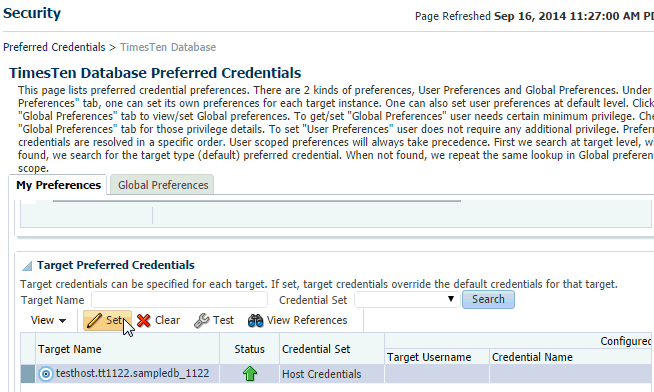

• Ensure that the My Oracle Support credentials are set up using the SYSMAN user. This is required to enable updates (plug-ins) to be downloaded from the My Oracle Support site. For more information, see "Saving Preferred Credentials to Access My Oracle Support" in the Oracle Enterprise Manager Cloud Control Security Guide.

• Ensure that the Software Library (also known as the local store) is configured. Updates are downloaded to this local store before being deployed into Oracle Enterprise Manager Cloud Control. For more information, see "Configuring an OMS Shared Filesystem Location" in the Oracle Enterprise Manager Cloud Control Administrator's Guide.

Download the plug-in

To download the plug-in, ensure that you are on the Oracle Enterprise Manager Cloud Control home page and are logged in as user SYSMAN.

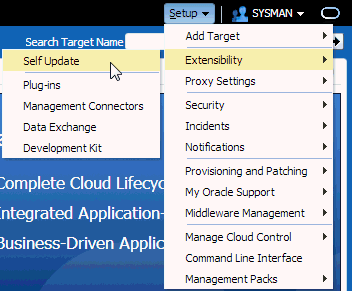

1. From the Setup menu, select Extensibility, then select Self Update.

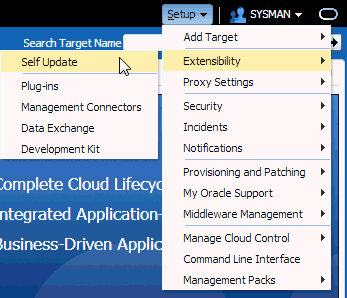

   Figure 1-1 Select Self Update


   Description of "Figure 1-1 Select Self Update"



   The Self Update page displays.

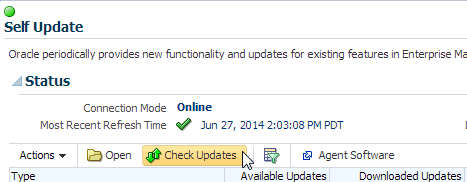

2. Click Check Updates.

   Figure 1-2 Click Check Updates


   Description of "Figure 1-2 Click Check Updates"

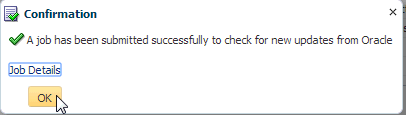

   The Confirmation dialog displays. You should see the informational message: "A job has been submitted successfully to check for new updates from Oracle".

3. Click OK.

   Figure 1-3 Checking for updates


   Description of "Figure 1-3 Checking for updates"



   The Self Update page displays with a Most Recent Refresh Time status indicating the status of the updates.

   • If you see a green check mark next to the Most Recent Refresh Time status, then Enterprise Manager has finished checking for updates. Locate the Plug-in folder.

   • If you see a status of Submitted or In Progress... for the Most Recent Refresh Time status, then Enterprise Manager is still checking for updates. Click the refresh button located in the top right of the Oracle Enterprise Manager Cloud Control page to refresh the status of the Most Recent Refresh Time. After you see a green check mark next to the Most Recent Refresh Time status, locate the Plug-in folder.

4. Click the name Plug-in.

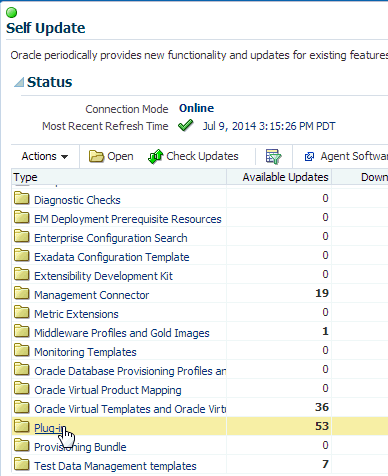

   Figure 1-4 Plug-in folder


   Description of "Figure 1-4 Plug-in folder"



   The Plug-in Updates page displays. In the Plug-in Name column, locate Oracle TimesTen In-Memory Database. Confirm the Status column is equal to Available.

5. In the Plug-in Name column, click Oracle TimesTen In-Memory Database.

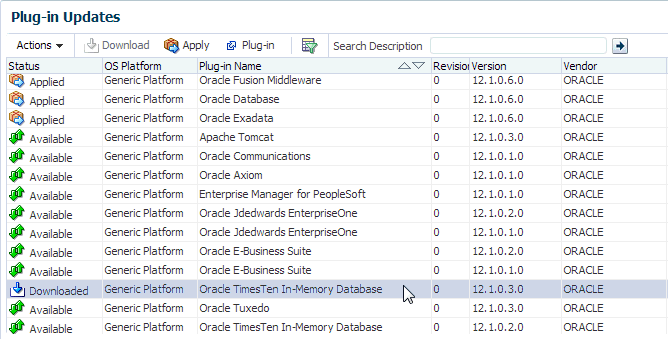

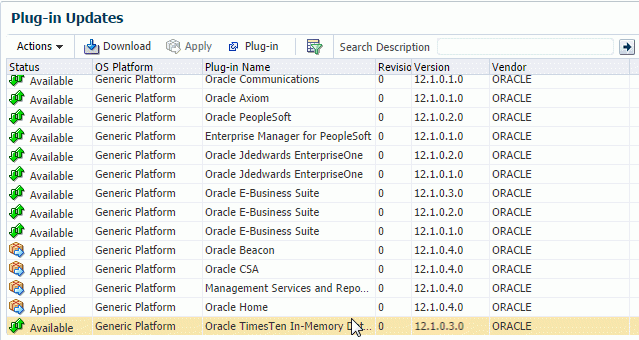

   Figure 1-5 Plug-in Updates


   Description of "Figure 1-5 Plug-in Updates"



   Locate the Download button located under Plug-in Updates at the top of the page.

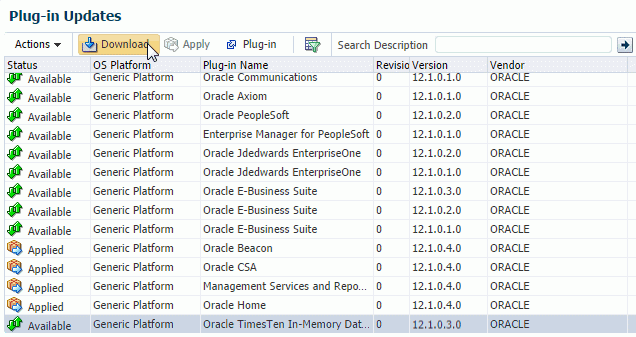

6. Click Download.

   Figure 1-6 Download plug-in


   Description of "Figure 1-6 Download plug-in"



   The Schedule Download dialog displays indicating that you can download the plug-in either immediately or later. When you choose Select, Enterprise Manager downloads the plug-in immediately.

7. Click Select.

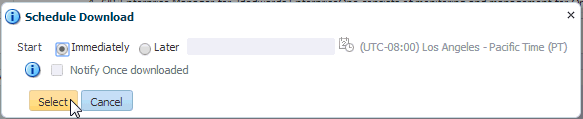

   Figure 1-7 Schedule Download dialog


   Description of "Figure 1-7 Schedule Download dialog"

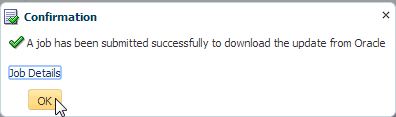

   A confirmation dialog displays indicating that the update (plug-in) is downloading.

8. Click OK.

   Figure 1-8 Click OK


   Description of "Figure 1-8 Click OK"



   You have successfully downloaded the plug-in. You can verify the plug-in has been downloaded by reviewing the Plug-in Updates page. You should see the Oracle TimesTen In-Memory Database plug-in with a status of Downloaded.

You are now ready to deploy the plug-in on the Oracle Management Service.

Deploy the plug-in on Oracle Management Service

You must deploy the plug-in on both the Oracle Management Service (OMS) and one or more Management Agents. After you successfully deploy the plug-in, both OMS and the agent know the plug-in exists. You then configure your TimesTen database as one of the targets for the agent and the agent begins the process of monitoring your target.

You must deploy the plug-in on OMS before deploying the plug-in on one or more Management Agents.

To deploy the plug-in on OMS, ensure that you are on the Oracle Enterprise Manager Cloud Control home page and are logged in as user SYSMAN.

1. From the Setup menu, select Extensibility, then select Plug-ins.

   Figure 1-9 Select Extensibility, then Plug-ins


   Description of "Figure 1-9 Select Extensibility, then Plug-ins"



   The Plug-ins page displays and you see the plug-ins that have been downloaded and can be deployed. Locate the Databases folder in the Name column.

2. Expand the Databases folder in the Name column and click Oracle TimesTen In-Memory Database.

   Figure 1-10 Select TimesTen In-Memory Database plug-in


   Description of "Figure 1-10 Select TimesTen In-Memory Database plug-in"



   You are now ready to deploy the plug-in on OMS. Locate the Deploy On tab at the top of the page.

3. From the Deploy On menu, select Management Servers....

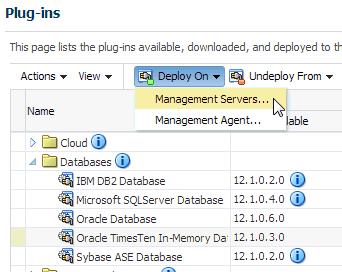

   Figure 1-11 Deploy on OMS


   Description of "Figure 1-11 Deploy on OMS"

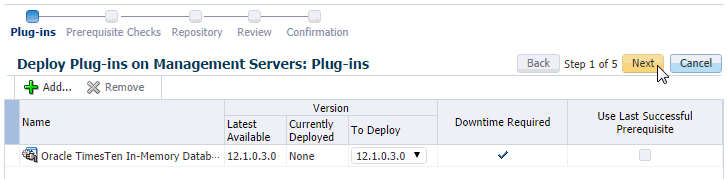

   The Deploy Plug-in on Management Servers: Plug-ins page displays. The plug-in Oracle TimesTen In-Memory Database is displayed in the Name column and the Version is auto-filled. Locate the Next button in the top right of the page.

4. Click Next.

   Figure 1-12 Click Next


   Description of "Figure 1-12 Click Next"

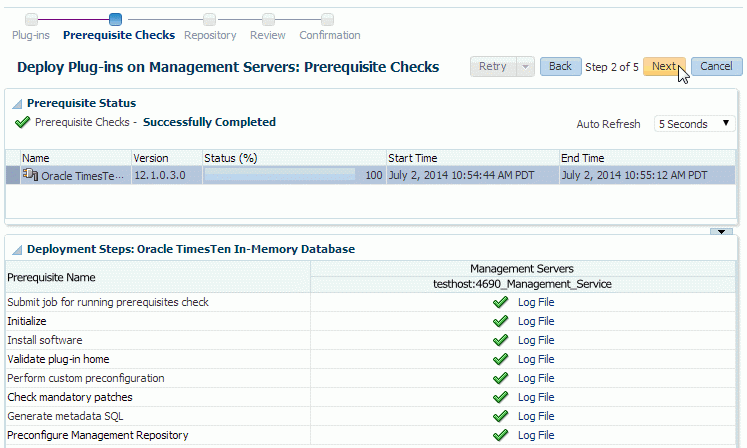

   The Deploy Plug-ins on Management Servers: Prerequisite Checks page displays. The prerequisite checks can take several minutes. In the Prerequisite Status region, you should see a check to the left of the Prerequisite Checks text. To the right of this text, you should see the text "Successfully Completed". Ensure that there are green checks in the Status column of each row in the Deployment Steps: Oracle TimesTen In-Memory Database table. Locate the Next button in the top right of the page.

5. Click Next.

   Figure 1-13 Click Continue


   Description of "Figure 1-13 Click Continue"



   The Deploy Plug-ins on Management Servers: Repository page displays. Consider making a backup of the OMS repository before deploying the plug-in. For more information on backing up the OMS repository, see "Backing Up the OMS" in the Oracle Enterprise Manager Cloud Control Advanced Installation and Configuration Guide. Locate the Have you backed up the repository and configuration of first management server? check box.

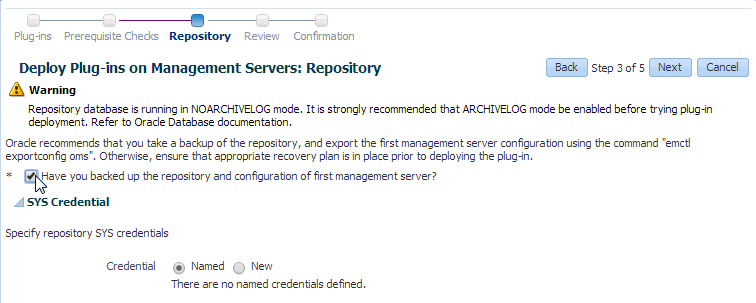

6. Select the Have you backed up the repository and configuration of first management server? check box.

   Figure 1-14 Select repository backup confirmation


   Description of "Figure 1-14 Select repository backup confirmation"



   You are now ready to specify repository SYS credentials. Locate the circle to the left of the New credential type.

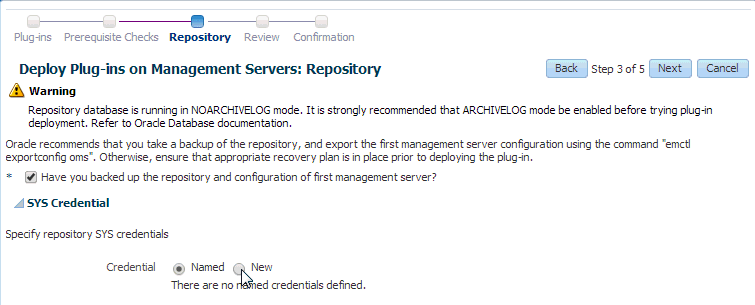

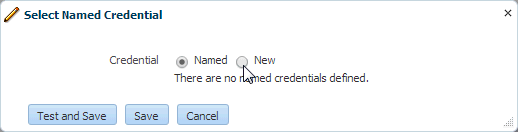

7. Click in the circle to the left of the text New.

   Figure 1-15 Select the new credential type option


   Description of "Figure 1-15 Select the new credential type option"

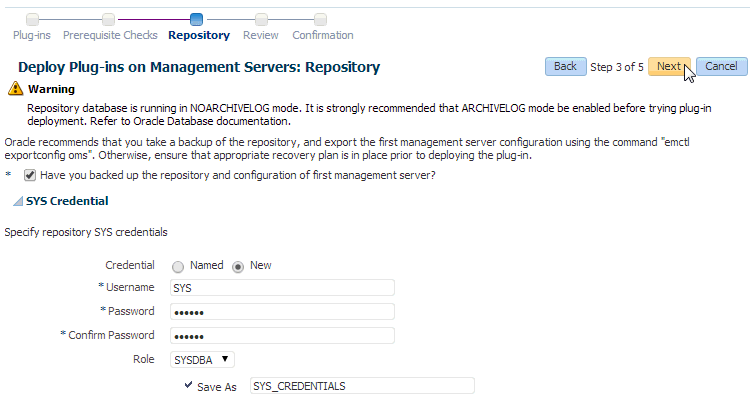

   The Deploy Plug-Ins on Management Servers: Repository page refreshes. You are now required to enter the repository SYS credentials for your Enterprise Manager repository. The first property is the Username.

8. In the *Username text field, type the user who has access to the Enterprise Manager repository.

9. In the *Password text field, type the password for the user who has access to the Enterprise Manager repository.

10. In the *Confirm Password text field, re-type the password.

11. From the Role drop-down list, select SYSDBA.

12. Click in the check box to the left of the text Save As.

13. In the Save As text field, type the name you want to use for the preferred credentials. The credentials are saved with this name.

    Locate the Next button at the top right of the page.

14. Click Next.

    Figure 1-16 Review of the deploy on OMS


    Description of "Figure 1-16 Review of the deploy on OMS"

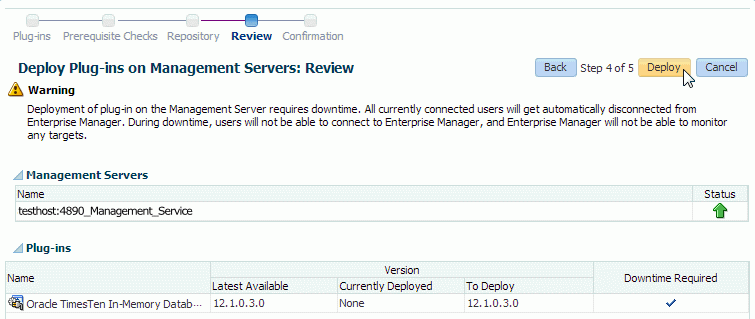

    The Deploy Plug-ins on Management Servers: Review page displays. In the Management Servers table, verify that the name of the management server is correct. Verify the status is up. In the Plug-ins table, verify that the name of the plug-in is Oracle TimesTen In-Memory Database. Locate the Deploy button at the top right of the page.

15. Click Deploy.

    Figure 1-17 Confirmation of the deployment to OMS


    Description of "Figure 1-17 Confirmation of the deployment to OMS"



    Note:

    The Oracle Enterprise Manager Cloud Control server restarts during the deployment process.

    The Deploy Plug-ins on Management Servers: Confirmation page displays with a message indicating the deployment of the plug-in is in progress. The deployment can take several minutes. You can monitor the deployment status by clicking Show Status or going to the Deployment Activities page.

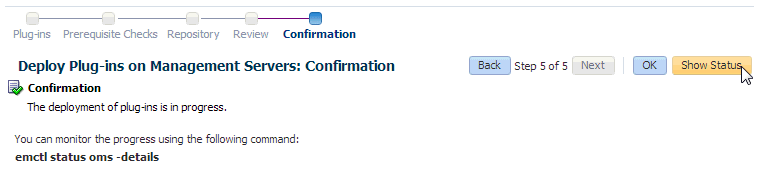

16. Click Show Status.

    Figure 1-18 Click show status


    Description of "Figure 1-18 Click show status"



    The Plug-ins Deployment Activities page displays showing the status of recent deployment activities and a detailed status of the TimesTen deployment steps in table format. The second table on this page, Deployment Steps: Oracle TimesTen In-Memory Database, shows the deployment steps for the TimesTen plug-in. The last step located in the last row of this table is named "Start management server". Once this step is completed, ensure that there are green checks in the Status column of each row in the Deployment Steps table. Such checks indicate all steps in the deployment process are completed and are successful. If auto refresh is set to off, you may want to set auto refresh to 15 seconds, so you can see the steps as they are completed. You may need to wait a few minutes before changing the auto refresh setting because the Oracle Enterprise Manager Cloud Control server restarts during this deployment.

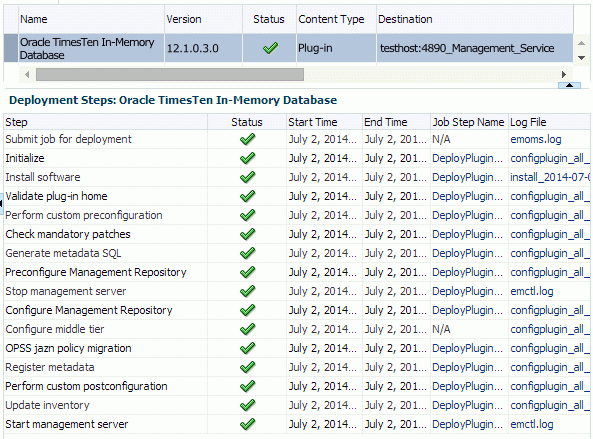

    Figure 1-19 Deployment to OMS successful


    Description of "Figure 1-19 Deployment to OMS successful"



    The plug-in is deployed on OMS.

You are now ready to deploy the plug-in on the Management Agent.

Deploy the plug-in on the Management Agent

You must deploy the plug-in on OMS before deploying the plug-in on one or more Management Agents.

To deploy the plug-in on the Management Agent, ensure that you are on the Oracle Enterprise Manager Cloud Control home page.

1. From the Setup menu, select Extensibility, then select Plug-ins.

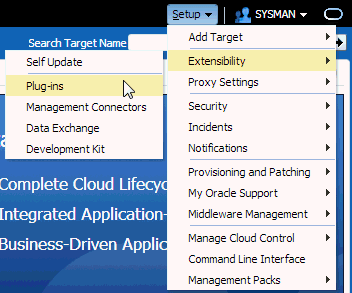

   Figure 1-20 Select Extensibility, then Plug-ins


   Description of "Figure 1-20 Select Extensibility, then Plug-ins"



   The Plug-ins page displays and you see the plug-ins that have been downloaded and can be deployed. Locate the Databases folder in the Name column.

2. Expand the Databases folder in the Name column and click Oracle TimesTen In-Memory Database.

   Figure 1-21 Select Oracle TimesTen In-Memory Database plug-in


   Description of "Figure 1-21 Select Oracle TimesTen In-Memory Database plug-in"



   You are now ready to deploy the plug-in on the Agent. Locate the Deploy On tab at the top of the page.

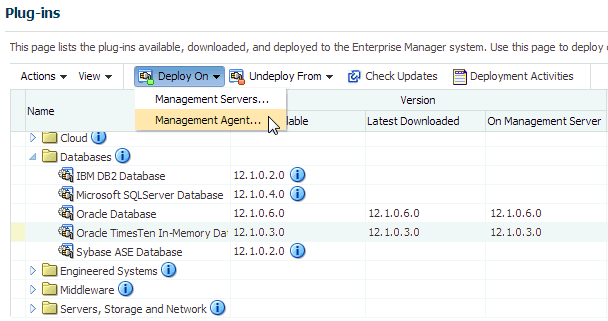

3. From the Deploy On menu, select Management Agent....

   Figure 1-22 Deploy on Management Agent


   Description of "Figure 1-22 Deploy on Management Agent"



   The Deploy Plug-in on Management Agent General page displays. The plug-in Oracle TimesTen In-Memory Database is displayed in the Name column and the Version is auto-filled. The supported target versions column indicates the minimum version of TimesTen that the agent supports. Locate the Continue button below the Target Types table.

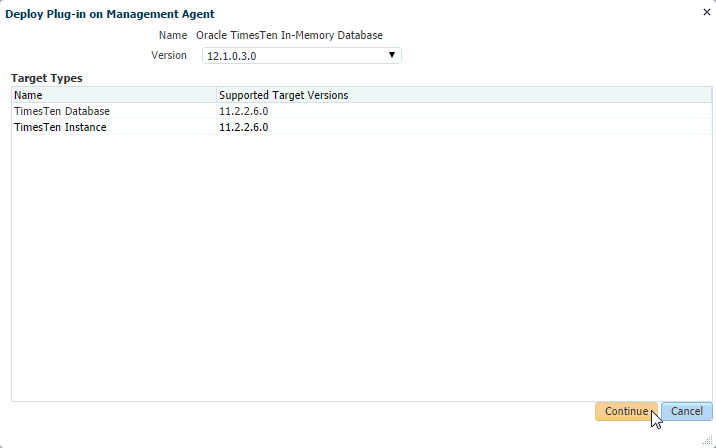

4. Click Continue.

   Figure 1-23 Click Continue


   Description of "Figure 1-23 Click Continue"



   You can now select the agent where you want to deploy the plug-in. The agent status must be up as indicated by the green up arrow in the Status column of the Management Agents table.

5. In the Management Agents table, locate the row that contains the correct agent as identified by management agent. Click in this row and then click Continue.

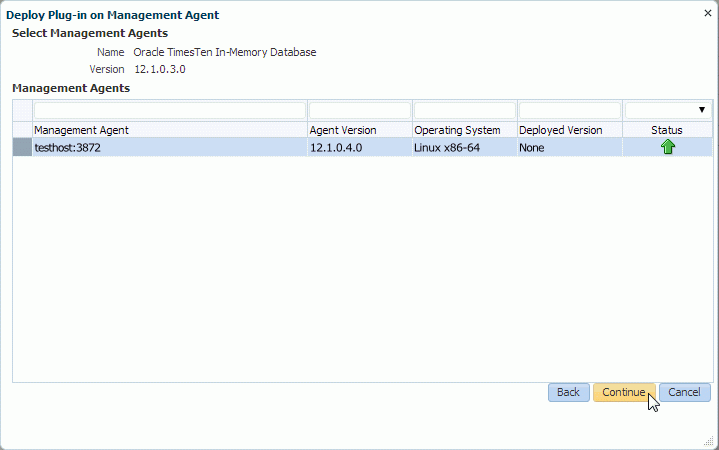

   Figure 1-24 Select agent and click Continue


   Description of "Figure 1-24 Select agent and click Continue"



   The Deploy Plug-in on Management Agent Prerequisite Checks page displays. In the Management Agent table, verify the Status column has a green check and the Error Message column contains the text "No Error."

6. Click Next.

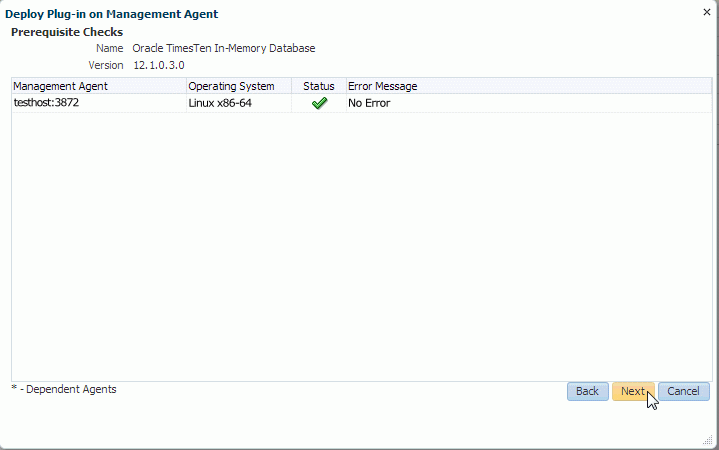

   Figure 1-25 Prerequisite checks


   Description of "Figure 1-25 Prerequisite checks"



   The Deploy Plug-in on Management Agent Review page displays. In the name column, verify the plug-in name is Oracle TimesTen In-Memory Database and the version is correct. Ensure that you see the text "Management Agents that passed the prerequisite checks" and ensure that the Management Agent is correct.

   You are ready to deploy the plug-in.

7. Click Deploy.

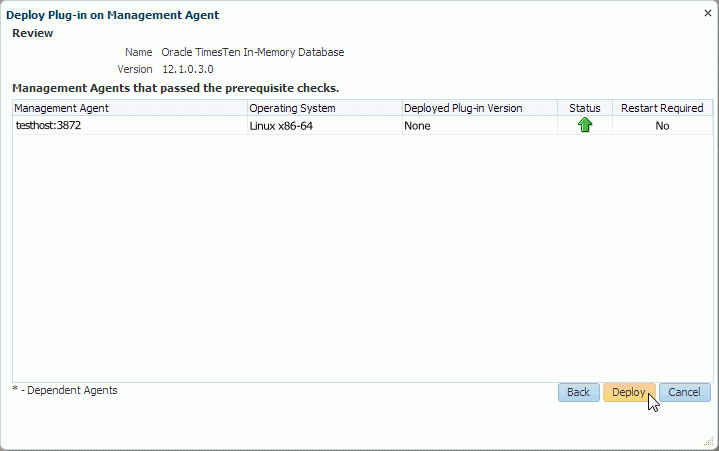

   Figure 1-26 Click Deploy


   Description of "Figure 1-26 Click Deploy"

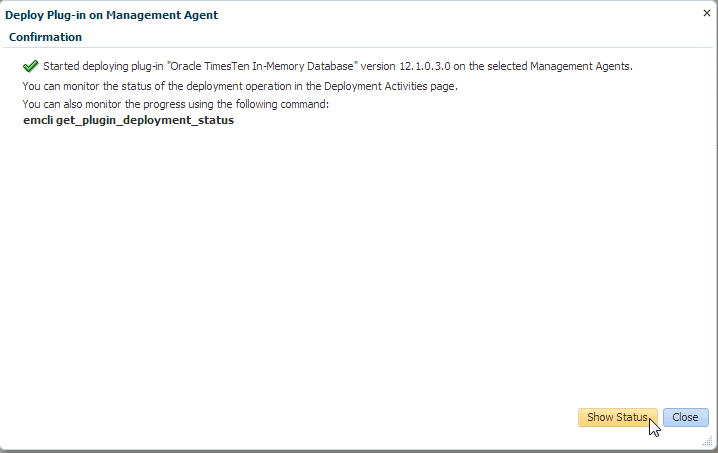

   The Deploy Plug-in on Management Agent Confirmation page displays with a message indicating the deployment of the plug-in has started on selected agents. The deployment can take several minutes. You may monitor the deployment status by clicking Show Status or going to the Deployment Activities page.

8. Click Show Status.

   Figure 1-27 Confirmation dialog


   Description of "Figure 1-27 Confirmation dialog"



   The Plug-ins Deployment Activities page displays showing the status of recent deployment activities and a detailed status of the TimesTen deployment steps in table format. The second table on this page, Deployment Steps: Oracle TimesTen In-Memory Database, shows the deployment steps for the TimesTen plug-in. The last step located in the last row of this table is named "Update inventory". Once this step is completed, ensure that there are green checks in the Status column of each row in the Deployment Steps table. Such checks indicate all steps in the deployment process are completed and are successful. If auto refresh is set to off, you may want to set auto refresh to 15 seconds, so you can see the steps as they are completed.

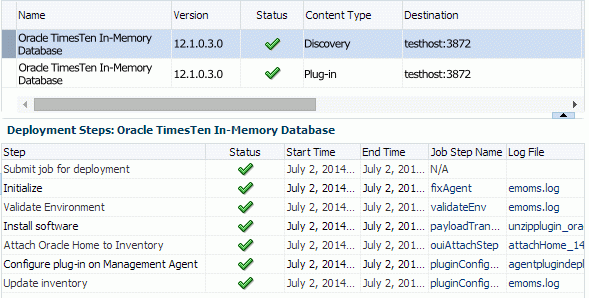

   Figure 1-28 Deployment of agent successful


   Description of "Figure 1-28 Deployment of agent successful"



   The plug-in is deployed on the Management Agent and the automatic discovery scripts of the plug-in are deployed on the agent. You can now configure automatic discovery for the TimesTen plug-in, see "Initial automatic discovery configuration". Repeat steps 1-8 to deploy the plug-in on additional Management Agents.

You are now ready to configure a TimesTen target.

Configure a TimesTen target

You must configure a TimesTen target that is monitored by Enterprise Manager Cloud Control. You can configure a TimesTen target for TimesTen instances and each unique TimesTen database with either automatic discovery or manual configuration. When you configure a TimesTen database target, use a Data Manager DSN. Client/server DSNs are not supported. Manual configuration is recommended for advanced users.

Follow these instructions before using automatic discovery:

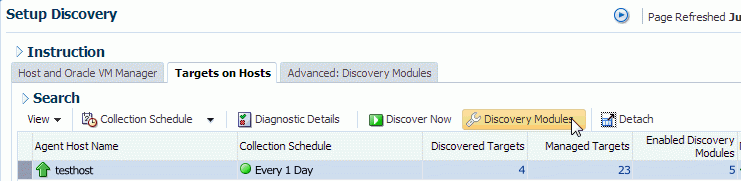

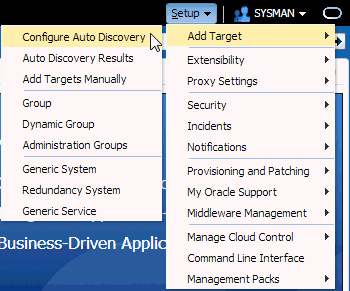

• Initial automatic discovery configuration

These are the configuration types:

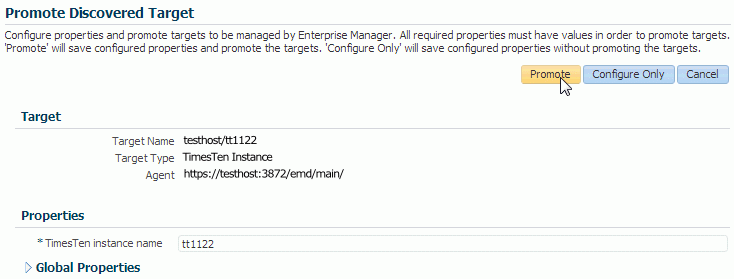

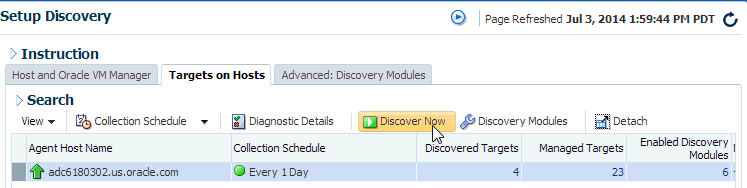

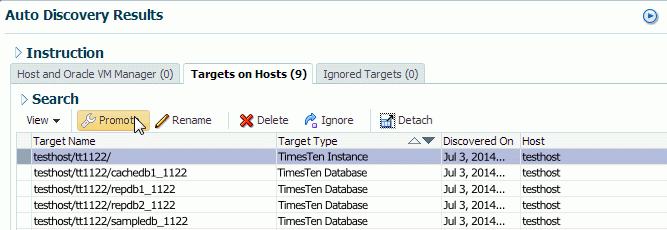

• Automatic discovery configuration for a TimesTen instance target

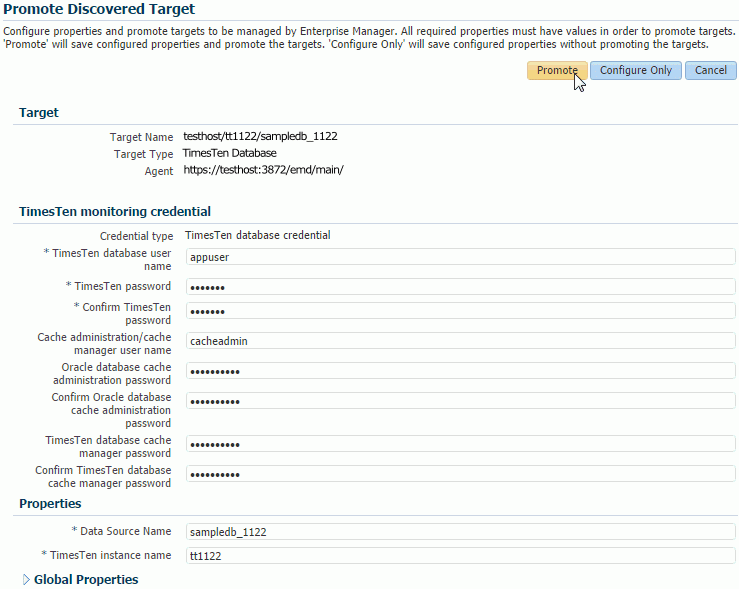

• Automatic discovery configuration for a TimesTen database target

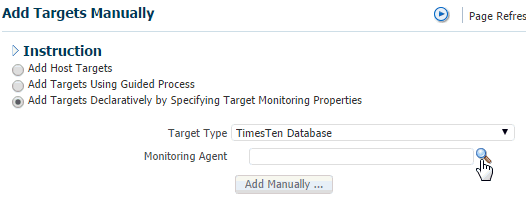

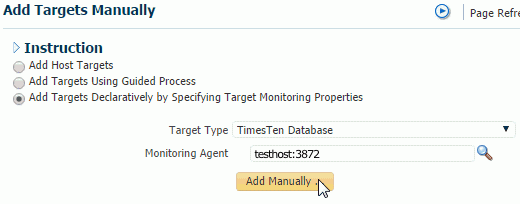

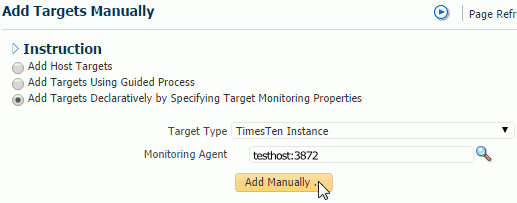

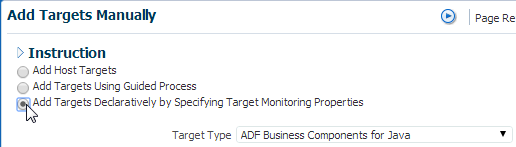

• Manual configuration for a TimesTen instance target

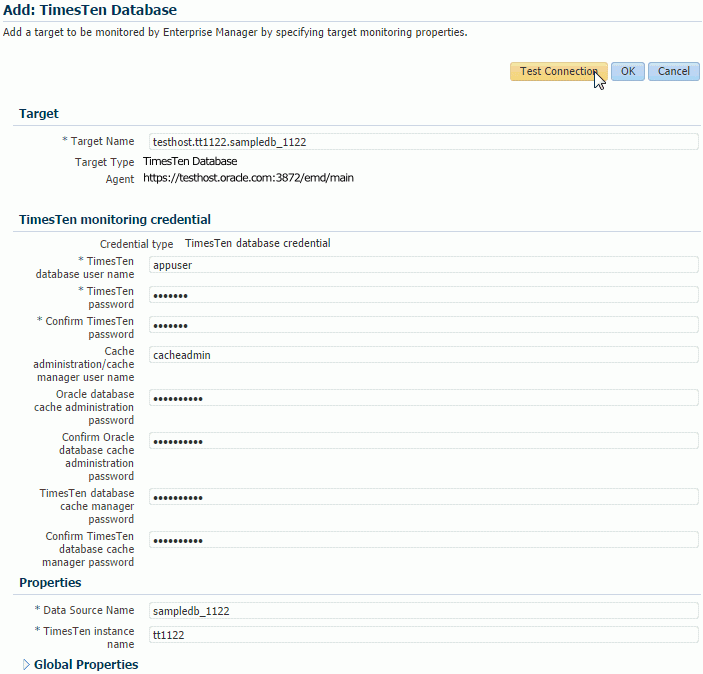

• Manual configuration for a TimesTen database target

Limited functionality when only upgrading Management Server

While testing the new plug-in, you may decide to only upgrade the 12.1.0.3.0 plug-in on the Management Server. In this case, your Management Server is version 12.1.0.3.0 while your Management Agent is version 12.1.0.2.0 and certain features will not work. The following features will not work:

• On the database Home page, the SQL Monitor is unavailable.

• On the database Performance page, checkpoint history is unavailable.

• On the database Replication Monitor page, transmitter and receiver thread status is unavailable.

• The database Transaction Monitor is unavailable.

Remove the TimesTen target

For each TimesTen target you want to remove:

1. From the Targets menu, select All Targets on the Enterprise Manager Cloud Control home page.

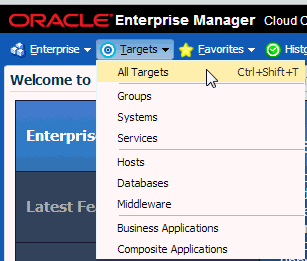

   Figure 1-79 Select All Targets


   Description of "Figure 1-79 Select All Targets"



   The All Targets page displays. Locate the Refine Search panel under the text "All Targets."

2. Expand Target Type, then Databases and click TimesTen Instance or TimesTen Database.

   Figure 1-80 Select TimesTen In Memory Database


   Description of "Figure 1-80 Select TimesTen In Memory Database"



   The target table displays. For each row in the table, confirm the column Target Type is TimesTen Instance or TimesTen Database. Also, confirm each row of the table contains the name of the target you previously configured.

   Locate the row that contains the target name you want to remove.

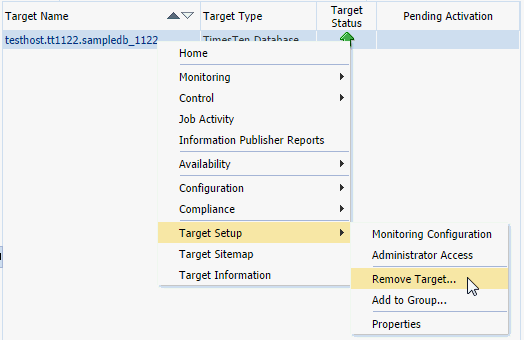

3. Right-click the Target Name located in the Target Name column of the row containing the TimesTen target and select Target Setup, then Remove Target...

   Figure 1-81 Remove target


   Description of "Figure 1-81 Remove target"

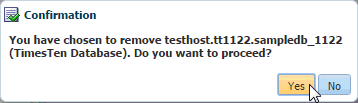

   The Confirmation dialog displays the text "You have chosen to remove TimesTen_target_name (TimesTen Instance). Do you want to proceed?" or "You have chosen to remove TimesTen_target_name (TimesTen Database). Do you want to proceed?"

   The TimesTen_target_name is the name of your TimesTen target. For example, testhost.tt1122.sampledb_1122.

4. Click Yes.

   Figure 1-82 Remove target confirmation dialog


   Description of "Figure 1-82 Remove target confirmation dialog"



   The Information dialog displays the text "Target TimesTen_target_name (TimesTen Instance) has been deleted" or "Target TimesTen_target_name (TimesTen Database) has been deleted" where TimesTen_target_name is the name of your TimesTen target.

5. Click OK.

   Figure 1-83 Target removed


   Description of "Figure 1-83 Target removed"



   Verify the row that contained the TimesTen target has been removed from the target table.

Your TimesTen target is removed. Repeat Steps 1-5 to remove additional targets. If all targets are removed, you can undeploy and then delete the plug-in from the Oracle Enterprise Manager Cloud Control.

Undeploy the plug-in from the Management Agent

You must undeploy the plug-in from all the Management Agents that are monitoring TimesTen targets.

Ensure that you have removed all TimesTen targets. For more information on the steps to remove a TimesTen target, see "Remove the TimesTen target".

To undeploy the plug-in from the Management Agent, ensure that you are on the Oracle Enterprise Manager Cloud Control home page.

1. From the Setup menu, select Extensibility, then select Plug-ins.

   Figure 1-84 Select Extensibility, then Plug-ins


   Description of "Figure 1-84 Select Extensibility, then Plug-ins"



   The Plug-ins page displays and shows the Plug-ins table. Locate the Databases folder in the Name column.

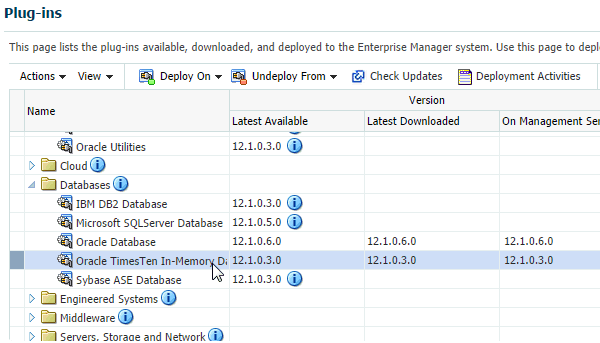

2. Expand the Databases folder in the Name column and click Oracle TimesTen In-Memory Database.

   Figure 1-85 Select Oracle TimesTen In-Memory Database plug-in


   Description of "Figure 1-85 Select Oracle TimesTen In-Memory Database plug-in"



   You are now ready to undeploy the plug-in from the agent. Locate the Undeploy From tab at the top of the page.

3. From the Undeploy From menu, select Management Agent....

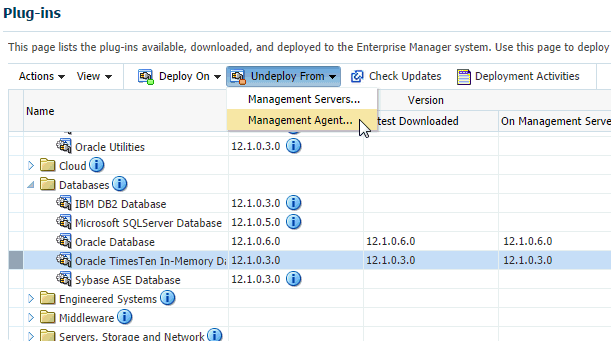

   Figure 1-86 Undeploy from Management Agent


   Description of "Figure 1-86 Undeploy from Management Agent"



   The Undeploy Plug-in from Management Agent General dialog displays. The plug-in Oracle TimesTen In-Memory Database is displayed in the Name column. Locate the Add... button below the Management Agent with this plug-in title.

4. Click Add...

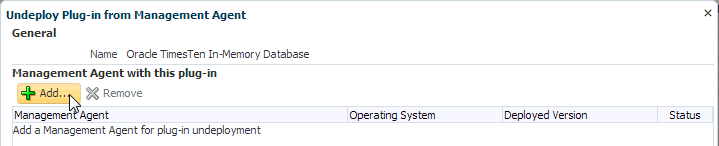

   Figure 1-87 Click Add


   Description of "Figure 1-87 Click Add "



   The Select Targets dialog displays. You are now ready to select the agent to undeploy. Below the text "Select Status Up Agents where TimesTen In-Memory Database is deployed," ensure that the Target Type column equals Agent.

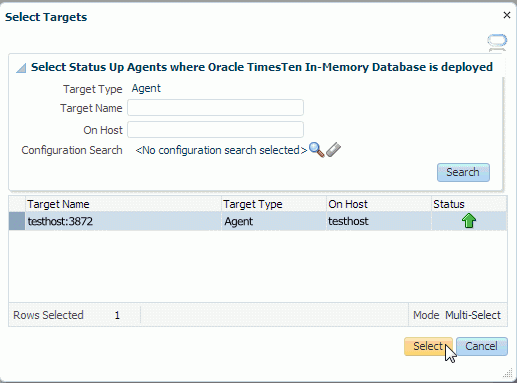

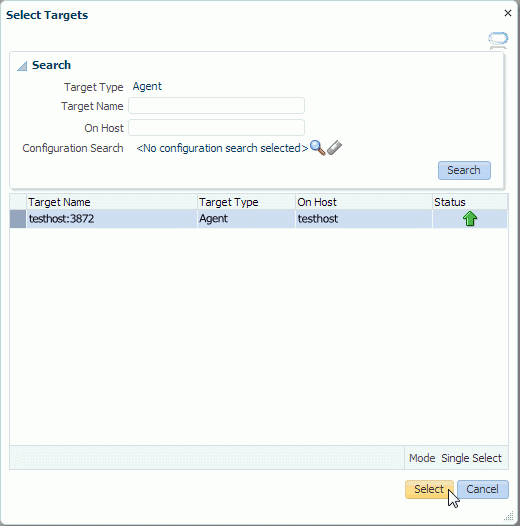

5. In the Target table, locate the row that contains the correct agent as identified by target name and host. Click in this row and then click Select.

   Figure 1-88 Select agent to undeploy


   Description of "Figure 1-88 Select agent to undeploy"



   The Management Agent table is updated with the name of the Management Agent you selected.

6. Click Continue.

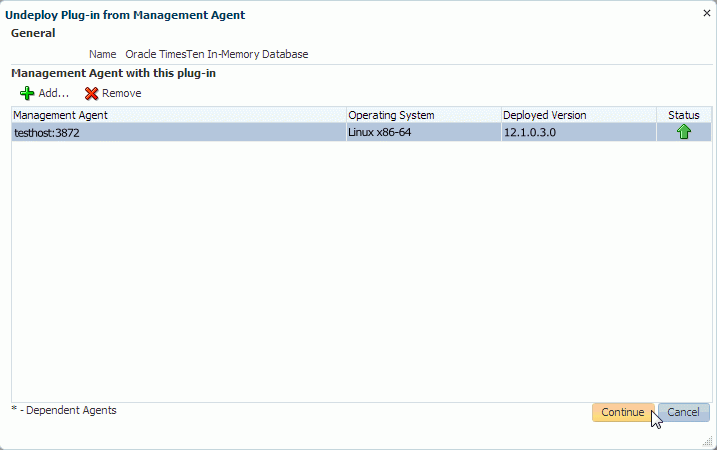

   Figure 1-89 Click Continue


   Description of "Figure 1-89 Click Continue"

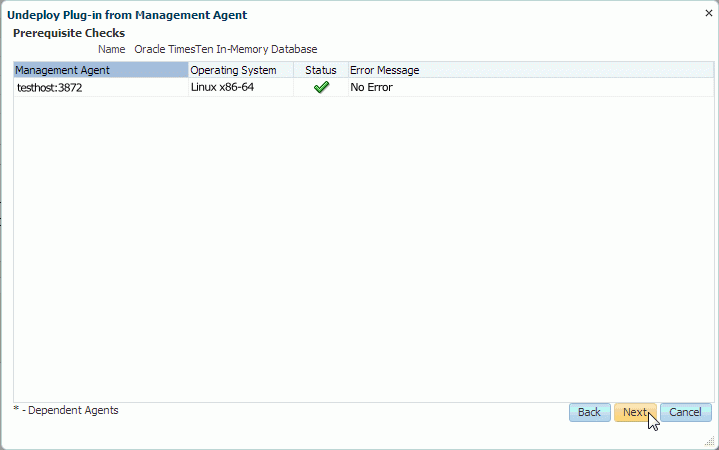

   The Undeploy Plug-in from Management Prerequisite Checks dialog displays. Ensure that there is a green check mark in the Status column of the Management Agent table.

7. Click Next.

   Figure 1-90 Click Next


   Description of "Figure 1-90 Click Next"

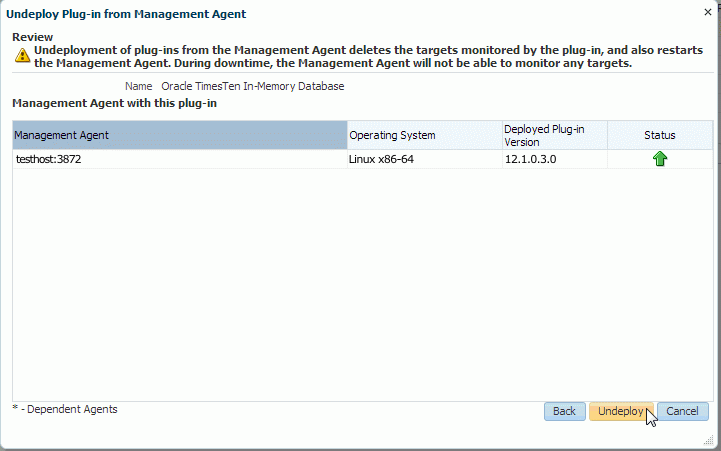

   The Undeploy Plug-in From Management Agent Review dialog displays and shows the informational message, "Undeployment of plug-ins from the Management Agent deletes the targets monitored by the plug-in, and also restarts the Management Agent. During downtime, the Management Agent will not be able to monitor any targets."

   In the Management Agent with this plug-in table, verify the name in the Management Agent column is correct.

8. Click Undeploy.

   Figure 1-91 Click Undeploy


   Description of "Figure 1-91 Click Undeploy"



   The Undeploy Plug-in from Management Agent Confirmation dialog displays with a message indicating the undeployment of the plug-in has started on selected agents. The undeployment time varies. You may monitor the undeployment status by clicking Show Status or going to the Recent Deployment Activities page.

9. Click Show Status.

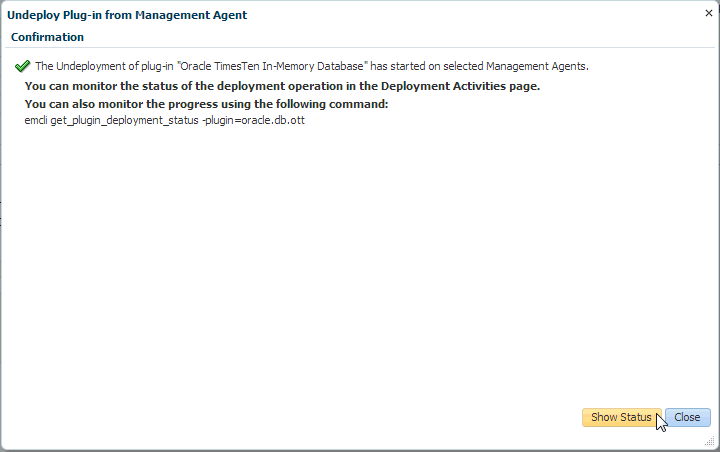

   Figure 1-92 Undeploy agent confirmation


   Description of "Figure 1-92 Undeploy agent confirmation"



   The Plug-ins Deployment Activities page displays showing the status of the undeployment steps in table format. Verify the first step located in the first row of the table contains the text, "Initialize" and verify the last step located in the last row of the table contains the text, "Update inventory." This is the last step in the undeployment process. Ensure that there are green checks in the Status column of each row in the Deployment Steps table. Such checks indicate all steps in the undeployment process are completed and are successful. Also, ensure that there is a green check in the Status column in the undeployment table located at the top of the page. If auto refresh is set to off, you may want to set auto refresh to 15 seconds, so you can see the steps as they are completed.

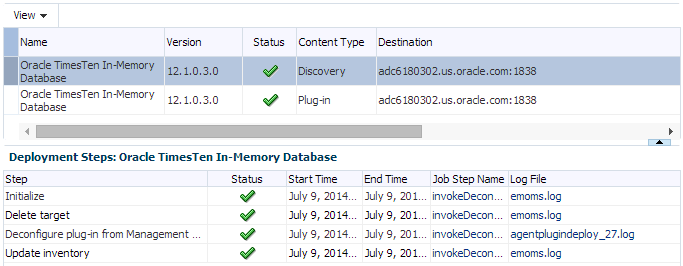

   Figure 1-93 Undeployment successful


   Description of "Figure 1-93 Undeployment successful"



   The plug-in is undeployed from the Management Agent and the automatic discovery scripts of the plug-in are removed from the Management Agent. Repeat Steps 1-8 to undeploy each management agent that is monitoring the plug-in.

You are now ready to undeploy the plug-in from the Oracle Management Service (OMS).

Undeploy the plug-in from OMS

Before you undeploy the plug-in from OMS, ensure that you have undeployed the plug-in from all the Management Agents that are monitoring the plug-in.

To undeploy the plug-in from OMS, ensure that you are on the Oracle Enterprise Manager Cloud Control home page.

1. From the Setup menu, select Extensibility, then select Plug-ins.

   Figure 1-94 Select Extensibility, then Plug-ins


   Description of "Figure 1-94 Select Extensibility, then Plug-ins"



   The Plug-ins page displays and shows the Plug-ins table. Locate the Databases folder in the Name column.

2. Expand the Databases folder in the Name column and select Oracle TimesTen In-Memory Database.

   Figure 1-95 Select TimesTen In-Memory Database plug-in


   Description of "Figure 1-95 Select TimesTen In-Memory Database plug-in"



   You are now ready to undeploy the plug-in from OMS. Locate the Undeploy From tab at the top of the page.

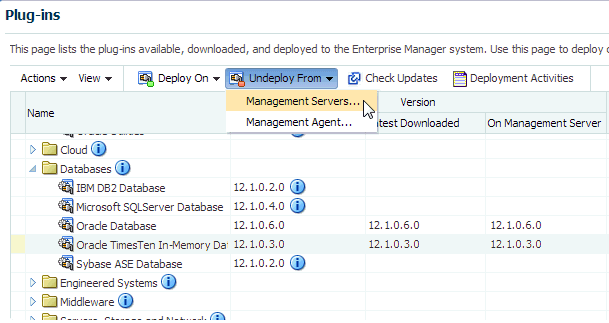

3. From the Undeploy From menu, select Management Servers....

   Figure 1-96 Undeploy from OMS


   Description of "Figure 1-96 Undeploy from OMS"



   The Undeploy Plug-in from Management Server General page displays. The plug-in Oracle TimesTen In-Memory Database is displayed in the Name column and the Version is auto-filled. You must enter the Repository SYS user password.

4. In the *Repository SYS Password column, type the Repository SYS user password.

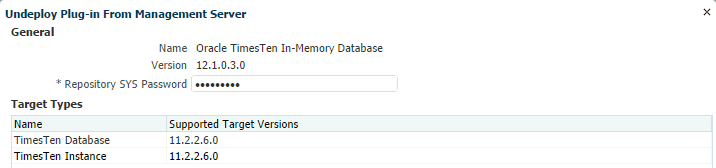

   Figure 1-97 Repository SYS Password


   Description of "Figure 1-97 Repository SYS Password"



   Locate the Continue button in the bottom right of the dialog.

5. Click Continue.

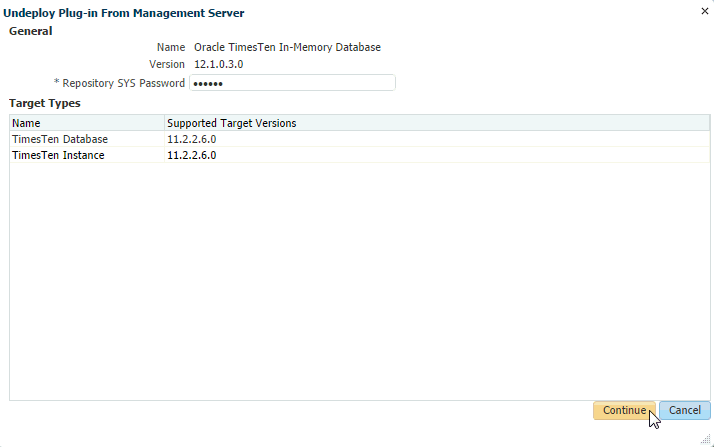

   Figure 1-98 Click Continue


   Description of "Figure 1-98 Click Continue "



   The Undeploy Plug-in From Management Server Review page displays. In the Management Servers table, verify the Management Server name is correct. Verify the version is correct. Also, consider making a backup of the OMS repository before deploying the plug-in. For more information on backing up the OMS repository, see "Backing Up the OMS" in the Oracle Enterprise Manager Cloud Control Advanced Installation and Configuration Guide.

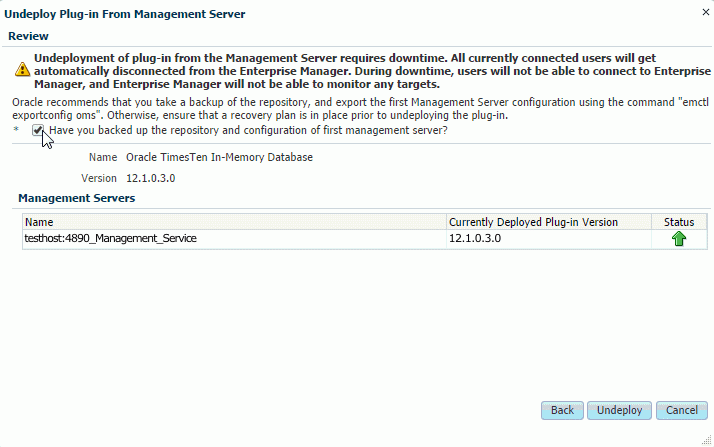

6. Select the Have you backed up the repository and configuration of first management server? check box.

   Figure 1-99 Select repository backup confirmation


   Description of "Figure 1-99 Select repository backup confirmation"



7. Click Undeploy.

   Figure 1-100 Review Undeploy from OMS


   Description of "Figure 1-100 Review Undeploy from OMS"



   Note:

   The Oracle Enterprise Manager Cloud Control server restarts during the undeployment process.

   The Undeploy Plug-in From Management Server Confirmation page displays with a message indicating the undeployment of the plug-in is in progress. The undeployment time varies. You may monitor the undeployment status by clicking Show Status or going to the Recent Deployment Activities page.

8. Click Show Status.

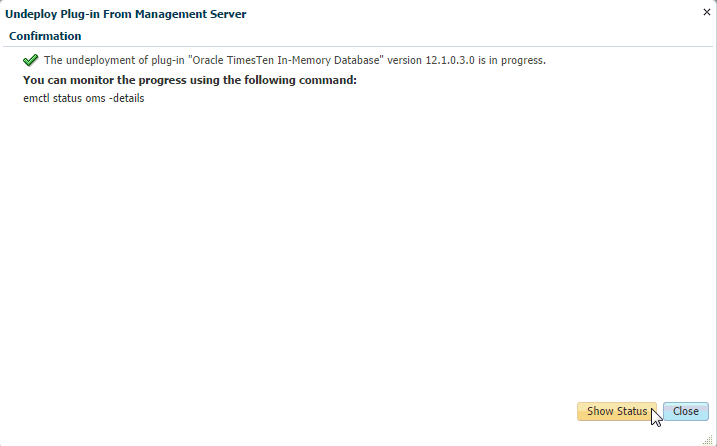

   Figure 1-101 Undeploy from OMS confirmation


   Description of "Figure 1-101 Undeploy from OMS confirmation"

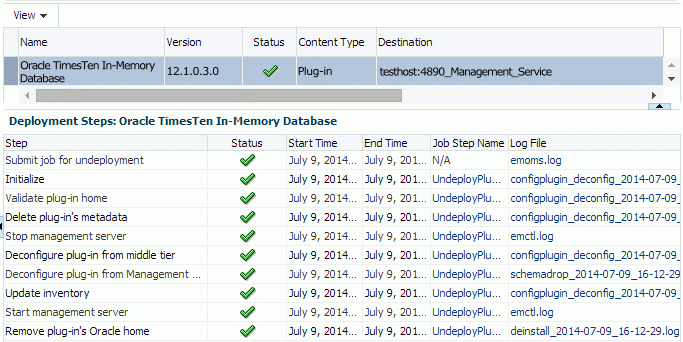

   The Plug-ins Deployment Activities page displays showing the status of the undeployment steps in table format. Verify the last step located in the last row of the table contains the text, "Remove plugin's oracle home." This is the last step in the undeployment process. Ensure that there are green checks in the Status column of each row in the Deployment Steps table. Such checks indicate all steps in the undeployment process are completed and are successful. Also, ensure that there is a green check in the Status column in the undeployment table located at the top of the page. If auto refresh is set to off, you may want to set auto refresh to 15 seconds, so you can see the steps as they are completed.

   Figure 1-102 Undeployment of OMS successful


   Description of "Figure 1-102 Undeployment of OMS successful"



   The plug-in is undeployed from OMS.

You are now ready to delete the plug-in from OMS and the Management Agent.

Delete the plug-in

When you delete the plug-in, you remove the plug-in from the Oracle Enterprise Manager Cloud Control. To delete the plug-in, ensure that you are on the Oracle Enterprise Manager Cloud Control home page.

1. From the Setup menu, select Extensibility, then select Self Update.

   Figure 1-103 Select Extensibility, then Self Update


   Description of "Figure 1-103 Select Extensibility, then Self Update"



   The Self Update page displays. Locate the Plug-in folder.

2. Click the name Plug-in.

   Figure 1-104 Plug-in folder


   Description of "Figure 1-104 Plug-in folder"



   The Plug-in Updates page displays. In the Plug-in Name column, locate Oracle TimesTen In-Memory Database. Confirm the Status column is equal to Downloaded.

3. In the Plug-in Name column, click Oracle TimesTen In-Memory Database.

   Figure 1-105 Plug-in updates


   Description of "Figure 1-105 Plug-in updates"



   Prepare to expand the Actions tab located under Plug-in Updates at the top of the page.

4. Expand Actions and select Delete.

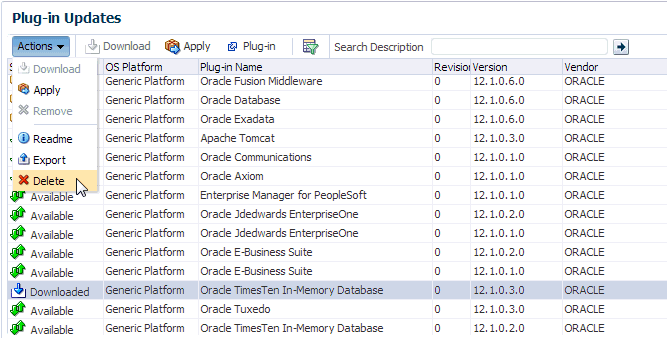

   Figure 1-106 Delete plug-in


   Description of "Figure 1-106 Delete plug-in"



   The Delete Update dialog displays indicating the delete will remove the update (plug-in) permanently. Prepare to confirm the delete by clicking Delete.

5. Click Delete.

   Figure 1-107 Delete Update confirmation


   Description of "Figure 1-107 Delete Update confirmation"



   A confirmation dialog displays indicating that the update (plug-in) has been deleted permanently.

6. Click OK.

   Figure 1-108 Plug-in deleted


   Description of "Figure 1-108 Plug-in deleted"



You have successfully deleted the plug-in. You can verify the plug-in has been deleted by reviewing the Plug-in Updates page. You should no longer see the TimesTen plug-in.
