You can customize the enforcement of Oracle Label Security policies and implement labeling functions.
Topics:
Oracle Label Security provides a set of policy enforcement options.
Topics:
Of all the enforcement controls that Oracle Label Security permits, the administrator must choose those that meet the needs of the given application. This means identifying levels of data sensitivity to exposure, alteration, or misuse, as well as identifying which users have the need or the right to access or alter such data. The policy enforcement options enable administrators to fine-tune users' abilities to read or write data or labels.
Table 8-1 lists the levels on which policy enforcement options can operate.
Table 8-1 When Policy Enforcement Options Take Effect
Level at which option set | Options set at this level affect user operations ... |
---|---|
Policy Level |
... only when the policy has been applied to the table or schema |
Schema Level |
... whenever a user acts in this schema |
Table Level |
... whenever a user acts in this table |
When you apply a policy to a table or schema, you can specify the enforcement options that are to constrain use of that table or schema. If you do not specify enforcement options at that time, then the default enforcement options you specified when you created that policy are used automatically.
These options customize your policy enforcement to meet your security requirements as to READ
access, WRITE
access, and label changes. You can also specify whether the label column should be displayed or hidden. You can choose to enforce some or all of the policy options for any protected table by specifying only those you want.
Optionally, you can assign each table a labeling function, which determines the label of any row inserted or updated in that table. You can also specify, optionally, a SQL predicate for a table, to control which rows are accessible to users, based on their labels.
See Also:
When Oracle Label Security policy enforcement options are applied, they control which rows are accessible to view or to insert, update, or delete.
Table 8-2 lists the policy enforcement options in three categories.
Label management options, ensuring that data labels written for inserted or updated rows do not violate policies set for such labels
Access control options, ensuring that only rows whose labels meet established policies are accessible for SELECT
, UPDATE
, INSERT
, or DELETE
operations.
Overriding options, which can suspend or apply all other enforcement options.
Table 8-2 Policy Enforcement Options
Type of Enforcement | Option | Description |
---|---|---|
|
Uses the session's default row label value unless the user explicitly specifies a label on |
|
|
Applies policy enforcement to |
|
|
Applies |
|
|
Applies policy enforcement to all queries. Only authorized rows are accessible for |
|
|
Determines the ability to |
|
|
Applies policy enforcement to |
|
|
Applies policy enforcement to |
|
|
Applies policy enforcement to |
|
|
Applies all enforcement options. |
|
|
Applies no enforcement options. A labeling function or a SQL predicate can nonetheless be applied. |
Remember that even when Oracle Label Security is applicable to a table, some DML operations may not be covered by the policies being applied. The policy enforcement options set by the administrator determine both the SQL processing behavior and what an authorized user can actually see in response to a query on a protected table. Except where noted, this chapter assumes that ALL_CONTROL
is active, meaning that all enforcement options are in effect. If users attempt to perform an operation for which they are not authorized, then an error message is raised and the SQL statement fails.
Understanding the relationships among these policy enforcement options, and what SQL statements they control, is essential to their effective use in designing and implementing your Oracle Label Security policies.
Table 8-3 describes the relationships between policy enforcement options.
Table 8-3 What Policy Enforcement Options Control
Specifying This Option in a Policy | Controls These SQL Operations | Using These Criteria and with These Effects |
---|---|---|
|
Only authorized rows (*) are accessible. |
|
|
(a) Only authorized rows (**) are accessible (b) Data labels writable unless |
|
|
||
|
|
|
|
|
|
|
|
|
|
Applies |
|
Applies policy enforcement to all queries. Only authorized rows are accessible for operations. |
||
Determines the ability to data in a row. If this option is active, then it enforces. |
||
Applies policy enforcement to |
||
Applies policy enforcement to |
||
Applies policy enforcement to |
||
Applies all enforcement options. |
||
Applies no enforcement options. A labeling function or a SQL predicate can nonetheless be applied. |
(*) A row is authorized for READ
access if the following three criteria are all met:(user-minimum-level) < = (data-row-level) < = (session-level)(any-data-group) is a child of (any-user-group-or-childgroup)(every-data-compartment) is also in (the user's compartments)Refer to Figure 3-6
(**) A row is authorized for READ access if the following three criteria are all met:(user-minimum-level) < = (data-row-level) < = (session-level)(any-data-group) is a child of (any-user-group-or-childgroup)(every-data-compartment) is also in (the user's compartments)Refer to Figure 3-6.
You can specify the HIDE
policy configuration option when you initially apply an Oracle Label Security policy to a table, that is, when adding the policy column to the table.
This prevents display of the column containing the policy's labels.
Once the policy has been applied, the hidden (or not hidden) status of the column cannot be changed unless the policy is removed with the DROP_COLUMN
parameter set to TRUE
. Then, the policy can be reapplied with a new hidden status.
INSERT
statements doing all-column inserts do not require the values for hidden label columns.
SELECT
statements do not automatically return the values of hidden label columns. Such values must be explicitly retrieved.
A DESCRIBE
on a table may or may not display the label column. If the administrator sets the HIDE
option, then the label column will not be displayed. If HIDE
is not specified for a policy, then the label column is displayed in response to a SELECT
.
The three label enforcement options control the data label written when a row is inserted or updated. When a policy specifies these options and is applied to a table or schema, these options apply to the situations described in this section.
A user inserting a row can specify any data label within the range of the user's label authorizations. If the user does not specify a label for the row being written, LABEL_DEFAULT
can do so. Updates can be restricted by LABEL_UPDATE
. Inserts or updates that use a labeling function need CHECK
_CONTROL
to prevent assigning a data label outside the user's authorizations. Such a label would prevent the user from accessing the row just written, and could enable the user to make data available inappropriately.
Any labeling function in force on a table overrides these options. Such a function can be named in the call that applies the policy to the table. If the administrator named such a function when applying a policy, but then disables or removes that policy, then that function is no longer applied.
See Also:
A user can update a row without specifying a label value, because the updated row uses its original label. However, to insert a new row, the user must supply a valid label unless a labeling function is in force or LABEL_DEFAULT
applies for the table. LABEL_DEFAULT
causes the user's session default row label to be used as the new row label.
If neither LABEL_DEFAULT
nor a labeling function is in force and the user attempts to INSERT
a row, then an error occurs.
Note that any labeling function in force on a table overrides the LABEL_DEFAULT
option.

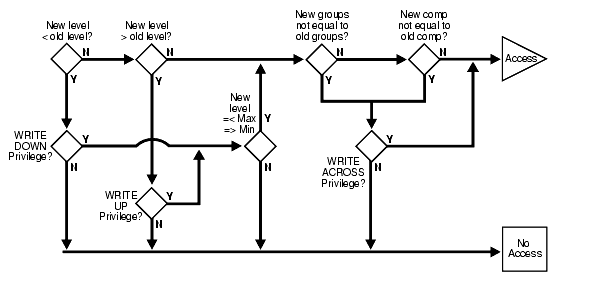

A user updating a row can normally change its label to any label within his authorized label range. However, if LABEL_UPDATE
applies, then to modify a label, the user must have one or more of these privileges: WRITEUP
, WRITEDOWN
, and WRITEACROSS
.
The LABEL_UPDATE
option uses an Oracle after-row trigger which is called only on an update operation affecting the label. Note that any labeling function in force on a table overrides the LABEL_UPDATE
option.
See Also:
If a row being inserted or updated gets its label from a labeling function, then that label could conceivably be outside the user's authorizations, preventing future access by that user.
CHECK_CONTROL
causes READ_CONTROL
to apply to the new label, ensuring that this user will be authorized to read the inserted or updated row after the operation. If not, then the insert or update operation is canceled and has no effect.
In other words, if CHECK_CONTROL
is included as an option in a policy being enforced on a row, then the user modifying that row must still be able to access it after the operation. CHECK_CONTROL
prevents a user or a labeling function from modifying a row's label to include a level, group, or compartment that the modifying user would be prevented from accessing.
Note that CHECK_CONTROL
overrides any labeling function in force on a table.
Access control options limit the rows accessible for SELECT
, UPDATE
, INSERT
, or DELETE
operations to only those rows whose labels meet established policies.
Topics:
READ_CONTROL
uses Oracle virtual private database (VPD) technology to enforce the read access mediation algorithm illustrated in Figure 3-6.
READ_CONTROL
limits the set of records accessible to a session for SELECT
, UPDATE
and DELETE
operations. If READ_CONTROL
is not active, then even rows in the table protected by the policy are accessible to all users.
WRITE_CONTROL
uses Oracle after-row triggers to enforce the write access mediation algorithm illustrated in Figure 3-7. When an Oracle Label Security policy specifying the WRITE_CONTROL
option is applied to a table, triggers are generated and the algorithm is enforced.
Note:
The protection implementation for WRITE_CONTROL
is the same for all write operations, but you need not apply all write options across the board. You can apply WRITE_CONTROL
selectively for INSERT
, UPDATE
, and DELETE
operations by using the corresponding policy enforcement option (INSERT_CONTROL
, UPDATE_CONTROL
, and DELETE_CONTROL
) instead of WRITE_CONTROL
.
If WRITE_CONTROL
is on but LABEL_UPDATE
is not specified, then the user can change both data and labels. If you want to control updating the row labels, then specify the LABEL_UPDATE
option in addition to WRITE_CONTROL
when creating your policies.
These options apply policy enforcement during the corresponding operations on the data columns within a row, according to the algorithm for write access described in Figure 3-7.
Specifying WRITE_CONTROL
limits all INSERT
, UPDATE
, and DELETE
operations. However,
Specifying INSERT_CONTROL
limits insertions but not updates or deletes;
Specifying UPDATE_CONTROL
limits updates but not insertions or deletes; and
Specifying DELETE_CONTROL
limits deletes but not insertions or updates.
See Also:
For inserts, Inserting Labeled Data Using Policy Options and Labeling Functions;
for updates, Updating Labeled Data Using Policy Options and Labeling Functions;
and for deletions, Deletion of Labeled Data Using Policy Options and Labeling Functions.
Whereas ALL_CONTROL
applies all of the label management and access control enforcement options, NO_CONTROL
applies none of them.
In either case, labeling functions and SQL predicates can be applied. Note that the ALL_CONTROL
option can be used only on the command line. If you apply a policy with NO_CONTROL
specified, then a policy label column is added to the table, but the label values are NULL
. Because no access controls are operating on the table, you can proceed to enter labels as desired. You can then set the policy enforcement options as you want. NO_CONTROL
can be a useful option if you have a labeling function in force to label the data correctly, but want to let all users access all the data.
You can customize policy enforcement for a schema or table through the Oracle Enterprise Manager as described in Creating an Oracle Label Security Policy or by using the SA_POLICY_ADMIN
package as described in "SA_POLICY_ADMIN Policy Administration PL/SQL Package".
See Also:
This section documents the supported keywords.
Note that when you create a policy, you can specify a string of default options to be used whenever the policy is applied without schema or table options being specified.
If a policy is first applied to a table, and then also applied to the schema containing that table, then the options on the table are not affected by the schema policy. The options of the policy originally applied to the table remain in force.
In general, administrators use the LABEL_DEFAULT
policy option, causing data written by a user to be labeled with that user's row label. Alternatively, a labeling function can be used to label the data. If neither of these two choices is used, then a label must be specified in every INSERT
statement. (Updates retain the row's original label.)
The following table suggests that certain combinations of policy enforcement options are useful when implementing an Oracle Label Security policy. As the table indicates, you might typically enforce READ_CONTROL
and WRITE_CONTROL
, choosing from among several possible combinations for setting the data label on writes.
Table 8-4 Suggested Policy Enforcement Option Combinations
Oracle Label Security has several exceptions from OLS policy enforcement.
Oracle Label Security is not enforced during DIRECT
path export.
By design, Oracle Label Security policies cannot be applied to objects in schema SYS
. As a consequence, the SYS
user, and users making a DBA-privileged connection to the database (such as CONNECT AS SYSDBA
) do not have Oracle Label Security policies applied to their actions. DBAs need to be able to administer the database. It would make no sense, for example, to export part of a table due to an Oracle Label Security policy being applied. The database user SYS
is thus always exempt from Oracle Label Security enforcement, regardless of the export mode, application, or utility used to extract data from the database.
Similarly, database users granted the EXEMPT
ACCESS
POLICY
privilege, either directly or through a database role, are exempted from some Oracle Label Security policy enforcement controls such as READ_CONTROL
and CHECK_CONTROL
, regardless of the export mode, application or utility used to access the database or update its data. Refer to Table 8-2. The following policy enforcement options remain in effect even when EXEMPT
ACCESS
POLICY
is granted:
INSERT_CONTROL
, UPDATE_CONTROL
, DELETE_CONTROL
, WRITE_CONTROL
, LABEL_UPDATE
, and LABEL_DEFAULT
.
If the Oracle Label Security policy specifies the ALL_CONTROL
option, then all enforcement controls are applied except READ_CONTROL
and CHECK_CONTROL
.
EXEMPT
ACCESS
POLICY
is a very powerful privilege and should be carefully managed.
Note that this privilege does not affect the enforcement of standard Oracle Database object privileges such as SELECT
, INSERT
, UPDATE
, and DELETE
. These privileges are enforced even if a user has been granted the EXEMPT
ACCESS
POLICY
privilege.
See Also:
Performing DBA Functions Under Oracle Label Security for other DBA-releated functions
Application developers can create labeling functions. These programs can compute and return a label using a wide array of resources, including context variables (such as date or username) and data values.
Topics:
There are three ways to label data that is being inserted or updated.
You can explicitly specify a label in every INSERT
or UPDATE
to the table.
You can set the LABEL_DEFAULT
option, which causes the session's row label to be used if an explicit row label is not included in the INSERT
or UPDATE
statement.
You can create a labeling function, automatically calls on every INSERT
or UPDATE
statement and independently of any user's authorization.
The recommended approach is to write a labeling function to implement your rules for labeling data. If you specify a labeling function, then Oracle Label Security embeds a call to that function in INSERT
and UPDATE
triggers to compute a label.
For example, you could create a labeling function named my_label
to use the contents of COL1
and COL2
of the new row to compute and return the appropriate label for the row. Then, you could insert, into your INSERT
or UPDATE
statements, the following reference:
my_label(:new.col1,:new.col2)
If you do not specify a labeling function, then specify the LABEL_DEFAULT
option. Otherwise, you must explicitly specify a label on every INSERT
or UPDATE
statement.
Labeling functions enable you to consider, in your rules for assigning labels, information drawn from the application context.
For example, you can use as a labeling consideration the IP address to which the user is attached. There are many opportunities to use SYS_CONTEXT
in this way.
Note:
If the SQL statement is invalid, then an error will occur when you apply the labeling function to the table or policy. You should thoroughly test a labeling function before using it with tables.
Labeling functions override the LABEL_DEFAULT
and LABEL_UPDATE
options.
A labeling function is called in the context of a before-row trigger. This enables you to pass in the old and new values of the data record, as well as the old and new labels.
You can construct a labeling function to permit an explicit label to be passed in by the user.
All labeling functions must have return types of the LBACSYS.LBAC_LABEL
data type. The TO_LBAC_DATA_LABEL
function can be used to convert a label in character string format to a data type of LBACSYS.LBAC_LABEL
. Note that LBACSYS
must have the EXECUTE
privilege on your labeling function. The owner of the labeling function must have the EXECUTE
privilege on the TO_LBAC_DATA_LABEL
function, with the GRANT
option.
Note:
LBACSYS
is a unique schema providing opaque types for Oracle Label Security. Refer to the discussions in Performing DBA Functions Under Oracle Label Security.
To use the CREATE OR REPLACE FUNCTION
statement to create a labeling function for a policy, set the return value to LBACSYS.LBAC_LABEL
.
For example:
CREATE OR REPLACE FUNCTION sa_demo.gen_emp_label (Job varchar2, Deptno number, Total_sal number) Return LBACSYS.LBAC_LABEL as i_label varchar2(80); Begin /************* Determine Class Level *************/ if total_sal > 2000 then i_label := 'L3:'; elsif total_sal > 1000 then i_label := 'L2:'; else i_label := 'L1:'; end if; /************* Determine Compartment *************/ IF Job in ('MANAGER','PRESIDENT') then i_label := i_label||'M:'; else i_label := i_label||'E:'; end if; /************* Determine Groups *************/ i_label := i_label||'D'||to_char(deptno); return TO_LBAC_DATA_LABEL('human_resources',i_label); End; /
Note:
When Oracle Label Security is configured to work directly with Oracle Internet Directory, dynamic label generation is disabled, because labels are managed centrally in Oracle Internet Directory, using olsadmintool
commands. Refer to Command-line Tools for Label Security Using Oracle Internet Directory . So, if the label function generates a data label using a string value that is not already established in Oracle Internet Directory, then an error message results.
Use SA_POLICY_ADMIN.REMOVE_TABLE_POLICY
and SA_POLICY_ADMIN.APPLY_TABLE_POLICY
to specify the labeling function.
For example:
SA_POLICY_ADMIN.REMOVE_TABLE_POLICY('human_resources','sa_demo','emp'); SA_POLICY_ADMIN.APPLY_TABLE_POLICY (
POLICY_NAME => 'human_resources', SCHEMA_NAME => 'sa_demo', TABLE_NAME => 'emp', TABLE_OPTIONS => 'READ_CONTROL,WRITE_CONTROL,CHECK_CONTROL', LABEL_FUNCTION => 'sa_demo.gen_emp_label(:new.job,:new.deptno,:new.sal)', PREDICATE => NULL);
It is important to understand how enforcement options and labeling functions affect the insertion of labeled data.
Topics:
When you attempt to insert or update data based on your authorizations, the outcome depends upon what policy enforcement controls are active.
If INSERT_CONTROL
is active, then rows you insert can only have labels within your write authorizations. If you attempt to update data that you can read, but for which you do not have write authorization, an error is raised. For example, if you can read compartments A and B, but you can only write to compartment A, then if you attempt to insert data with compartment B, then the statement will fail.
If INSERT_CONTROL
is not active, then you can use any valid label on rows you insert.
If the CHECK_CONTROL
option is active, then rows you insert can only have labels you are authorized to read, even if the labels are generated by a labeling function.
A labeling function takes precedence over labels entered by the user.
If the administrator has set up an automatic labeling function, then no data label a user enters will have effect (unless the labeling function itself makes use of the user's proposed label). New row labels are always determined by an active labeling function, if present.
Note that a labeling function can set the label of a row being inserted to a value outside the range that the user writing that row can see. If such a function is in use, then the user can potentially insert a row but not be authorized to see that row. You can prevent this situation by specifying the CHECK_CONTROL
option in the policy. If this option is active, then the new data label is checked against the user's read authorization, and if the user cannot read it, then the insert operation is not performed.
If a parent table is protected by declarative referential integrity, then inserting a child row is constrained by the requirement that the parent row be visible. The user must be able to see the parent row for the insert operation to succeed, that is, the user must have read access to the parent row.
If READ_CONTROL
is active on the parent table, then the user's read authorization must be sufficient to authorize a SELECT
operation on the parent row. For example, a user who cannot read department 20 cannot insert child rows for department 20. Note that all records will be visible if the user has FULL
or READ
privileges on the table or schema.
The rules for updates in Oracle Label Security are almost identical to those for inserts, as long as the user is authorized to change the rows in question.
Topics:
If you must change a row label from SENSITIVE
to CONFIDENTIAL
, then you can change the label by using the CHAR_TO_LABEL
function.
To change a row label, use the UPDATE
SQL statement.
For example:
UPDATE emp SET hr_label = char_to_label ('HR', 'CONFIDENTIAL') WHERE ename = 'ESTANTON';
When you attempt to update data based on your authorizations, the outcome depends on what enforcement controls are active.
If UPDATE_CONTROL
is active, then you can only update rows whose labels fall within your write authorizations. If you attempt to update data that you can read, but for which you do not have write authorization, then an error is raised. Assume, for example, that you can read compartments A and B, but you can only write to compartment A. In this case, if you attempt to update data with compartment B, then the statement will fail.
If UPDATE_CONTROL
is not active, then you can update all rows to which you have read access.
If LABEL_UPDATE
is active, then you must have the appropriate privilege (WRITEUP
, WRITEDOWN
, or WRITEACROSS
) to change a label by raising or lowering its sensitivity level, or altering its groups or compartments.
If LABEL_UPDATE
is not active but UPDATE_CONTROL
is active, then you can update a label to any new label value within your write authorization.
If CHECK_CONTROL
is active, then you can only write labels you are authorized to read.
The following figure illustrates the label evaluation process for LABEL_UPDATE
.
Figure 8-1 Label Evaluation Process for LABEL_UPDATE
A labeling function takes precedence over labels entered by the user.
If the administrator has set up an automatic labeling function, then no label a user enters will have effect (unless the labeling function itself makes use of the user's proposed label). New row labels are always determined by an active labeling function, if present.
Note that the security administrator can establish a labeling function that sets the label of a row being updated to a value outside the range that you can see. If this is the case, then you can update a row, but not be authorized to see the row. If the CHECK_CONTROL
option is on, then you will not be able to perform such an update. The CHECK_CONTROL
option verifies your read authorization on the new label.
If a child row is in a table that has a referential integrity constraint, then the update can succeed only if the parent row is visible that is the user must be able to see the parent row.
If the parent table has READ_CONTROL
on, then the user's read authorization must be sufficient to authorize a SELECT
on the parent row.
For example, a user who cannot read department 20 in a parent table cannot update an employee's department to department 20 in a child table. (If the user has FULL
or READ
privilege, then all records will be visible.)
See Also:
Note the following:
If DELETE_CONTROL
is active, then you can delete only rows within your write authorization.
If DELETE_CONTROL
is not active, then you can delete only rows that you can read.
With DELETE_CONTROL
active, and declarative referential integrity defined with cascading deletes, you must have write authorization on all the rows to be deleted, or the statement will fail.
You cannot delete a parent row if there are any child rows attached to it, regardless of your write authorization. To delete such a parent row, you must first delete each of the child rows. If DELETE_CONTROL
is active on any of the child rows, then you must have write authorization to delete the child rows.
Consider, for example, a situation in which the user is UNCLASSIFIED
and there are three rows as follows:
Row | Table | Sensitivity |
---|---|---|
Parent row: |
|
|
Child row: |
|
|
Child row: |
|
|
In this case, the UNCLASSIFIED
user cannot delete the parent row.
DELETE_CONTROL
has no effect when DELETERESTRICT
is active. DELETERESTRICT
is always enforced. In some cases (depending on the user's authorizations and the data's labels) it may look as though a row has no child rows, when it actually does have children but the user cannot see them. Even if a user cannot see child rows, he still cannot delete the parent row.
You can use a SQL predicate to provide extensibility for selective enforcement of data access rules.
Topics:
A SQL predicate is a condition, optionally preceded by AND
or OR
. It can be appended for READ_CONTROL
access mediation.
The following predicate, for example, adds an application-specific test based on COL1
to determine if the session has access to the row.
AND my_function(col1)=1
The combined result of the policy and the user-specified predicate limits the rows that a user can read. So, this combination affects the labels and data that CHECK_CONTROL
will permit a user to change. An OR
clause, for example, increases the number of rows a user can read.
A SQL predicate can be useful if you want to avoid performing label-based filtering. In certain situations, a SQL predicate can easily implement row-level security on tables. Used instead of READ_CONTROL
, a SQL predicate will filter the data for SELECT
, UPDATE
, and DELETE
operations.
Similarly, in a typical, Web-enabled human resources application, a user might have to be a manager to access rows in the employee table. In such cases, the user's user label would have to dominate the label on the employee's row. A SQL predicate like the following could be added, so that an employee could bypass label-based filtering if he wanted to view his own record in the employee table. (An OR
is used so that either the label policy will apply, or this statement will apply.)
OR SYS_CONTEXT ('USERENV', 'SESSION_USER') = employee_name
This predicate enables you to have additional access controls so that each employee can access his or her own record.
You can use such a predicate in conjunction with READ_CONTROLs
or as a standalone predicate even if READ_CONTROL
is not implemented.
Note:
Verify that the predicate accomplishes your security goals before you implement it in an application.
If a syntax error occurs in a predicate under Oracle Label Security, then an error will not arise when you try to apply the policy to a table. Rather, a predicate error message will arise when you first attempt to reference the table.
A predicate applied to a table by means of an Oracle Label Security policy is appended to any other predicates that may be applied by other Oracle Label Security policies, or by Oracle Database fine-grained access control or Oracle Virtual Private Database policies. The predicates are AND
ed together.
Consider the following predicates applied to the EMP
table in the SCOTT
schema:
A predicate generated by an Oracle VPD policy, such as deptno=10
A label-based predicate generated by an Oracle Label Security policy, such as label=100
, with a user-specified predicate such as
OR SYS_CONTEXT ('USERENV', 'SESSION_USER') = ename
Correct: These predicates would be AND
ed together as follows:
WHERE deptno=10 AND (label=100 OR SYS_CONTEXT ('USERENV', 'SESSION_USER') = ename)
Incorrect: The predicates would not be combined in the following way:
WHERE deptno=10 AND label=100 OR SYS_CONTEXT ('USERENV', 'SESSION_USER') = ename
