8 Optimizer Access Paths

The database stores rows in data blocks. In tables, the database can write a row anywhere in the bottom part of the block. Oracle Database uses the block overhead, which contains the row directory and table directory, to manage the block itself.

An extent is made up of logically contiguous data blocks. The blocks may not be physically contiguous on disk. A segment is a set of extents that contains all the data for a logical storage structure within a tablespace. For example, Oracle Database allocates one or more extents to form the data segment for a table. The database also allocates one or more extents to form the index segment for a table.

By default, the database uses automatic segment space management (ASSM) for permanent, locally managed tablespaces. When a session first inserts data into a table, the database formats a bitmap block. The bitmap tracks the blocks in the segment. The database uses the bitmap to find free blocks and then formats each block before writing to it. ASSM spread out inserts among blocks to avoid concurrency issues.

The high water mark (HWM) is the point in a segment beyond which data blocks are unformatted and have never been used. Below the HWM, a block may be formatted and written to, formatted and empty, or unformatted. The low high water mark (low HWM) marks the point below which all blocks are known to be formatted because they either contain data or formerly contained data.

During a full table scan, the database reads all blocks up to the low HWM, which are known to be formatted, and then reads the segment bitmap to determine which blocks between the HWM and low HWM are formatted and safe to read. The database knows not to read past the HWM because these blocks are unformatted.

Every row in a heap-organized table has a rowid unique to this table that corresponds to the physical address of a row piece. A rowid is a 10-byte physical address of a row.

The rowid points to a specific file, block, and row number. For example, in the rowid AAAPecAAFAAAABSAAA, the final AAA represents the row number. The row number is an index into a row directory entry. The row directory entry contains a pointer to the location of the row on the block.

The database can sometimes move a row in the bottom part of the block. For example, if row movement is enabled, then the row can move because of partition key updates, Flashback Table operations, shrink table operations, and so on. If the database moves a row within a block, then the database updates the row directory entry to modify the pointer. The rowid stays constant.

Oracle Database uses rowids internally for the construction of indexes. For example, each key in a B-tree index is associated with a rowid that points to the address of the associated row. Physical rowids provide the fastest possible access to a table row, enabling the database to retrieve a row in as little as a single I/O.

In a direct path read, the database reads buffers from disk directly into the PGA, bypassing the SGA entirely. Figure 8-1 shows the difference between scattered and sequential reads, which store buffers in the SGA, and direct path reads.

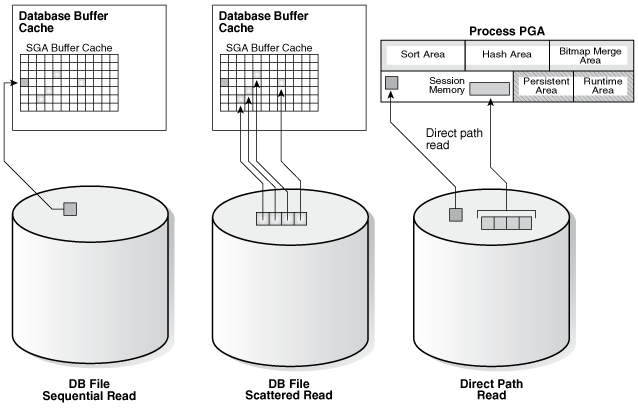

Figure 8-1 Direct Path Reads

Description of "Figure 8-1 Direct Path Reads"

Situations in which Oracle Database may perform direct path reads include:

• Execution of a CREATE TABLE AS SELECT statement

• Execution of an ALTER REBUILD or ALTER MOVE statement

• Reads from a temporary tablespace

• Parallel queries

• Reads from a LOB segment

In general, the optimizer chooses a full table scan when it cannot use a different access path, or another usable access path is higher cost. Typical reasons for choosing a full table scan include the following:

• No index exists.

  If no index exists, then the optimizer uses a full table scan.

• The query predicate applies a function to the indexed column.

  Unless the index is a function-based index (see "Guidelines for Using Function-Based Indexes for Performance"), the database indexes the values of the column, not the values of the column with the function applied. A typical application-level mistake is to index a character column, such as char_col, and then query the column using syntax such as WHERE char_col=1. The database implicitly applies a TO_NUMBER function to the constant number 1, which prevents use of the index.

• A SELECT COUNT(*) query is issued, and an index exists, but the indexed column contains nulls.

  The optimizer cannot use the index to count the number of table rows because the index cannot contain null entries (see "B-Tree Indexes and Nulls").

• The query predicate does not use the leading edge of a B-tree index.

  For example, an index might exist on employees(first_name,last_name). If a user issues a query with the predicate WHERE last_name='KING', then the optimizer may not choose an index because column first_name is not in the predicate. However, in this situation the optimizer may choose to use an index skip scan (see "Index Skip Scans").

• The query is unselective.

  If the optimizer determines that the query requires most of the blocks in the table, then it uses a full table scan, even though indexes are available. Full table scans can use larger I/O calls. Making fewer large I/O calls is cheaper than making many smaller calls.

• The table statistics are stale.

  For example, a table was small, but now has grown large. If the table statistics are stale and do not reflect the current size of the table, then the optimizer does not know that an index is now most efficient than a full table scan. See "Introduction to Optimizer Statistics."

• The table is small.

  If a table contains fewer than n blocks under the high water mark, where n equals the setting for the DB_FILE_MULTIBLOCK_READ_COUNT initialization parameter, then a full table scan may be cheaper than an index range scan. The scan may be less expensive regardless of the fraction of tables being accessed or indexes present.

• The table has a high degree of parallelism.

  A high degree of parallelism for a table skews the optimizer toward full table scans over range scans. Query the value in the ALL_TABLES.DEGREE column in for the table to determine the degree of parallelism.

• The query uses a full table scan hint.

  The hint FULL(table alias) instructs the optimizer to use a full table scan.

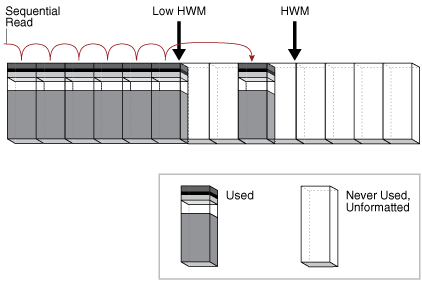

In a full table scan, the database sequentially reads every formatted block under the high water mark. The database reads each block only once. The following graphic depicts a scan of a table segment, showing how the scan skips unformatted blocks below the high water mark.

Description of the illustration cncpt371.eps

Because the blocks are adjacent, the database can speed up the scan by making I/O calls larger than a single block, known as a multiblock read. The size of a read call ranges from one block to the number of blocks specified by the DB_FILE_MULTIBLOCK_READ_COUNT initialization parameter. For example, setting this parameter to 4 instructs the database to read up to 4 blocks in a single call.

The algorithms for caching blocks during full table scans are complex. For example, the database caches blocks differently depending on whether tables are small or large.

The following statement queries salaries over 4000 in the hr.employees table:

SELECT salary
FROM   hr.employees
WHERE  salary > 4000;

SQL_ID  54c20f3udfnws, child number 0
-------------------------------------
select salary from hr.employees where salary > 4000

Plan hash value: 3476115102

-------------------------------------------------------------------------------
| Id  | Operation         | Name      | Rows  | Bytes | Cost (%CPU)| Time     |
-------------------------------------------------------------------------------
|   0 | SELECT STATEMENT  |           |       |       |     3 (100)|          |
|*  1 |  TABLE ACCESS FULL| EMPLOYEES |    98 |  6762 |     3   (0)| 00:00:01 |
-------------------------------------------------------------------------------

Predicate Information (identified by operation id):
---------------------------------------------------

   1 - filter("SALARY">4000)

In most cases, the database accesses a table by rowid after a scan of one or more indexes. However, table access by rowid need not follow every index scan. If the index contains all needed columns, then access by rowid might not occur (see "Index Fast Full Scans").

To access a table by rowid, the database performs the following steps:

1. Obtains the rowids of the selected rows, either from the statement WHERE clause or through an index scan of one or more indexes

   Table access may be needed for columns in the statement not present in the index.

2. Locates each selected row in the table based on its rowid

Assume run the following query:

SELECT *
FROM   employees
WHERE  employee_id > 190;

Step 2 of the following plan shows a range scan of the emp_emp_id_pk index on the hr.employees table. The database uses the rowids obtained from the index to find the corresponding rows from the employees table, and then retrieve them. The BATCHED access shown in Step 1 means that the database retrieves a few rowids from the index, and then attempts to access rows in block order to improve the clustering and reduce the number of times that the database must access a block.

--------------------------------------------------------------------------------
|Id| Operation                           | Name     |Rows|Bytes|Cost(%CPU)|Time|
--------------------------------------------------------------------------------
| 0| SELECT STATEMENT                    |             |  |    |2(100)|        |
| 1|  TABLE ACCESS BY INDEX ROWID BATCHED|EMPLOYEES    |16|1104|2  (0)|00:00:01|
|*2|   INDEX RANGE SCAN                  |EMP_EMP_ID_PK|16|    |1  (0)|00:00:01|
--------------------------------------------------------------------------------

Predicate Information (identified by operation id):
---------------------------------------------------

   2 - access("EMPLOYEE_ID">190)

The database uses a sample table scan when a statement FROM clause includes either of the following clauses:

• SAMPLE (sample_percent)

  The database reads a specified percentage of rows in the table to perform a sample table scan.

• SAMPLE BLOCK (sample_percent)

  The database reads a specified percentage of table blocks to perform a sample table scan.

The sample_percent specifies the percentage of the total row or block count to include in the sample. The value must be in the range .000001 up to, but not including, 100. This percentage indicates the probability of each row, or each cluster of rows in block sampling, being selected for the sample. It does not mean that the database retrieves exactly sample_percent of the rows.

Example 8-2 uses a sample table scan to access 1% of the employees table, sampling by blocks instead of rows.

SELECT * FROM hr.employees SAMPLE BLOCK (1);

-------------------------------------------------------------------------
| Id  | Operation            |  Name       | Rows  | Bytes | Cost (%CPU)|
-------------------------------------------------------------------------
|   0 | SELECT STATEMENT     |             |     1 |    68 |     3  (34)|
|   1 |  TABLE ACCESS SAMPLE | EMPLOYEES   |     1 |    68 |     3  (34)|
-------------------------------------------------------------------------

Starting in Oracle Database 12c Release 1 (12.1.0.2), the optimizer cost model is fully aware of the content of the IM column store. When a user executes a query that references a table in the IM column store, the optimizer calculates the cost of all possible access methods—including the in-memory table scan—and selects the access method with the lowest cost.

The following database initialization parameters affect the in-memory features:

• INMEMORY_QUERY

  This parameter enables or disables in-memory queries for the database at the session or system level. This parameter is helpful when you want to test workloads with and without the use of the IM column store.

• OPTIMIZER_INMEMORY_AWARE

  This parameter enables (TRUE) or disables (FALSE) all of the in-memory enhancements made to the optimizer cost model, table expansion, bloom filters, and so on. Setting the parameter to FALSE causes the optimizer to ignore the in-memory property of tables during the optimization of SQL statements.

• OPTIMIZER_FEATURES_ENABLE

  When set to values lower than 12.1.0.2, this parameter has the same effect as setting OPTIMIZER_INMEMORY_AWARE to FALSE.

To enable or disable in-memory queries, you can specify the INMEMORY or NO_INMEMORY hints, which are the per-query equivalent of the INMEMORY_QUERY initialization parameter. If a SQL statement uses the INMEMORY hint, but the object it references is not already loaded in the IM column store, then the database does not wait for the object to be populated in the IM column store before executing the statement. However, initial access of the object triggers the object population in the IM column store.

The following example shows a query of the oe.product_information table, which has been altered with the INMEMORY HIGH option.

SELECT *
FROM   oe.product_information
WHERE  list_price > 10
ORDER BY product_id

SQL> SELECT * FROM TABLE(DBMS_XPLAN.DISPLAY_CURSOR);

SQL_ID  2mb4h57x8pabw, child number 0
-------------------------------------
select * from oe.product_information where list_price > 10 order byproduct_id

Plan hash value: 2256295385
--------------------------------------------------------------------------------------------
|Id| Operation                   | Name                |Rows|Bytes |TempSpc|Cost(%CPU)|Time|
--------------------------------------------------------------------------------------------
| 0| SELECT STATEMENT            |                     |    |      |     |21 (100)|        |
| 1|  SORT ORDER BY              |                     | 285| 62415|82000|21   (5)|00:00:01|
|*2|   TABLE ACCESS INMEMORY FULL| PRODUCT_INFORMATION | 285| 62415|     | 5   (0)|00:00:01|
--------------------------------------------------------------------------------------------

Predicate Information (identified by operation id):
---------------------------------------------------
   2 - inmemory("LIST_PRICE">10)
       filter("LIST_PRICE">10)

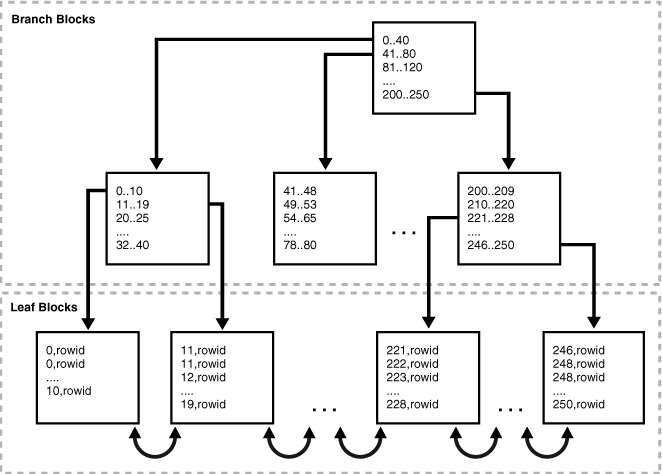

Figure 8-2 illustrates the logical structure of a B-tree index. A B-tree index has two types of blocks: branch blocks for searching and leaf blocks that store values. Branch blocks store the minimum key prefix needed to make a branching decision between two keys. The leaf blocks contain every indexed data value and a corresponding rowid used to locate the actual row. Each index entry is sorted by (key, rowid). Within a leaf block, a key and rowid is linked to its left and right sibling entries. The leaf blocks themselves are also doubly linked.

Figure 8-2 B-Tree Index Structure

Description of "Figure 8-2 B-Tree Index Structure"

Figure 8-2 shows the leaf blocks as adjacent to each other, so that the 1-10 block is next to and before the 11-19 block. This arrangement illustrates the linked lists that connect the index entries. However, index blocks need not be stored in order within an index segment. For example, the 246-250 block could appear anywhere in the segment, including directly before the 1-10 block. Because blocks can appear anywhere in the segment, ordered index scans must perform single-block I/O. The database must read a block to determine which block it must read next.

Figure 8-2 shows the index entries within an index block stored sequentially. This is true at a high level. At a low level, the index entries in the index block body are stored in a heap, just like table rows. For example, if the value 10 is inserted first into a table, then the index entry with key 10 might be inserted at the bottom of the index block, and if 0 is inserted next into the table, then the index entry for key 0 might be inserted on top of the entry for 10, and so on. Thus, the index entries in the block body are not stored in key order. However, within the index block, the row header stores records in key order. For example, the first record in the header points to the index entry with key 0, and so on sequentially up to the record that points to the index entry with key 10. Thus, index scans can read the row header to determine where to begin and end range scans, avoiding the necessity of reading every entry in the block.

Figure 8-2 shows a nonunique index. In a nonunique index, the database stores the rowid by appending it to the key as an extra column with a length byte to make the key unique. For example, the first index key in Figure 8-2 is the pair 0,rowid and not simply 0. The database sorts the data by index key values and then by rowid ascending. For example, the entries are sorted as follows:

0,AAAPvCAAFAAAAFaAAa
0,AAAPvCAAFAAAAFaAAg
0,AAAPvCAAFAAAAFaAAl
2,AAAPvCAAFAAAAFaAAm

In a unique index, the index key does not include the rowid. The database sorts the data only by the index key values, such as 0, 1, 2, and so on.

B-tree indexes never store completely null keys, which is important for how the optimizer chooses access paths. A consequence of this rule is that single-column B-tree indexes never store nulls.

An example helps illustrate. The hr.employees table has a primary key index on employee_id, and a unique index on department_id. The department_id column can contain nulls, making it a nullable column, but the employee_id column cannot.

SQL> SELECT COUNT(*) FROM employees WHERE department_id IS NULL;

  COUNT(*)
----------
         1

SQL> SELECT COUNT(*) FROM employees WHERE employee_id IS NULL;

  COUNT(*)
----------
         0

The following example shows that the optimizer chooses a full table scan for a query of all department IDs in hr.employees. The optimizer cannot use the index on employees.department_id because the index is not guaranteed to include entries for every row in the table.

SQL> EXPLAIN PLAN FOR SELECT department_id FROM employees;

Explained.

SQL> SELECT PLAN_TABLE_OUTPUT FROM TABLE(DBMS_XPLAN.DISPLAY());

PLAN_TABLE_OUTPUT
--------------------------------------------------------------------------------
Plan hash value: 3476115102

-------------------------------------------------------------------------------
| Id  | Operation         | Name      | Rows  | Bytes | Cost (%CPU)| Time     |
-------------------------------------------------------------------------------
|   0 | SELECT STATEMENT  |           |   107 |   321 |     2   (0)| 00:00:01 |
|   1 |  TABLE ACCESS FULL| EMPLOYEES |   107 |   321 |     2   (0)| 00:00:01 |
-------------------------------------------------------------------------------

8 rows selected.

The following example shows the optimizer can use the index on department_id for a query of a specific department ID because all non-null rows are indexed.

SQL> EXPLAIN PLAN FOR SELECT department_id FROM employees WHERE department_id=10;

Explained.

SQL> SELECT PLAN_TABLE_OUTPUT FROM TABLE(DBMS_XPLAN.DISPLAY());

PLAN_TABLE_OUTPUT
--------------------------------------------------------------------------------
Plan hash value: 67425611

--------------------------------------------------------------------------------
| Id| Operation        | Name              | Rows |Bytes| Cost (%CPU)| Time    |
--------------------------------------------------------------------------------

PLAN_TABLE_OUTPUT
--------------------------------------------------------------------------------
| 0 | SELECT STATEMENT |                   |   1 |   3 |     1   (0)| 00:0 0:01|
|*1 |  INDEX RANGE SCAN| EMP_DEPARTMENT_IX |   1 |   3 |     1   (0)| 00:0 0:01|
--------------------------------------------------------------------------------

Predicate Information (identified by operation id):

PLAN_TABLE_OUTPUT
--------------------------------------------------------------------------------
   1 - access("DEPARTMENT_ID"=10)

The following example shows that the optimizer chooses an index scan when the predicate excludes null values:

SQL> EXPLAIN PLAN FOR SELECT department_id FROM employees
WHERE department_id IS NOT NULL;

Explained.

SQL> SELECT PLAN_TABLE_OUTPUT FROM TABLE(DBMS_XPLAN.DISPLAY());

PLAN_TABLE_OUTPUT
--------------------------------------------------------------------------------
Plan hash value: 1590637672

--------------------------------------------------------------------------------
| Id| Operation        | Name              | Rows|Bytes| Cost (%CPU)| Time     |
--------------------------------------------------------------------------------
| 0 | SELECT STATEMENT |                   | 106 | 318 |    1   (0)| 00:0 0:01 |
|*1 |  INDEX FULL SCAN | EMP_DEPARTMENT_IX | 106 | 318 |    1   (0)| 00:0 0:01 |
--------------------------------------------------------------------------------

Predicate Information (identified by operation id):

PLAN_TABLE_OUTPUT
--------------------------------------------------------------------------------

   1 - filter("DEPARTMENT_ID" IS NOT NULL)

The database performs a unique scan when the following conditions apply:

• A query predicate references all of the columns in a unique index key using an equality operator, such as WHERE prod_id=10.

• A SQL statement contains an equality predicate on a column referenced in an index created with the CREATE UNIQUE INDEX statement.

A unique or primary key constraint is insufficient by itself to produce an index unique scan. Consider the following example, which creates a primary key constraint on a column with a non-unique index, resulting in an index range scan rather than an index unique scan:

CREATE TABLE t_table(numcol INT);
CREATE INDEX t_table_idx ON t_table(numcol);
ALTER TABLE t_table ADD CONSTRAINT t_table_pk PRIMARY KEY(numcol);
SET AUTOTRACE TRACEONLY EXPLAIN
SELECT * FROM t_table WHERE numcol = 1;

Execution Plan
----------------------------------------------------------
Plan hash value: 868081059

--------------------------------------------------------------------------------
| Id  | Operation        | Name        | Rows  | Bytes | Cost (%CPU)| Time     |
--------------------------------------------------------------------------------
|   0 | SELECT STATEMENT |             |     1 |    13 |     1   (0)| 00:00:01 |
|*  1 |  INDEX RANGE SCAN| T_TABLE_IDX |     1 |    13 |     1   (0)| 00:00:01 |
--------------------------------------------------------------------------------

Predicate Information (identified by operation id):
---------------------------------------------------
    1 - access("NUMCOL"=1)


You can use the INDEX(alias index_name) hint to specify the index to use, but not a specific type of index access path.

The scan searches the index in order for the specified key. An index unique scan stops processing as soon as it finds the first record because no second record is possible. The database obtains the rowid from the index entry, and then retrieves the row specified by the rowid.

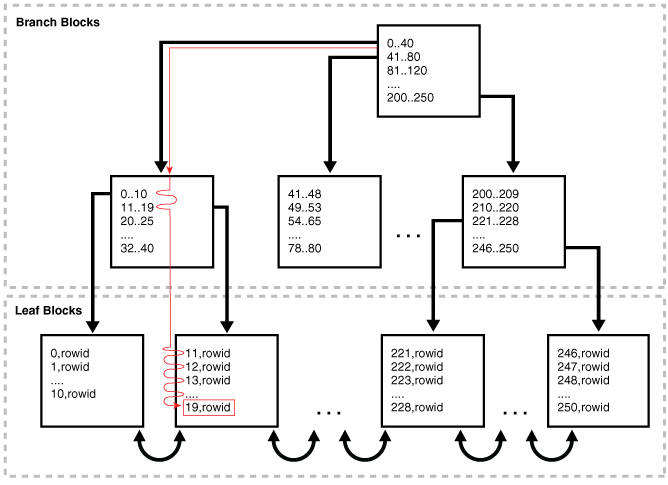

Figure 8-3 illustrates an index unique scan. The statement requests the record for product ID 19 in the prod_id column, which has a primary key index.

Figure 8-3 Index Unique Scan

Description of "Figure 8-3 Index Unique Scan"

The following statement queries the record for product 19 in the sh.products table:

SELECT *
FROM   sh.products
WHERE  prod_id=19;

Example 8-4 retrieves the plan using the DBMS_XPLAN.DISPLAY_CURSOR function. Because a primary key index exists on products.prod_id, and the WHERE clause references all of the columns using an equality operator, the optimizer chooses a unique scan.

SQL_ID  3ptq5tsd5vb3d, child number 0
-------------------------------------
select * from sh.products where prod_id = 19

Plan hash value: 4047888317

--------------------------------------------------------------------------------
| Id| Operation                   | Name        |Rows|Bytes|Cost (%CPU)|Time   |
--------------------------------------------------------------------------------
|  0| SELECT STATEMENT            |             |    |     |  1 (100)|         |
|  1|  TABLE ACCESS BY INDEX ROWID| PRODUCTS    |  1 | 173 |  1   (0)| 00:00:01|
|* 2|   INDEX UNIQUE SCAN         | PRODUCTS_PK |  1 |     |  0   (0)|         |
--------------------------------------------------------------------------------

Predicate Information (identified by operation id):
---------------------------------------------------

   2 - access("PROD_ID"=19)

The optimizer considers index range scans in the following circumstances:

• One or more leading columns of an index are specified in conditions. A condition specifies a combination of one or more expressions and logical (Boolean) operators and returns a value of TRUE, FALSE, or UNKNOWN. Examples of conditions include:

  • department_id = :id

  • department_id < :id

  • department_id > :id

  • AND combination of the preceding conditions for leading columns in the index, such as department_id > :low AND department_id < :hi.

    Note:

    For the optimizer to consider a range scan, wild-card searches of the form col1 LIKE '%ASD' must not be in a leading position.

• 0, 1, or more values are possible for an index key.

The optimizer considers an index range scan descending when an index can satisfy an ORDER BY DESCENDING clause.

If the optimizer chooses a full table scan or another index, then a hint may be required to force this access path. The INDEX(tbl_alias ix_name) and INDEX_DESC(tbl_alias ix_name) hints instruct the optimizer to use a specific index.

In general, the process is as follows:

1. Read the root block.

2. Read the branch block.

3. Alternate the following steps until all data is retrieved:

   1. Read a leaf block to obtain a rowid.

   2. Read a table block to retrieve a row.

   Note:

   In some cases, an index scan reads a set of index blocks, sorts the rowids, and then reads a set of table blocks.

Thus, to scan the index, the database moves backward or forward through the leaf blocks. For example, a scan for IDs between 20 and 40 locates the first leaf block that has the lowest key value that is 20 or greater. The scan proceeds horizontally through the linked list of leaf nodes until it finds a value greater than 40, and then stops.

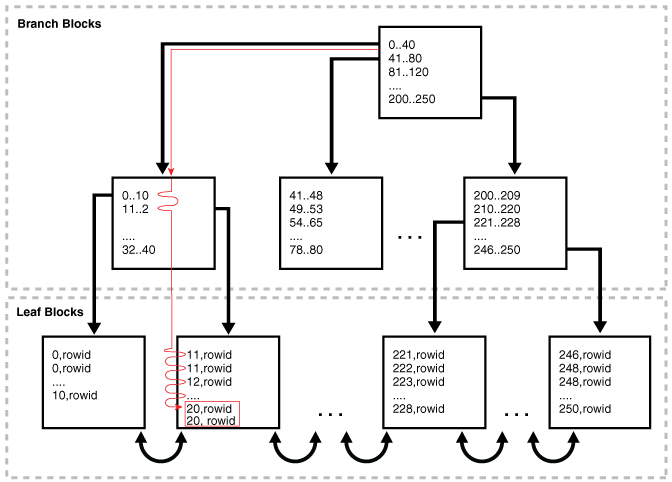

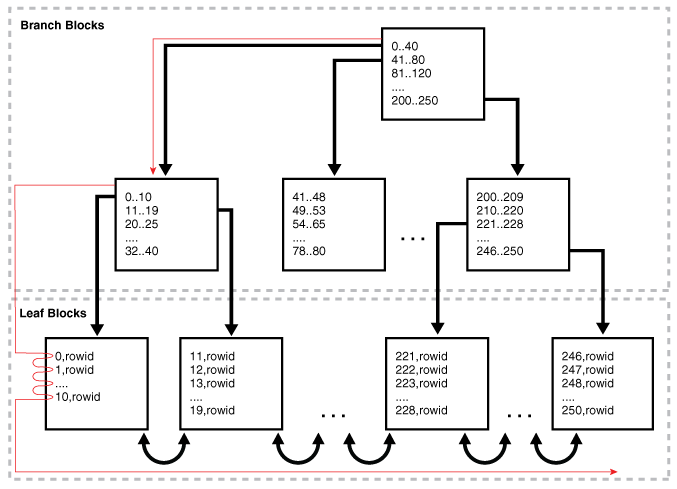

Figure 8-4 illustrates an index range scan using ascending order. A statement requests the employees records with the value 20 in the department_id column, which has a nonunique index. In this example, 2 index entries for department 20 exist.

Figure 8-4 Index Range Scan

Description of "Figure 8-4 Index Range Scan"

The following statement queries the records for employees in department 20 with salaries greater than 1000:

SELECT *
FROM   employees
WHERE  department_id = 20
AND    salary > 1000;

Example 8-5 retrieves the plan using the DBMS_XPLAN.DISPLAY_CURSOR function. This query is highly selective, so the query uses the index on the department_id column. The database scans the index, fetches the records from the employees table, and then applies the salary > 1000 filter to these fetched records to generate the result.

SQL_ID  brt5abvbxw9tq, child number 0
-------------------------------------
SELECT * FROM   employees WHERE  department_id = 20 AND    salary > 1000

Plan hash value: 2799965532

-------------------------------------------------------------------------------------------
|Id | Operation                           | Name             |Rows|Bytes|Cost(%CPU)| Time |
-------------------------------------------------------------------------------------------
| 0 | SELECT STATEMENT                    |                  |    |     | 2 (100)|        |
|*1 |  TABLE ACCESS BY INDEX ROWID BATCHED| EMPLOYEES        |  2 | 138 | 2   (0)|00:00:01|
|*2 |   INDEX RANGE SCAN                  | EMP_DEPARTMENT_IX|  2 |     | 1   (0)|00:00:01|
-------------------------------------------------------------------------------------------

Predicate Information (identified by operation id):
---------------------------------------------------

   1 - filter("SALARY">1000)
   2 - access("DEPARTMENT_ID"=20)

The following statement queries the records for employees in department 20 in descending order:

SELECT *
FROM   employees
WHERE  department_id < 20
ORDER BY department_id DESC;

Example 8-6 retrieves the plan using the DBMS_XPLAN.DISPLAY_CURSOR function. This query is selective, so the query uses the index on the department_id column. The database locates the first index leaf block that contains the highest key value that is 20 or less. The scan then proceeds horizontally to the left through the linked list of leaf nodes. The database obtains the rowid from each index entry, and then retrieves the row specified by the rowid.

SQL_ID  8182ndfj1ttj6, child number 0
-------------------------------------
SELECT * FROM   employees WHERE  department_id < 20 ORDER BY department_id DESC

Plan hash value: 1681890450
--------------------------------------------------------------------------------
|Id| Operation                    | Name           |Rows|Bytes|Cost(%CPU)|Time |
--------------------------------------------------------------------------------
| 0| SELECT STATEMENT             |                   |  |   | 2 (100)|        |
| 1|  TABLE ACCESS BY INDEX ROWID | EMPLOYEES         | 2|138| 2   (0)|00:00:01|
|*2|   INDEX RANGE SCAN DESCENDING| EMP_DEPARTMENT_IX | 2|   | 1   (0)|00:00:01|
--------------------------------------------------------------------------------

Predicate Information (identified by operation id):
---------------------------------------------------

   2 - access("DEPARTMENT_ID"<20)

Situations in which the optimizer considers an index full scan include:

• A predicate references a column in the index. This column need not be the leading column.

• No predicate is specified, but all of the following conditions are met:

  • All columns in the table and in the query are in the index.

  • At least one indexed column is not null.

• A query includes an ORDER BY on indexed non-nullable columns.

The database reads the root block, and then navigates down the left hand side of the index (or right if doing a descending full scan) until it reaches a leaf block. The database then reads across the bottom of the index, one block at a time, in sorted order. The scan uses single-block I/O rather than multiblock I/O.

Figure 8-5 illustrates an index full scan. A statement requests the departments records ordered by department_id.

Figure 8-5 Index Full Scan

Description of "Figure 8-5 Index Full Scan"

The following statement queries the ID and name for departments in order of department ID:

SELECT department_id, department_name
FROM   departments
ORDER BY department_id;

Example 8-7 retrieves the plan using the DBMS_XPLAN.DISPLAY_CURSOR function. The database locates the first index leaf block, and then proceeds horizontally to the right through the linked list of leaf nodes. For each index entry, the database obtains the rowid from the entry, and then retrieves the table row specified by the rowid. In this way, the database avoids a separate operation to sort the retrieved rows.

SQL_ID  94t4a20h8what, child number 0
-------------------------------------
select department_id, department_name from departments order by department_id

Plan hash value: 4179022242

--------------------------------------------------------------------------------
|Id | Operation                   | Name        |Rows|Bytes|Cost(%CPU)|Time    |
--------------------------------------------------------------------------------
| 0 | SELECT STATEMENT            |             |    |     | 2 (100)|          |
| 1 |  TABLE ACCESS BY INDEX ROWID| DEPARTMENTS | 27 | 432 | 2   (0)| 00:00:01 |
| 2 |   INDEX FULL SCAN           | DEPT_ID_PK  | 27 |     | 1   (0)| 00:00:01 |
--------------------------------------------------------------------------------

The optimizer considers this scan when a query only accesses attributes in the index. The INDEX_FFS(table_name index_name) hint forces a fast full index scan.

The database uses multiblock I/O to read the root block and all of the leaf and branch blocks. The databases ignores the branch and root blocks and reads the index entries on the leaf blocks.

The following statement queries the ID and name for departments in order of department ID:

SELECT /*+ INDEX_FFS(departments dept_id_pk) */ COUNT(*)
FROM   departments;

Example 8-8 retrieves the plan using the DBMS_XPLAN.DISPLAY_CURSOR function.

SQL_ID  fu0k5nvx7sftm, child number 0
-------------------------------------
select /*+ index_ffs(departments dept_id_pk) */ count(*) from departments

Plan hash value: 3940160378
----------------------------------------------------------------------------
| Id  | Operation             | Name       | Rows  | Cost (%CPU)| Time     |
----------------------------------------------------------------------------
|   0 | SELECT STATEMENT      |            |       |     2 (100)|          |
|   1 |  SORT AGGREGATE       |            |     1 |            |          |
|   2 |   INDEX FAST FULL SCAN| DEPT_ID_PK |    27 |     2   (0)| 00:00:01 |
----------------------------------------------------------------------------

The optimizer considers a skip scan when the following criteria are met:

• The leading column of a composite index is not specified in the query predicate.

  For example, if the composite index key is (cust_gender,cust_email), then the query predicate does not reference the cust_gender column.

• Few distinct values exist in the leading column of the composite index, but many distinct values exist in the nonleading key of the index.

  For example, if the composite index key is (cust_gender,cust_email), then the cust_gender column has only two distinct values, but cust_email has thousands.

Often, skip scanning index blocks is faster than scanning table blocks, and faster than performing full index scans.

An index skip scan logically splits a composite index into smaller subindexes. The number of distinct values in the leading columns of the index determines the number of logical subindexes. The lower the number, the fewer logical subindexes the optimizer must create, and the more efficient the scan becomes. The scan reads each logical index separately, and "skips" index blocks that do not meet the filter condition on the non-leading column.

The customers table contains a column cust_gender whose values are either M or F. You create a composite index on the columns (cust_gender, cust_email) as follows:

CREATE INDEX cust_gender_email_ix
  ON sh.customers (cust_gender, cust_email);

Conceptually, a portion of the index might look as follows, with the gender value of F or M as the leading edge of the index.

. . .
F,Wolf@company.example.com,rowid
F,Wolsey@company.example.com,rowid
F,Wood@company.example.com,rowid
F,Woodman@company.example.com,rowid
F,Yang@company.example.com,rowid
F,Zimmerman@company.example.com,rowid
M,Abbassi@company.example.com,rowid
M,Abbey@company.example.com,rowid
. . .

You run the following query for a customer in the sh.customers table:

SELECT *
FROM   sh.customers
WHERE  cust_email = 'Abbey@company.example.com';

The database can use a skip scan of the customers_gender_email index even though cust_gender is not specified in the WHERE clause. In the sample index, the leading column cust_gender has two possible values: F and M. The database logically splits the index into two. One subindex has the key F, with entries in the following form:

F,Wolf@company.example.com,rowid
F,Wolsey@company.example.com,rowid
F,Wood@company.example.com,rowid
F,Woodman@company.example.com,rowid
F,Yang@company.example.com,rowid
F,Zimmerman@company.example.com,rowid

The second subindex has the key M, with entries in the following form:

M,Abbassi@company.example.com,rowid
M,Abbey@company.example.com,rowid

When searching for the record for the customer whose email is Abbey@company.com, the database searches the subindex with the leading value F first, and then searches the subindex with the leading value M. Conceptually, the database processes the query as follows:

( SELECT *
  FROM   sh.customers
  WHERE  cust_gender = 'F'
  AND    cust_email = 'Abbey@company.com' )
UNION ALL
( SELECT *
  FROM   sh.customers
  WHERE  cust_gender = 'M'
  AND    cust_email = 'Abbey@company.com' )

The plan for the query is as follows:

SQL_ID  d7a6xurcnx2dj, child number 0
-------------------------------------
SELECT * FROM   sh.customers WHERE  cust_email = 'Abbey@company.example.com'

Plan hash value: 797907791

-----------------------------------------------------------------------------------------
|Id| Operation                          | Name               |Rows|Bytes|Cost(%CPU)|Time|
-----------------------------------------------------------------------------------------
| 0|SELECT STATEMENT                    |                      |  |    |10(100)|        |
| 1| TABLE ACCESS BY INDEX ROWID BATCHED| CUSTOMERS            |33|6237|  10(0)|00:00:01|
|*2|  INDEX SKIP SCAN                   | CUST_GENDER_EMAIL_IX |33|    |   4(0)|00:00:01|
-----------------------------------------------------------------------------------------

Predicate Information (identified by operation id):
---------------------------------------------------

   2 - access("CUST_EMAIL"='Abbey@company.example.com')
       filter("CUST_EMAIL"='Abbey@company.example.com')

. . .
F,Wolf@company.example.com,rowid
F,Wolsey@company.example.com,rowid
F,Wood@company.example.com,rowid
F,Woodman@company.example.com,rowid
F,Yang@company.example.com,rowid
F,Zimmerman@company.example.com,rowid
M,Abbassi@company.example.com,rowid
M,Abbey@company.example.com,rowid
. . .

The optimizer considers an index join in the following circumstances:

• A hash join of multiple indexes retrieves all data requested by the query, without requiring table access.

• The cost of retrieving rows from the table is higher than reading the indexes without retrieving rows from the table. An index join is often expensive. For example, when scanning two indexes and joining them, it is often less costly to choose the most selective index, and then probe the table.

You can specify an index join with the INDEX_JOIN(table_name) hint.

An index join involves scanning multiple indexes, and then using a hash join on the rowids obtained from these scans to return the rows. Table access is always avoided. For example, the process for joining two indexes on a single table is as follows:

1. Scan the first index to retrieve rowids.

2. Scan the second index to retrieve rowids.

3. Perform a hash join by rowid to obtain the rows.

The following statement queries the last name and email for employees whose last name begins with A, specifying an index join:

SELECT /*+ INDEX_JOIN(employees) */ last_name, email
FROM   employees
WHERE  last_name like 'A%';

Separate indexes exist on the (last_name,first_name) and email columns. Part of the emp_name_ix index might look as follows:

Banda,Amit,AAAVgdAALAAAABSABD
Bates,Elizabeth,AAAVgdAALAAAABSABI
Bell,Sarah,AAAVgdAALAAAABSABc
Bernstein,David,AAAVgdAALAAAABSAAz
Bissot,Laura,AAAVgdAALAAAABSAAd
Bloom,Harrison,AAAVgdAALAAAABSABF
Bull,Alexis,AAAVgdAALAAAABSABV

The first part of the emp_email_uk index might look as follows:

ABANDA,AAAVgdAALAAAABSABD
ABULL,AAAVgdAALAAAABSABV
ACABRIO,AAAVgdAALAAAABSABX
AERRAZUR,AAAVgdAALAAAABSAAv
AFRIPP,AAAVgdAALAAAABSAAV
AHUNOLD,AAAVgdAALAAAABSAAD
AHUTTON,AAAVgdAALAAAABSABL

Example 8-10 retrieves the plan using the DBMS_XPLAN.DISPLAY_CURSOR function. The database retrieves all rowids in the emp_email_uk index, and then retrieves rowids in emp_name_ix for last names that begin with A. The database uses a hash join to search both sets of rowids for matches. For example, rowid AAAVgdAALAAAABSABD occurs in both sets of rowids, so the database probes the employees table for the record corresponding to this rowid.

SQL_ID  d2djchyc9hmrz, child number 0
-------------------------------------
SELECT /*+ INDEX_JOIN(employees) */ last_name, email FROM   employees
WHERE  last_name like 'A%'

Plan hash value: 3719800892
-------------------------------------------------------------------------------------------
| Id  | Operation              | Name             | Rows  | Bytes | Cost (%CPU)| Time     |
-------------------------------------------------------------------------------------------
|   0 | SELECT STATEMENT       |                  |       |       |     3 (100)|          |
|*  1 |  VIEW                  | index$_join$_001 |     3 |    48 |     3  (34)| 00:00:01 |
|*  2 |   HASH JOIN            |                  |       |       |            |          |
|*  3 |    INDEX RANGE SCAN    | EMP_NAME_IX      |     3 |    48 |     1   (0)| 00:00:01 |
|   4 |    INDEX FAST FULL SCAN| EMP_EMAIL_UK     |     3 |    48 |     1   (0)| 00:00:01 |
-------------------------------------------------------------------------------------------

Predicate Information (identified by operation id):
---------------------------------------------------
   1 - filter("LAST_NAME" LIKE 'A%')
   2 - access(ROWID=ROWID)
   3 - access("LAST_NAME" LIKE 'A%')

Table 8-2 shows the differences among types of index entries.

101,AAAPvCAAFAAAAFaAAa

Smith,AAAPvCAAFAAAAFaAAa

M,low-rowid,high-rowid,1000101010101010

The database stores a bitmap index in a B-tree structure (see "Bitmap Storage"). The database can search the B-tree quickly on the first part of the key, which is the set of attributes on which the index is defined, and then obtain the corresponding rowid range and bitmap.

Bitmap indexes are suitable for low cardinality data that is infrequently modified. Data has low cardinality when the number of distinct values in a column is low in relation to the total number of rows.

Through compression techniques, these indexes can generate many rowids with minimal I/O. Bitmap indexes provide especially useful access paths in queries that contain the following:

• Multiple conditions in the WHERE clause

  Before the table itself is accessed, the database filters out rows that satisfy some, but not all, conditions.

• AND and OR operations on low cardinality columns

  Combining bitmap indexes on low cardinality columns makes these operations more efficient. The database can combine bitmaps from bitmap indexes very quickly. For example, if bitmap indexes exist on the cust_gender and cust_marital_status columns of customers, then these indexes can enormously improve the performance of the following query:

  SELECT *
  FROM   customers
  WHERE  cust_gender = 'M'
  AND    cust_marital_status = 'single'


• The COUNT function

  The database can scan the index without needing to scan the table.

• Predicates that select for null values

  Unlike B-tree indexes, bitmap indexes can contain nulls. Queries that count the number of nulls in a column can use the index without needing to scan the table.

For a particular value in a bitmap, the value is 1 if the row values match the bitmap condition, and 0 if it does not. Based on these values, the database uses an internal algorithm to map bitmaps onto rowids.

The bitmap entry contains the indexed value, the rowid range (start and end rowids), and a bitmap. Each 0 or 1 value in the bitmap is an offset into the rowid range, and maps to a potential row in the table, even if the row does not exist. Because the number of possible rows in a block is predetermined, the database can use the range endpoints to determine the rowid of an arbitrary row in the range.

Table 8-3 shows part of a sample bitmap for the sh.customers.cust_marital_status column, which is nullable. The actual index has 12 distinct values. Only 3 are shown in the sample: null, married, and single.

As shown in Table 8-3, bitmap indexes can include keys that consist entirely of null values, unlike B-tree indexes. In Table 8-3, the null has a value of 1 for the 6th row in the range, which means that the cust_marital_status value is null for the 6th row in the range. Indexing nulls can be useful for some SQL statements, such as queries with the aggregate function COUNT.

A bitmap join index is a bitmap index for the join of two or more tables. The optimizer can use a bitmap join index to reduce or eliminate the volume of data that must be joined during plan execution. Bitmap join indexes can be much more efficient in storage than materialized join views.

The following example creates a bitmap index on the sh.sales and sh.customers tables:

CREATE BITMAP INDEX cust_sales_bji ON sales(c.cust_city)
  FROM sales s, customers c
  WHERE c.cust_id = s.cust_id LOCAL;

The FROM and WHERE clause in the preceding CREATE statement represent the join condition between the tables. The customers.cust_city column is the index key.

Each key value in the index represents a possible city in the customers table. Conceptually, key values for the index might look as follows, with one bitmap associated with each key value:

San Francisco   0 0 0 1 0 1 0 0 0 1 0 0 0 0 0 . . .
San Mateo       0 1 0 0 0 0 0 0 1 0 0 0 0 0 1 . . .
Smithville      1 0 0 0 1 0 0 1 0 0 1 0 1 0 0 . . .
.
.
.

Each bit in a bitmap corresponds to one row in the sales table. In the Smithville key, the value 1 means that the first row in the sales table corresponds to a product sold to a Smithville customer, whereas the value 0 means that the second row corresponds to a product not sold to a Smithville customer.

Consider the following query of the number of separate sales to Smithville customers:

SELECT COUNT (*)
FROM sales s, customers c
WHERE c.cust_id = s.cust_id
AND c.cust_city = 'Smithville';

The following plan shows that the database reads the Smithville bitmap to derive the number of Smithville sales (Step 4), thereby avoiding the necessity of joining customers and sales to obtain the results.

SQL_ID  57s100mh142wy, child number 0
-------------------------------------
SELECT COUNT (*) FROM sales s, customers c WHERE c.cust_id = s.cust_id AND c.cust_city =
'Smithville'

Plan hash value: 3663491772

--------------------------------------------------------------------------------------------
|Id| Operation                    | Name         |Rows|Bytes|Cost (%CPU)| Time|Pstart|Pstop|
--------------------------------------------------------------------------------------------
| 0| SELECT STATEMENT             |                |     |    |29 (100)|          |   |    |
| 1|  SORT AGGREGATE              |                |   1 |   5|        |          |   |    |
| 2|   PARTITION RANGE ALL        |                | 1708|8540|29   (0)| 00:00:01 | 1 | 28 |
| 3|    BITMAP CONVERSION COUNT   |                | 1708|8540|29   (0)| 00:00:01 |   |    |
|*4|     BITMAP INDEX SINGLE VALUE| CUST_SALES_BJI |     |    |        |          | 1 | 28 |
--------------------------------------------------------------------------------------------

Predicate Information (identified by operation id):
---------------------------------------------------

   4 - access("S"."SYS_NC00008$"='Smithville')

A bitmap index resides in a B-tree structure, using branch blocks and leaf blocks just as in a B-tree. For example, if the customers.cust_marital_status column has 12 distinct values, then one branch block might point to the keys married,rowid-range and single,rowid-range, another branch block might point to the widowed,rowid-range key, and so on. Alternatively, a single branch block could point to a leaf block containing all 12 distinct keys.

Each indexed column value may have one or more bitmap pieces, each with its own rowid range occupying a contiguous set of rows in one or more extents. The database can use a bitmap piece to break up an index entry that is large relative to the size of a block. For example, the database could break a single index entry into three pieces, with the first two pieces in separate blocks in the same extent, and the last piece in a separate block in a different extent.

The optimizer uses a conversion whenever it retrieves a row from a table using a bitmap index entry.

Table 8-3 represents the bitmap conceptually as a table with customers row numbers as columns and cust_marital_status values as rows. Each field in Table 8-3 has the value 1 or 0, and represents a column value in a row. Conceptually, the bitmap conversion uses an internal algorithm that says, "Field F in the bitmap corresponds to the Nth row of the Mth block of the table," or "The Nth row of the Mth block in the table corresponds to field F in the bitmap."

A query of the sh.customers table selects the names of all customers born before 1918:

SELECT cust_last_name, cust_first_name
FROM   customers
WHERE  cust_year_of_birth < 1918;

The following plan shows that the database uses a range scan to find all key values less than 1918 (Step 3), converts the 1 values in the bitmap to rowids (Step 2), and then uses the rowids to obtain the rows from the customers table (Step 1):

---------------------------------------------------------------------------------------------
|Id| Operation                           | Name             |Rows|Bytes|Cost(%CPU)| Time    |
---------------------------------------------------------------------------------------------
| 0| SELECT STATEMENT                    |                  |    |     |421 (100)|          |
| 1|  TABLE ACCESS BY INDEX ROWID BATCHED| CUSTOMERS        |3604|68476|421   (1)| 00:00:01 |
| 2|   BITMAP CONVERSION TO ROWIDS       |                  |    |     |         |          |
|*3|    BITMAP INDEX RANGE SCAN          | CUSTOMERS_YOB_BIX|    |     |         |          |
---------------------------------------------------------------------------------------------

Predicate Information (identified by operation id):
---------------------------------------------------
   3 - access("CUST_YEAR_OF_BIRTH"<1918)
       filter("CUST_YEAR_OF_BIRTH"<1918)

The optimizer considers this access path when the predicate contains an equality operator.

The query scans a single bitmap for positions containing a 1 value. The database converts the 1 values into rowids, and then uses the rowids to find the rows.

A query of the sh.customers table selects all widowed customers:

SELECT *
FROM   customers
WHERE  cust_marital_status = 'Widowed'

The following plan shows that the database reads the entry with the Widowed key in the customers bitmap index (Step 3), converts the 1 values in the bitmap to rowids (Step 2), and then uses the rowids to obtain the rows from the customers table (Step 1):

SQL_ID  ff5an2xsn086h, child number 0
-------------------------------------
SELECT * FROM customers WHERE cust_marital_status = 'Widowed'

Plan hash value: 2579015045
---------------------------------------------------------------------------------------------
|Id| Operation                           | Name                |Rows|Bytes|Cost (%CPU)| Time|
---------------------------------------------------------------------------------------------
| 0| SELECT STATEMENT                    |                     |    |    |412 (100)|        |
| 1|  TABLE ACCESS BY INDEX ROWID BATCHED|CUSTOMERS            |3461|638K|412   (2)|00:00:01|
| 2|   BITMAP CONVERSION TO ROWIDS       |                     |    |    |         |        |
|*3|    BITMAP INDEX SINGLE VALUE        |CUSTOMERS_MARITAL_BIX|    |    |         |        |
---------------------------------------------------------------------------------------------

Predicate Information (identified by operation id):
---------------------------------------------------

   3 - access("CUST_MARITAL_STATUS"='Widowed')

The optimizer considers this access path when the predicate selects a range of values (see "Index Range Scans").

This scan works similarly to a B-tree range scan (see "Index Range Scans").

A query of the sh.customers table selects the names of customers born before 1918:

SELECT cust_last_name, cust_first_name
FROM   customers
WHERE  cust_year_of_birth < 1918

The following plan shows that the database obtains all bitmaps for cust_year_of_birth keys lower than 1918 (Step 3), converts the bitmaps to rowids (Step 2), and then fetches the rows (Step 1):

SQL_ID  672z2h9rawyjg, child number 0
-------------------------------------
SELECT cust_last_name, cust_first_name FROM   customers WHERE
cust_year_of_birth < 1918

Plan hash value: 4198466611
---------------------------------------------------------------------------------------------
|Id| Operation                           | Name              |Rows|Bytes|Cost(%CPU)|Time    |
---------------------------------------------------------------------------------------------
| 0| SELECT STATEMENT                    |                   |    |     |421 (100)|         |
| 1|  TABLE ACCESS BY INDEX ROWID BATCHED| CUSTOMERS         |3604|68476|421   (1)|00:00:01 |
| 2|   BITMAP CONVERSION TO ROWIDS       |                   |    |     |         |         |
|*3|    BITMAP INDEX RANGE SCAN          | CUSTOMERS_YOB_BIX |    |     |         |         |
---------------------------------------------------------------------------------------------

Predicate Information (identified by operation id):
---------------------------------------------------
   3 - access("CUST_YEAR_OF_BIRTH"<1918)
       filter("CUST_YEAR_OF_BIRTH"<1918)

The optimizer typically uses a bitmap merge to combine bitmaps generated from an index range scan.

A merge uses an OR operation between two bitmaps. The resulting bitmap selects all rows from the first bitmap, plus all rows from every subsequent bitmap.

The following example shows sample bitmaps for three customers.cust_year_of_birth keys: 1917, 1916, and 1915. If any position in any bitmap has a 1, then the merged bitmap has a 1 in the same position. Otherwise, the merged bitmap has a 0.

1917     1 0 1 0 0 0 0 0 0 0 0 0 0 1
1916     0 1 0 0 0 0 0 0 0 0 0 0 0 0
1915     0 0 0 0 0 0 0 0 1 0 0 0 0 0
------------------------------------
merged:  1 1 1 0 0 0 0 0 1 0 0 0 0 1

A query of the sh.customers table selects the names of female customers born before 1918:

SELECT cust_last_name, cust_first_name
FROM   customers
WHERE  cust_gender = 'F'
AND    cust_year_of_birth < 1918

The following plan shows that the database obtains all bitmaps for cust_year_of_birth keys lower than 1918 (Step 6), and then merges these bitmaps to create a single bitmap (Step 5), obtains a single bitmap for the cust_gender key of F (Step 4), and then performs an AND operation on these two bitmaps to generate a single bitmap that contains 1 values for the desired rows (Step 3):

SQL_ID  1xf59h179zdg2, child number 0
-------------------------------------
select cust_last_name, cust_first_name from customers where cust_gender
= 'F' and cust_year_of_birth < 1918

Plan hash value: 49820847
---------------------------------------------------------------------------------------------
|Id| Operation                           | Name               |Rows|Bytes|Cost(%CPU)| Time  |
---------------------------------------------------------------------------------------------
| 0| SELECT STATEMENT                    |                    |    |     |288 (100)|        |
| 1|  TABLE ACCESS BY INDEX ROWID BATCHED|CUSTOMERS           |1802|37842|288   (1)|00:00:01|
| 2|   BITMAP CONVERSION TO ROWIDS       |                    |    |     |         |        |
| 3|    BITMAP AND                       |                    |    |     |         |        |
|*4|     BITMAP INDEX SINGLE VALUE       |CUSTOMERS_GENDER_BIX|    |     |         |        |
| 5|     BITMAP MERGE                    |                    |    |     |         |        |
|*6|      BITMAP INDEX RANGE SCAN        |CUSTOMERS_YOB_BIX   |    |     |         |        |
---------------------------------------------------------------------------------------------

Predicate Information (identified by operation id):
---------------------------------------------------
   4 - access("CUST_GENDER"='F')
   6 - access("CUST_YEAR_OF_BIRTH"<1918)
       filter("CUST_YEAR_OF_BIRTH"<1918)

The database considers a cluster scan when a query accesses a table in an indexed cluster.

In an indexed cluster, the database stores all rows with the same cluster key value in the same data block. For example, if the hr.employees2 and hr.departments2 tables are clustered in emp_dept_cluster, and if the cluster key is department_id, then the database stores all employees in department 10 in the same block, all employees in department 20 in the same block, and so on.

The B-tree cluster index associates the cluster key value with the database block address (DBA) of the block containing the data. For example, the index entry for key 30 shows the address of the block that contains rows for employees in department 30:

30,AADAAAA9d

When a user requests rows in the cluster, the database scans the index to obtain the DBAs of the blocks containing the rows. Oracle Database then locates the rows based on these DBAs.

As user hr, you create a table cluster, cluster index, and tables in the cluster as follows:

CREATE CLUSTER employees_departments_cluster
   (department_id NUMBER(4)) SIZE 512;

CREATE INDEX idx_emp_dept_cluster
   ON CLUSTER employees_departments_cluster;

CREATE TABLE employees2
   CLUSTER employees_departments_cluster (department_id)
   AS SELECT * FROM employees;
 CREATE TABLE departments2
   CLUSTER employees_departments_cluster (department_id)
   AS SELECT * FROM departments;

You query the employees in department 30 as follows:

SELECT *
FROM   employees2
WHERE  department_id = 30

To perform the scan, Oracle Database first obtains the rowid of the row describing department 30 by scanning the cluster index (Step 2). Oracle Database then locates the rows in employees using this rowid (Step 1).

SQL_ID  b7xk1jzuwdc6t, child number 0
-------------------------------------
SELECT * FROM employees2 WHERE department_id = 30

Plan hash value: 49826199

--------------------------------------------------------------------------------
|Id| Operation            | Name               |Rows|Bytes|Cost(%CPU)| Time    |
--------------------------------------------------------------------------------
| 0| SELECT STATEMENT     |                    |    |     |   2 (100)|         |
| 1|  TABLE ACCESS CLUSTER| EMPLOYEES2         |  6 | 798 |   2   (0)| 00:00:01|
|*2|   INDEX UNIQUE SCAN  |IDX_EMP_DEPT_CLUSTER|  1 |     |   1   (0)| 00:00:01|
--------------------------------------------------------------------------------

Predicate Information (identified by operation id):
---------------------------------------------------

   2 - access("DEPARTMENT_ID"=30)

The database considers a hash scan when a query accesses a table in a hash cluster.

In a hash cluster, all rows with the same hash value are stored in the same data block. To perform a hash scan, Oracle Database first obtains the hash value by applying a hash function to a cluster key value specified by the statement. Oracle Database then scans the data blocks containing rows with that hash value.

You create a hash cluster and tables in the cluster as follows:

CREATE CLUSTER employees_departments_cluster
   (department_id NUMBER(4)) SIZE 8192 HASHKEYS 100;

CREATE TABLE employees2
   CLUSTER employees_departments_cluster (department_id)
   AS SELECT * FROM employees;

CREATE TABLE departments2
   CLUSTER employees_departments_cluster (department_id)
   AS SELECT * FROM departments;

You query the employees in department 30 as follows:

SELECT *
FROM   employees2
WHERE  department_id = 30

To perform a hash scan, Oracle Database first obtains the hash value by applying a hash function to the key value 30, and then uses this hash value to scan the data blocks and retrieve the rows (Step 1).

SQL_ID  919x7hyyxr6p4, child number 0
-------------------------------------
SELECT * FROM employees2 WHERE department_id = 30

Plan hash value: 2399378016

----------------------------------------------------------------
| Id  | Operation         | Name       | Rows  | Bytes | Cost  |
----------------------------------------------------------------
|   0 | SELECT STATEMENT  |            |       |       |     1 |
|*  1 |  TABLE ACCESS HASH| EMPLOYEES2 |    10 |  1330 |       |
----------------------------------------------------------------

Predicate Information (identified by operation id):
---------------------------------------------------

   1 - access("DEPARTMENT_ID"=30)
