8 Configuring Factors

Accessing the Create Factors Page

The Create Factors page enables you to create the factor through a series of pages, starting with a general definition of the factor that you want to create.

1. From Cloud Control, log into Oracle Database Vault Administrator as a user who has been granted the DV_OWNER or DV_ADMIN role.

   "Logging into Oracle Database Vault" explains how to log in.

2. In the Administration page, under Database Vault Components, click Factors.

3. In the Factors page, click Create to display the Create Factor page.


   Description of the illustration create_factor.gif



4. Starting with the General page, enter the following information, clicking Next to go to each subsequent page, and then clicking Done and Finish when the factor definition is complete.

   • Completing the General Page for Factor Creation

   • Configurations Page for Factor Creation

   • Options Page of Factor Creation

   • Creating and Configuring a Factor Identity

Completing the General Page for Factor Creation

In the General page, you must enter general identifying information for the factor, such as its name.

• In the General page, enter the following information:

  • Name: Enter a name up to 28 characters in mixed-case, without spaces. Oracle Database Vault creates a valid Oracle identifier for the factor function to be created in the DVF schema based on the name of the factor chosen. For example, if you create a factor named GetNetworkIP, Oracle Database Vault creates the DVF.F$GETNETWORKIP function. This attribute is mandatory.

    Oracle suggests that you start the name with a noun and complete the name with a brief description of the derived value.

    "Oracle Database Vault DVF PL/SQL Factor Functions" describes the DVF factor functions.

  • Description: Enter a text description of the factor. It can have up to 1024 characters in mixed-case. This attribute is optional.

  • Factor Type: From the list, select the type or category of the factor. This attribute is mandatory.

    Factor types have a name and description and are used only to help classify factors. A factor type is the category name used to classify the factor. The default physical factor types include authentication method, host name, host IP address, instance identifiers, database account information, and others. You can create user-defined factor types, such as application name, certificate information, and so on in addition to the installed factor types, such as time and authentication method.

    You can find the factors that are associated with a particular factor type by querying the DBA_DV_FACTOR data dictionary view. For example:

    SELECT NAME FROM DVSYS.DBA_DV_FACTOR
    WHERE FACTOR_TYPE_NAME='Authentication Method';


    The output is:

    NAME
    ------------------------------
    Network_Protocol
    Authentication_Method
    Identification_Type


Configurations Page for Factor Creation

The Configurations page enables you to define settings such as the factor's identification, the evaluation method, the Oracle Label Security labeling, the retrieval method, and the validation method for the factor.

Topics:

• "Setting the Factor Identification Information"

• "How Factor Identities Work"

• "Setting the Evaluation Information for a Factor"

• "Setting the Oracle Label Security Labeling Information for a Factor"

• "Setting the Retrieval Method for a Factor"

• "How Retrieval Methods Work"

• "Setting the Validation Method for a Factor"

CONNECT leo_dvowner
Enter password: password

SELECT DVF.F$DATABASE_IP FROM DUAL;

SELECT DVF.F$DATABASE_IP FROM DUAL;

F$DATABASE_IP
-------------------------------------------------------------
192.0.2.1

SELECT GET_FACTOR('DATABASE_IP') FROM DUAL;

GET_FACTOR('DATABASE_IP')
-------------------------------------------------------------
192.0.2.1

UPPER(SYS_CONTEXT('USERENV','DB_NAME'))

FUNCTION GET_FACTOR RETURN VARCHAR2

Options Page of Factor Creation

The Options page enables you to assign a rule set to a factor, set error options, and if you are not using unified auditing, set audit options.

Topics:

• Assigning a Rule Set to a Factor

• Setting Error Options for a Factor

• Setting Audit Options for a Factor

• How Factor Auditing Works

BEGIN
 DVSYS.SET_FACTOR('GEO_STATE','VIRGINIA');
END;

About Factor Identities

An identity is the actual value of the factor. For example, the identity of an IP_Address factor could be the IP address of 192.0.2.4.

A factor identity for a given database session is assigned at run time using the Factor Identification and Retrieval Method fields described in "Creating a Factor". You can further configure the identity for the following reasons:

• To define the known identities for a factor

• To add a trust level to a factor identity

• To add an Oracle Label Security label to a factor identity

• To resolve a factor identity through its child factors, by using identity mapping

About Trust Levels

Trust levels enable you to assign a numeric value to indicate the measure of trust allowed.

A trust value of 1 signifies some trust. A higher value indicates a higher level of trust. A negative value or zero indicates distrust. When the factor identity returned from a factor retrieval method is not defined in the identity, Oracle Database Vault automatically assigns the identity a negative trust level.

To determine the trust level of a factor identity at run time, you can use the GET_TRUST_LEVEL and GET_TRUST_LEVEL_FOR_IDENTITY functions in the DVSYS schema.

For example, suppose you have created a factor named Network. You can create the following identities for the Network factor:

• Intranet, with a trust level of 10

• VPN (virtual private network), with a trust level of 5

• Public, with a trust level of 1

You then can create rule expressions (or custom application code) that base policy decisions on the trust level. For example, you can use DVSYS.GET_TRUST_LEVEL to find trust levels greater than 5:

DVSYS.GET_TRUST_LEVEL('Network') > 5

Or, you can use a SELECT statement on the DVSYS.DBA_DV_IDENTITY data dictionary view to find trust levels for the Network factor greater than or equal to 5:

SELECT VALUE, TRUST_LEVEL FROM DVSYS.DBA_DV_IDENTITY
   WHERE TRUST_LEVEL >= 5
   AND FACTOR_NAME='Network'

Output similar to the following appears:

F$NETWORK GET_TRUST_LEVEL('NETWORK')
------------------------------------
VPN                                5
INTRANET                          10

In the preceding example, Network factor identity for VPN is trusted (value equals 5), and the identity for the INTRANET domain is 10, which implies a greater trust.

See Chapter 13, "Oracle Database Vault Realm APIs," for more information about the Oracle Database Vault factor-related functions.

About Label Identities

You can assign Oracle Label Security (OLS) labels to factor identities.

In brief, a label acts as an identifier for a database table row to assign privileges to the row. For more information about labels, see Oracle Label Security Administrator's Guide. The Factor Labeling attribute for a factor determines whether a factor is labeled By Self or By Factors. If you set the Factor Labeling attribute to By Self, then you can associate OLS labels with the factor identities. If you set the Factor Labeling attribute to By Factors, then Oracle Database Vault derives the factor identity labels from the labeling of child factor identities. When there are multiple child factor identities with labels, Oracle Database Vault merges the labels using the OLS algorithm associated with the applicable factor Oracle Label Security policy.

Creating and Configuring a Factor Identity

You can create and configure a factor identity in Oracle Database Vault Administrator.

1. From Cloud Control, log into Oracle Database Vault Administrator as a user who has been granted the DV_OWNER or DV_ADMIN role.

   "Logging into Oracle Database Vault" explains how to log in.

2. In the Administration page, under Database Vault Components, click Factors.

3. From the list, select the factor with which you want to create an identity, and then click Edit.

   The General page appears.

4. Click Next until you reach the Identities page.

5. Select Add New Identity.

   The Add New Identity and Mapping window appears.


   Description of the illustration factor_identity.gif



6. In the Identity subpage, enter the following values:

   • Value: Enter the value of the identity, up to 1024 characters in mixed-case. This attribute is mandatory.

   • Trust Level: Select one of the following trust levels:

     • Very Trusted: Assigns a trust level value of 10

     • Trusted: Assigns a trust level value of 5

     • Somewhat Trusted: Assigns a trust level value of 1

     • Untrusted: Assigns a trust level value of -1

     • Trust Level Not Defined: Assigns a trust level value of NULL (default)

     See "About Trust Levels" for detailed information about trust levels.

   • Label Identity: Optionally, select from the list of available Oracle Label Security policies and then click the Move button to move them to the Selected OLS Policies list.

     The list shows data labels from the Oracle Label Security installation for your site. For more information, refer to Oracle Label Security Administrator's Guide.

     See "About Label Identities" for detailed information about label identities.

7. Click OK to return to the Create Factors : Identities page.

8. Click Done, and then click Finish.

Deleting a Factor Identity

If you want to delete a factor identity, you can locate the various references to it by querying the factor-related Oracle Database Vault views.

See Chapter 22, "Oracle Database Vault Data Dictionary Views," for more information.

1. In the Edit Factor page, click Next until you reach the Identities page.

2. Select the factor identity that you want to remove.

3. Click Remove.

4. Click Done, then click Finish.

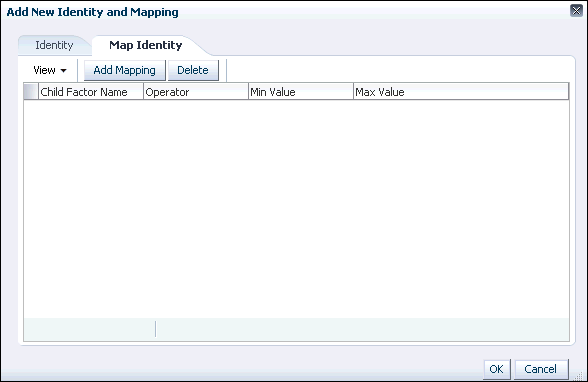

Using Identity Mapping to Configure an Identity to Use Other Factors

You can use identity mapping as a way of using a group of factors to manage a set of discrete identity values.

Topics:

• About Identity Mapping

• Mapping an Identity to a Factor

How Factors Are Processed When a Session Is Established

Oracle Database Vault evaluates the factors based on when a session begins.

When a database session is established, the following actions occur:

1. At the start of each database session, Oracle Database Vault begins to evaluate all default and user-created factors in the database instance.

   This evaluation occurs after the normal database authentication of the session and the initialization of the Oracle Label Security session information, if applicable.

2. In the factor evaluation stage, the factor initialization process executes the retrieval method for all factors that are identified by methods or constants, to resolve the factor identity for the session.

   The factor error options setting has no effect on the factor initialization process.

3. If a factor has a validation method defined, Oracle Database Vault validates the identity (value) of the factor by executing this validation method. If the validation method fails or returns false, the identity of the factor is undefined (NULL).

4. If a factor has any identities defined for it, Oracle Database Vault resolves the trust level of the factor based on the identities defined. If an identity of the factor is defined in this list of defined identities, then Oracle Database Vault assigns the trust level as configured; otherwise it sets it to -1. If there are no identities defined for the factor, the trust level is undefined (NULL).

5. Depending on the outcome of this factor evaluation, factor validation, and trust level resolution, Database Vault audits the details of the evaluation as dictated by the factor audit configuration.

6. When the evaluation of all factors that are identified by method or constant completes, Oracle Database Vault resolves the factors that are identified by other factors by using the identity maps that are defined for the factor configured identities.

   The evaluation order of the factor-configured identities is by ASCII sort on the identity values: Oracle Database Vault uses the first alphabetically sorted identity mapping that it evaluates. For example, suppose factor TEST has identities X and Y. Furthermore, identities X and Y have identity maps that are dependent on identities for factors A, B, and C. The following mapping occurs:

   • X is mapped when A=1 and B=1

   • Y is mapped when A=1, B=1, and C=2

   In this case, the first one evaluated is X. Y is not evaluated, but what if its C mapping meets the criteria that is needed for the TEST factor's success? You would need to reverse the mapping, that is, map Y before X so that A, B, and C can be evaluated first. To reverse the mapping, rename Y to V (or some alphabetic value that sorts before X) so that it can be correctly resolved.

   This algorithm works if the ASCII sort ordering is correct and the identities map the same number factors at some level.

7. When the factor initialization completes, the Oracle Database Vault integration with Oracle Label Security occurs.

After this process completes, Oracle Database Vault checks to see if a command rule is associated with the CONNECT event. If a rule set associated with the CONNECT event, then Oracle Database Vault evaluates the rule set. If the rule set evaluates to false or results in an error, then the session is terminated. Oracle Database Vault executes any auditing or call handlers associated with the rule set before the session is terminated.

How Factors Are Retrieved

You can retrieve a factor in a database session at any time by using the DVF factor function or the DVSYS.GET_FACTOR function.

To find a listing of available factors, query the DVS.DBA_DV_FACTOR data dictionary view, described in"DVSYS.DBA_DV_FACTOR View".

Example 8-1 shows an example of using the DVSYS.GET_FACTOR function.

SELECT GET_FACTOR('client_ip') FROM DUAL;

You can use the factor values retrieved from the DVF factor function or the DVSYS.GET_FACTOR in the following ways:

• Oracle Database Vault rule expressions

• Custom application code that is available to all database sessions in an Oracle Database Vault environment

"Oracle Database Vault DVF PL/SQL Factor Functions" describes DVF factor functions in detail.

If you had set the factor evaluation to By Session, then Oracle Database Vault retrieves the value from the session context established, as described under "How Factors Are Processed When a Session Is Established".

If you had set the factor evaluation to By Access, then Oracle Database Vault performs Step 2 through Step 5 (or Step 6), as described under "How Factors Are Processed When a Session Is Established", whenever the factor is retrieved.

If you had defined error options for the factor and if an error occurs, then Oracle Database Vault displays the error message.

How Factors Are Set

You can have a factor identity assigned at any time during a database session, but only if you have defined a factor assignment rule set and that rule set evaluates to true.

You can do this in the application code by using the DVSYS.SET_FACTOR function. In Java code, you can use the JDBC class java.sql.CallableStatement to set this value. For example:

java.sql.Connection connection ;
...
java.sql.CallableStatement statement =
   connection.prepareCall("{call DVSYS.SET_FACTOR('FACTOR_X', ?)}");
statement.setString(1, "MyValue");
boolean result = statement.execute();
...

Applications that can execute Oracle PL/SQL functions can use this procedure (for example, applications written using Oracle Data Provider for .NET (ODP.NET)).

This concept is similar to the standard Oracle DBMS_SESSION.SET_IDENTIFIER procedure with an added feature that a rule set controls when a factor value can be set. If the rule set evaluates to true, Steps 2 through 5 under "How Factors Are Processed When a Session Is Established" occur.

If you have not associated a assignment rule set for the factor or if the rule set returns false (or returns errors), then Oracle Database Vault sends an error message if you attempt to set the factor using the DVSYS.SET_FACTOR function.

About This Tutorial

Many database applications contain features to explicitly control the actions of a user.

However, an ad hoc query tool, such as SQL*Plus, may not have these controls. As a result, a user could use an ad hoc tool to perform actions in the database that he or she would normally be prevented from performing in a database application. You can use a combination of Oracle Database Vault factors, rule sets, and command rules to prevent unauthorized access to the database by ad hoc query tools.

In the following tutorial, you prevent users HR and OE from using SQL*Plus. To accomplish this, you must create a factor to find the applications on your system and a rule and rule set to limit SQL*Plus to these four users. Then you create a command rule for the CONNECT SQL statement, which is associated with the rule set. This factor, Client_Prog_Name, uses the CLIENT_PROGRAM_NAME attribute of the SYS_CONTEXT SQL function USERENV namespace to find the names of the applications that are used to access the current instance of Oracle Database. The SYS_CONTEXT SQL function provides many useful methods for finding the state of a user session. SYS_CONTEXT is a valuable tool for creating custom factors.

Step 1: Enable the HR and OE User Accounts

You must use the HR and OE accounts later on when you test the Oracle Database Vault components for this tutorial, so ensure that this account is active.

1. Log into the database instance as a user who has been granted the DV_ACCTMGR role.

   For example:

   sqlplus bea_dvacctmgr
   Enter password: password


2. In a multitenant environment, connect to the appropriate pluggable database (PDB).

   For example:

   CONNECT bea_dvacctmgr@hrpdb
   Enter password: password


   To find the available PDBs, query the DBA_PDBS data dictionary view. To check the current PDB, run the show con_name command.

3. Check the status of the HR account.

   SELECT USERNAME, ACCOUNT_STATUS FROM DBA_USERS WHERE USERNAME = 'HR';


4. If the HR account is expired and locked, then enter the following statement to make it active:

   ALTER USER HR ACCOUNT UNLOCK IDENTIFIED BY password;


   Replace password with a password that is secure. See Oracle Database Security Guide for the minimum requirements for creating passwords.

5. Repeat these steps for the OE account.

Step 2: Create the Factor

After you have ensured that the HR and OE accounts are active, you can create a factor.

1. Connect as a user who has been granted the DV_OWNER or DV_ADMIN role.

   For example:

   CONNECT leo_dvowner --Or, CONNECT leo_dvowner@hrpdb
   Enter password: password


2. Create the factor.

   BEGIN
    DBMS_MACADM.CREATE_FACTOR(
     factor_name       => 'Client_Prog_Name',
     factor_type_name  => 'Application',
     description       => 'Stores client program name that connects to database',
     rule_set_name     => NULL,
     validate_expr     => NULL,
     get_expr          => 'UPPER(SYS_CONTEXT(''USERENV'',''CLIENT_PROGRAM_NAME''))',
     identify_by       => DBMS_MACUTL.G_IDENTIFY_BY_METHOD,
     labeled_by        => DBMS_MACUTL.G_LABELED_BY_SELF,
     eval_options      => DBMS_MACUTL.G_EVAL_ON_SESSION,
     audit_options     => DBMS_MACUTL.G_AUDIT_ON_GET_ERROR,
     fail_options      => DBMS_MACUTL.G_FAIL_SILENTLY);
   END;
   /


   In this specification:

   • factor_type_name specifies that this is an application-based factor.

   • get_expr defines the expression for the factor. This expression calls the SYS_CONTEXT function, using the USERENV namespace and CLIENT_PROGRAM_NAME attribute, to find the programs that are logged into the Oracle database.

   • identify_by identifies the factor by method.

   • labeled_by labels the identities for the factor directly from the labels associated with an Oracle Label Security policy (default).

   • eval_options evaluates the factor when the database session is created.

   • audit_options audits if get_expr returns an error.

   • fail_silently does not show any error messages for the factor.

Step 3: Create the Rule Set and Rules

After you have created the factor, you can create a rule set and rules to work with the factor.

1. Create the Limit SQL*Plus Access rule set as follows:

   BEGIN
    DBMS_MACADM.CREATE_RULE_SET(
     rule_set_name    => 'Limit SQL*Plus Access',
     description      => 'Limits access to SQL*Plus for Apps Schemas',
     enabled          => DBMS_MACUTL.G_YES,
     eval_options     => DBMS_MACUTL.G_RULESET_EVAL_ANY,
     audit_options    => DBMS_MACUTL.G_RULESET_AUDIT_OFF,
     fail_options     => DBMS_MACUTL.G_RULESET_FAIL_SHOW,
     fail_message     => 'SQL*Plus access not allowed for Apps Schemas',
     fail_code        => 20461,
     handler_options  => DBMS_MACUTL.G_RULESET_HANDLER_OFF,
     handler          => NULL,
     is_static        => FALSE);
   END;
   /


   In this specification:

   • fail_options enables an error message, set by fail_message, and error code, set by fail_code, to appear if there are errors.

   • is_static evaluates the rule set once during the user session. After that, the value is re-used.

2. Find the exact settings for the computer on which you want to apply the policy, based on what the CLIENT_PROGRAM_NAME attribute will return.

   SELECT SYS_CONTEXT('USERENV', 'CLIENT_PROGRAM_NAME') FROM DUAL;


   The output should be similar to the following:

   SYS_CONTEXT('USERENV','CLIENT_PROGRAM_NAME')
   ---------------------------------------------------------------
   sqlplus@nemosity (TNS V1-V3)


   For this tutorial, the name of the computer is nemosity. The (TN V1-V3) output refers to the version of the TNS connector.

3. Create the following rules.

   BEGIN
    DBMS_MACADM.CREATE_RULE(
     rule_name  => 'Prevent Apps Schemas Access to SQL*Plus',
     rule_expr  =>'UPPER (DVF.F$CLIENT_PROG_NAME) != ''SQLPLUS@NEMOSITY (TNS V1-V3)'' AND DVF.F$SESSION_USER IN (''HR'', ''OE'')');
   END;
   /
   BEGIN
    DBMS_MACADM.CREATE_RULE(
     rule_name  => 'Allow Non-Apps Schemas Access to SQL*Plus',
     rule_expr  =>'DVF.F$SESSION_USER NOT IN (''HR'', ''OE'')');
   END;
   /


   The rules translate to the following: "Prevent users HR and OE from logging into SQL*Plus, but allow other users access."

4. Add the rules to the Limit SQL*Plus Access rule set.

   BEGIN
    DBMS_MACADM.ADD_RULE_TO_RULE_SET(
     rule_set_name => 'Limit SQL*Plus Access',
     rule_name     => 'Prevent Apps Schemas Access to SQL*Plus',
     rule_order    => 1);
   END;
   /
   BEGIN
    DBMS_MACADM.ADD_RULE_TO_RULE_SET(
     rule_set_name => 'Limit SQL*Plus Access',
     rule_name     => 'Allow Non-Apps Schemas Access to SQL*Plus',
     rule_order    => 1);
   END;
   /


   The rule_order setting is required to enable the procedure to work.

Step 4: Create the CONNECT Command Rule

The CONNECT command rule controls the CONNECT SQL statement. It also applies to logging into SQL*Plus from the command line or other tools your site may use to access SQL*Plus.

• Create the CONNECT command rule as follows:

  BEGIN
   DBMS_MACADM.CREATE_COMMAND_RULE(
    command         => 'CONNECT',
    rule_set_name   => 'Limit SQL*Plus Access',
    object_owner    => '%',
    object_name     => '%',
    enabled         => DBMS_MACUTL.G_YES);
  END;
  /


In this specification:

• rule_set_name associates the Limit SQL*Plus Access rule set with the CONNECT command rule.

• object_owner is set to % so that the command rule applies to all users.

• object_name is set to % so that the command rule applies to all objects.

• enabled enables the command rule so that it can be used right away.

Step 5: Test the Ad Hoc Tool Access Restriction

You have been logged in to SQL*Plus all along, but note that you do not need to restart your SQL*Plus session in order for the Oracle Database Vault changes to take effect. They take effect right away.

1. In SQL*Plus, try to connect as user HR:

   CONNECT HR --Or, CONNECT HR@hrpdb
   Enter password: password


   The following output should appear:

   ERROR:
   ORA-47306: 20461: Limit SQL*Plus Access rule set failed


   User HR should be prevented from using SQL*Plus.

2. Next, try to connect as user OE:

   CONNECT OE --Or, CONNECT OE@hrpdb
   Enter password: password


   The following output should appear:

   ERROR:
   ORA-47306: 20461: Limit SQL*Plus Access rule set failed


   User OE also should be prevented from using SQL*Plus.

3. Now try to connect as user SYSTEM:

   CONNECT SYSTEM --Or, CONNECT SYSTEM@hrpdb
   Enter password: password
   Connected.


   User SYSTEM should be able to log into the database instance. So should SYS, the Database Vault Owner account, and the Database Vault Account Manager account.

If the Test Fails

If you cannot log into the database instance as SYSTEM (or as any of the other administrative users listed in your rule expression), then you are prevented from using SQL*Plus.

You can remedy the problem as follows:

1. Log into the database instance as a user who has been granted the DV_OWNER or DV_ADMIN role.

   For example:

   CONNECT dbv_owner --Or, CONNECT dbv_owner@hrpdb for a PDB
   Enter password: password


2. Enter the following statement to drop the CONNECT command rule.

   EXEC DBMS_MACADM.DELETE_COMMAND_RULE ('CONNECT', '%', '%');


   Even though you have disabled Oracle Database Vault, you still can use its PL/SQL Packages and Database Vault Administrator.

3. Check the policy components for any errors and then correct them. Recreate the CONNECT command rule, and then test it.

Step 6: Remove the Components for This Tutorial

You can remove the components that you created for this tutorial if you no longer need them.

1. Remove the CONNECT command rule.

   EXEC DBMS_MACADM.DELETE_COMMAND_RULE ('CONNECT', '%', '%');


2. Remove the Client_Prog_Name factor.

   EXEC DBMS_MACADM.DELETE_FACTOR('Client_Prog_Name');


3. Remove the Limit SQL*Plus Access rule set.

   EXEC DBMS_MACADM.DELETE_RULE_SET('Limit SQL*Plus Access');


4. Remove the rules.

   EXEC DBMS_MACADM.DELETE_RULE('Prevent Apps Schemas Access to SQL*Plus');
   EXEC DBMS_MACADM.DELETE_RULE('Allow Non-Apps Schemas Access to SQL*Plus');


5. If necessary, as a user who has been granted the DBV_ACCTMGR role, lock the HR and OE accounts.

   CONNECT bea_dvacctmgr --Or, CONNECT amalcolumn_dbacctmgr@hrpdb
   Enter password: password

   ALTER USER HR ACCOUNT LOCK;
   ALTER USER OE ACCOUNT LOCK;


About This Tutorial

You can use factor identity mapping to set session-based user restrictions for database activities. For example, suppose you wanted to restrict administrative access to a database using the following criteria:

• Ensure that the administrator is accessing the database from the correct IP address.

• Limit the database access to the standard business hours of the administrator.

This type of configuration is useful for restricting different types of administrators: not only local, internal administrators, but offshore and contract administrators as well.

In this tutorial, you modify the Domain factor to include identities for a secure and non-secure network access, which are based on the IP address of the computer the administrator is using. If the administrator tries to perform an action outside the standard working hours or from a different IP address, then Oracle Database Vault prevents him from doing so.

Step 1: Create an Administrative User

Before you can use this tutorial, you must create an administrative user.

1. In SQL*Plus, log in as a user who has been granted the DV_ACCTMGR role, and then create the user account mwaldron.

   For example:

   sqlplus bea_dvacctmgr
   Enter password: password

   CREATE USER mwaldron IDENTIFIED BY password;


   Replace password with a password that is secure. See Oracle Database Security Guide for the minimum requirements for creating passwords.

2. In a multitenant environment, connect to the appropriate PDB.

   For example:

   CONNECT bea_dvacctmgr@hrpdb
   Enter password: password


   To find the available PDBs, query the DBA_PDBS data dictionary view. To check the current PDB, run the show con_name command.

3. Connect as a user who privileges to grant the CREATE SESSION privilege and the DBA role, and then grant user mwaldron these privileges. This user must also be authorized as an owner of the Oracle System Privilege and Role Management realm.

   For example:

   CONNECT dba_psmith -- Or, CONNECT dba_psmith@hrpdb
   Enter password: password

   GRANT CREATE SESSION, DBA TO mwaldron;


Step 2: Add Identities to the Domain Factor

Next, you must add identities to the Domain factor, which is a default factor.

1. From Cloud Control, log into Oracle Database Vault Administrator as a user who has been granted the DV_OWNER or DV_ADMIN role and the SELECT ANY DICTIONARY system privilege.

   "Logging into Oracle Database Vault" explains how to log in.

2. In the Administration page, under Database Vault Components, click Factors.

   The Factors page appears.

3. Select the Show Oracle defined Factors check box to display the default factors.

4. Select the Domain factor and then select Edit.

   The Domain factor will be the parent factor.

5. Click the Next button until you reach the Identities page.

6. Select the Add New Identity button.

7. In the Identity tab of the Add New Identity and Mapping page, enter the following information:

   • Value: Enter HIGHLY SECURE INTERNAL NETWORK

   • Trust Level: Select Very Trusted

8. Click OK.

9. Repeat these steps to create a second identity called NOT SECURE, and then set its trust level to Untrusted.


   Description of the illustration add_identities_tutorial.gif



Step 3: Map the Domain Factor Identities to the Client_IP Factor

After you have added identities to the domain factory, you can map them to the Client_IP factor, which is a default factor.

1. In Identities page, select the HIGHLY SECURE INTERNAL NETWORK identity and then select Edit.

2. In the Add New Identity and Mapping window, select the Map Identity subpage.

3. Select the Map Identity tab, and then select Add Mapping.

4. In the Add New Identity Mapping page, enter the following information:

   • Child Factor: Select Client_IP to be the child factor.

   • Operator: Select Equal.

   • Min Value: Enter the IP address for the Virtual Machine (for example, 192.0.2.12). (This is the computer that user mwaldron uses. For this tutorial, you can enter the IP address of your own computer. If you are using Microsoft Windows, use the IP address assigned to the Loopback Adapter.)

   • Max Value: Leave this field empty.

5. Click OK, and then click OK again to return to the Identities page.

6. Create the following two identity maps for the NOT SECURE identity, by editing this identity:

   	Child Factor	Operator	Min Value	Max Value
   	Client_IP	Less	192.0.2.5	(Leave blank)
   	Client_IP	Greater	192.0.2.20	(Leave blank)




   The identity maps in the NOT SECURE identity are in a range of IP addresses outside the IP address that user mwaldron uses (192.0.2.12). The IP addresses here must be in any range outside mwaldron's IP address.

   This identity mapping creates the following condition: If the user logs in from the correct IP address, then Oracle Database Vault decides that the connection is secure, through the HIGHLY SECURE INTERNAL NETWORK identity. However, if the user logs in from an IP address that is less than 192.0.2.5 or greater than 192.0.2.20, then the connection is deemed not secure, through the NO SECURE identity.

7. Click OK.

8. Click Done, and then click Finish.

9. Test the factor identities.

   First, in SQL*Plus, connect as user mwaldron but do not specify a database instance.

   CONNECT mwaldron -- Or, CONNECT mwaldron@hrpdb
   Enter password: password

   SELECT DVF.F$CLIENT_IP FROM DUAL;


   The following output should appear:

   F$CLIENT_IP
   -------------------------------------


   Next:

   SELECT DVF.F$DOMAIN FROM DUAL;


   The following output should appear:

   F$DOMAIN
   -------------------------------------
   NOT SECURE


   Because user mwaldron is not connecting directly to the database instance, Oracle Database Vault does not recognize the IP address from which he is connecting. In this case, Oracle Database uses the IPC protocol to perform the connection, which sets the IP value to null. Therefore, the identity for this connection is set to NOT SECURE.

   Now connect to SQL*Plus by specifying the database instance (for example, orcl), and then check the factor identities again:

   CONNECT mwaldron@orcl
   Enter password: password

   SELECT DVF.F$CLIENT_IP FROM DUAL;


   The following output should appear:

   F$CLIENT_IP
   -------------------------------------
   192.0.2.12


   Next:

   SELECT DVF.F$DOMAIN FROM DUAL;


   The following output should appear:

   F$DOMAIN
   -------------------------------------
   HIGHLY SECURE INTERNAL NETWORK


   Now that user mwaldron is connecting to the orcl database instance, his IP address is recognized. This is because the database uses the TCP protocol, so now the host IP value can be populated appropriately. Because the IP address is within the correct range, the factor identity is set to HIGHLY SECURE INTERNAL NETWORK.

Step 4: Create a Rule Set to Set the Hours and Select the Factor Identity

You must create a rule set to work with the factor that you modified.

1. In the Administration page, under Database Vault Components, select Rule Sets.

2. In the Rule Sets page, select Create.

3. In the Create Rule Set page, enter the following settings:

   • Name: Enter Internal DBA Standard Working Hours.

   • Status: Select Enabled.

   • Evaluation Options: Select All True.

   Leave the remaining settings at their defaults.

4. Click Next to display the Rules Associated with Rule Sets page.

5. Select Create Rule.

6. In the Create Rule window, enter the following settings:

   • Name: Internal DBA

   • Expression: DVF.F$SESSION_USER='MWALDRON'

     (When you create an expression with a user name, enter the user name in upper case letters, because that is how the database stores user names.)

7. Click OK.

8. Use the Add Existing Rule pages to create the following additional rules:

   • Name: Internal Network Only

     Rule Expression: DVF.F$DOMAIN='HIGHLY SECURE INTERNAL NETWORK'

   • Name: Week Day

     Rule Expression: TO_CHAR(SYSDATE, 'D') BETWEEN '2' AND '6'

   • Name: Week Working Day Hours

     Rule Expression: TO_CHAR(SYSDATE, 'HH24') BETWEEN '08' AND '19'

9. Click Done, and then click Finish.

Step 5: Create a Command Rule That Uses the Rule Set

You must create a command rule that uses the rule set that you created.

1. In the Administration page, select Command Rules.

2. In the Command Rules page, select Create.

3. In the Create Command Rule page, enter the following settings:

   • Command: Select CREATE TABLE from the list.

   • Status: Select Enabled.

   • Applicable Object Owner: Ensure it is set to % (the default).

   • Applicable Object Name: Ensure it is set to % (the default).

   • Evaluating Rule Set: Select Internal DBA Standard Working Hours from the list.

4. Click OK.

Step 6: Test the Factor Identity Settings

Test the settings by resetting the system clock, logging in as the mwaldron administrative user, and then trying to create a table.

1. Set the system time to 9 p.m.

   UNIX: Log in as root and use the date command to set the time. For example, assuming the date today is August 15, 2013, you would enter the following:

   su root
   Password: password

   date --set="15 AUG 2013 21:00:00"


   Windows: Double-click the clock icon, which is typically at the lower right corner of the screen. In the Date and Time Properties window, set the time to 9 p.m., and then click OK.

2. In SQL*Plus, connect as user mwaldron and try to create a table. In the following, replace orcl with the name of your database instance.

   CONNECT mwaldron@orcl
   Enter password: password

   CREATE TABLE TEST (num number);


   The following output should appear:

   ORA-47400: Command Rule violation for create table on MWALDRON.TEST


   Because user mwaldron is create a table outside working hours, Database Vault prevents him.

3. Reset the system time back to the local time.

4. In SQL*Plus, as user mwaldron, try to create the table again.

   CREATE TABLE TEST (num number);

   Table created.

   DROP TABLE TEST;
   Table dropped.


   Now that user mwaldron is working during his local hours and from the IP address associated with the HIGHLY SECURE INTERNAL NETWORK identity, he can create tables.

5. Reconnect as user mwaldron but without adding the database instance name to the connection command, and then try to create the table again.

   CONNECT mwaldron -- Or, CONNECT mwaldron@hrpdb
   Enter password: password

   CREATE TABLE TEST (num number);


   The following output should appear:

   ORA-47400: Command Rule violation for create table on MWALDRON.TEST


   Even though user mwaldron is trying to create a table during the correct time, he cannot because is not directly logged in to the orcl database instance. Oracle Database Vault deems him to be using the NOT SECURE identity, and then denies him access.

Step 7: Remove the Components for This Tutorial

You can remove the components that you created for this tutorial if you no longer need them.

1. Log into the database instance as the DV_ACCTMGR user and drop user mwaldron.

   sqlplus bea_dvacctmgr -- Or, CONNECT bea_dvacctmgr@hrpdb
   Enter password: password

   DROP USER mwaldron CASCADE;


2. Remove the CREATE TABLE command rule.

   Return the Administration page and select Command Rules. Select the CREATE TABLE command rule and then click Delete. In the Confirmation window, select Yes.

3. Remove the Internal DBA Standard Working Hours rule set.

   Select Rule Sets in the Administration page. In the Rule Sets page, select the Internal DBA Standard Working Hours rule set, and then select Delete. In the Confirmation window, select the Remove rules associated with the rule set check box, and then select Yes.

4. Remove the rules that were associated with the Internal DBA Standard Working Hours rule set.

   Select Rules in the Administration page. In the Rules page, select the Internal DBA, Internal Network Only, Week Day, and Week Day Working Hours rules, and then select Delete. Select Yes in the Confirmation window.

5. Remove the HIGHLY SECURE INTERNAL NETWORK and NOT SECURE factor identities from the Domain factor.

   In the Administration page and select Factors. Select the Domain factor, select Edit. Click Next until you reach the Identities page. Select the HIGHLY SECURE INTERNAL NETWORK and NOT SECURE factor identities and click Remove to remove each one. (Hold the Control key down to select multiple items.) In the Confirmation window, select Yes. Click Done, and then click Finish.
